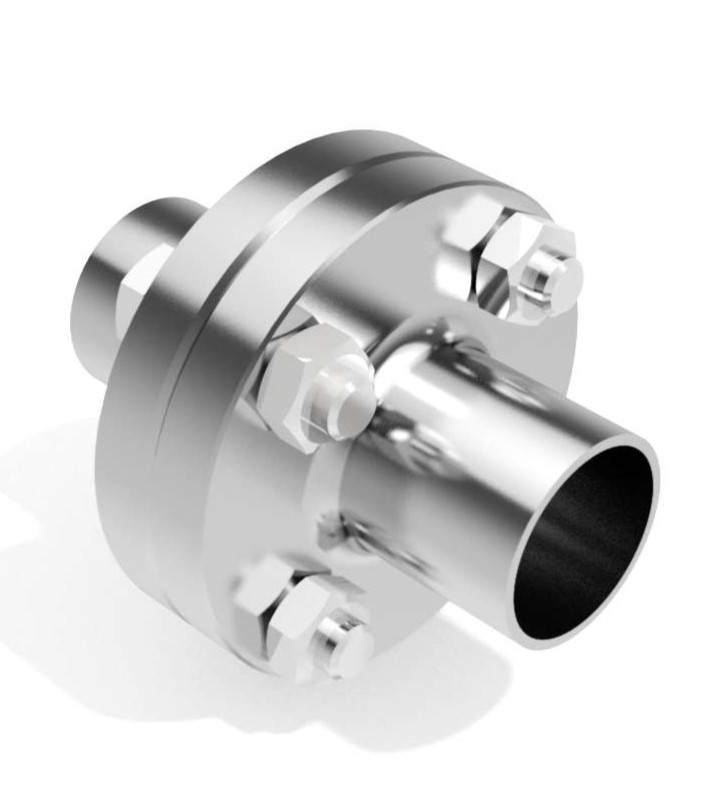

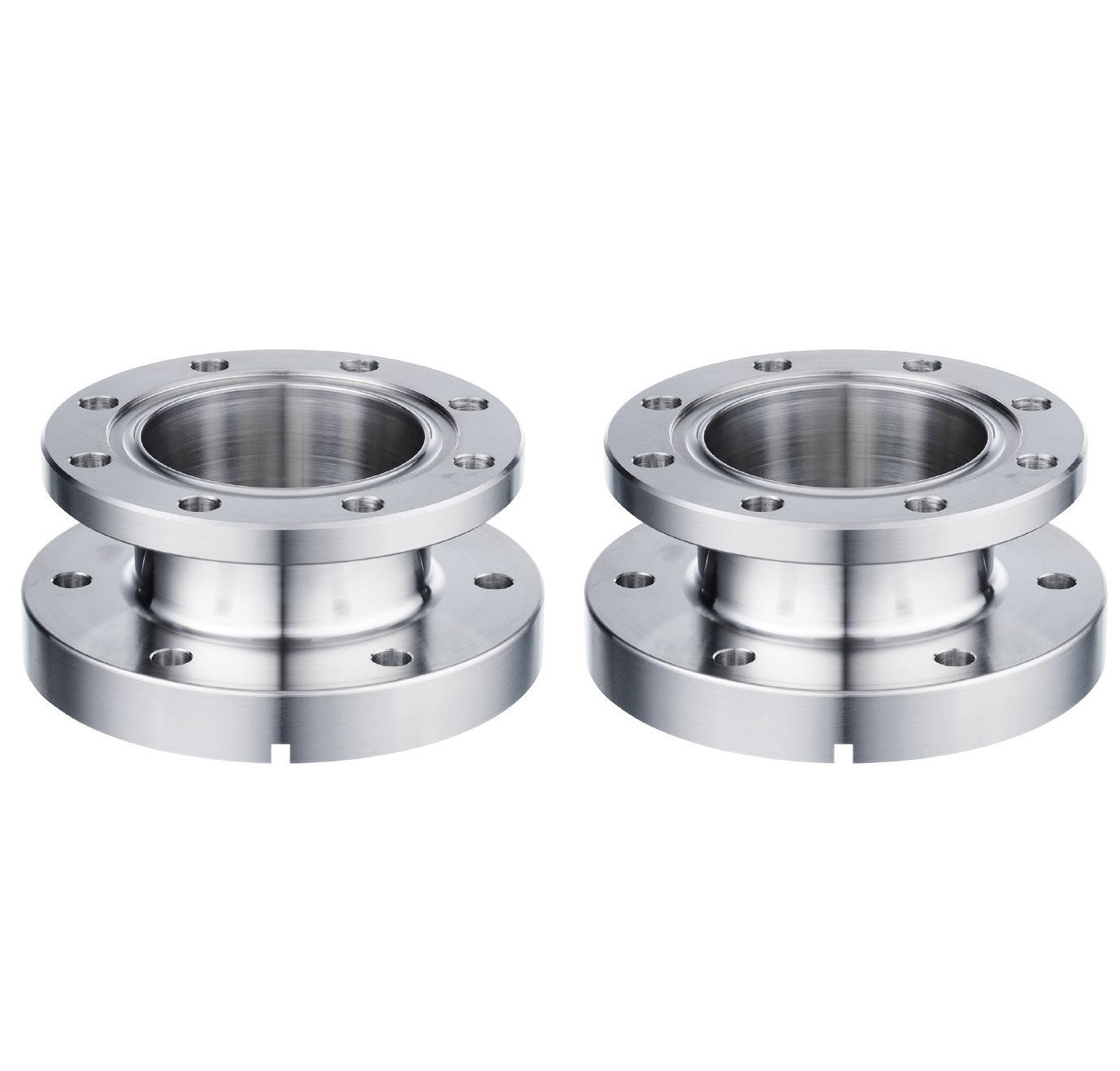

DIN 11864-2 Aseptic Flange Union

Application

This range of aseptic fittings has been developed by the German hygienic industry to meet the exacting needs of the food, chemical and pharmaceutical industries.

Three designs of pipe fittings have been tailored to accept 2 different styles of aseptic seals that effect a smooth interface within the pipe work whilst simultaneously achieving a metal to metal seat behind the joint.

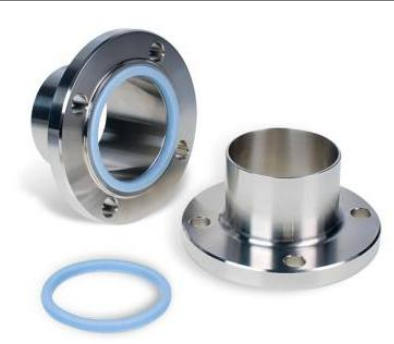

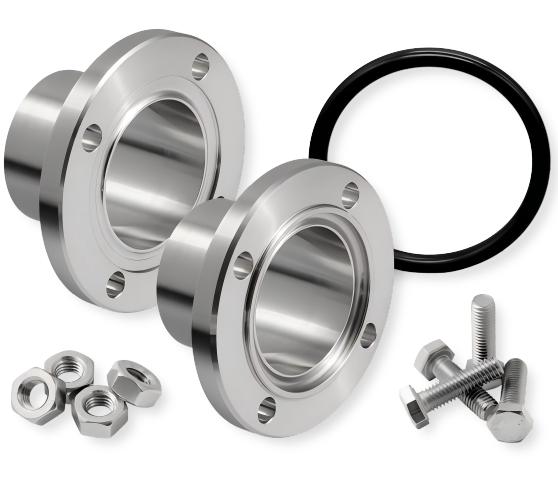

The seal sections used are referenced as “Form A” and “Form B” and both have distinctive profiles that are easily recognised. Form A is an O Ring Joint whilst Form B is a 2-part Square seal with a secondary internal diamond section.

SPECIFICATION

Size Range: DN10 - DN100
Material: SS316L

Standard Design

• Standards: DIN 11866 / 11850, ISO1127

• Size available: DN10-DN100

Related Standards:

• DIN 11864-1 Form A - Aseptic Screwed Union

• DIN 11864-2 Form A -  Aseptic Flange Union

• DIN 11864-3 Form A -  Aseptic Tri-Clamp Union

Nut Flange DIN 11864-2 Form A (DIN)

	Model	Size	A/mm	B/mm	C/mm	D/mm	E/mm	L/mm	N.W./g
	FLA2320206S2	DN10	10	13	54	37	4x⌀9	41.5	160
	FLA2320156S2	DN15	16	19	59	42	4x⌀9	41.5	200
	FLA2320206S2	DN20	20	23	64	47	4x⌀9	41.5	230
	FLA2320256S2	DN25	26	29	70	53	4x⌀9	41.5	270
	FLA2320326S2	DN32	32	35	76	59	4x⌀9	46.5	320
	FLA2320406S2	DN40	38	41	82	65	4x⌀9	46.5	360
	FLA2320506S2	DN50	50	53	94	77	4x⌀9	46.5	440
	FLA2320656S1	DN65	66	70	113	95	8x⌀9	55.5	630
	FLA2320806S1	DN80	81	85	133	112	8x⌀11	59.5	940
	FLA2321006S1	DN100	100	104	159	137	8x⌀11	59.5	1460
	FLA2321256S1	DN125	125	129	183	161	8x⌀11	61.5	1750
	FLA2321506S1	DN150	150	154	213	188	8x⌀14	61.5	2440

Nut Flange DIN11864-2 Form A  (3A)

	Model	Size	A/mm	B/mm	C/mm	D/mm	E/mm	L/mm	N.W./g
	FLA2310506	1/2"	9.4	12.7	54	37	4x⌀9	41.5	150
	FLA2310756	3/4"	15.75	19.05	59	42	4x⌀9	41.5	210
	FLA2311006	1"	22.1	25.4	66	49	4x⌀9	41.5	240
	FLA2311506	11/2"	34.8	38.1	79	62	4x⌀9	46.5	340
	FLA2312006	2"	47.5	50.8	92	75	4x⌀9	46.5	440
	FLA2312506	21/2"	60.2	63.5	107	89	8x⌀9	55.5	560
	FLA2313006	3"	72.9	76.2	125	104	8x⌀11	57.5	830
	FLA2314006	4"	97.38	101.6	157	135	8x⌀11	59.5	1450

Nut Flange DIN 11864-2 Form A (ISO 1127)

	Model	Size	A/mm	B/mm	C/mm	D/mm	E/mm	L/mm	N.W./g
	FLA2370256	1/4"	10.3	13.5	54	37	4x⌀9	41.5	170
	FLA2370386	3/8"	14	17.2	59	42	4x⌀9	41.5	210
	FLA2370506	1/2"	18.1	21.3	62	45	4x⌀9	41.5	220
	FLA2370756	3/4"	23.7	26.9	69	52	4x⌀9	41.5	270
	FLA2371006	1"	29.7	33.7	74	57	4x⌀9	46.5	320
	FLA2371256	11/4"	38.4	42.4	82	65	4x⌀9	46.5	380
	FLA2371506	11/2"	44.3	48.3	88	71	4x⌀9	46.5	420
	FLA2372006	2"	56.3	60.3	103	85	4x⌀9	55.5	570
	FLA2372506	21/2"	72.1	76.1	125	104	8x⌀11	57.5	890
	FLA2373006	3"	84.3	88.9	137	116	8x⌀11	59.5	1020
	FLA2374006	4"	109.7	114.3	167	146	8x⌀11	59.5	1640
