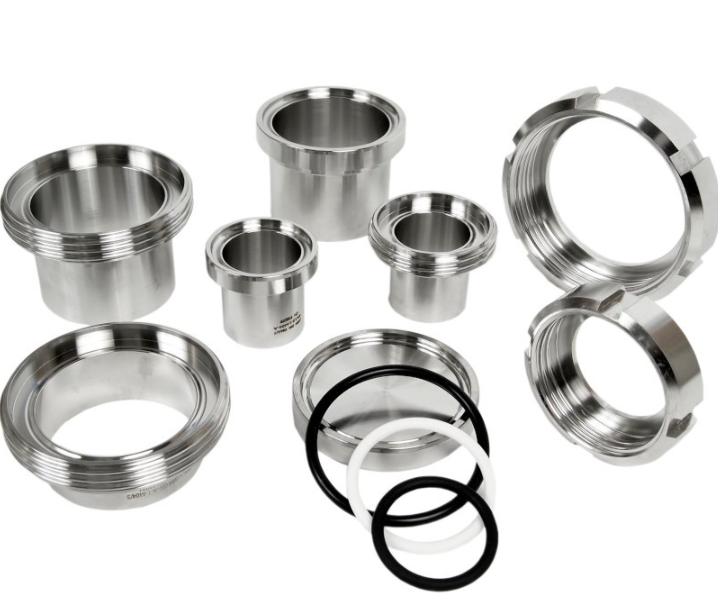

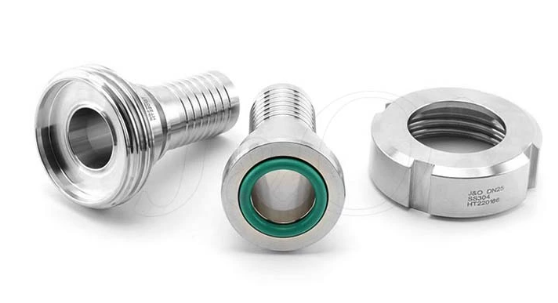

DIN 11864-1 Fittings - Aseptic Screwed Union for DIN 11866 / 11850

Application

This range of aseptic fittings has been developed by the German hygienic industry to meet the exacting needs of the food, chemical and pharmaceutical industries.

Three designs of pipe fittings have been tailored to accept 2 different styles of aseptic seals that effect a smooth interface within the pipe work whilst simultaneously achieving a metal to metal seat behind the joint.

The seal sections used are referenced as “Form A” and “Form B” and both have distinctive profiles that are easily recognised. Form A is an O Ring Joint whilst Form B is a 2-part Square seal with a secondary internal diamond section.

SPECIFICATION

Size Range: DN10 - DN100
Material: SS316L

Standard Design

• Standards: DIN 11866 / 11850, ISO1127

• Size available: DN10-DN100

Related Standards:

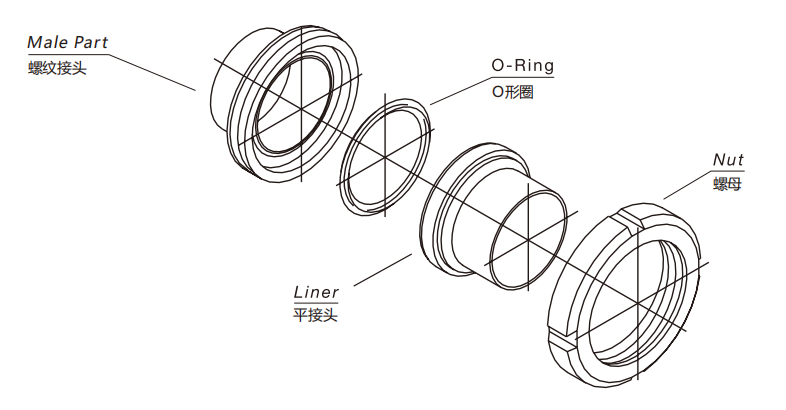

• DIN 11864-1 Form A - Aseptic Screwed Union

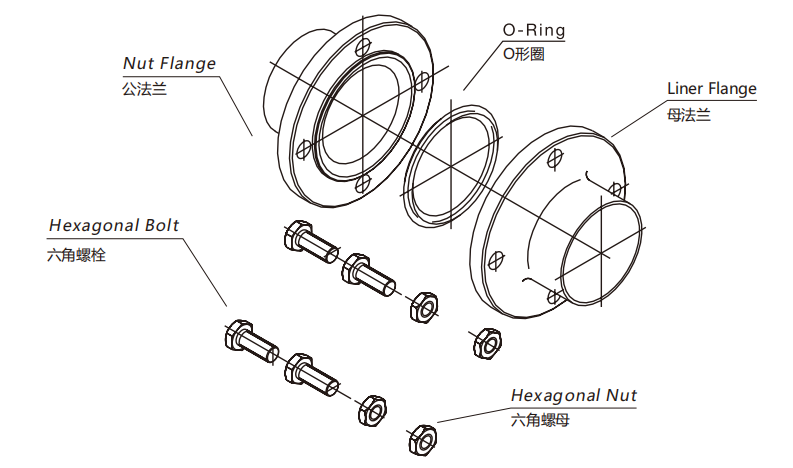

• DIN 11864-2 Form A -  Aseptic Flange Union

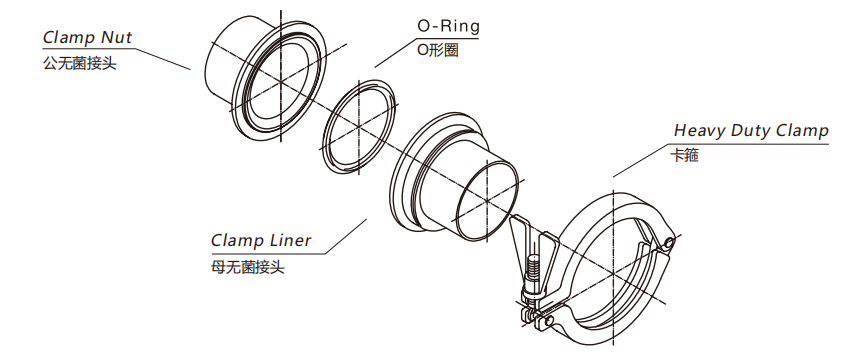

• DIN 11864-3 Form A -  Aseptic Tri-Clamp Union

Welding Male DIN 11864-1 Form A (DIN)

	Model	Size	A/mm	B/mm	C	L/mm	N.W./g
	FLA1320106S2	DN10	10	13	Rd28x1/8"	41	50
	FLA1320156S2	DN15	16	19	Rd34x1/8"	41	70
	FLA1320206S2	DN20	20	23	Rd44x1/6"	43	130
	FLA1320256S2	DN25	26	29	Rd52x1/6"	43	160
	FLA1320326S2	DN32	32	35	Rd58x1/6"	48	180
	FLA1320406S2	DN40	38	41	Rd65x1/6"	48	220
	FLA1320506S2	DN50	50	53	Rd78x1/6"	48	280
	FLA1320656S1	DN65	66	70	Rd95x1/6	60	450
	FLA1320806S1	DN80	81	85	Rd110x1/4"	64	690
	FLA1321006S1	DN100	100	104	Rd130x1/4"	64	800

Welding Male DIN 11864-1 Form A （3A）

	Model	Size	A/mm	B/mm	C	L/mm	N.W./g
	FLA1310506	1/2"	9.4	12.7	Rd28x1/8"	41	50
	FLA1310756	3/4"	15.75	19.05	Rd34x1/8"	41	70
	FLA1311006	1"	22.1	25.4	Rd52x1/6"	43	170
	FLA1311506	11/2"	34.8	38.1	Rd65x1/6"	48.5	230
	FLA1312006	2"	47.5	50.8	Rd78x1/6"	48.5	290
	FLA1312506	21/2"	60.2	63.5	Rd95x1/6"	60	460
	FLA1313006	3"	72.9	76.2	Rd110x1/4"	64	730
	FLA1314006	4"	97.38	101.6	Rd130x1/4"	64	820

Welding Male DIN 11864-1 Form A (ISO 1127)

	Model	Size	A/mm	B/mm	C	L/mm	N.W./g
	FLA1370256	1/4"	10.3	13.5	Rd28x1/8"	41	50
	FLA1370386	3/8"	14	17.2	Rd28x1/8"	41	70
	FLA1370506	1/2"	18.1	21.3	Rd28x1/8"	43	130
	FLA1370756	3/4"	23.7	26.9	Rd28x1/8"	43	160
	FLA1371006	1"	29.7	33.7	Rd28x1/8"	48	200
	FLA1371256	11/4"	38.4	42.4	Rd28x1/8"	48	230
	FLA1371506	11/2"	44.3	48.3	Rd28x1/8"	49	320
	FLA1372006	2"	56.3	60.3	Rd28x1/8"	60	490
	FLA1372506	21/2"	72.1	76.1	Rd28x1/8"	64	800
	FLA1373006	3"	84.3	88.9	Rd28x1/8"	64	970
