Aseptic Connectors Flange Stainless Steel SS316L Tank accessories Clamp In-Line Pharmaceutical Tank Flange Fitting

Concept

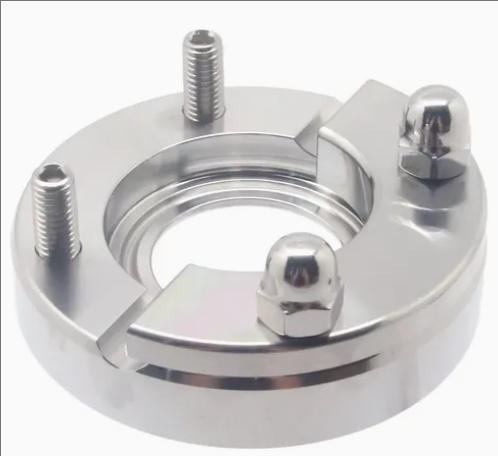

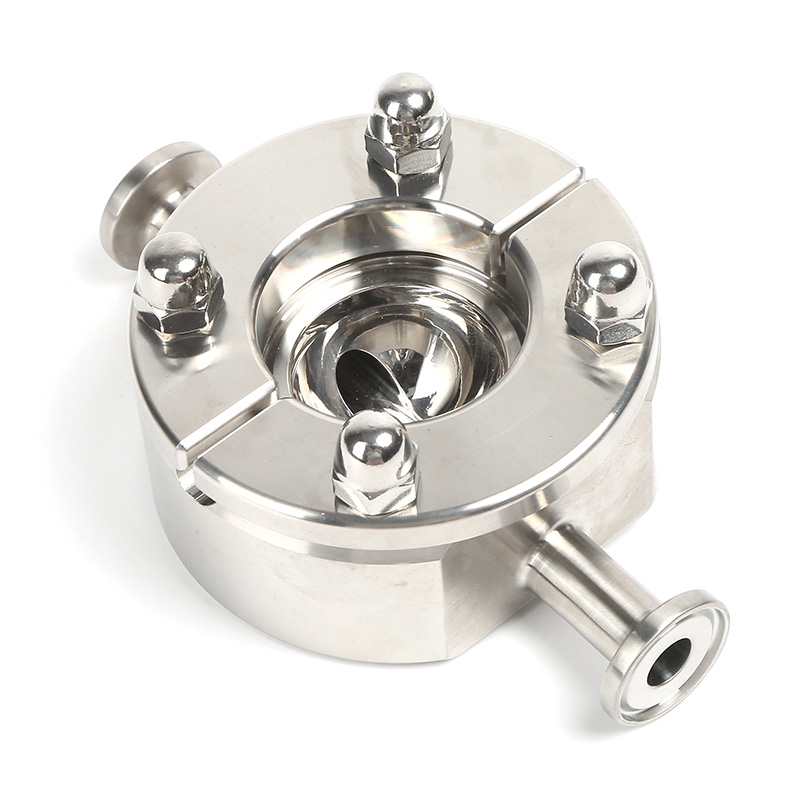

QiiMii Aseptic Connector is an aseptic mounting flange for all types of equipment mounted to vessels such as temperature transmitters, level transmitters and sampling valves with clamp connections, it gives superior CIP/SIP performance and allows equipment to be flush mounted on top, bottom and side of a vessel. The design is simple and the aseptic qualities are outstanding.

Features

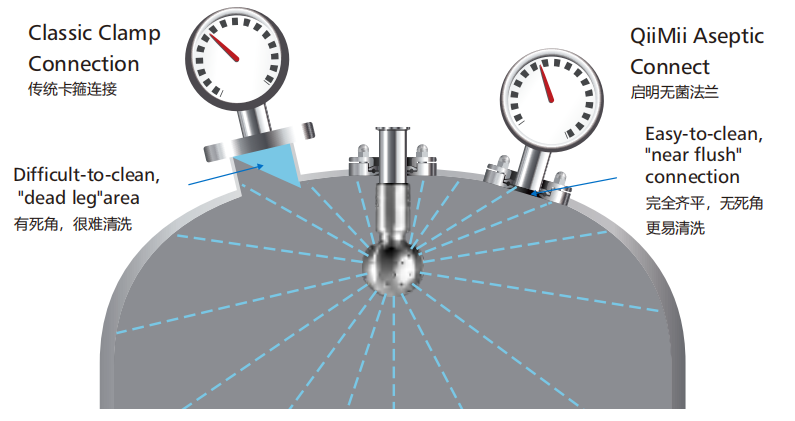

• No dead legs

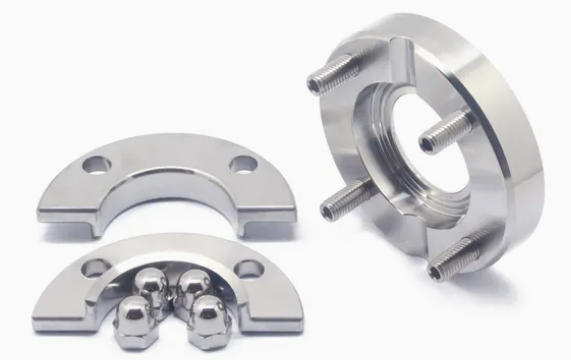

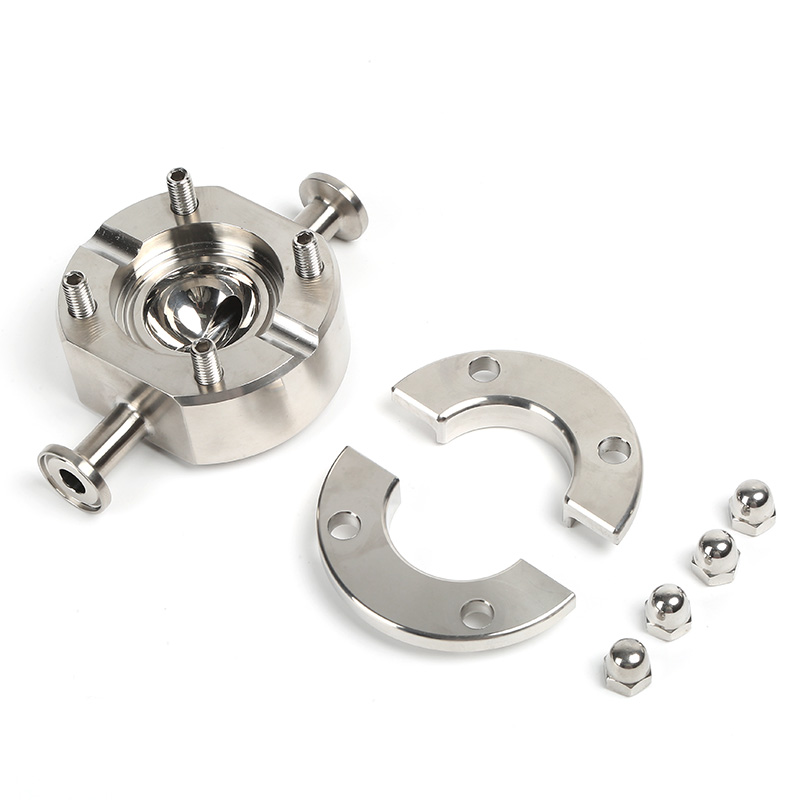

• Split ring design
• No air pockets during sterilisation
• Flexible flanging for different equipment/
• Secured ClP/SIP procedure

Thchnical Data

• Operating pressure/: -14.5 to 100psi
• Temperature range/: -80°C to 2000°C
• Surfaces/:Ra<0.8um

Materials

• Welding Flange: SS316L

• Bolt and Nut: SS304

• Locking Ring: SS316L

Standard Design

• Available in size from 1/2"-2.5", DN15-DN65

• Standard total length: 250mm

• Standards: DIN, SMS, ISO / IDF

• End connections: tri clamp

Technical Specification

• Operating pressure: -14.5 to 100psi

• Temperature range: -80°C to 2000°C

• Surfaces: Product contact surface are finished to Ra<0,5 mm or better

A Flexible Solution

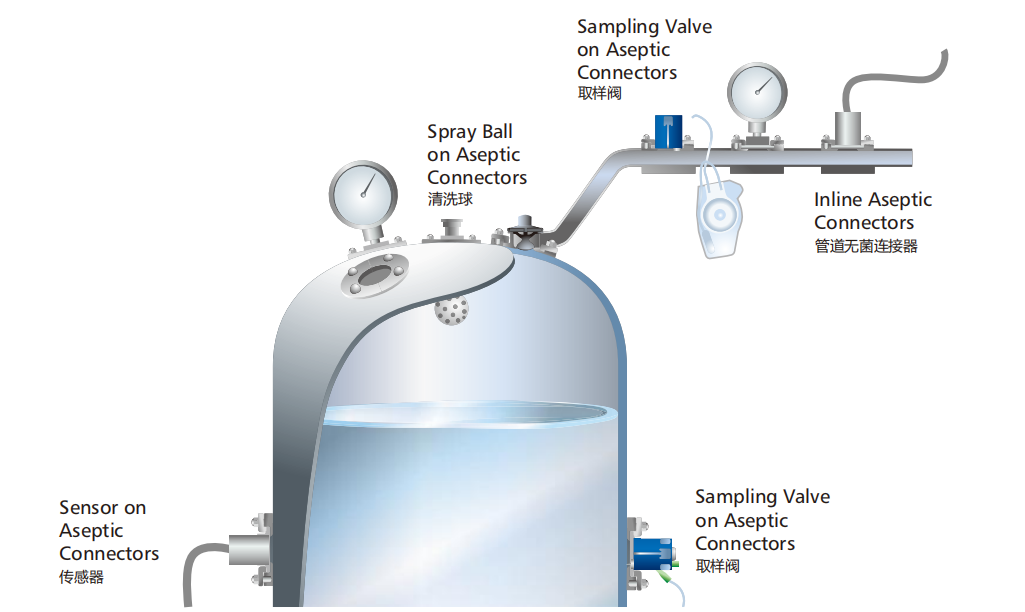

QiiMii Aseptic Connectors can connect a wide range of equipment with Tc connections but can also be equipped with a blind capwithout affecting the aseptic qualities of the system. in addition to being prepared for unforeseen needs, many of our customerschoose to weld in extra Aseptic Connectors and equip the superfluous ones with blind caps. The cost and time saved whenremoving a blind cap and connecting new equipment, compared to cutting up the tank and welding in new connections, isenormous.

Focused on Aseptic Design

OiiMlii Aseptic Connectors are available in a tank connected version and also as an in-ine solution. The increasing demand fortraceability and control during a process makes Aseptic Connectors when used together with sampling system the ultimatesolution for total process monitoring control.

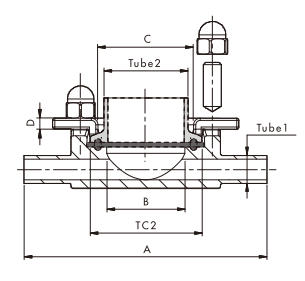

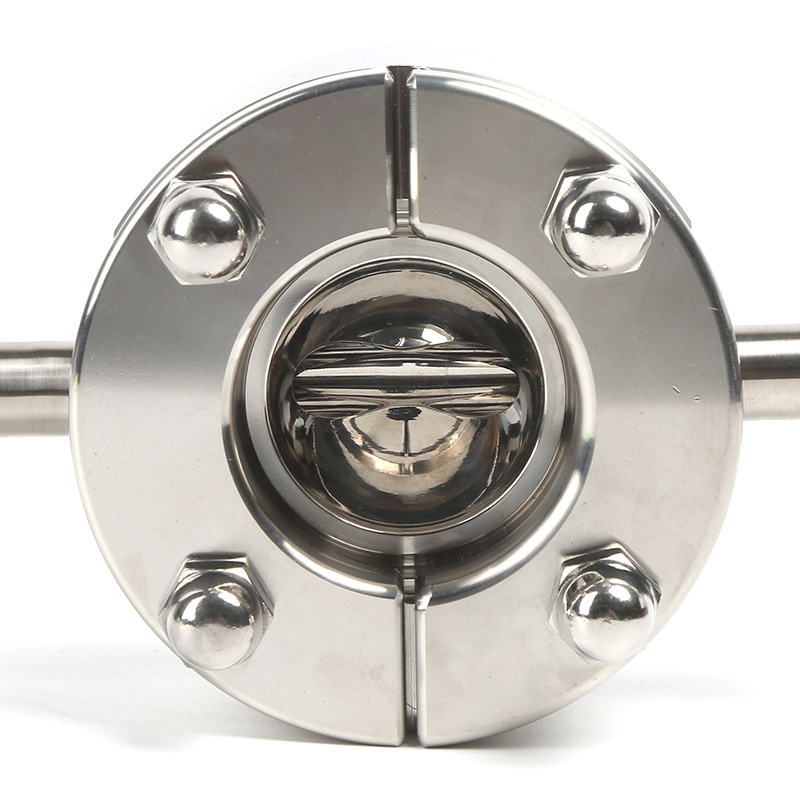

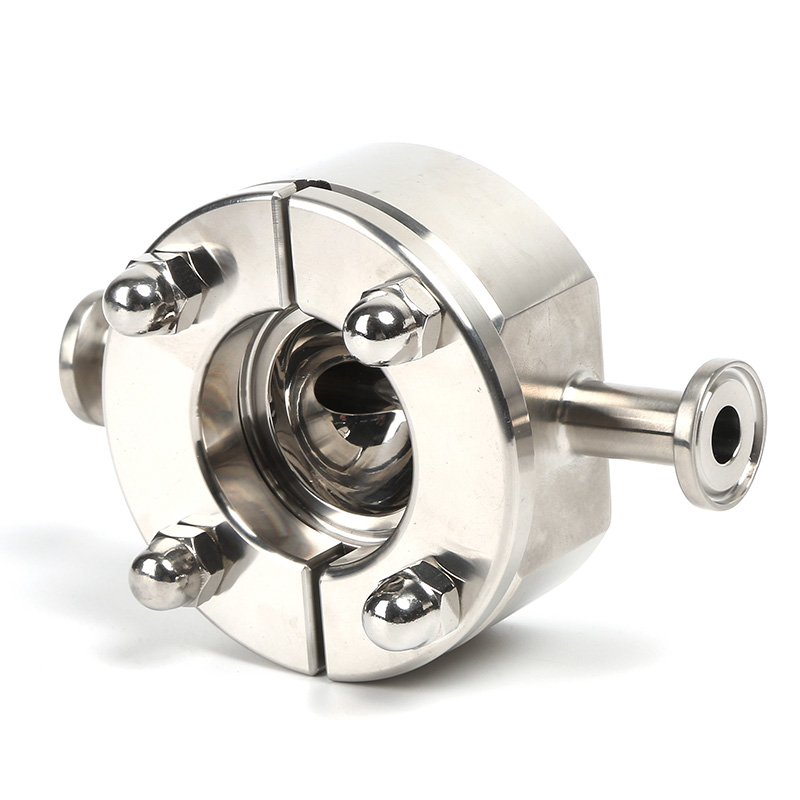

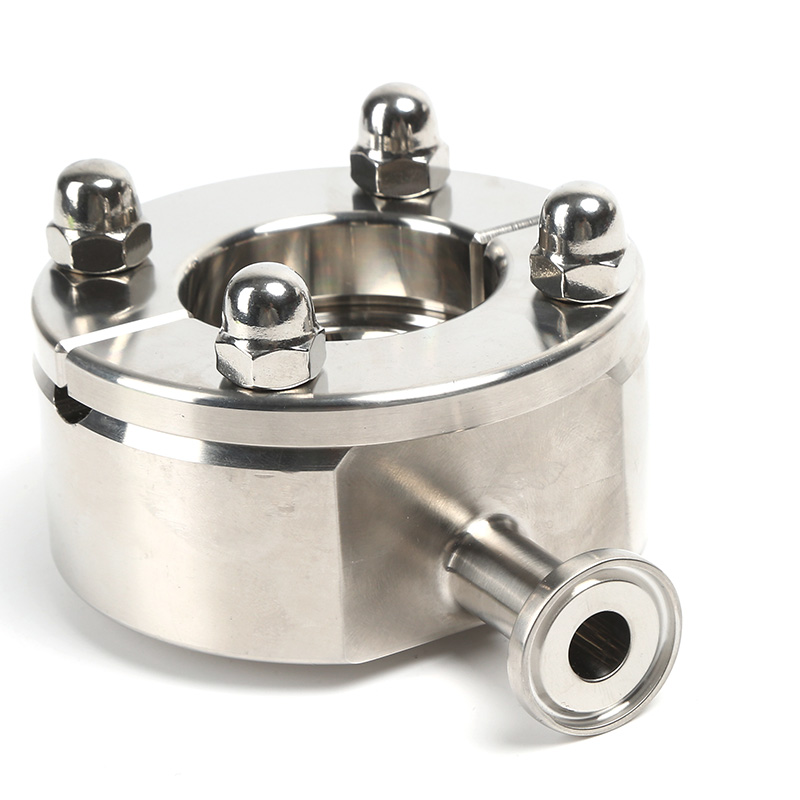

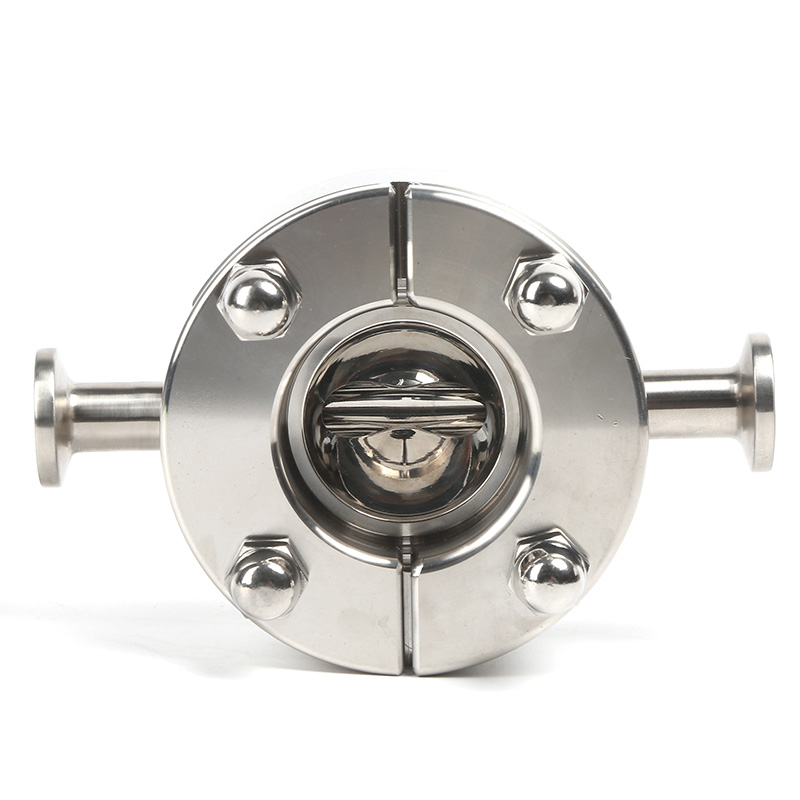

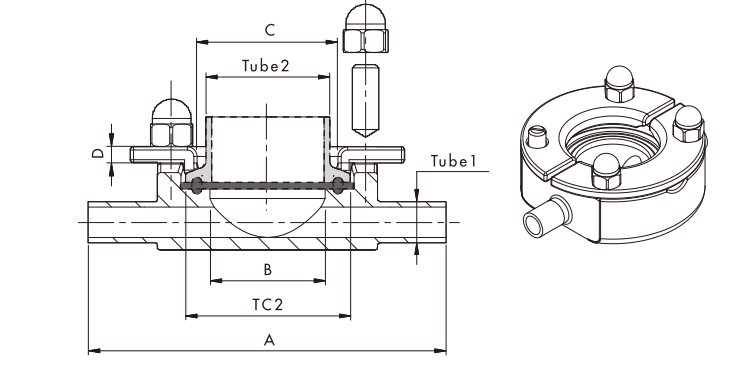

Weld Aseptic Connectors In-Line

Model	Tube 1 Size	Tube 2	TC2/mm	A/mm	B/mm	C/mm	D/mm	N.W.(kg)
TAL011161050	1/2"	11/2"	50.5	110	35.6	43.8	6	1.1
TAL011161075	3/4"	11/2"	50.5	110	35.6	43.8	6	1.3
TAL011161100	1"	11/2"	50.5	110	35.6	43.8	6	1.5
TAL011161150	11/2"	11/2"	50.5	110	35.6	43.8	6	3.75

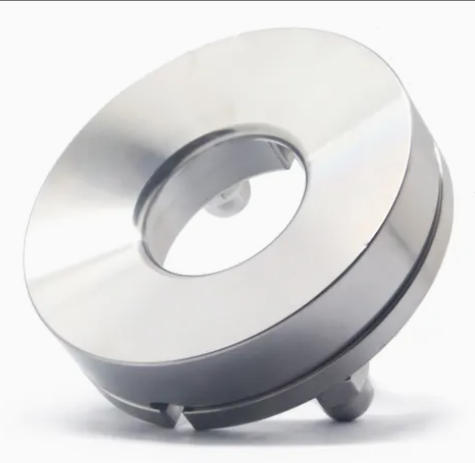

Aseptic Connectors Tank Connected

	Model	H/mm	Size	TC/mm	A/mm	B/mm	C/mm	D/mm
	TAF0161050H16	16	1/2"	25	55	9.4	20	6
	TAF0161075H16	16	3/4"	25	55	15.75	20	6
	TAF0161100H16	16	1"	50.5	85	22.1	43.8	6
	TAF0161150H16	16	11/2"	50.5	85	34.8	43.8	6
	TAF0161200H16	16	2"	64	100	47.5	55	6
	TAF0161250H16	16	21/2"	77.5	112	60.2	65.5	10
	TAF0161300H16	16	3"	91	131	72.9	78	10
	TAF0161400H16	16	4"	119	170	97.4	105	10
	TAF0162015H16	16	DN15	34	70	16	23.5	6
	TAF0162020H16	16	DN20	34	70	20	23.5	6
	TAF0162025H16	16	DN25	50.5	85	26	43.8	6
	TAF0162032H16	16	DN32	50.5	85	32	43.8	6
	TAF0162040H16	16	DN40	50.5	85	38	43.8	6
	TAF0162050H16	16	DN50	64	100	50	55	6
	TAF0162065H16	16	DN65	77.5	131	66	78	10
	TAF0162080H16	16	DN80	106	146	81	93	10
	TAF0162100H16	16	DN100	119	170	100	105	10
