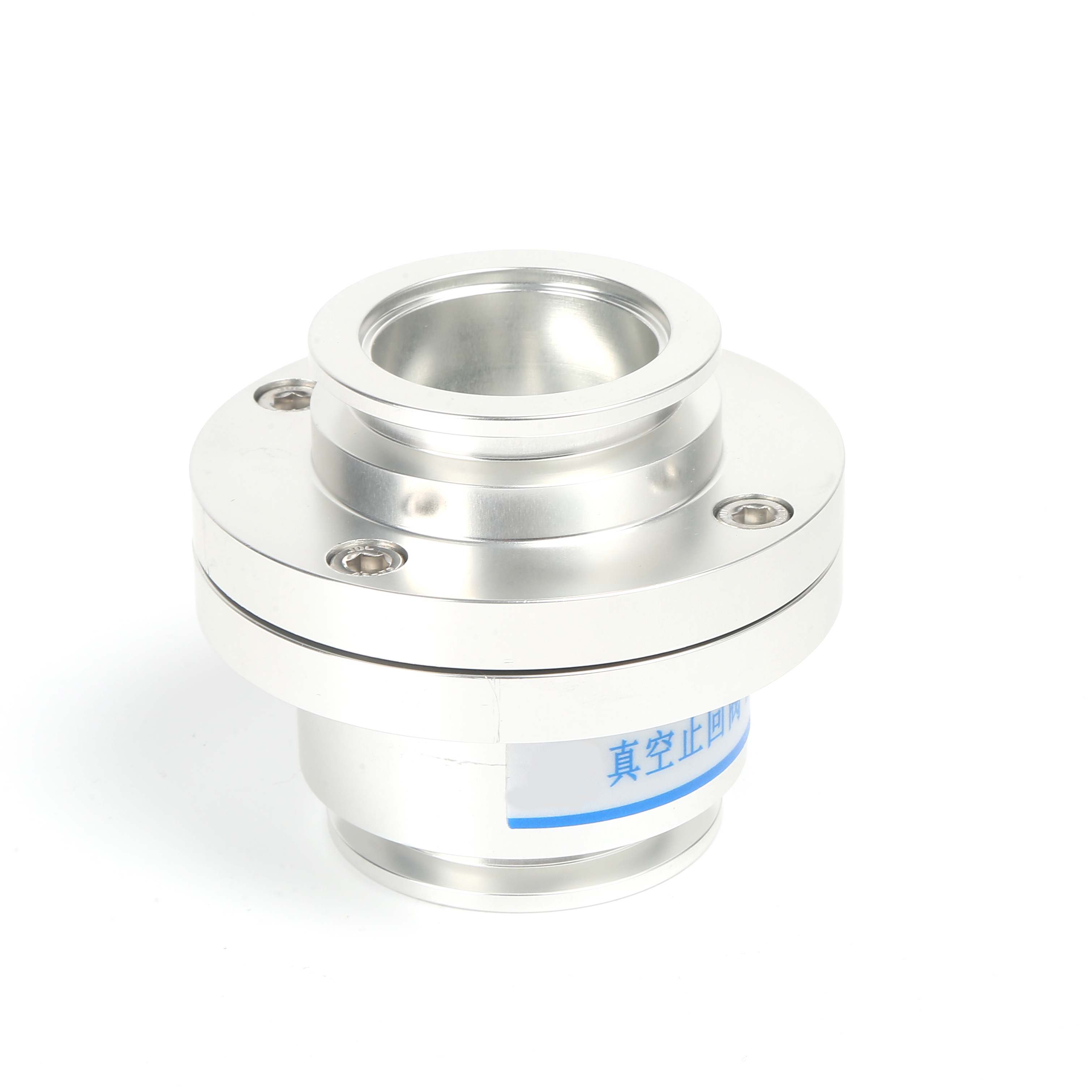

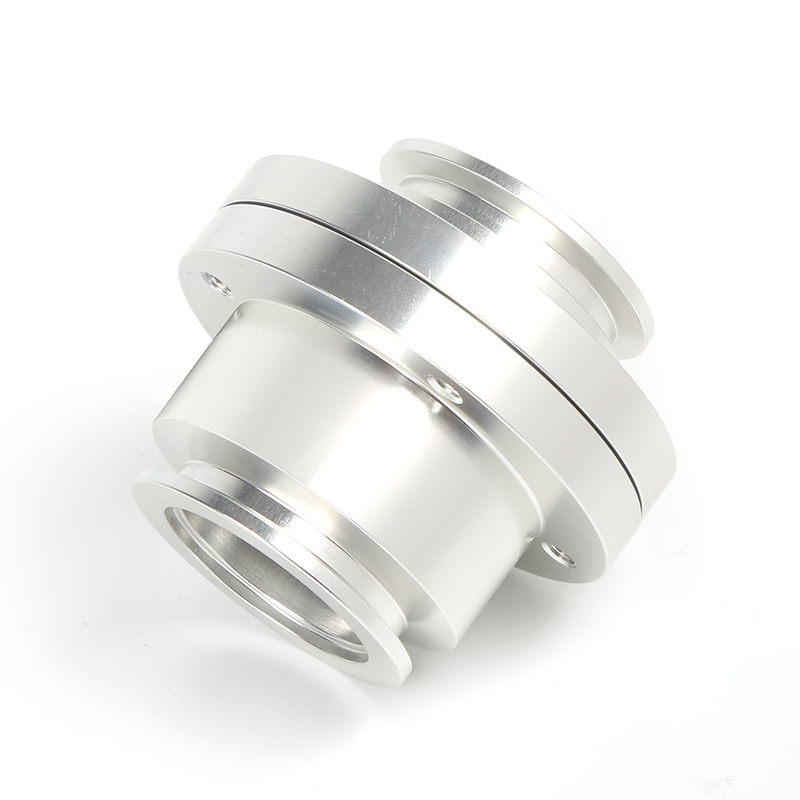

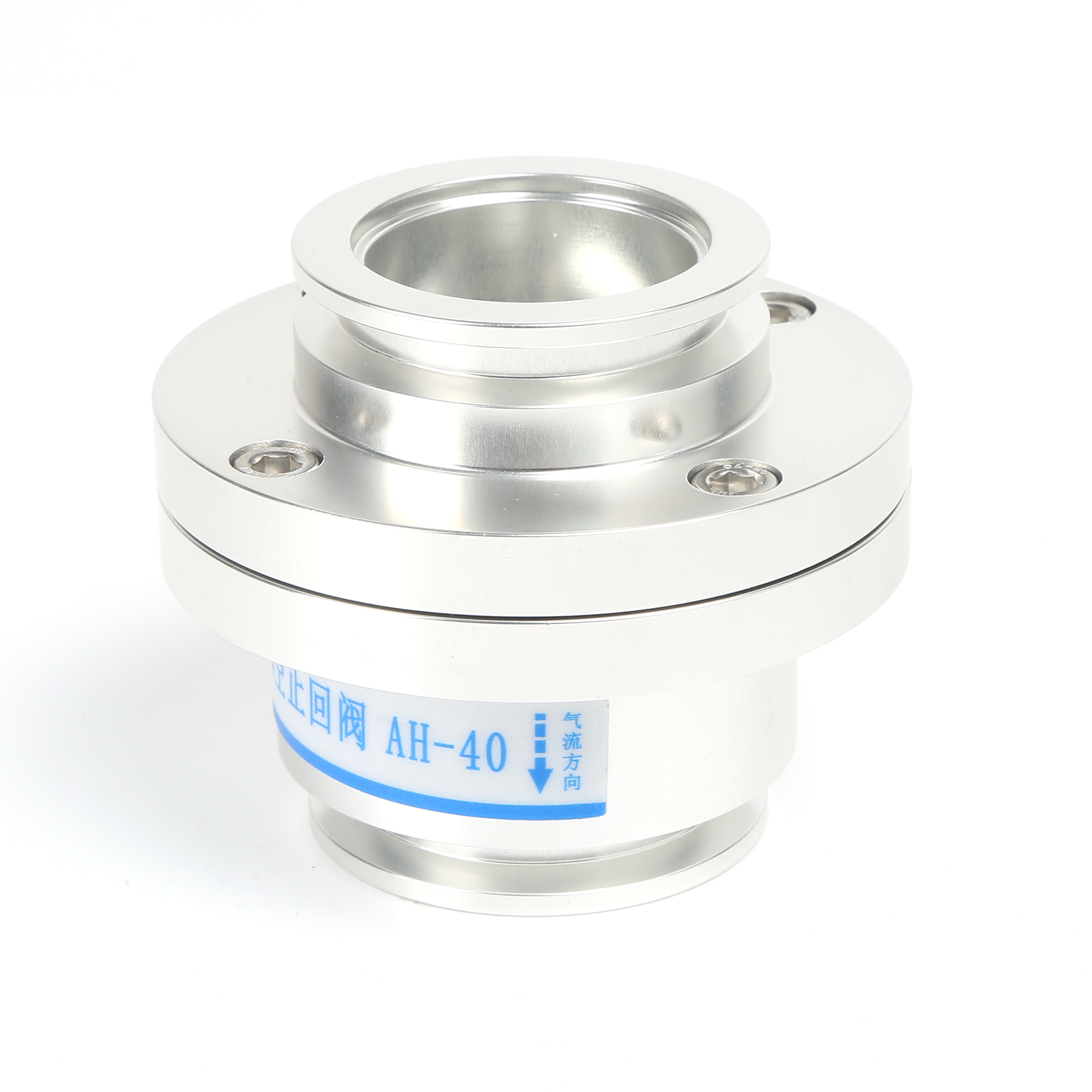

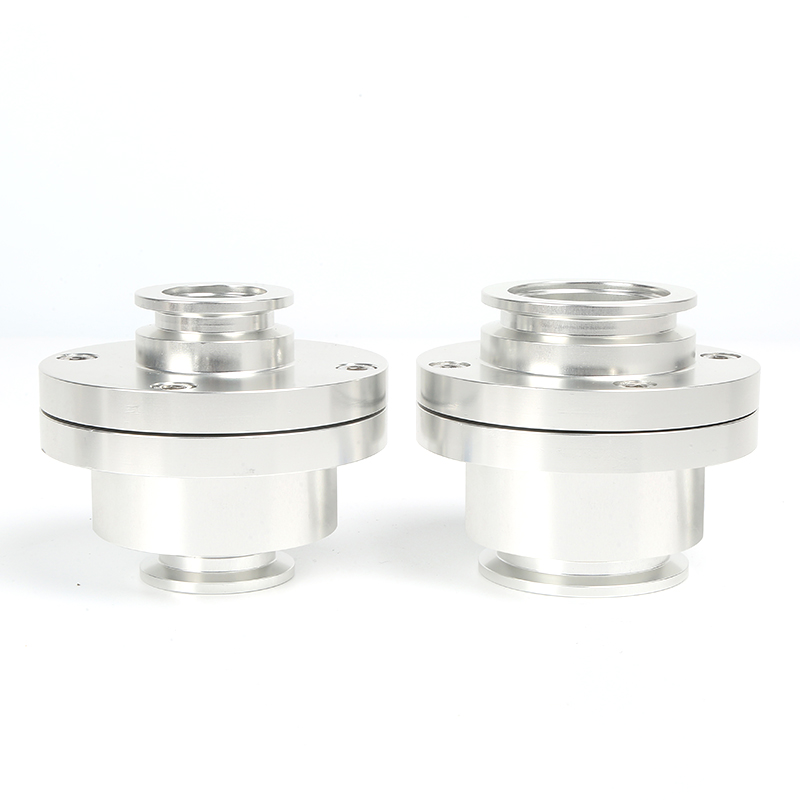

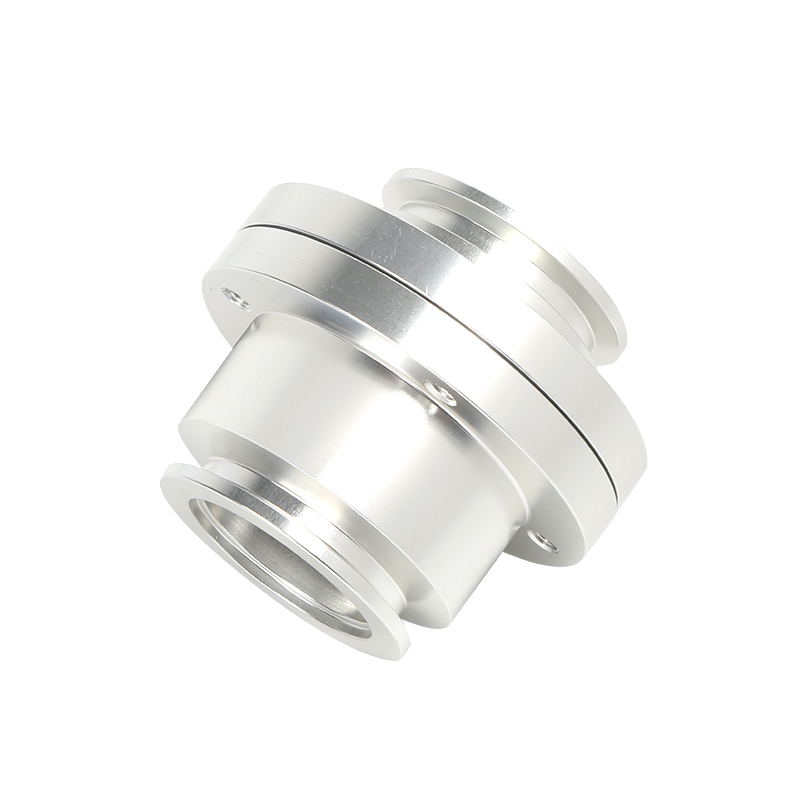

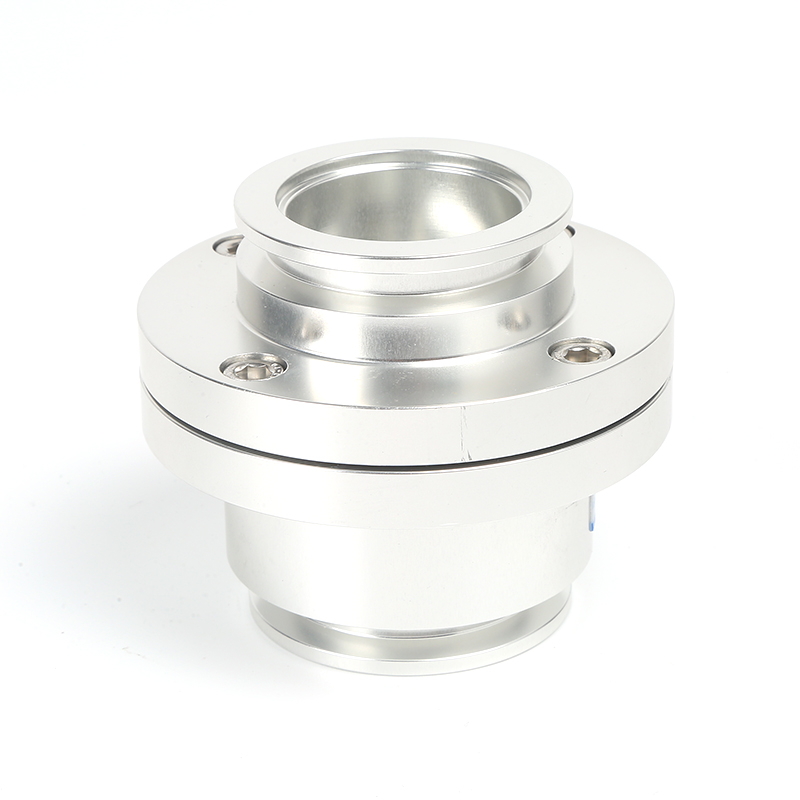

Aluminum Vacuum Check Valve with NW25/NW40 Flanges Non-Return KF25/KF40 Body FKM Seals One-Way Pipe Fitting Check Valve

VCK02 exhaust check valves are typically used to help prevent air from rushing  backwared through the pump during powered down. They are named one-way  valve or non-return valve, Typically installed on the exhaust side of the pump,  they can prevent oil back streaming upon pump shut down or failure.

VCK02 check valves with a spring-loaded O-ring sealed disc are for installation in any orientation.

Design and Feature

* Alumium Body with FKM Seals

* Easy Maintenance

* Min. Relief Pressure of 30mBar

* Leak Rate:1.0 x 10^-5 Pa*L/s

KF Aluminum Check Valve

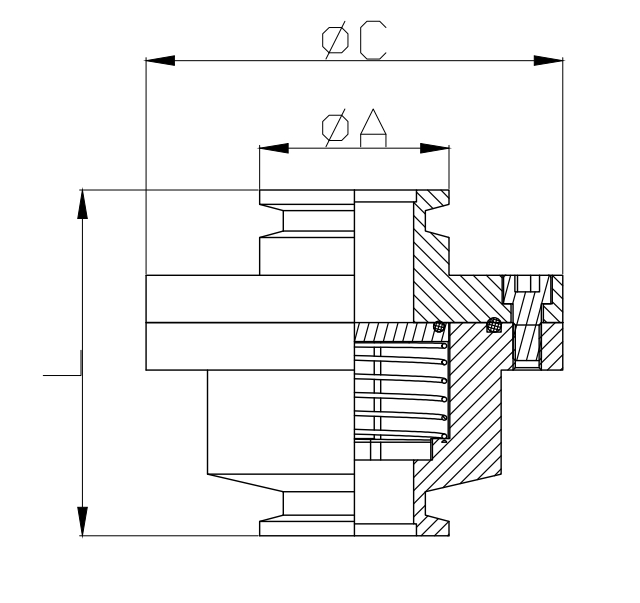

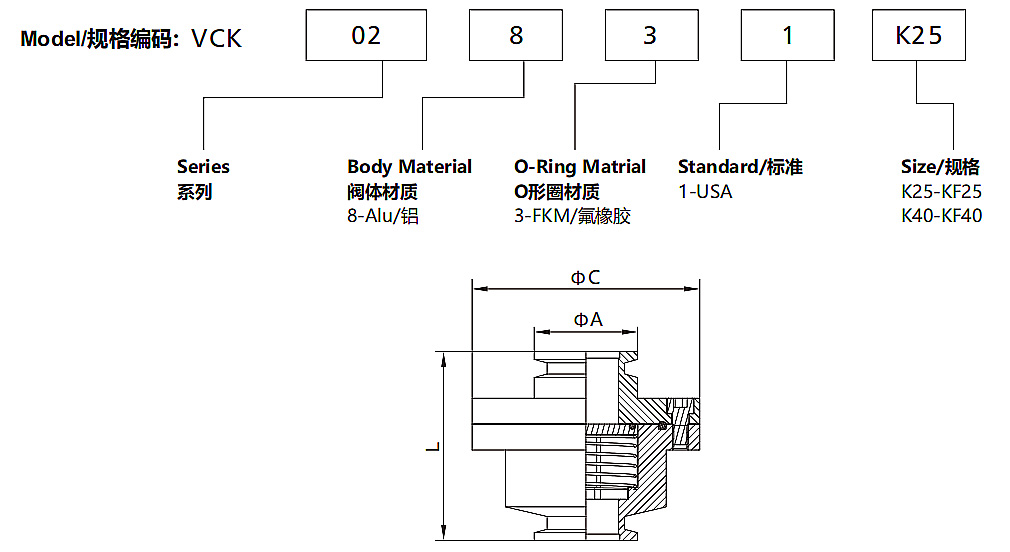

Model for Alu	Size	A/mm	B/mm	C/mm	L/mm	N.W./kg

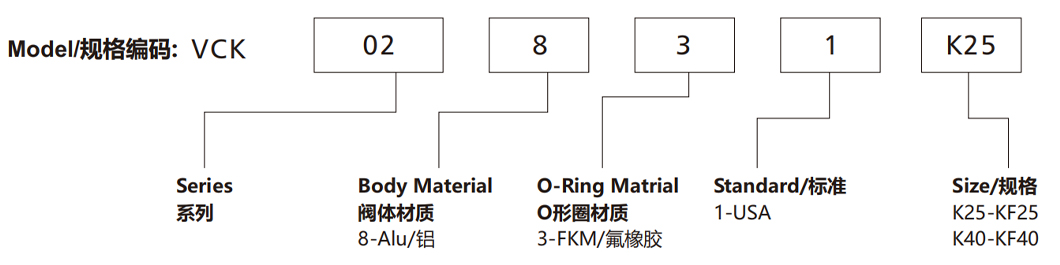

VCK02431K25	KF25	40	26.2	25	93	0.53
VCK02431K40	KF40	55	41.2	40	93	0.86
