SS304 SS316L Cleaning Ball 2Bar Stainless Steel Double Clamp Cleaning Ball Sanitary in Food Beverage

Application

Tank Spray Cleaning Head uses cleaning media to provide  coverage and impact. The device represents an effective alternative to traditional static spray balls because it uses low volumes of cleaning fluid at low pressure.

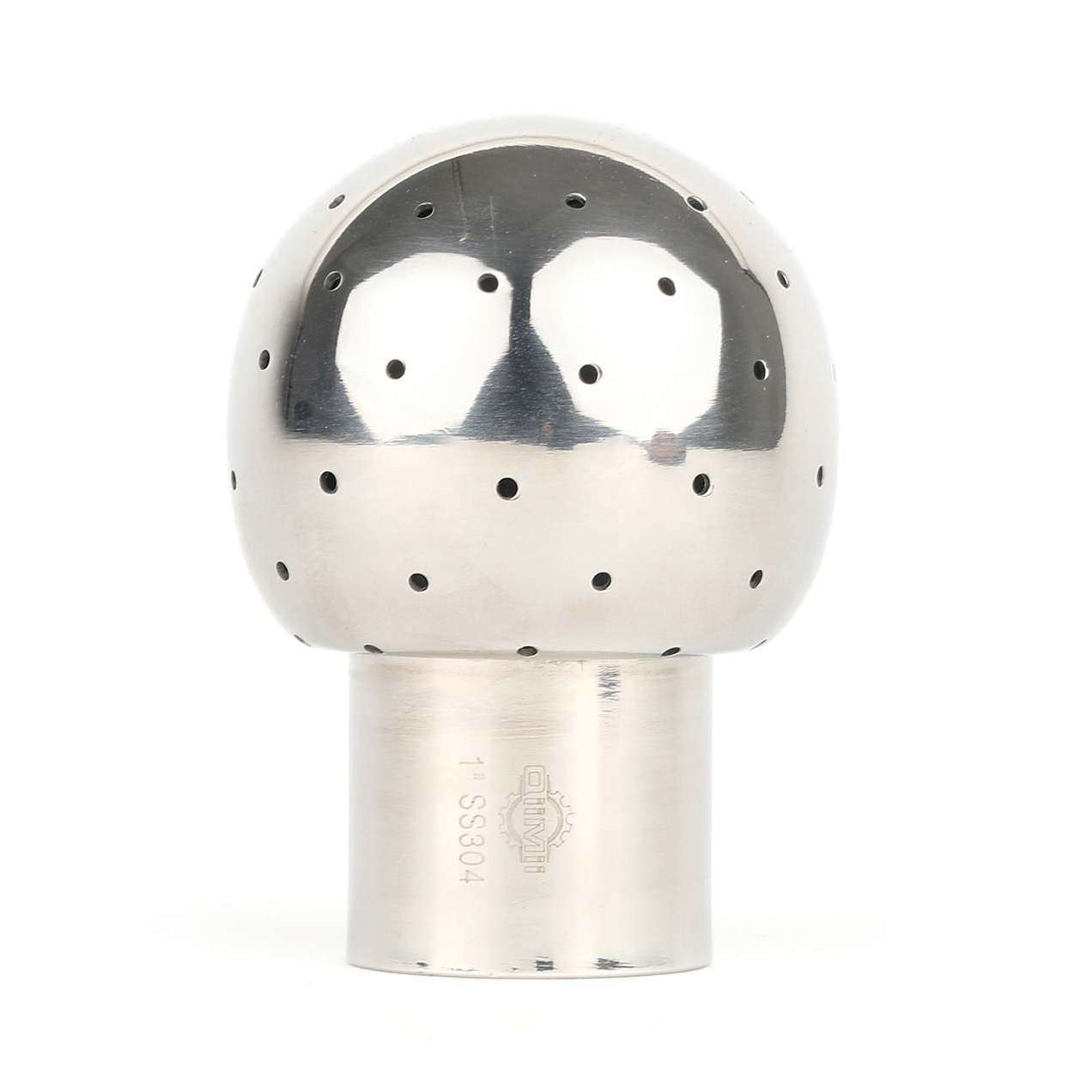

TCN is a fixed cleaning ball used for cleaning storage tanks in  food and beverage industries, which are used for less  demanding cleaning duties.

TCR is a rotating head with double ball bearing, it makes the device suitable for all industrial cleaning applications, including  tanks, reactors, vessels and other containers ranging from 0.05  to 1 m³, depending on dimensions and cleaning task.

Materials

• Body Material: SS304 or SS316L

• Clip parts: SS304

DESIGN AND FEATURES

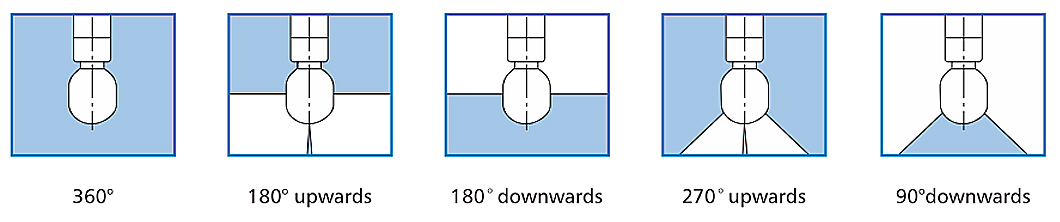

• Different Spray Pattern

• Different Connection Way

• Different Connection Standard

TECHNICAL DATA

Wetting Radius:                         Max. 2.5m

Impact cleaning radius:              Max. effective 0.6m

Working pressure:                        1-3Bar

Recommended pressure:           2.5Bar

FINISH

Exterior: Satin or Mirror

CONNECTION

Clamp, Weld, Clip on, Female or on request.

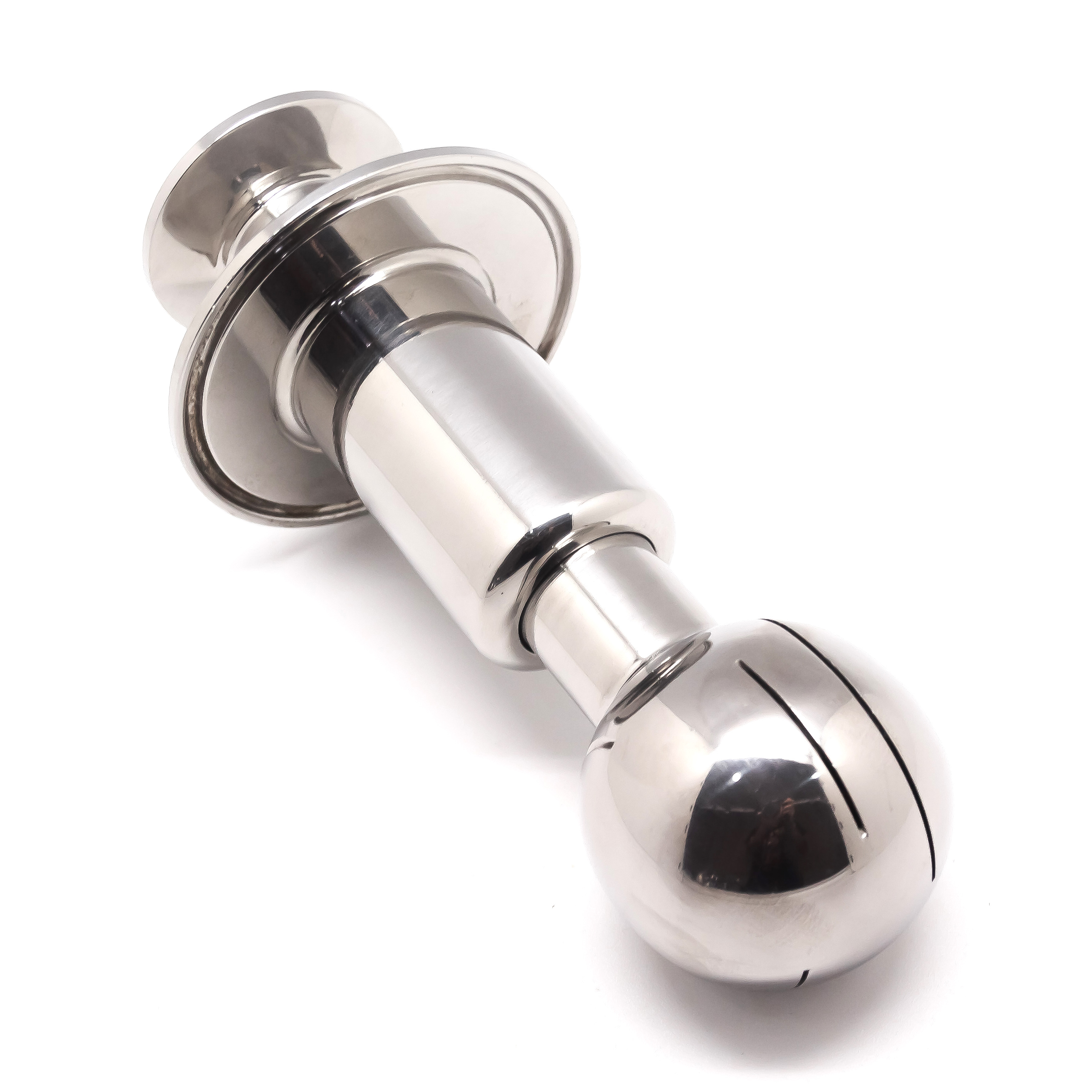

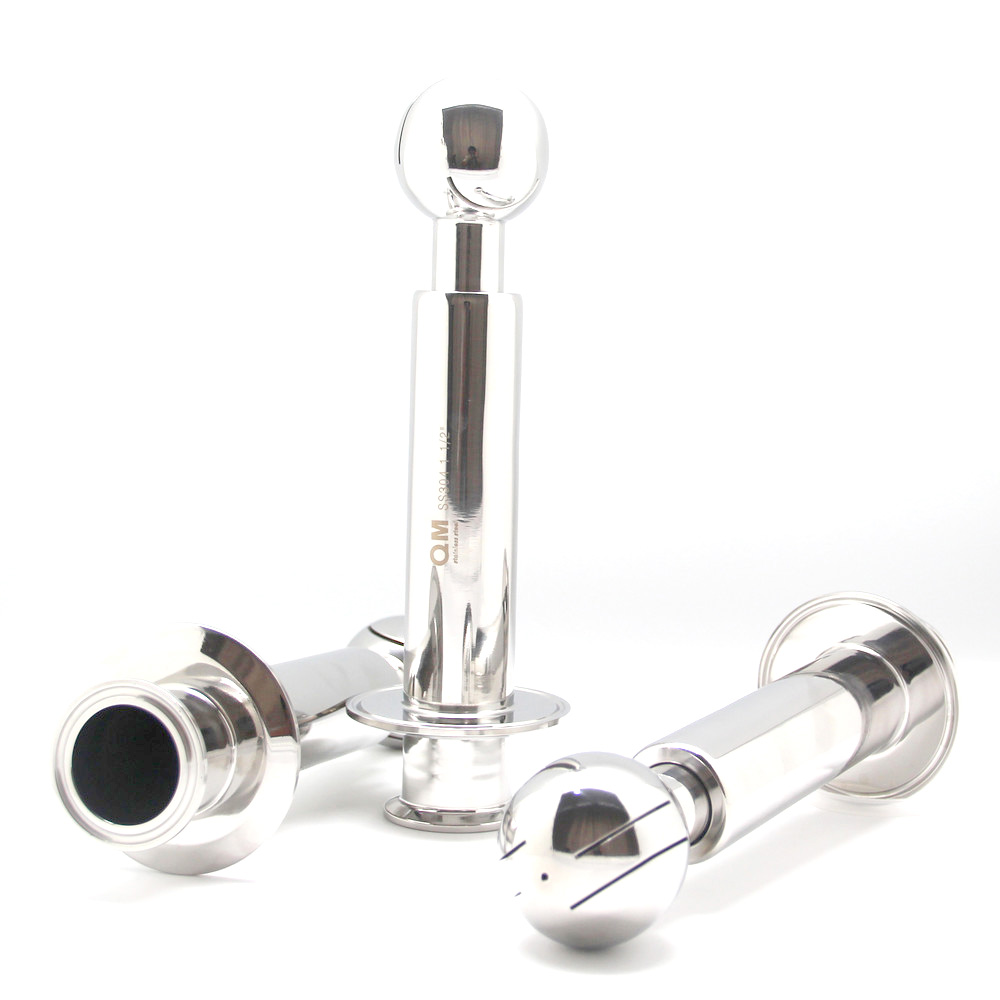

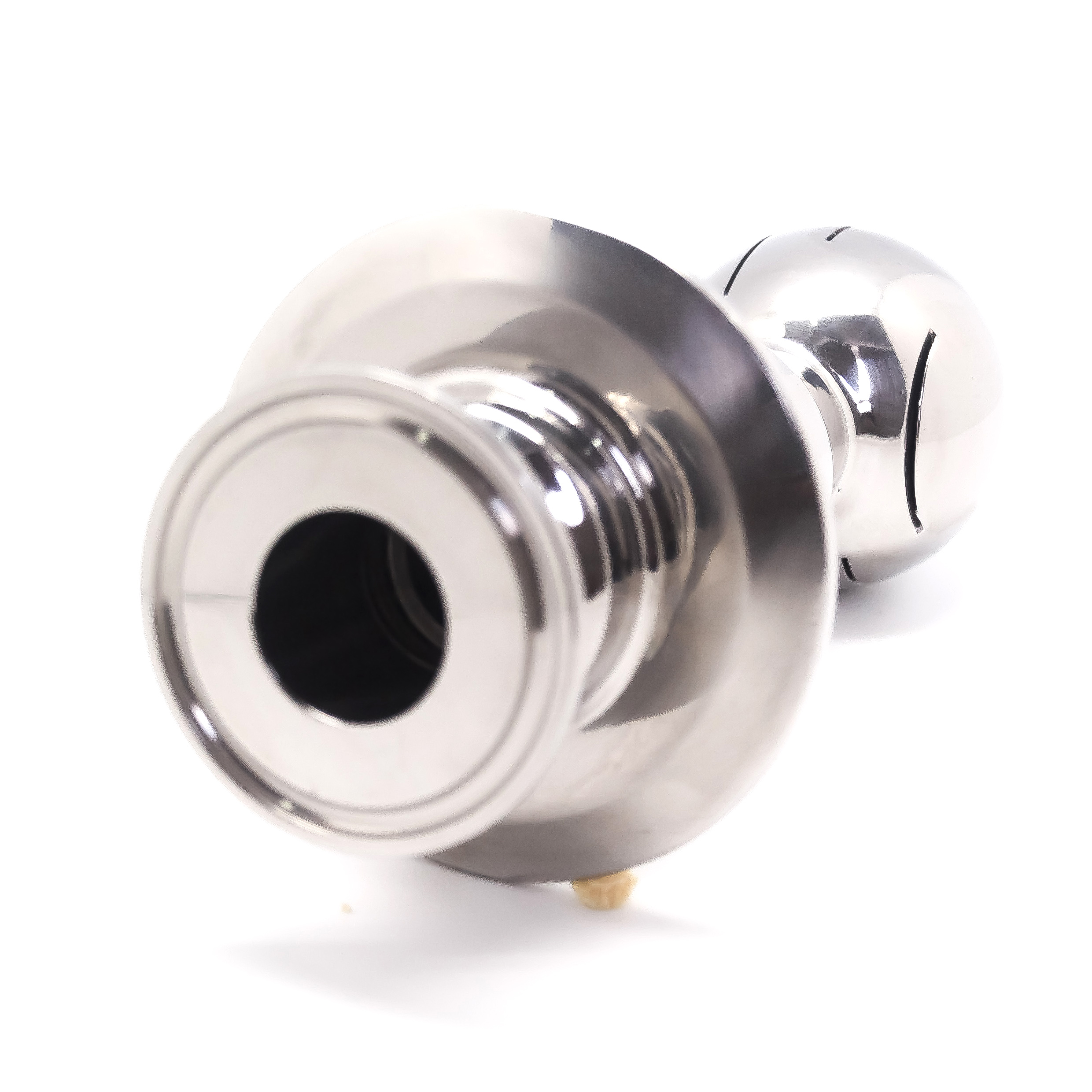

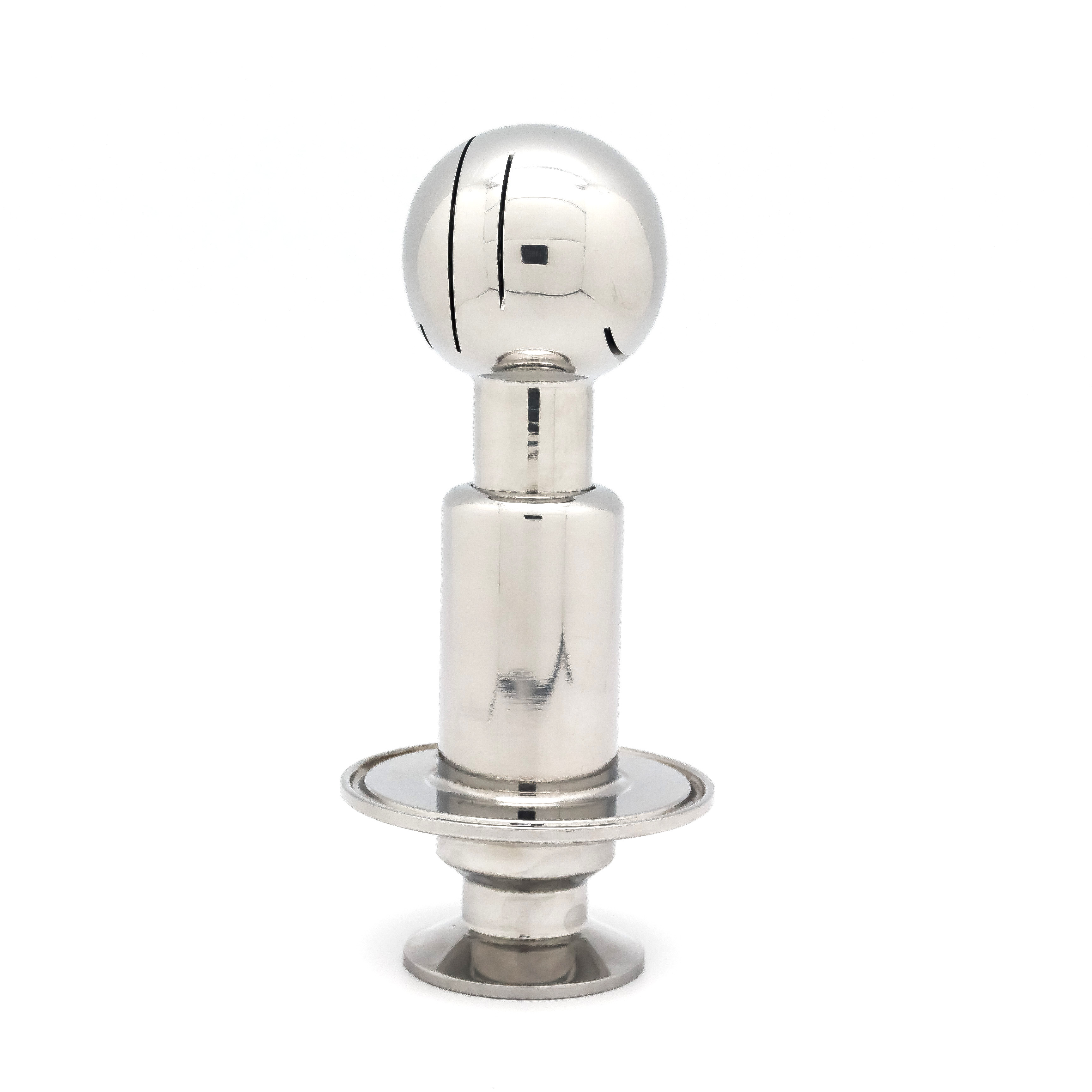

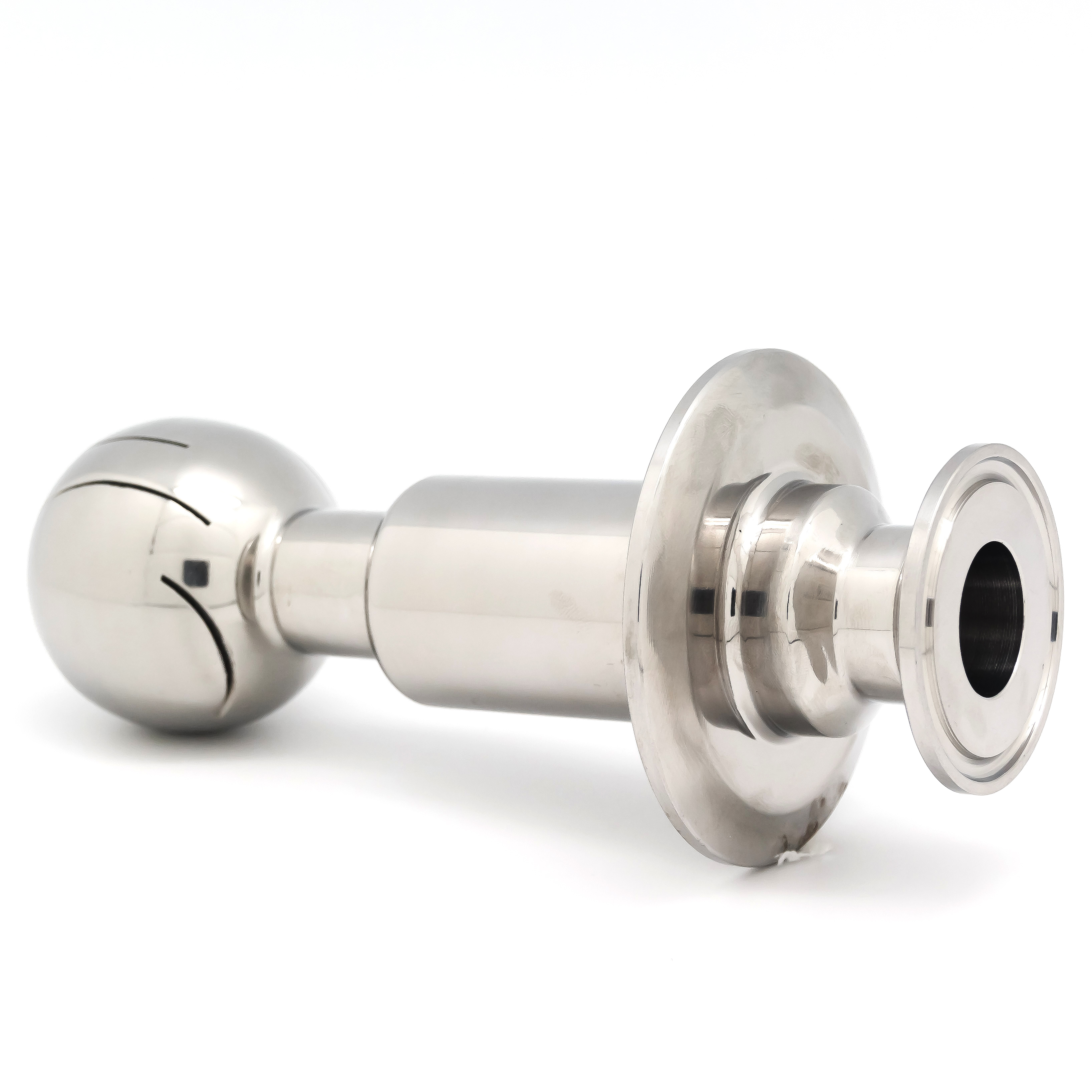

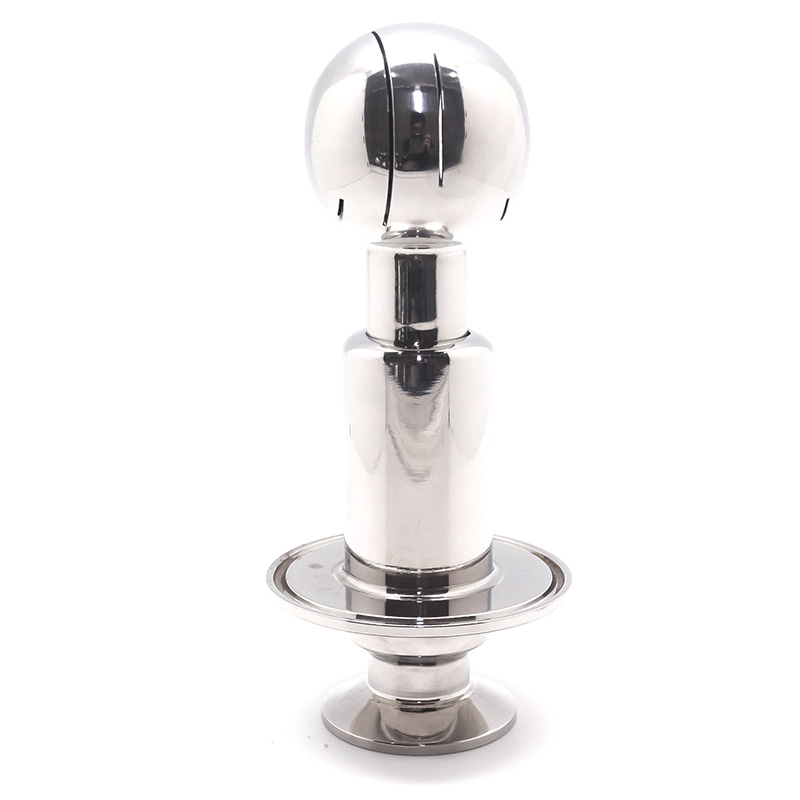

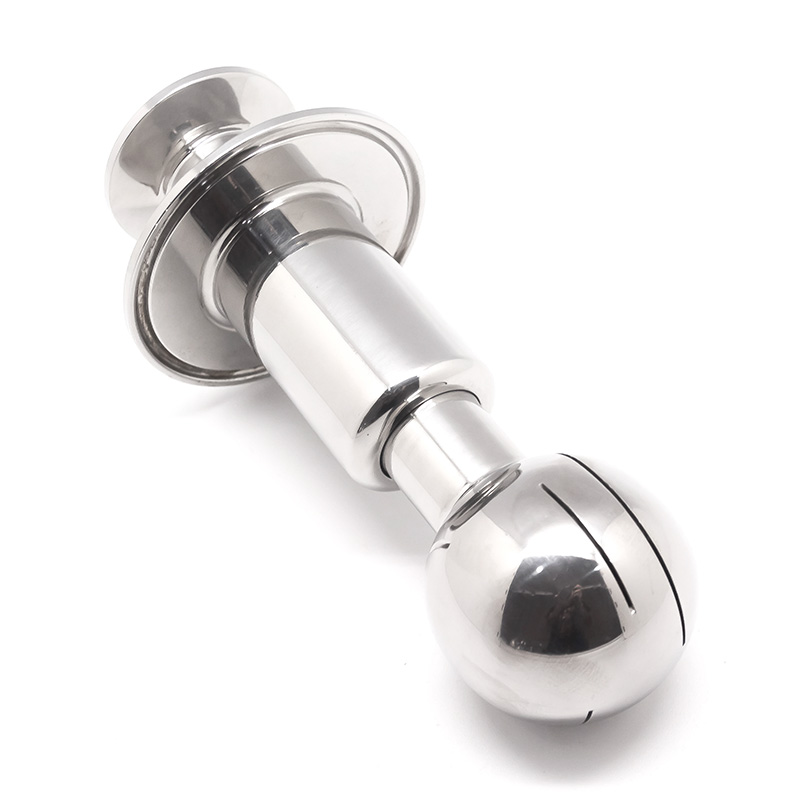

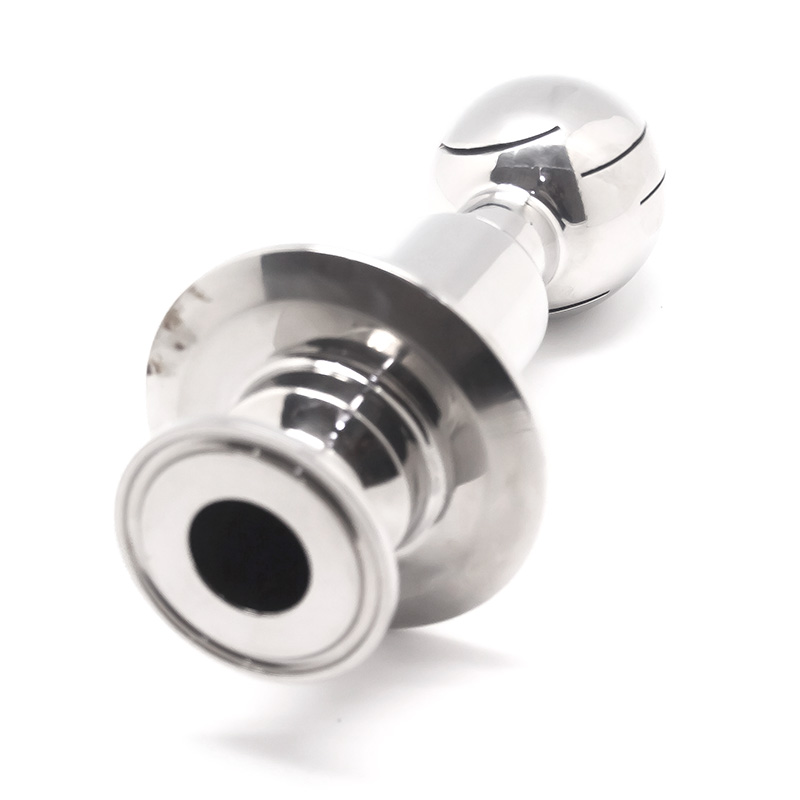

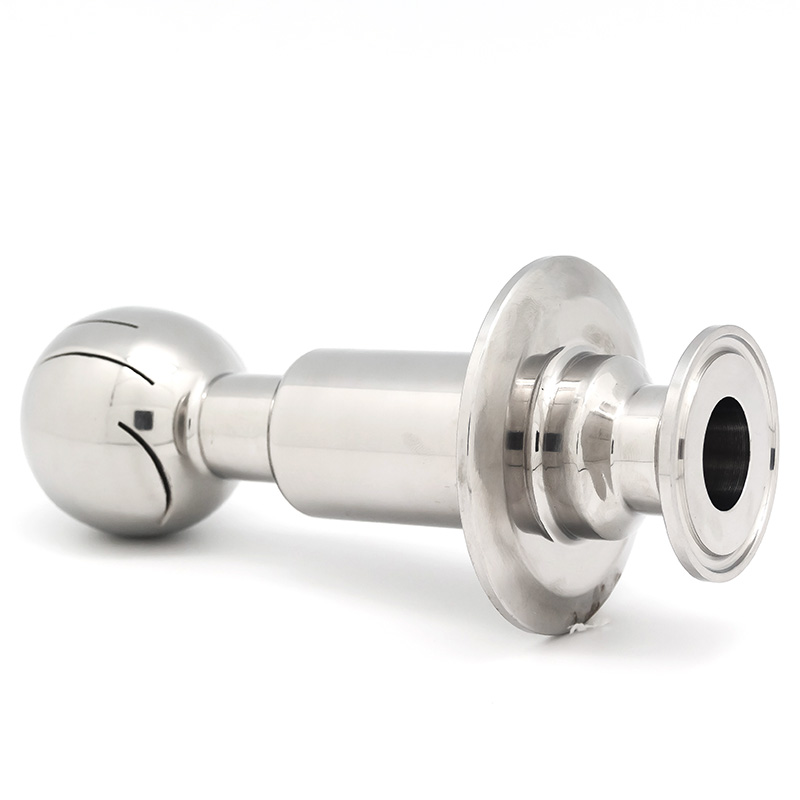

Double Clamp Rotary Spray Ball

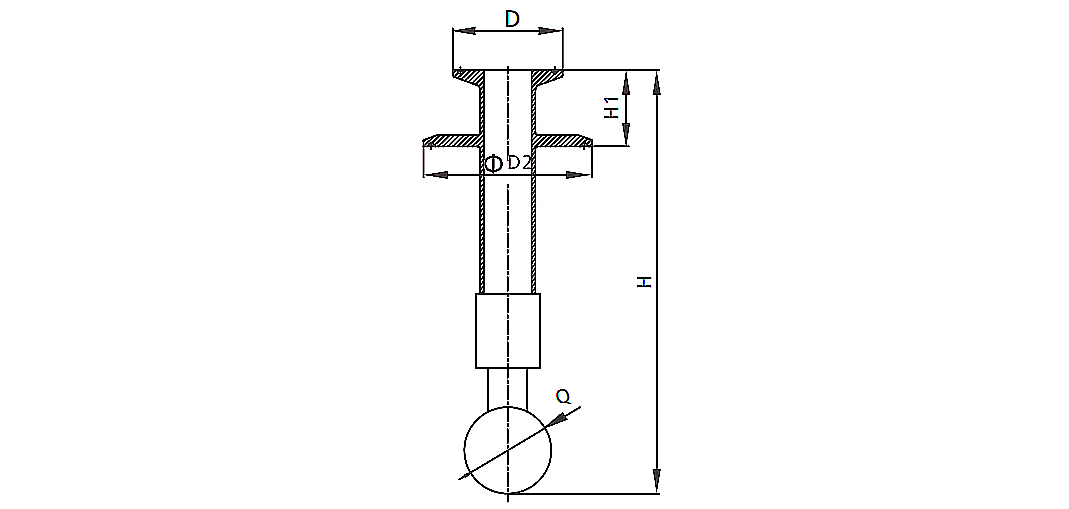

Model No	Size	D	D2	H1	H	Q
TCD01C41050Q401	1/2''	50.5	77.5	40	250	40
TCD01C41075Q451	3/4''	50.5	77.5	40	250	45
TCD01C41100Q531	1''	50.5	77.5	40	250	53
TCD01C41150Q631	11/2''	50.5	91	40	250	63
TCD01C41200Q761	2''	64	106	40	250	76
