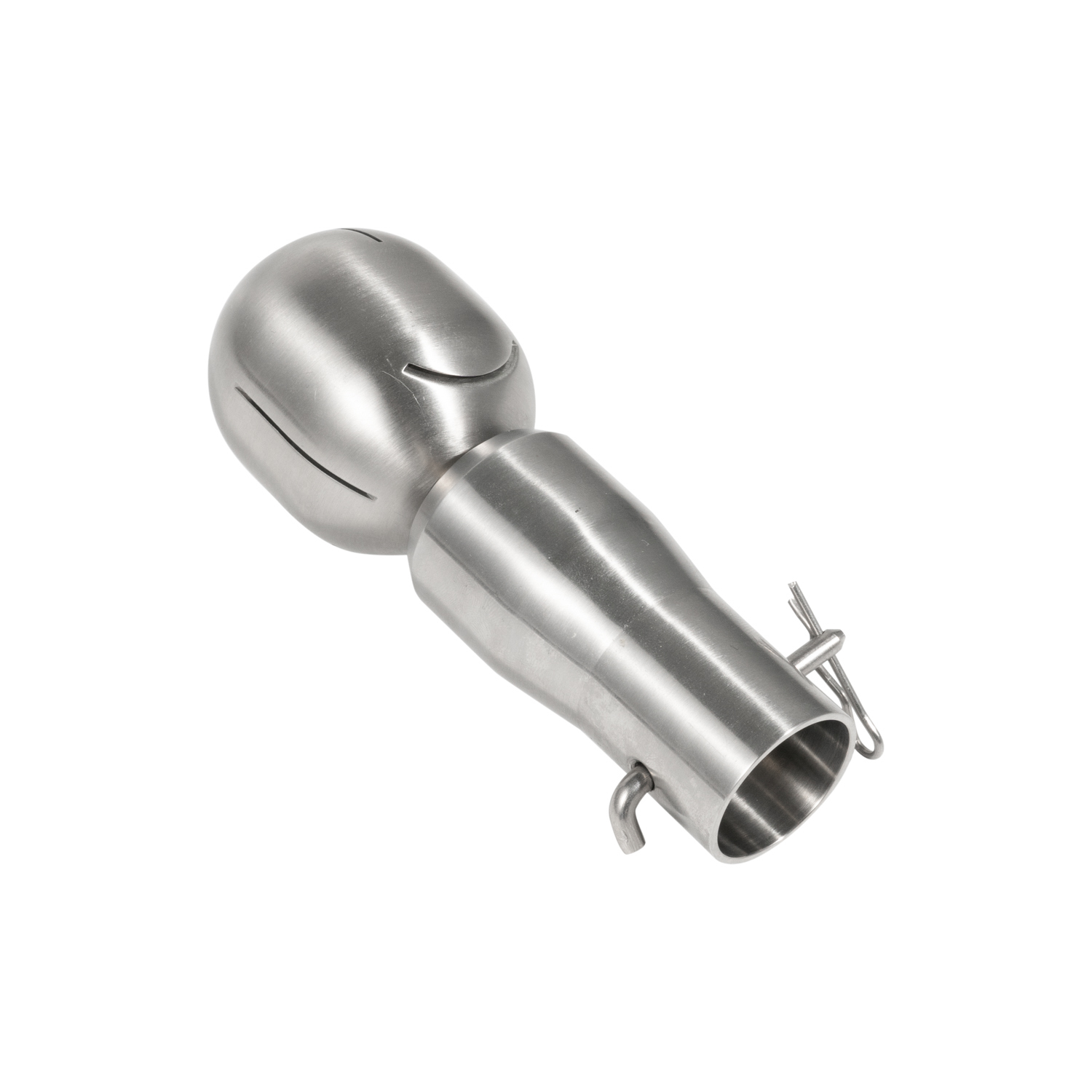

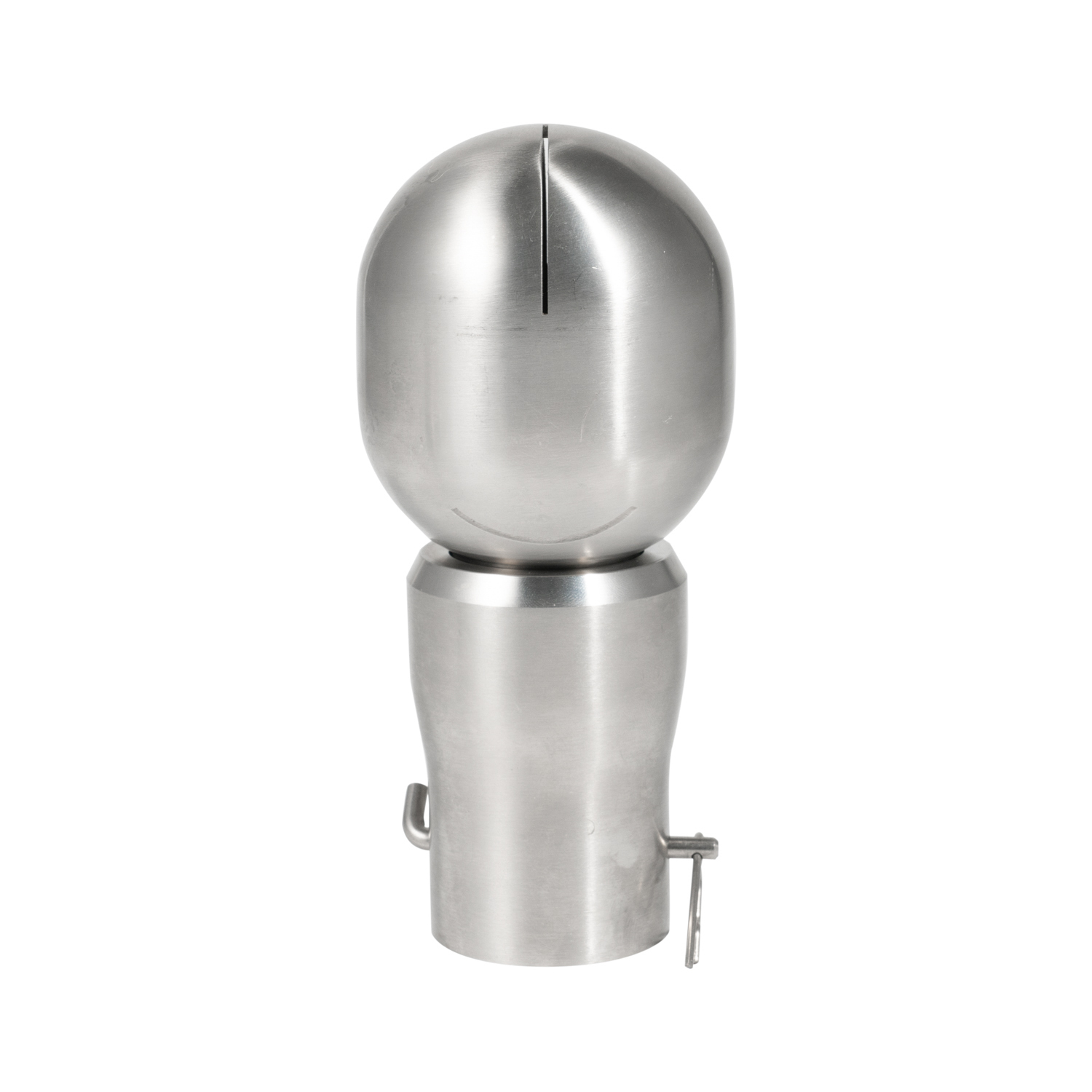

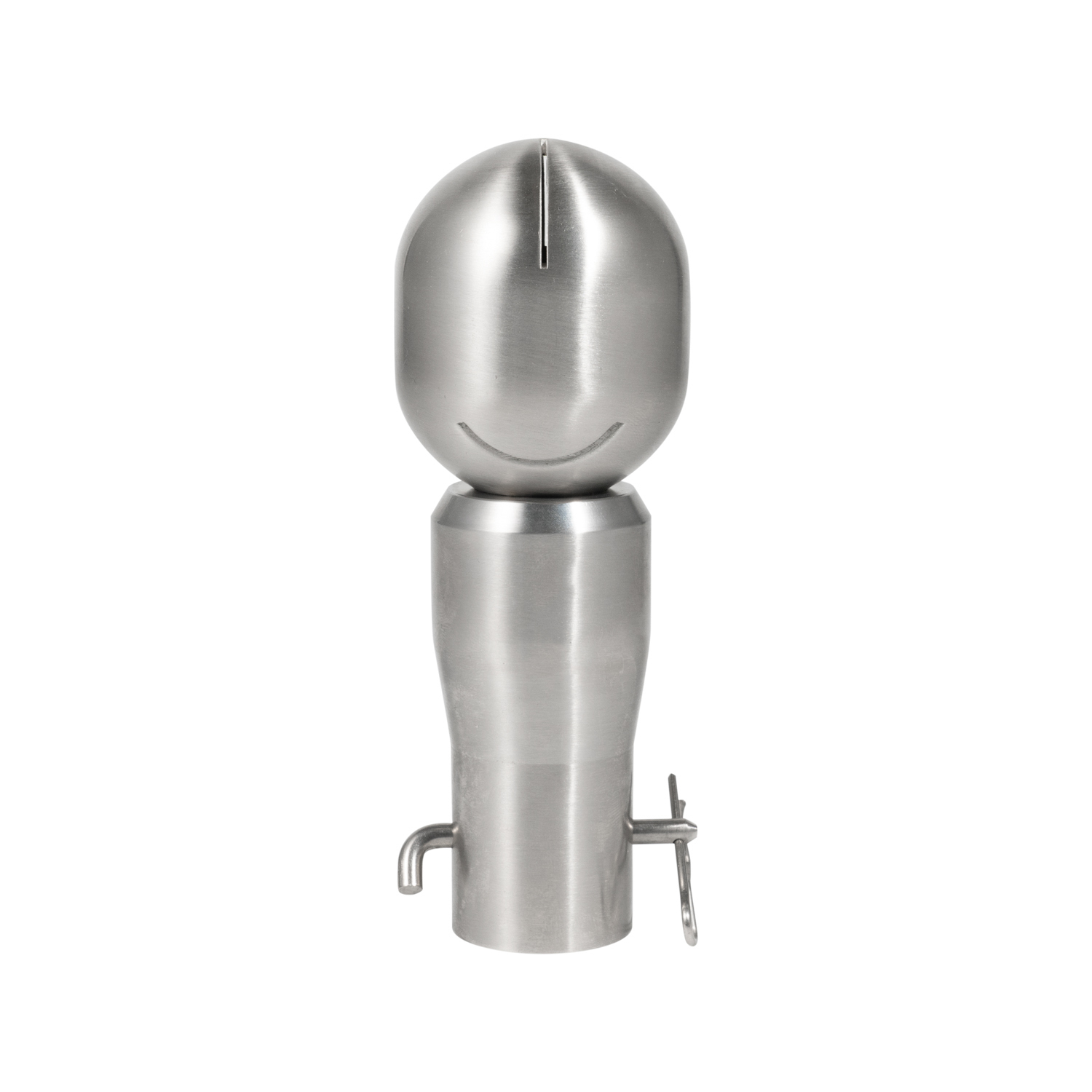

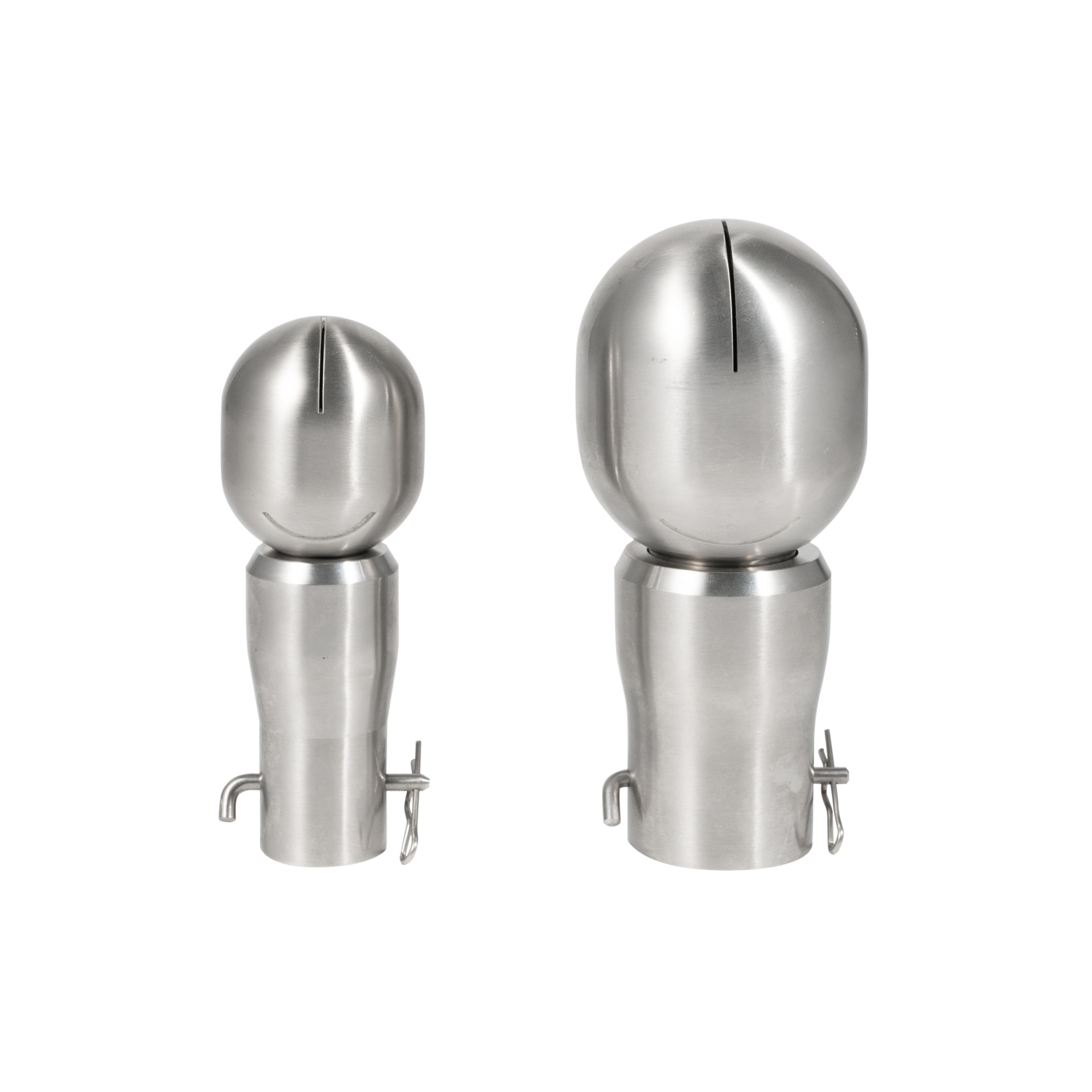

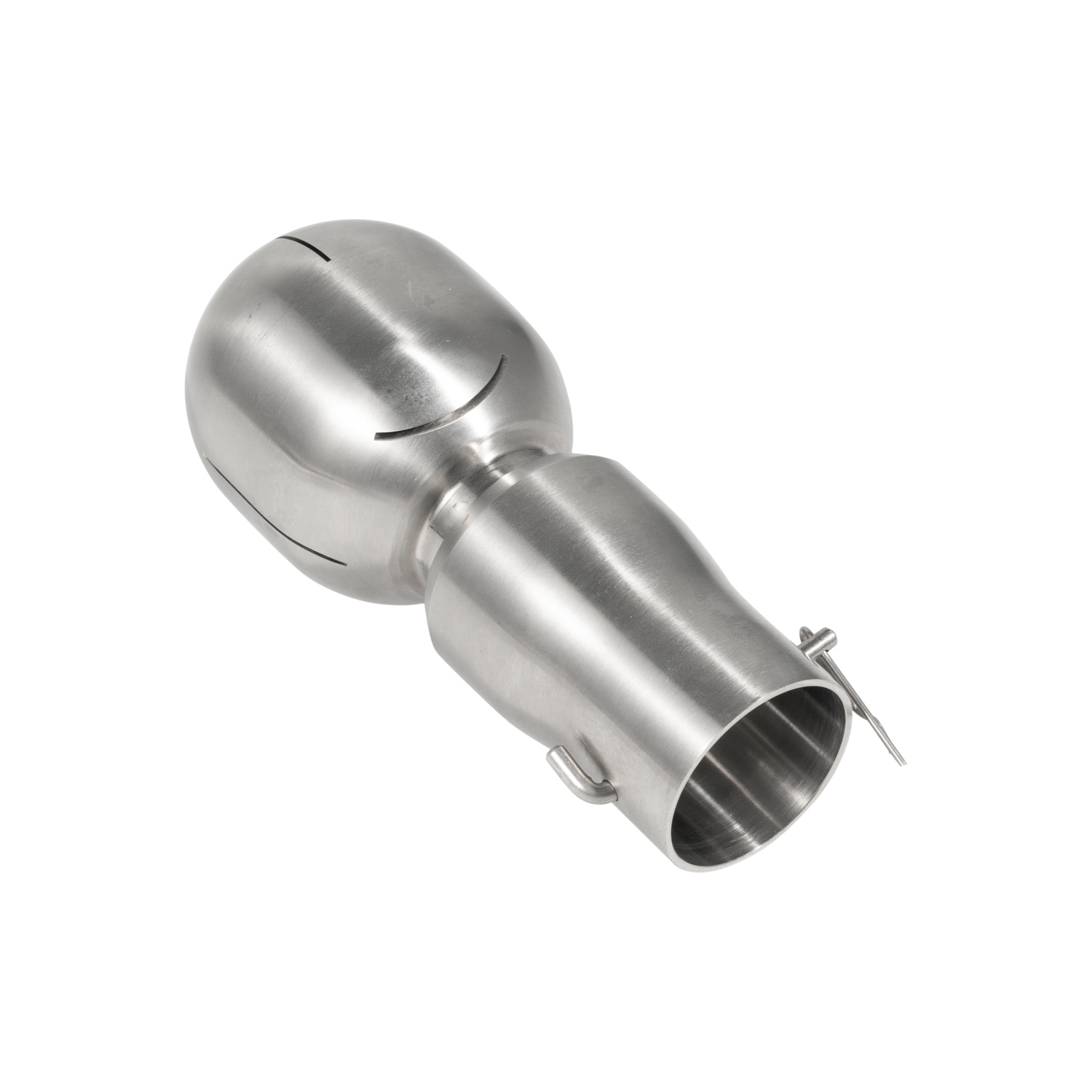

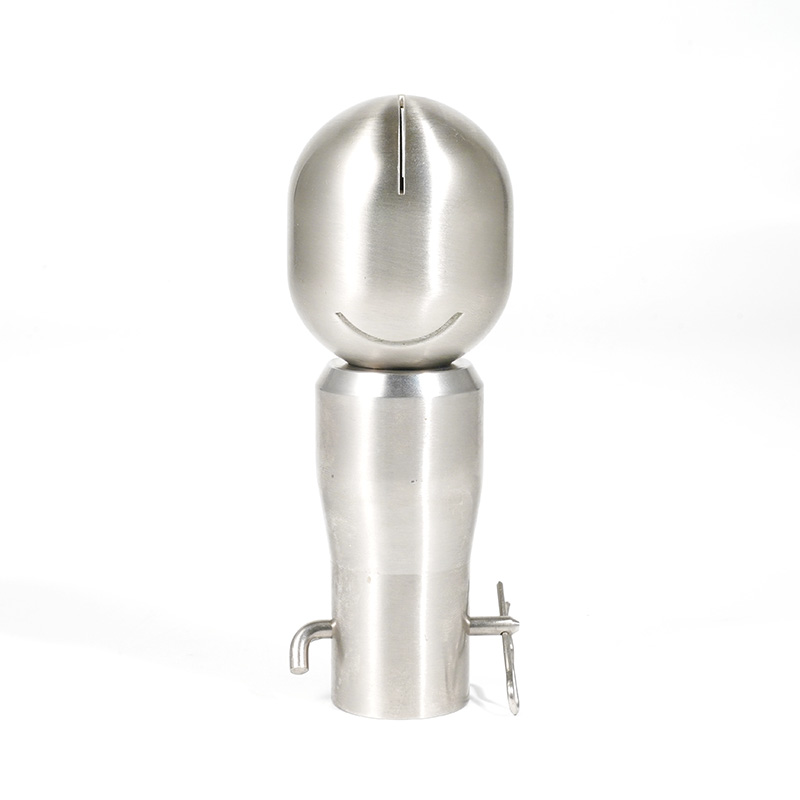

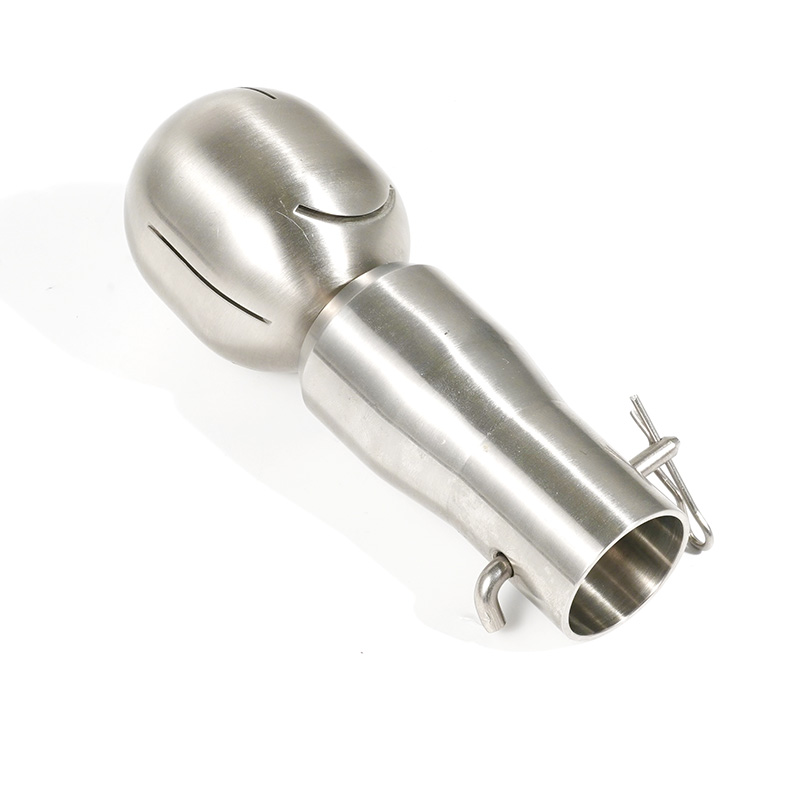

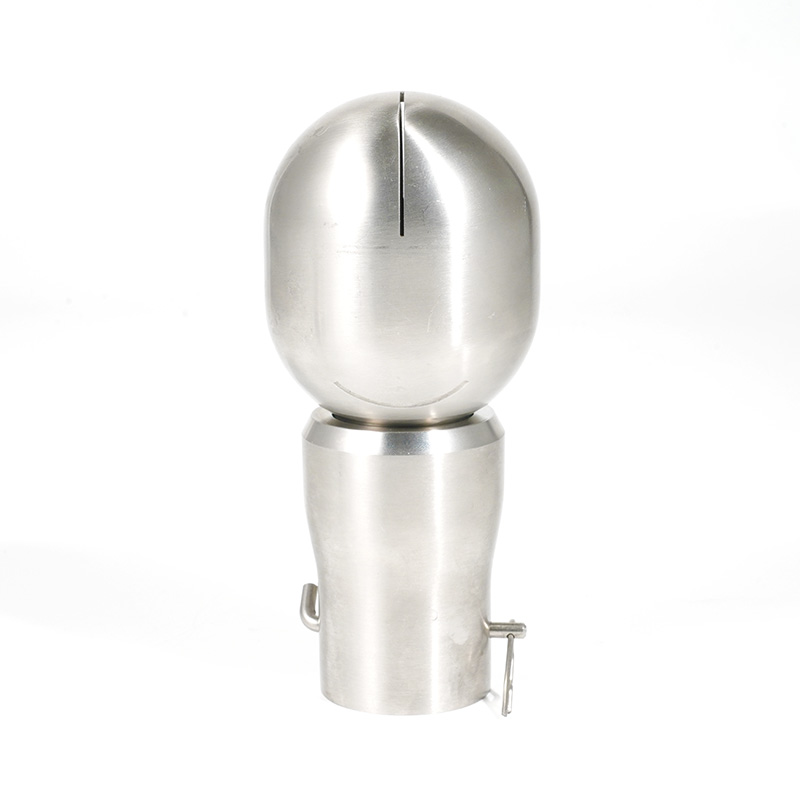

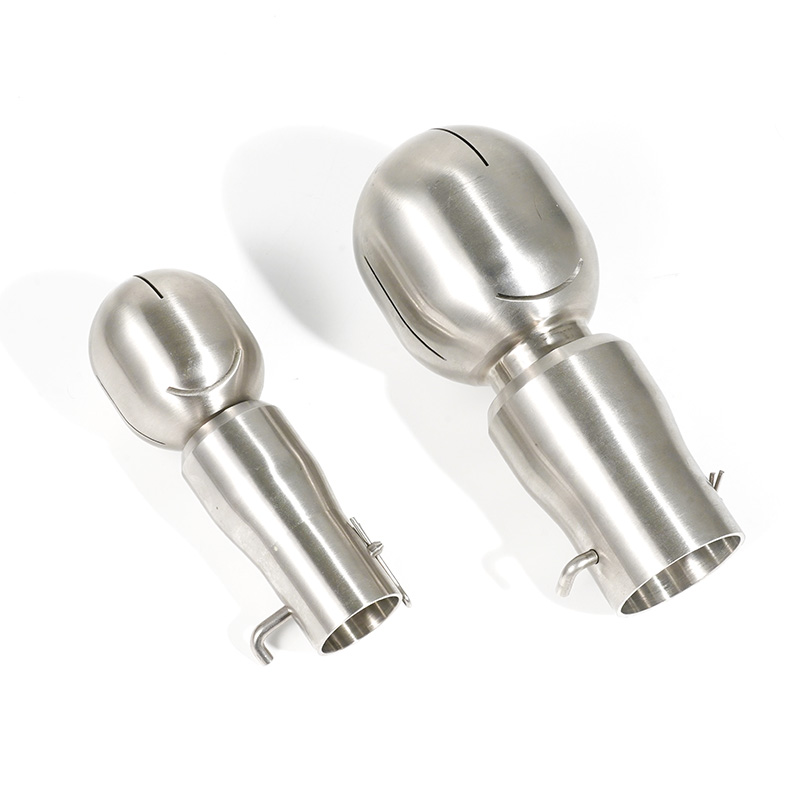

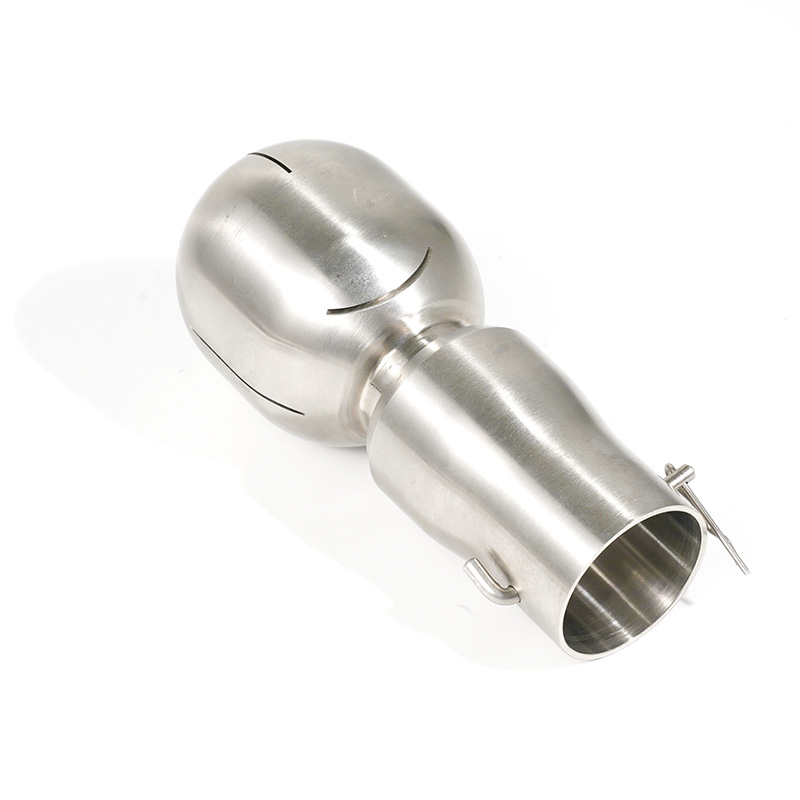

Sanitary Spray Cleaning Head SS316L Tank Fitting Stainless Steel Elliptical Rotary Cleaning Ball Tank Spray Cleaning Head

Application

The Type TCA device can be used in hygienic and nonhygienic  applications. The device is 100% self-rinsing. A variety of  connection types are available and typically are installed  permanently in a given tank or vessel. The Type TCA device can  also be used on a portable basis when desired.  Typical Applications include but not limited to…

• Soup Kettles
• Yeast Propagation Tanks
• Batch Processing Vessels
• Fluid Bed Dryers
• Ink and Paint Mixing Vats
• Brew KettlesStorage Tanks
• Spray Dryers
• Commercial Ovens

Materials

• Body Materials: SS316L

DESIGN AND FEATURES

• Different Spray Pattern

• Different Connection way

• Different Connection Standard

TECHNICAL DATA

Wetting Radius:                                    Max. 2.5m

Impact cleaning radius:                   Max. effective 0.6m

Working pressure:                             1-3Bar

Recommended pressure:              2Bar

FINISH

Exterior: Satin or Mirror

CONNECTION

Clamp,Weld, Clip on, Female or on request

Connection

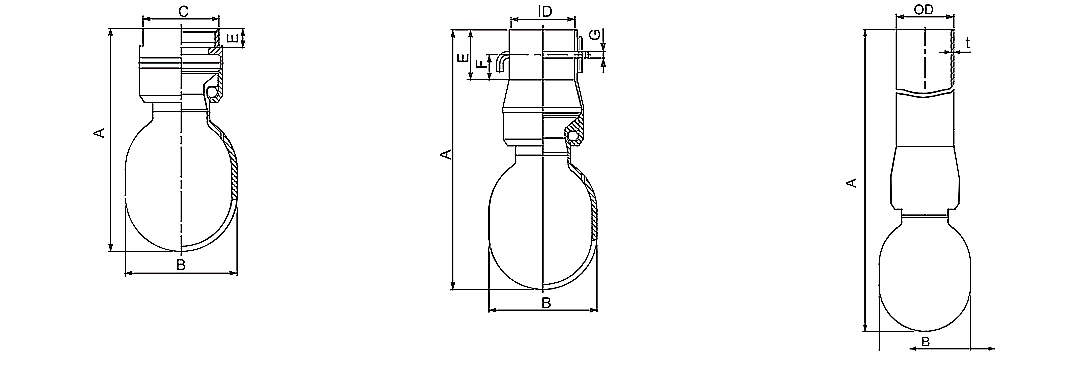

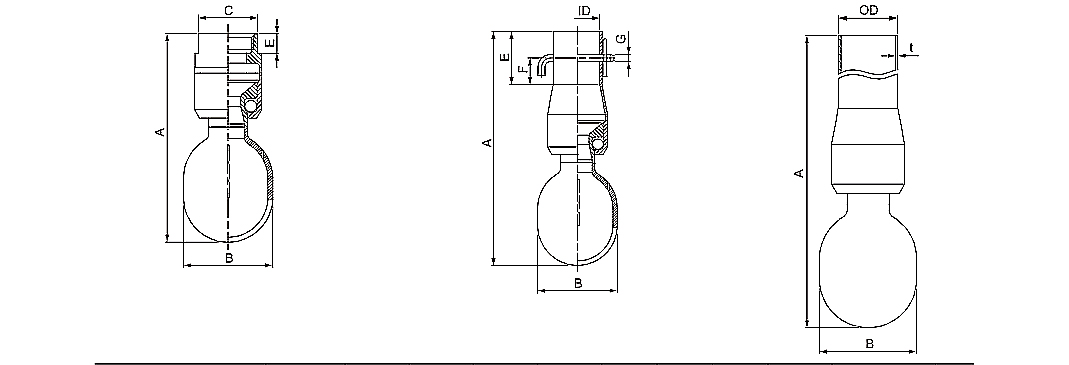

Model No

Size

A

B

ID

OD

E

F

G

Pressure

Wetting Radius

Cleaning Redius

Female(BSP)

TCA01F63038Q252

3/8"

62

25

11

1-3Bar

Max.2.5M

Max.0.6M

Female(NPT)

TCA01F62038Q252

3/8"

62

25

11

φ3.6

1-3Bar

Max.2.5M

Max.0.6M

Clip On(3A)

TCA01B61075Q252

3/4"

62

25

19.2

11

5.9

φ3.6

1-3Bar

Max.2.5M

Max.0.6M

Clip On(DIN)

TCA01B62015Q252

DN15

62

25

18.2

11

5.9

1-3Bar

Max.2.5M

Max.0.6M

Weld(3A)

TCA01W61075Q252

3/4"

77.5

25

19.05

1-3Bar

Max.2.5M

Max.0.6M

Weld(DIN)

TCA01W62015Q252

DN15

77.5

25

18

1-3Bar

Max.2.5M

Max.0.6M

Connection

Model No

Size

A

B

ID

OD

C

E

F

G

Pressure

Wetting Radius

Cleaning Redius

Female(BSP)

TCA01F63075Q452

3/4"

102

45

30

10

1-3Bar

Max.3M

Max.1.4M

Female(NPT)

TCA01F62075Q452

3/4"

102

45

30

10

1-3Bar

Max.3M

Max.1.4M

Clip On(3A)

TCA01B61100Q452

1"

133.5

45

28.3

30

15

φ4

1-3Bar

Max.3M

Max.1.4M

Clip On(DIN)

TCA01B62025Q452

DN15

133.5

45

29.3

30

15

φ4

1-3Bar

Max.3M

Max.1.4M

Weld(3A)

TCA01W6100Q452

1"

120.5

45

25.4

1-3Bar

Max.3M

Max.1.4M

Weld(DIN)

TCA01W62025Q452

DN15

120.5

45

28

1-3Bar

Max.3M

Max.1.4M

Connection

Model No

Size

A

B

ID

OD

C

E

F

G

Pressure

Wetting Radius

Cleaning Redius

Female(BSP)

TCA01F63125Q652

11/4"

130

65

44

10

1-3Bar

Max.3M

Max.2M

Female(BSP)

TCA01F63150Q652

11/2"

130

65

44

10

1-3Bar

Max.3M

Max.2M

Female(NPT)

TCA01F62125Q652

11/4"

130

65

44

10

Female(NPT)

TCA01F62150Q652

11/2"

130

65

44

10

Clip On(3A)

TCA01B61150Q452

11/2"

157

65

38.4

30

15

1-3Bar

Max.3M

Max.2M

Clip On(DIN)

TCA01B62040Q452

DN40

157

65

40.4

30

15

φ4.2

1-3Bar

Max.3M

Max.2M

Weld(3A)

TCA01W6150Q452

11/2"

157

65

38.1

φ4.2

1-3Bar

Max.3M

Max.2M

Weld(DIN)

TCA01W62040Q452

DN40

157

65

40

1-3Bar

Max.3M

Max.2M
