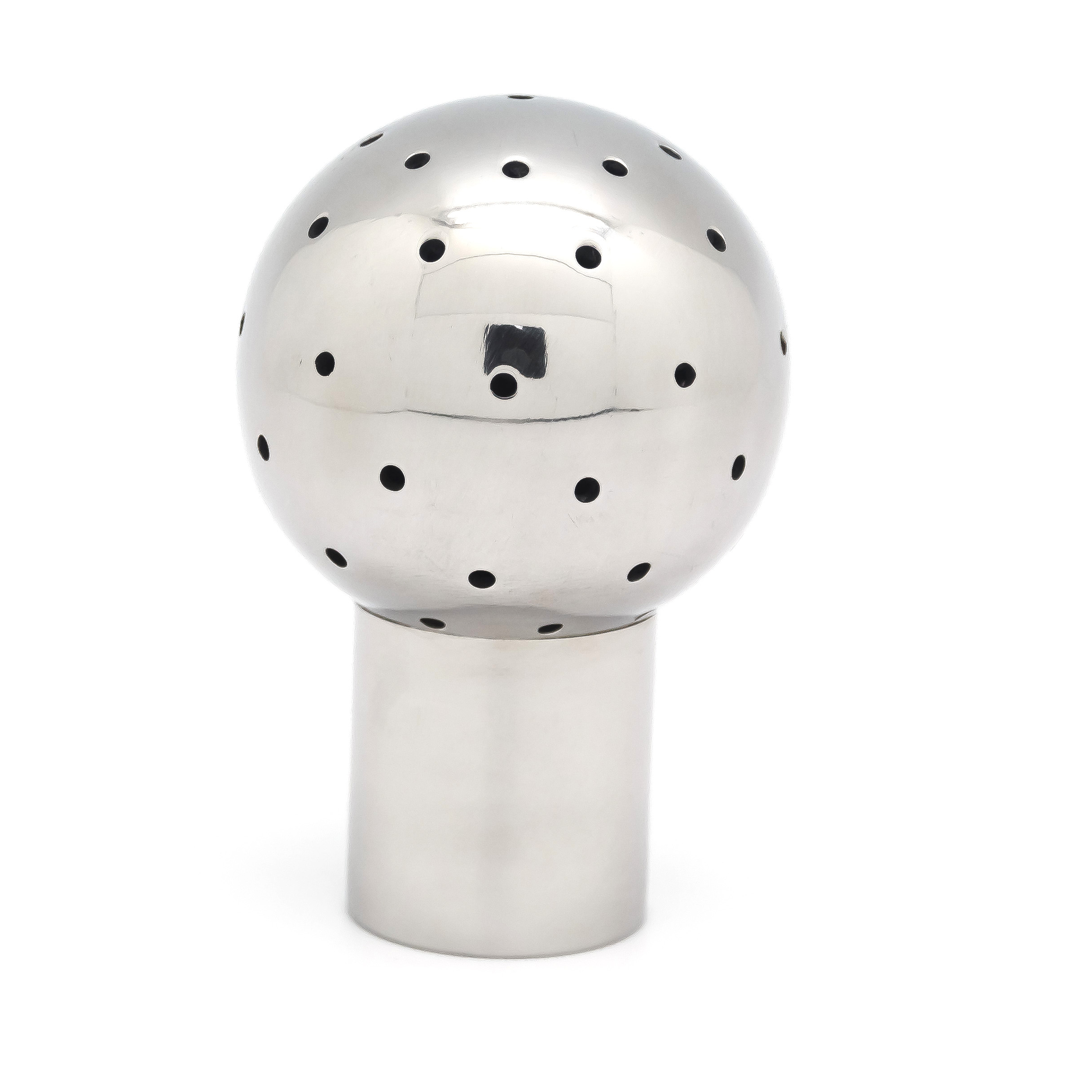

SS304 SS316L BSPT Female Fixed Cleaning Ball Stainless Steel Tank Components Fitting Sanitary Fixed Cleaning Ball Polishing

Model No.:TCN

SKU:TCN

Item No.:

End Connections:

Materials:

Size.:

Outside Surface Finishing:

Application

Tank Spray Cleaning Head uses cleaning media to provide coverage and impact. The device represents an effective alternative to traditional static spray balls because it uses low volumes of cleaning fluid at low pressure.

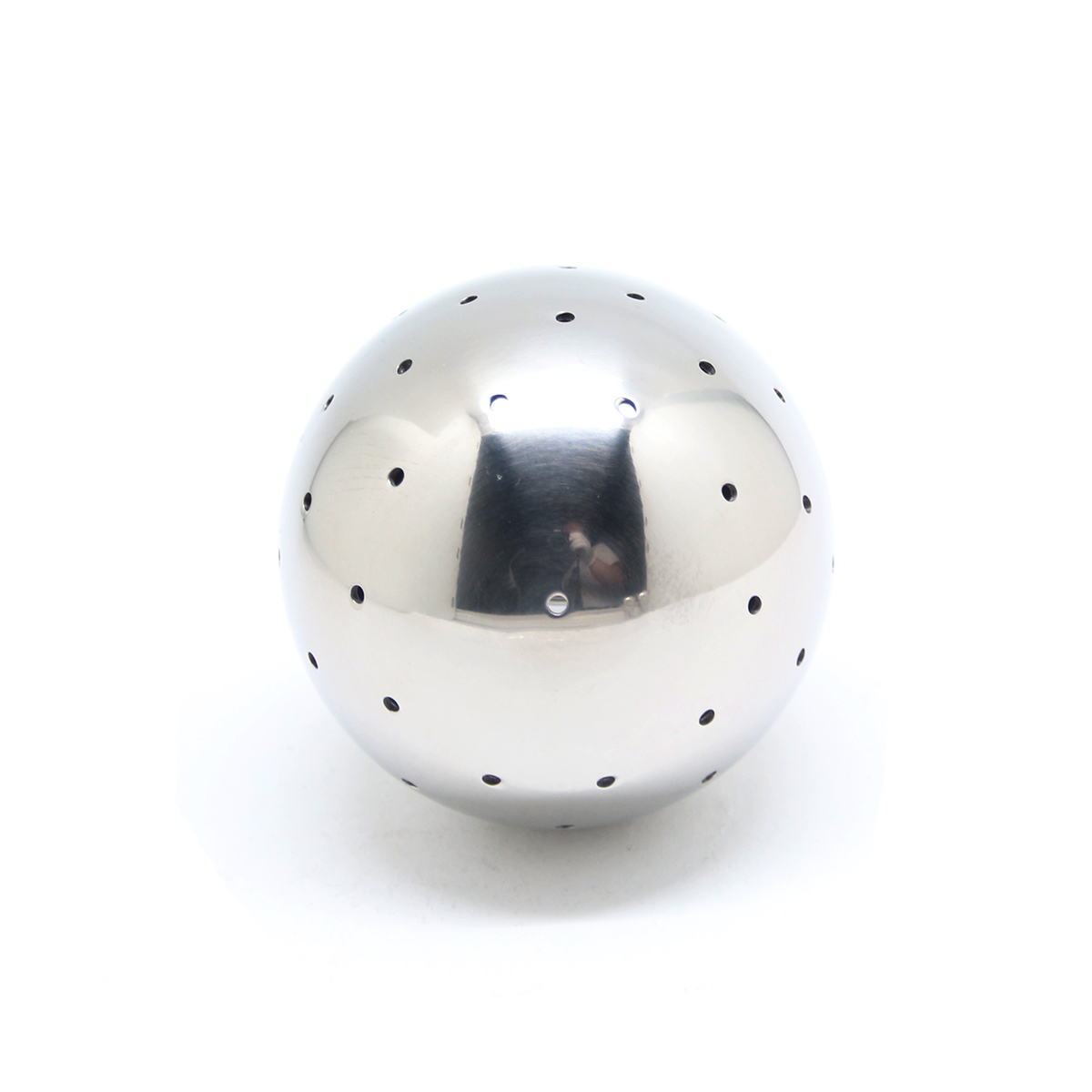

TCN is a fixed cleaning ball used for cleaning storage tanks in food and beverage industries, which are used for less demanding cleaning duties.

TCR is a rotating head with double ball bearing, it makes the device suitable for all industrial cleaning applications, including tanks, reactors, vessels and other containers ranging from 0.05 to 1 m³, depending on dimensions and cleaning task.

Materials

Body Material: SS304 or SS316L
Clip parts: SS304

DESIGN AND FEATURES

Different Spray Pattern
Different Connection Way
Different Connection Standard

TECHNICAL DATA

Wetting Radius: Max. 2.5m

Impact cleaning radius: Max. effective 0.6m

Working pressure: 1-3Bar

Recommended pressure: 2.5Bar

FINISH

Exterior: Satin or Mirror

CONNECTION

Clamp, Weld, Clip on, Female or on request.

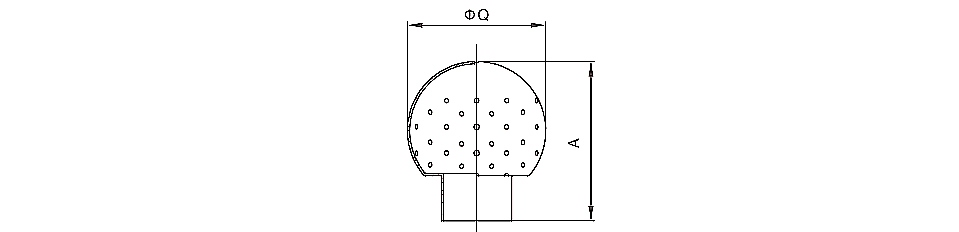

Weld Fixed Cleaning Ball TCN


Model No	Size	A	Q	Hole Dia	Pressure	Spray Radius	Flow Rate
TCN01W41050Q401	1/2''	54	40	1.5mm	2.5Bar	0.8-1mm	15M³/h
TCN01W41075Q451	3/4''	64	45	2mm	2.5Bar	1-1.25mm	15M³/h
TCN01W41100Q531	1''	72	53	2mm	2.5Bar	1-1.25mm	17M³/h
TCN01W41125Q631	11/4"	79	63	2mm	2.5Bar	1-1.25mm	20M³/h
TCN01W41150Q761	11/2''	85	76	2.5mm	2.5Bar	2-3mm	23M³/h
TCN01W41200Q911	2''	87	91	3mm	3.5Bar	3-3.5mm	55M³/h

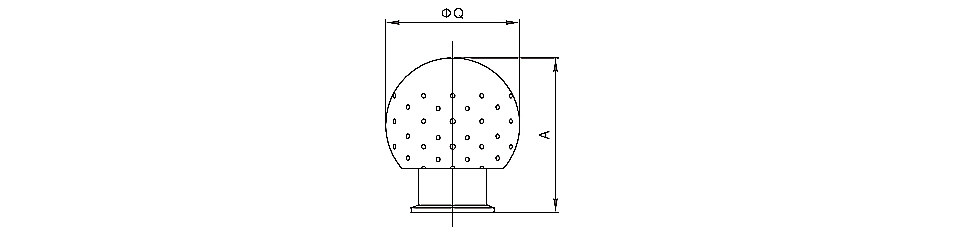

Clamp Fixed Cleaning Ball TCN


Model No	Size	A	Q	Hole Dia	Pressure	Spray Radius	Flow Rate
TCN01C41050Q401	1/2''	70	40	1.5mm	2.5Bar	0.8-1mm	15M³/h
TCN01C41075Q451	3/4''	77	45	2mm	2.5Bar	1-1.25mm	15M³/h
TCN01C41100Q531	1''	80	53	2mm	2.5Bar	1-1.25mm	17M³/h
TCN01C41125Q631	11/4"	93	63	2mm	2.5Bar	1-1.25mm	20M³/h
TCN01C41150Q761	11/2''	93	76	2.5mm	2.5Bar	2-3mm	23M³/h
TCN01C41200Q911	2''	108	91	3mm	3.5Bar	3-3.5mm	55M³/h

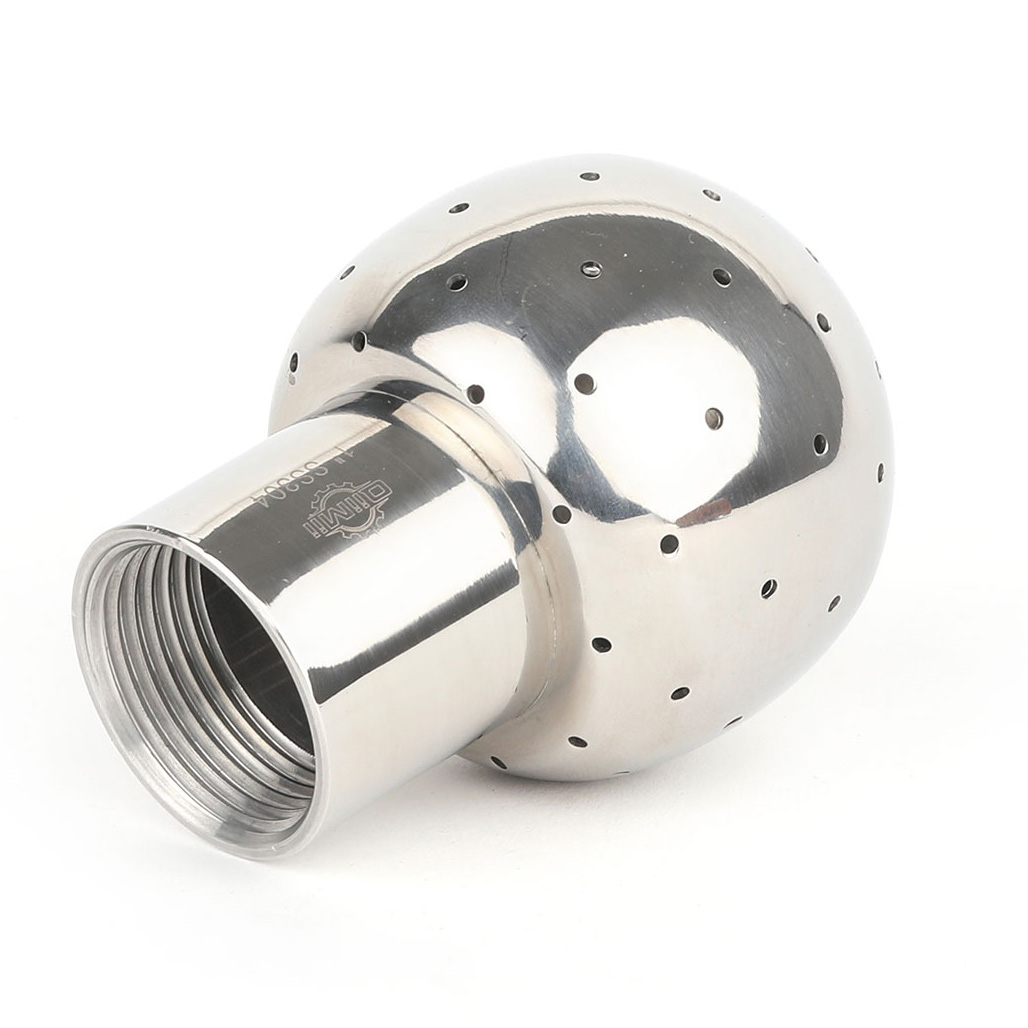

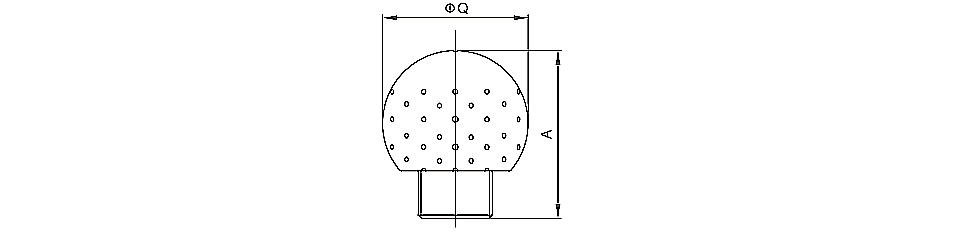

BSP Female Fixde Cleaning Ball TCN


Model No	Size	A	Q	Hole Dia	Pressure	Spray Radius	Flow Rate
TCN01F41050Q401	1/2''	70	40	1.5mm	2.5Bar	0.8-1mm	15M³/h
TCN01F41075Q451	3/4''	77	45	2mm	2.5Bar	1-1.25mm	15M³/h
TCN01F41100Q531	1''	80	53	2mm	2.5Bar	1-1.25mm	17M³/h
TCN01F41125Q631	11/4"	93	63	2mm	2.5Bar	1-1.25mm	20M³/h
TCN01F41150Q761	11/2''	93	76	2.5mm	2.5Bar	2-3mm	23M³/h
TCN01F41200Q911	2''	108	91	3mm	3.5Bar	3-3.5mm	55M³/h

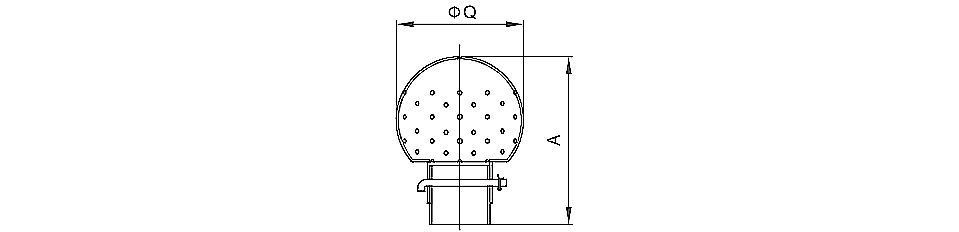

Clip ON Fixed Cleaning Ball TCN


Model No	Size	A	Q	Hole Dia	Pressure	Spray Radius	Flow Rate
TCN01B41050Q401	1/2''	54	40	1.5mm	2.5Bar	0.8-1mm	15M³/h
TCN01B41075Q451	3/4''	64	45	2mm	2.5Bar	1-1.25mm	15M³/h
TCN01B41100Q531	1''	72	53	2mm	2.5Bar	1-1.25mm	17M³/h
TCN01B41125Q631	11/4"	85	63	2mm	2.5Bar	1-1.25mm	20M³/h
TCN01B41150Q761	11/2''	85	76	2.5mm	2.5Bar	2-3mm	23M³/h
TCN01B41200Q911	2''	87	91	3mm	3.5Bar	3-3.5mm	55M³/h
