VHH SS304/SS316L Stainless Steel Sanitary Clamp Weld Wheel Handle Manual Divert Seat Valve 21Type

CONCEPT

VHH series shut-off and divert seat valve provides solutions for the most stringent hygienic and aseptic processes requirements in the beverage, food, dairy and pharmaceutical industries.The valve series provides the best basis for efficient and safeproduction processes due to the wide variety of options provided byour modular system, ease of maintenance, ceanability, and theoptions for the valves to meet the latest hygiene and asepticrequirements.

TECHNICAL DATA

Working Temperature Range:        -10°C to +120°C (EPDM per FDA)

Max. Working Pressure:                 1000 kPa (10 bar)

Min. Working Pressure:                 Full vacuum

Air Pressure for Actuator:              500 to 700 kPa (5 to 7 bar)

Air Connections Compressed air:  Female R 1/8" (BSP)

MATERIAL

Wetting Steel Parts:  SS304/SS316L

Other Steel Parts: SS304

Seat Seal:  EPDM per FDA 177.2600

Connection:  Clamp End/Weld End/Male End

Body type: 20, 21, 30, 31, 22, 32

WORKING PRINCIPLE

The valve is a pneumatic seat valve in a hygienic and modular designfor a wide field of duties, e.g. as a shut-off valve with two (2) orthree (3) ports or as a change-over valve with three (3) to five (5)ports. The valve is remote-controlled by means of compressed air. lthas few and simple moveable parts which results in a very reliablevalve and low maintenance cost.

MATERIAL

Wetting Steel Parts:         SS304/SS316L

Other Steel Parts:            SS304

Seat Seal:                        EPDM per FDA 177.2600

ACTUATOR FUNCTION

Normally Open(NO): Air to Close and Spring to Open

Normally Close(NC): Air to Open and Spring to Close

Double Actuating(A/A): Air to Open and close

DESIGN AND FEATURES

FDA Gasket

Clamped housing connection: Seat ring clamped by clamping connection

SURFACE FINISHING

Inside Surface: Bright polished to Ra<0.8umOutside Surface: Matt or Sandblast

OPTION

1. Connection way: Weld, Tri clamp, Male parts2.1 or 2pcs Proximity switches
3. With jacket body
4. Product wetted seals in Silicon, NBR Or FPM5. External Surface finish: Mirror
6. With Control Head

Note: Converting the operating mode from air to open to springto open (and vice-versa) is possible without additional parts!

Normal Close(NC actuator)	Normal Close(NO actuator)
Valve is close, when air is suppliedplug lift to open. The built inspring returnsthe valve plug to its close positiononce the air supply is stopped	Valve is open, when air is supplied,shaft goes down to close. The builtin spring returns the valve plug toit s open position once the airsupply is stopped

Configuration and Flow direction options

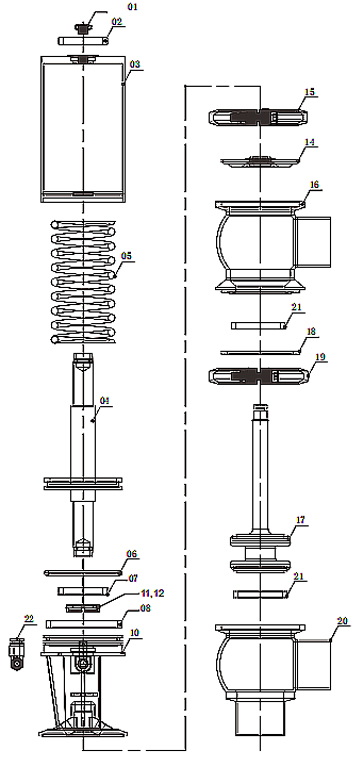

	Item	Description	Material	Qty
	1	Silencer	QAI10-4-4	1
	2	O-Ring	NBR	1
	3	Cyinder	SS304	1
	4	Piston	SS304	1
	5	Spring	60Si2MnA	1
	6	O-Ring	NBR	1
	7	O-Ring	NBR	1
	8	O-Ring	NBR	1
	9	Snap ring	SS304	1
	10	Bracket	SS304	1
	11	Gland	PVDF	1
	12	Plate	SS304	1
	13	Sleeve	Plastic	1
	14	Seal	304+EPDM	1
	15	Clamp	SS304	1
	16	Upper Valve Bady	SS304/SS316L	1
	17	Valve Plug	SS304/SS316	1
	18	Valve Body Seal	EPDM	1
	19	Calmp	SS304	1
	20	Lower Valve Body	SS304/SS316L	1
	21	Seat Seal	EPDM	2
	Material: Wetting Material:SS304/SS316L Other Steel Parts: ss304 Seat Seal: EPDM, FKM per FDA 177.2600 Connection:Clamp End/eld End/Male End Body type: 20,21,30,31,22,32
	Material: Wetting Material:SS304/SS316L Other Steel Parts: SS304 Seat Seal: EPDM, FKM per FDA 177.2600 Connection:Clamp End/eld End/Male End Body type: 20,21,30,31,22,32
	Surface: Inside Surface: Bright polished to Ra<0.8umO utside Surface: Matt or Sandblast

Ordering Information :
