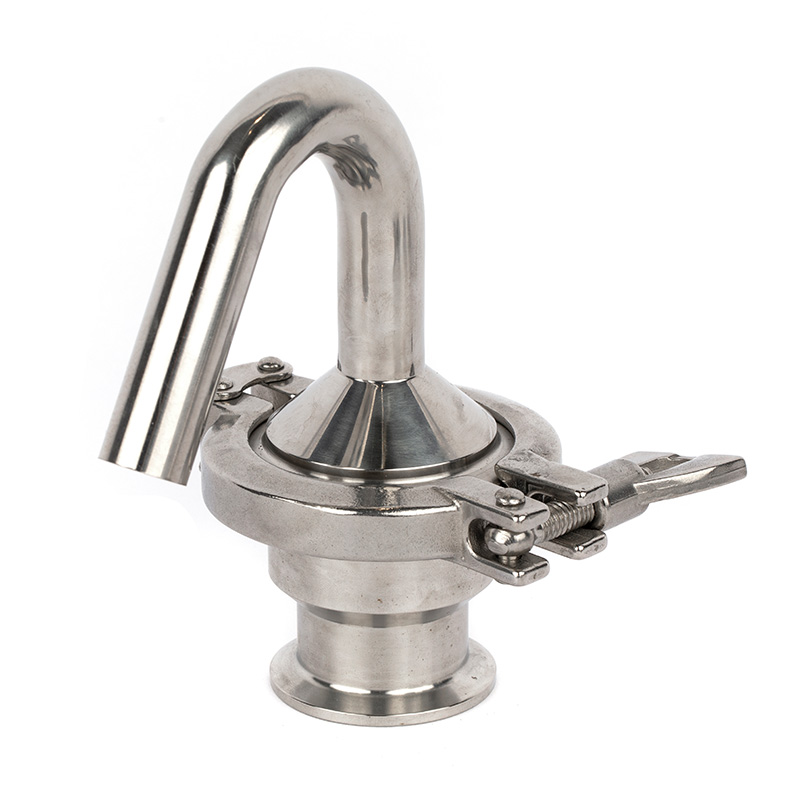

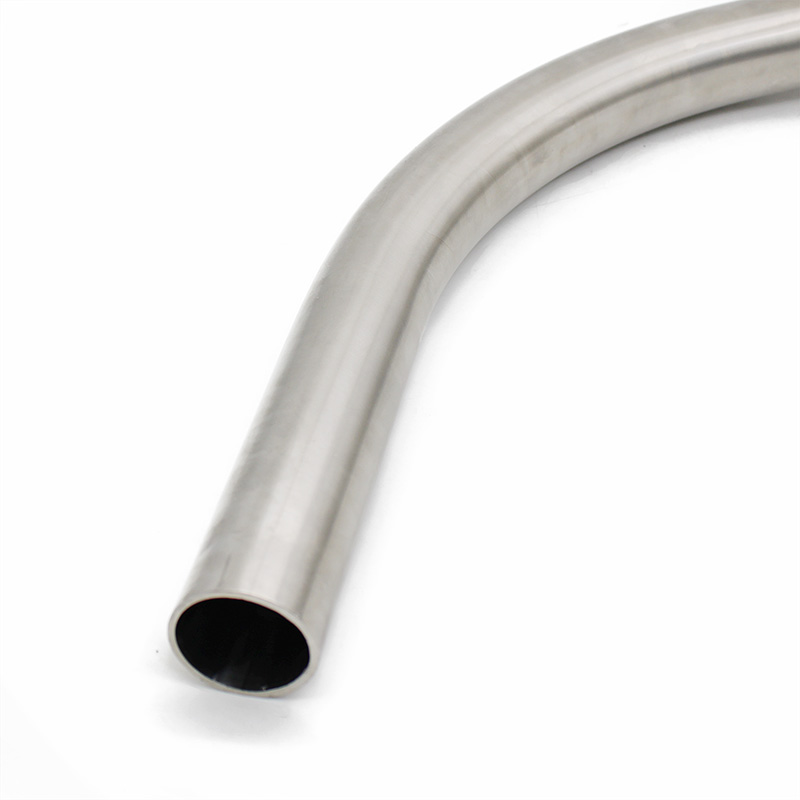

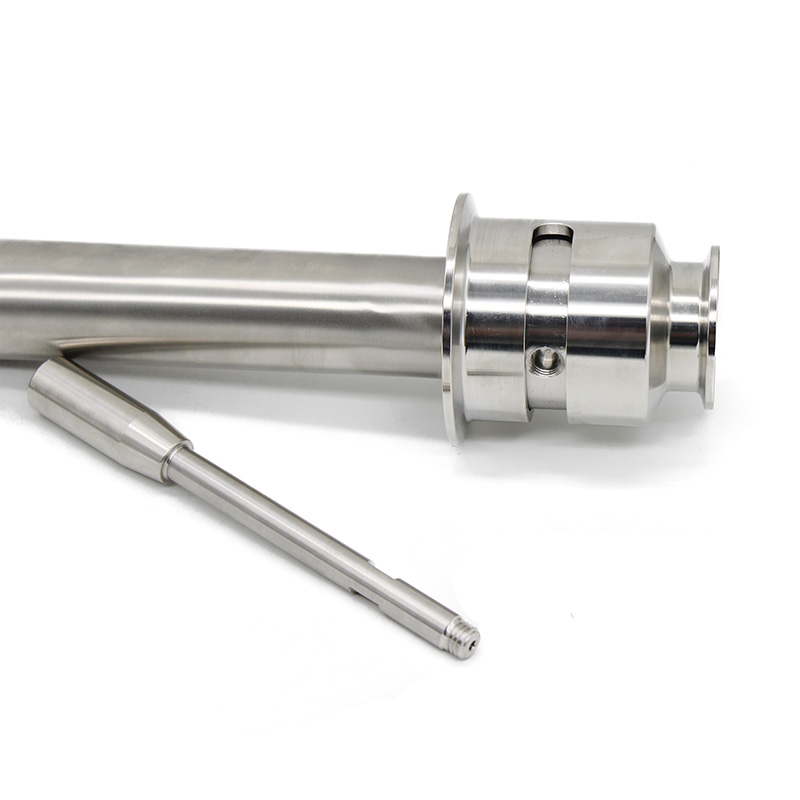

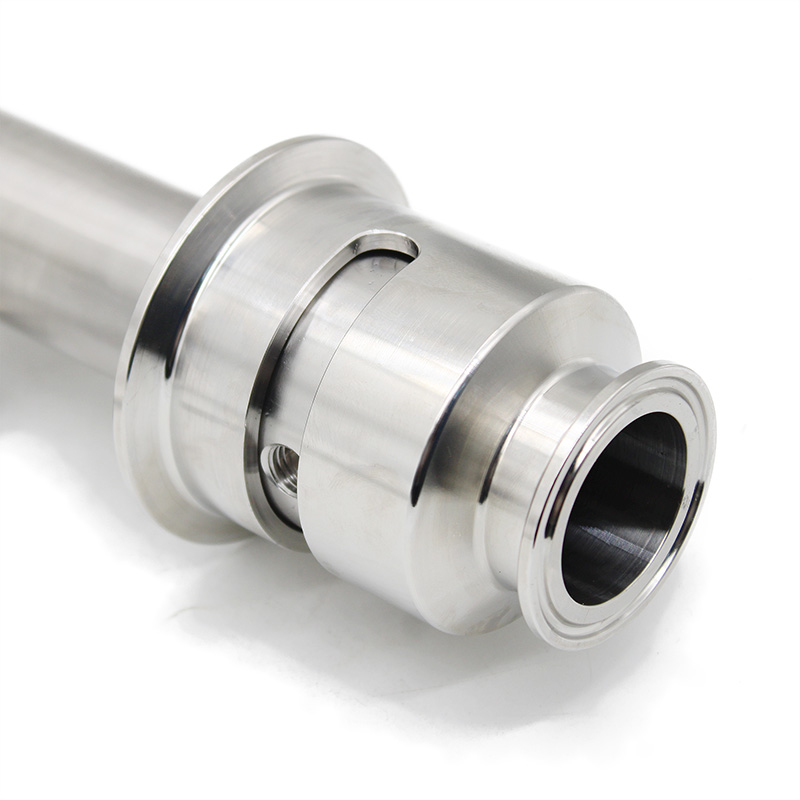

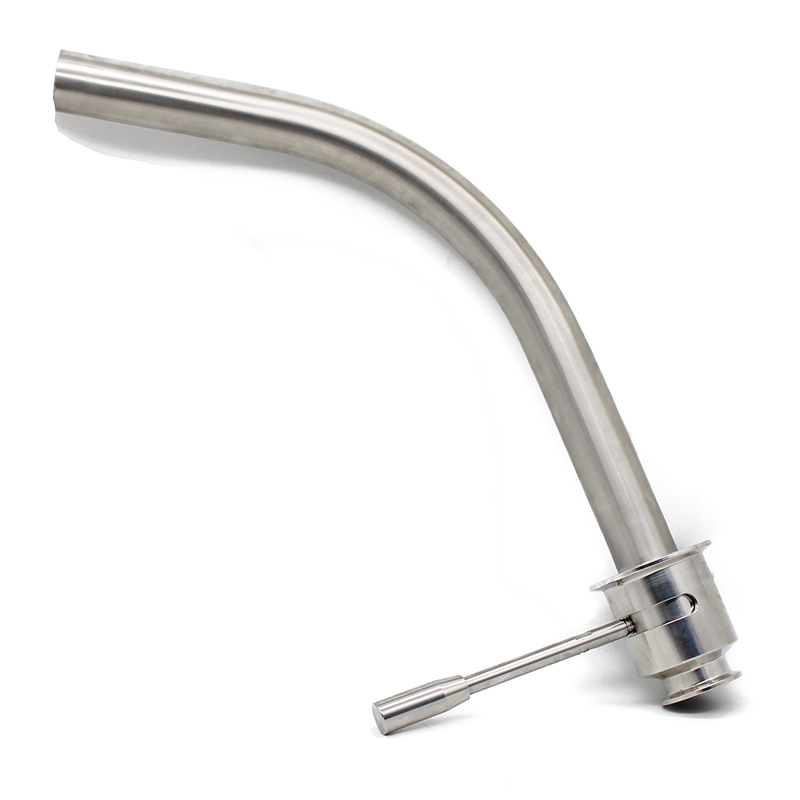

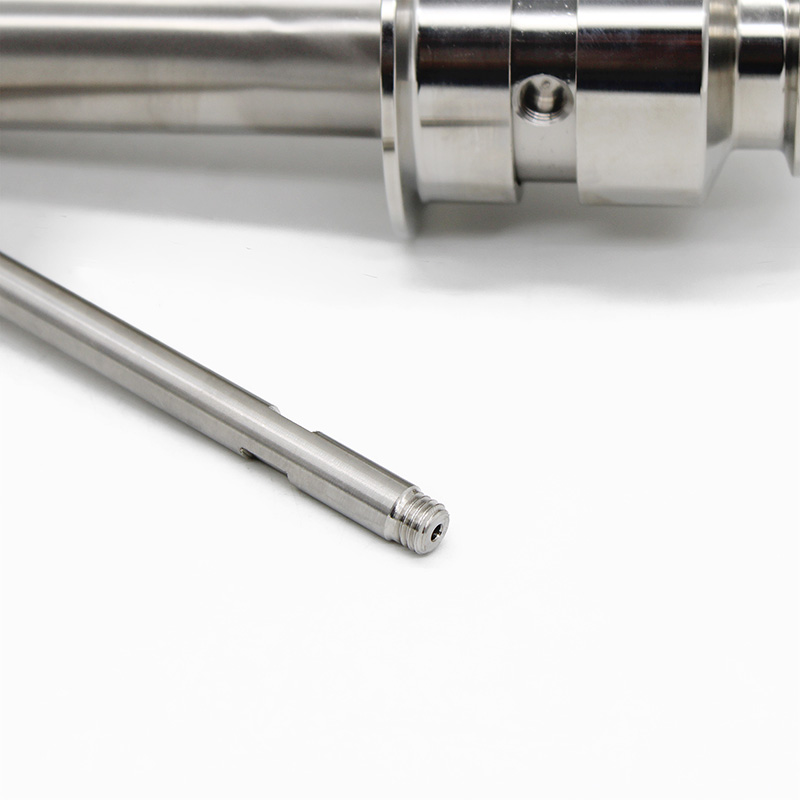

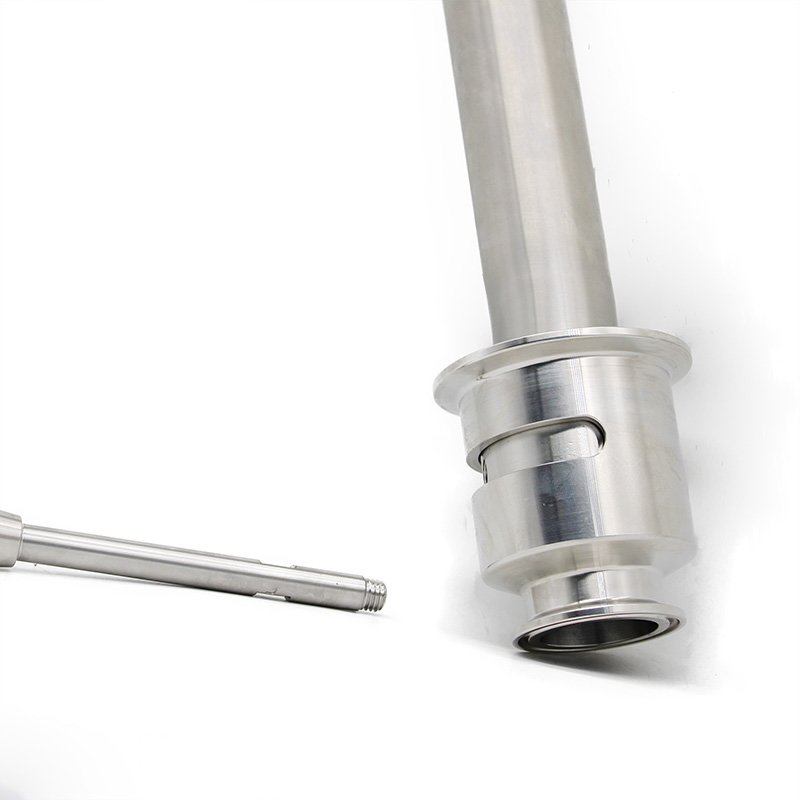

VAB Racking Arm Valve SS304/SS316L Stainless Steel Clamp 1.5inch 120 Degree Rotating Racking Arm Valve for Beer Fermenter Tank

Model:VBA01C

Sanitary Rotating Racking Arms Valve is an necessary part of any conical fermenter or tanks. Typically found in the bottom cone of a cylindroconical fermentation tank, the racking arm is rotated slowly downward drawing off clear liquid until the fine sediment of yeast beogins to trickle through.It is widely applied to many fileds,such as beer,beverage,dairy food,fruit juice,pharmacy,biological etc.

Sanitary Rotating Racking Arms Valve is an necessary part of any conical fermenter or tanks. Typically found in the bottom cone of a cylindroconical fermentation tank, the racking arm is rotated slowly downward drawing off clear liquid until the fine sediment of yeast beogins to trickle through.It is widely applied to many fileds,such as beer,beverage,dairy food,fruit juice,pharmacy,biological etc.

Technical Specifications:

Working Pressure: 6-16bar(87~232psi)

Supply Pressure for Air Actuator: 6~8(87psi~116psi)

Temperature range:

Domestic Silicone:-22 ~ 302°F (-30~150℃)

Domestic EPDM:14 ~ 230°F (-10~110℃)

Importing Silicone:-40 ~ 392°F (-40~200℃)

Importing EPDM:-13~ 266°F (-25~130℃)

Buna:5~ 212°F (-15~100℃)

FKM:14 ~ 392°F  (-10℃~200℃ )



Options

1.Various standards can be provided: SMS,DIN,3A

2.Material contacts parts: SS304,SS316L

3.Available in sizes from 1” to 4”, DN25-DN100
4.The gasket can be Silicone,EPDM,FKM,Buna. All seals material comply with FDA21CFR117.2600
5.Connection can be Tri-clamp,Female Thread,Union,Square-flange,Round-flange

6.Bend size can be customization

7.Bend degree can be customization


Advantages:

1.Widely application range: Widely used in food, water supply, drainage, electricity, urban construction, petroleum, chemical, environmental protection, various large enterprises and other fields for water supply and drainage fitness.

2.Exquisite workmanshipThe valve body is meticulously cast, washed and polished for durability, winning by quality, and resistant to work and material reduction

3.Durable and long-lastingPressure resistance, corrosion resistance, good performance, high reliability, and worry free safety make the product more durable to use

Design Features

1. The product is made of SS304, SS316L, solid, wear-resistant, not easy to rust, anti-aging, acid and alkali resistant, durable

2. The surface is treated with CNC precision turning, which is resistant to large temperature differences and corrosion

3. It has a simple and compact structure, fast pressure reduction, convenient maintenance, and adjustable pressure control

4. Every detail of craftsmanship has been tested multiple times, and craftsmanship has created a good product

Related products

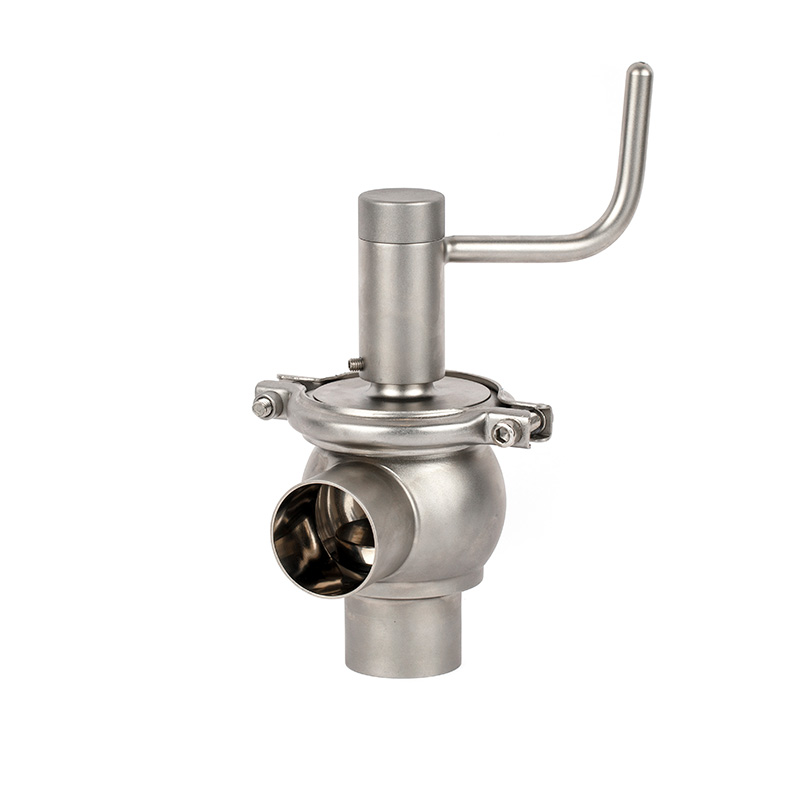

Wrench Handle Manual Divert Seat Valve

VR series divert seat valve is a kind of manual hygienic single-seat valve, which is applied to a wide ra...

Inquire
L Type Pneumatically Manual Divert Seat Valve

VHH series shut-off and divert seat valve provides solutions for the most stringent hygienic and aseptic ...

Inquire

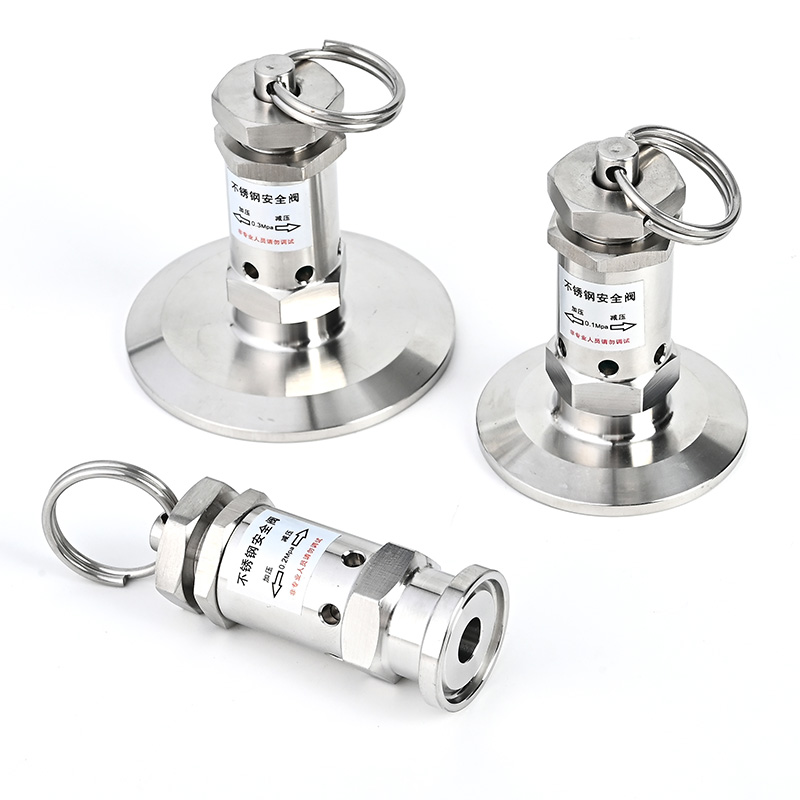

Mini Type Pressure Relief Valve
