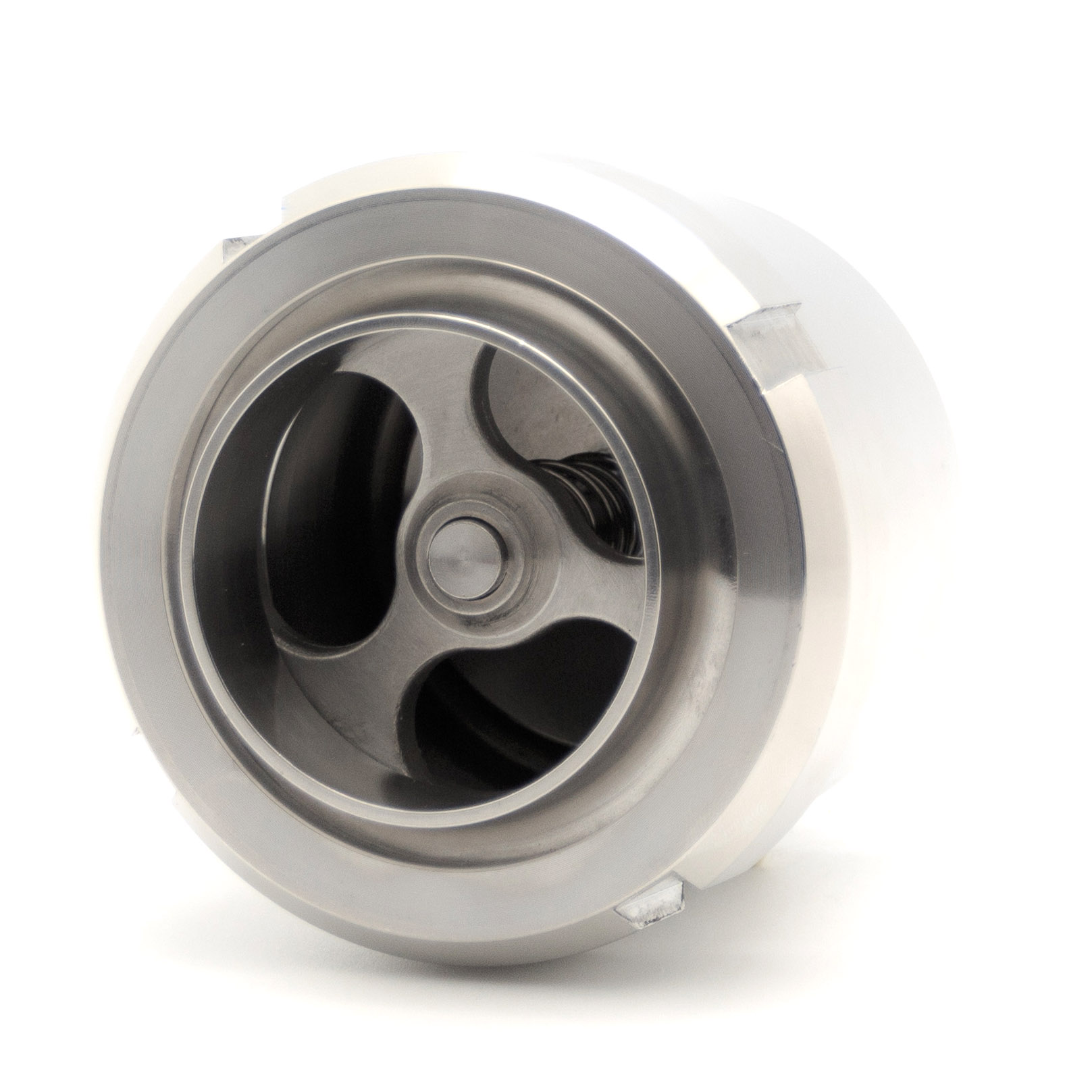

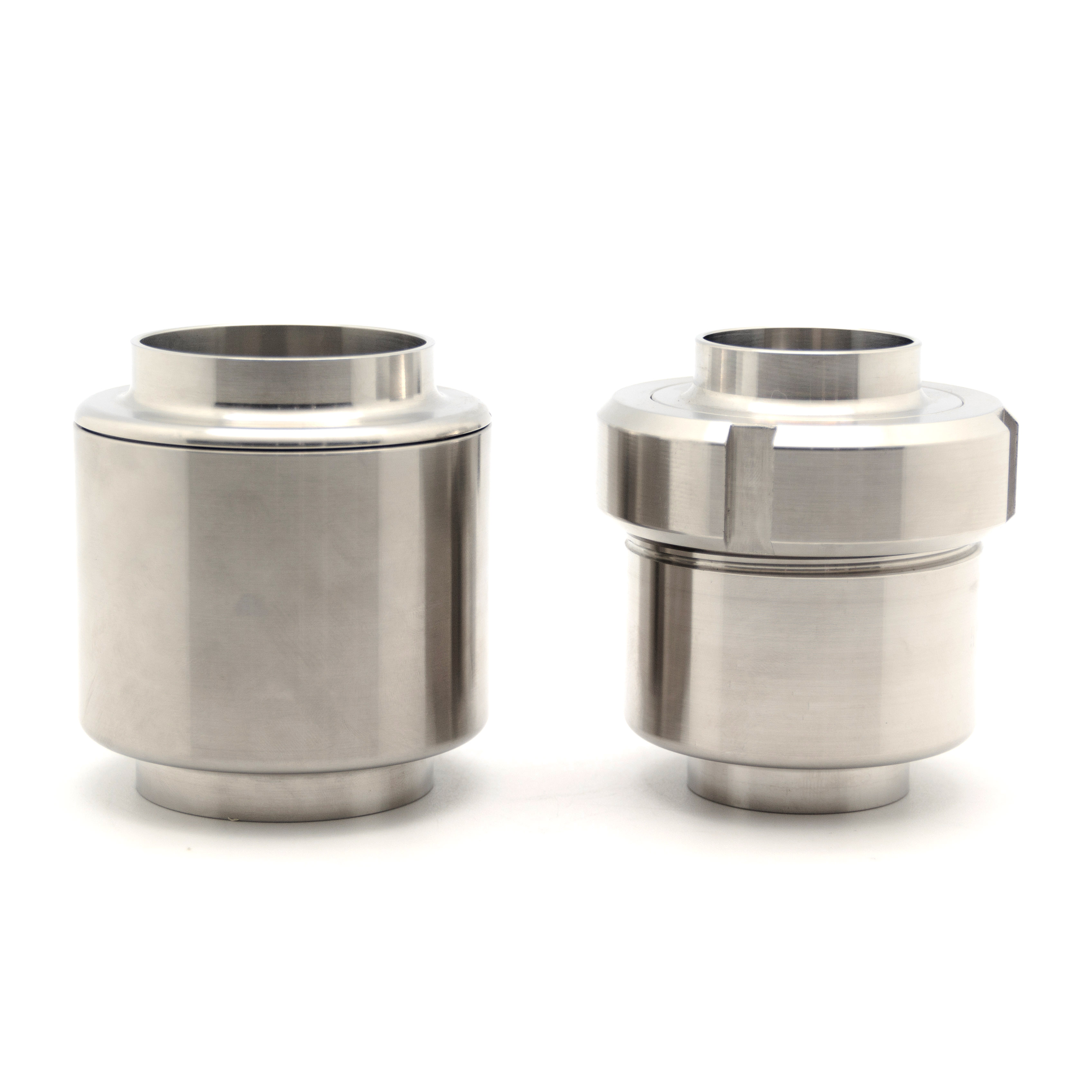

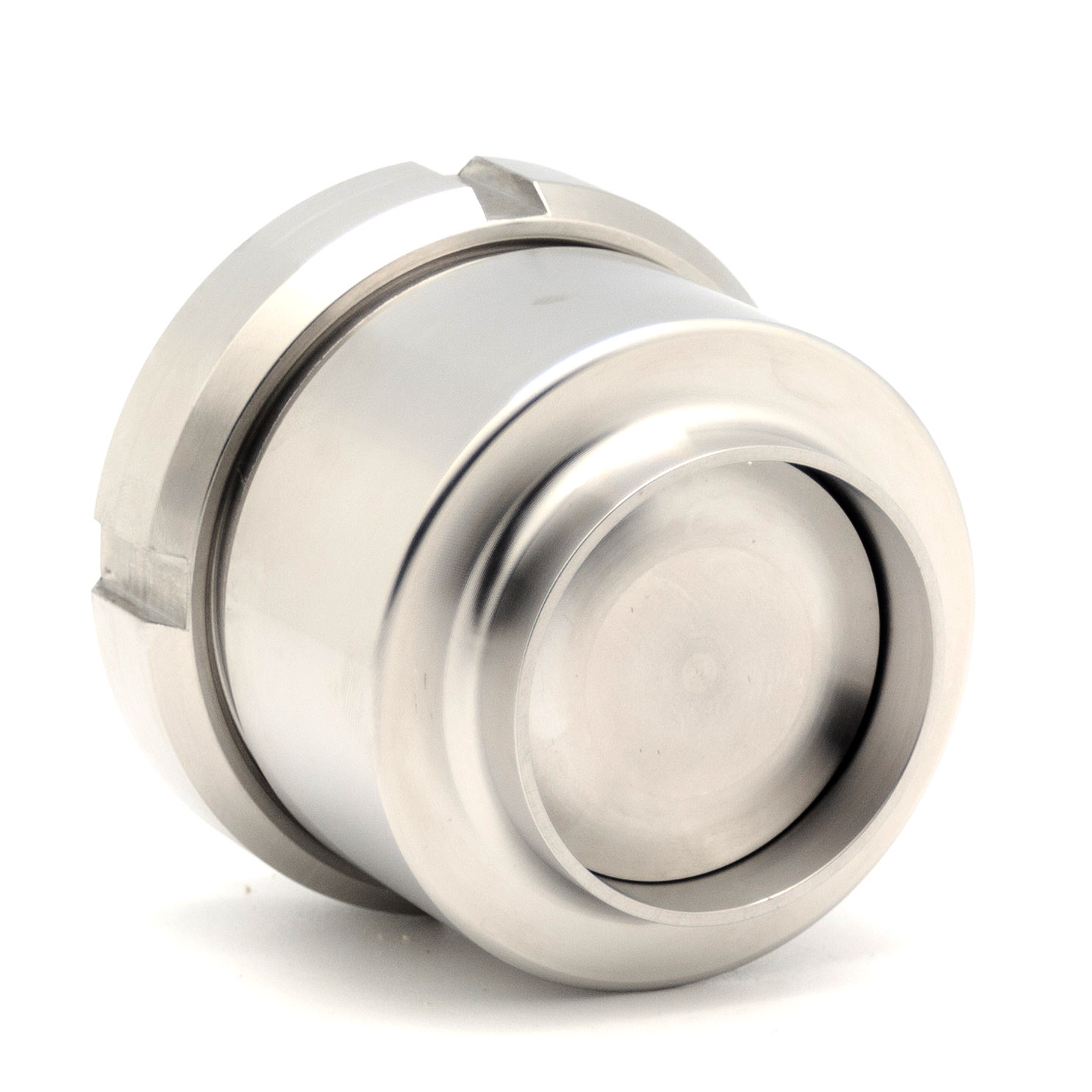

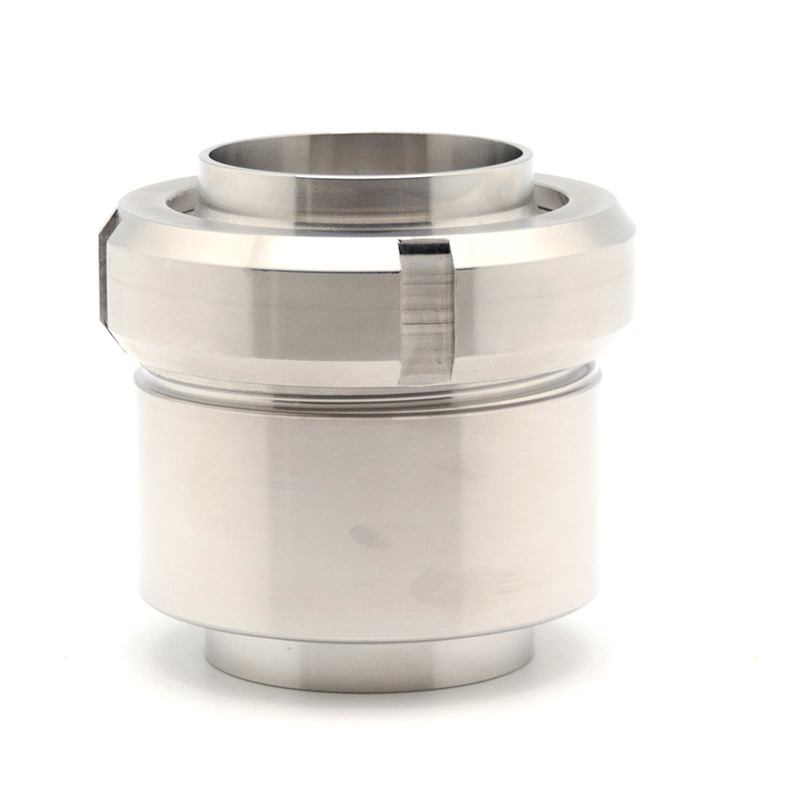

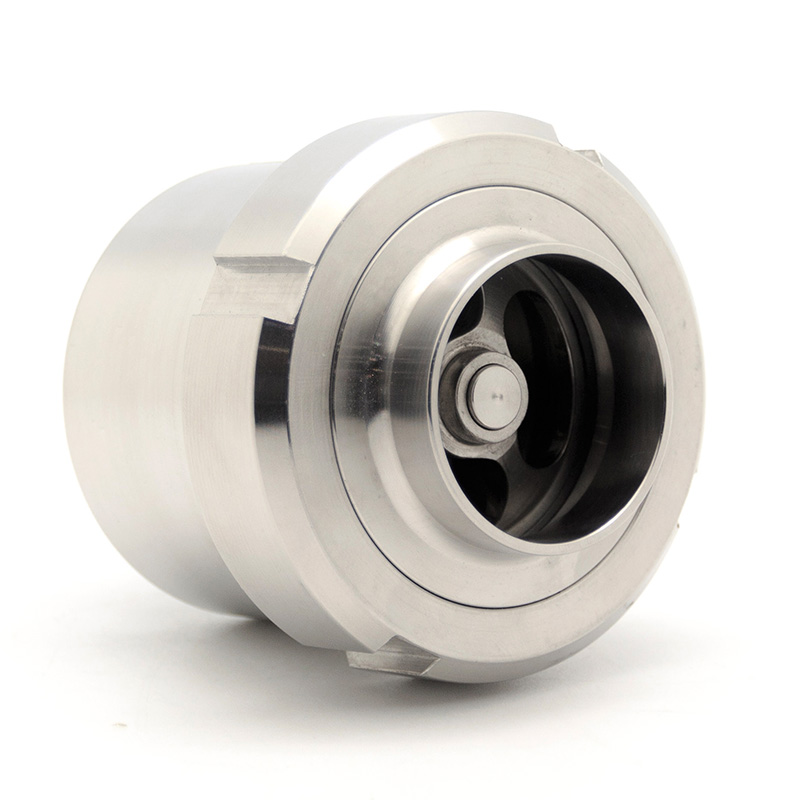

VCU SS304 SS316L Union Type Check Valve Sanitary Stainless Steel Non-return Valve 1"-4" or DN25-DN100

Application

VCU Series Prevents the fluid from flowing back and ensures that if flows in only one direction. It can be used to prevent the loss of prime of the pump and to avoid pipe-hammering in the food-processing, beverages, wine-making, oil-making, cosmetics, pharmaceutical and chemical industries

Material

Materials: AISI304 316L

The seal materials comply with FDA177.2600 standard.

Standard Design

Technical Specification

Size available: 1", 1 1/2", 2" 2 1/2", 3", 3.5", 4";

Max. working pressure: 147psi (10bar)

Temperature range: 14 ~ 248°F (-10 ~ 120°C), EPDM

Inside polishing: Ra 16-32µin (0.4 ~ 0.8µm)

Connections: Weld, Thread, Clamp, DIN, SMS, RJT, IDF, ISO

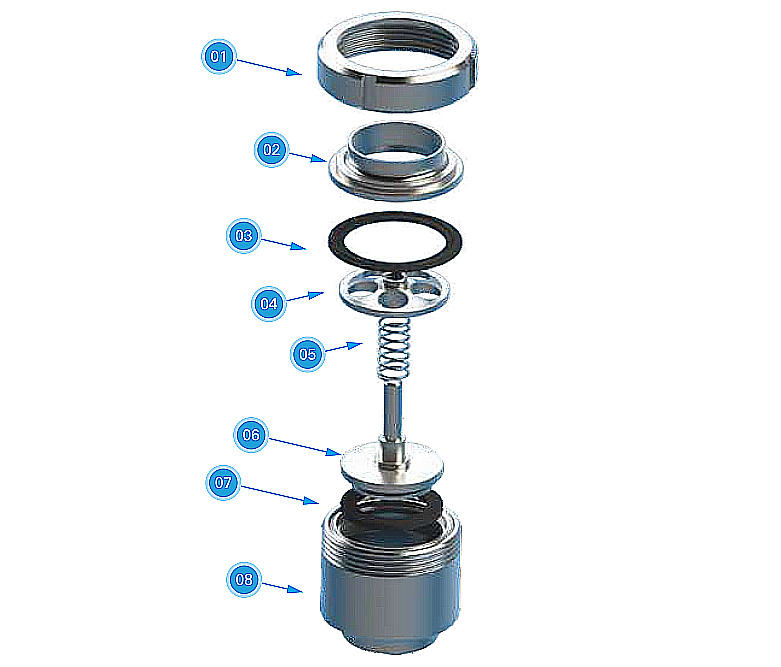

• EXPLODED VIEW

• 	Item	Name	Material	QTY
  	1	Nut	SS304	1
  	2	Valve Cap	SS304/SS316L	1
  	3	Body Seal	EPDM*	1
  	4	Valve Disc	SS304/SS316L	1
  	5	Spring	SS304/SS316L	1
  	6	Valve Stem	SS304/SS316L	1
  	7	Seat Seal	EPDM*	1
  	8	Valve Body	SS304/SS316L	1

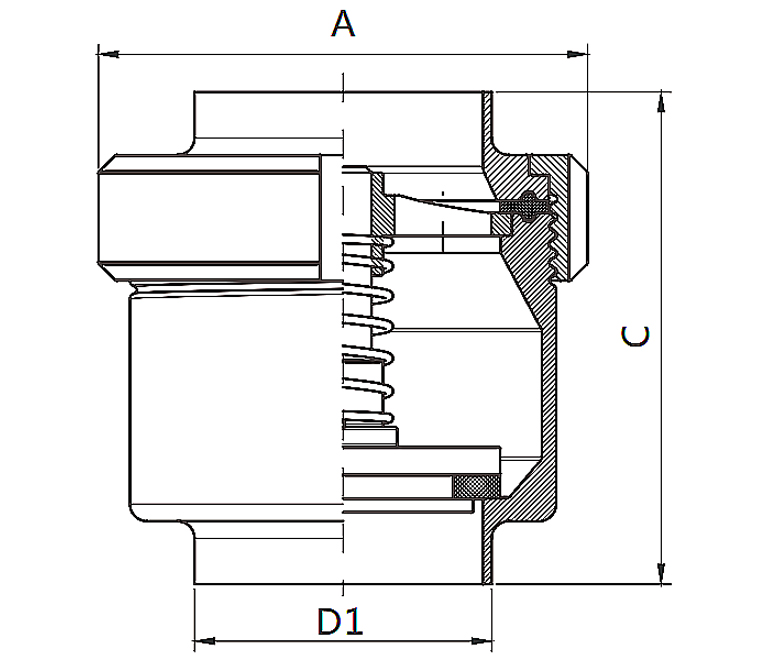

  VCU Check Valve

  	Model No	Size	A	C	D1
  	VCU01UXX1100	1''	64	68	25.4
  	VCU01UXX1125	1 1/4''	64	68	31.8
  	VCU01UXX1150	1 1/2''	71	76	38.1
  	VCU01UXX1200	2''	86	86	50.8
  	VCU01UXX1250	21/2"	108	102	63.5
  	VCU01UXX1300	3"	145.3	120	76.2
  	VCU01UXX1400	4"	64	68	101.6
  	VCU01UXX2025	DN25	64	68	28
  	VCU01UXX2032	DN32	71	76	34
  	VCU01UXX2040	DN40	86	86	40
  	VCU01UXX2050	DN50	100	102	52
  	VCU01UXX2065	DN65	112	110	70
  	VCU01UXX2080	DN80	123	120	85
  	VCU01UXX2100	DN100	143.5	135	104
