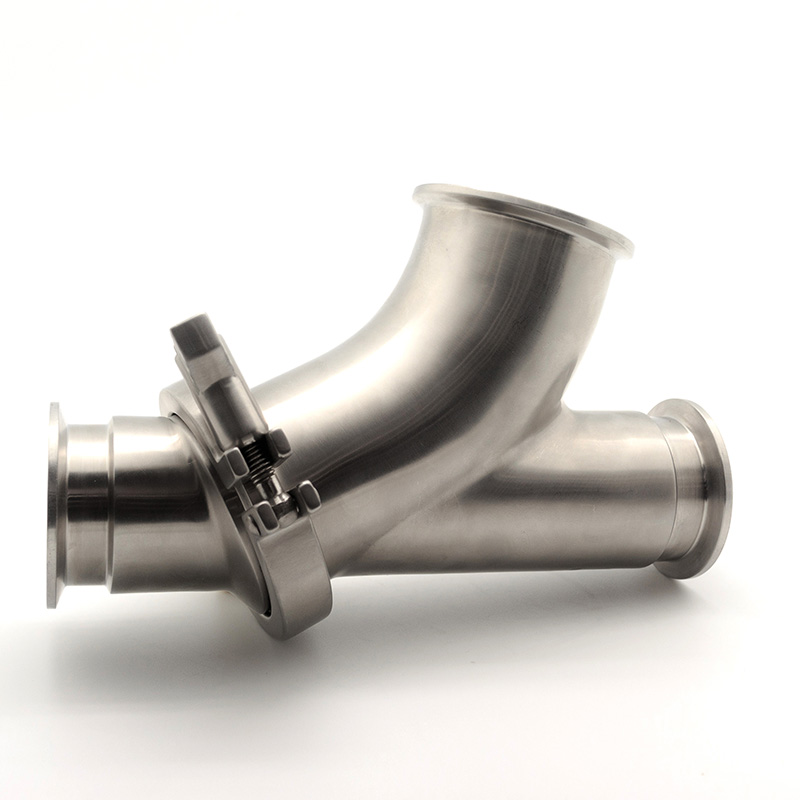

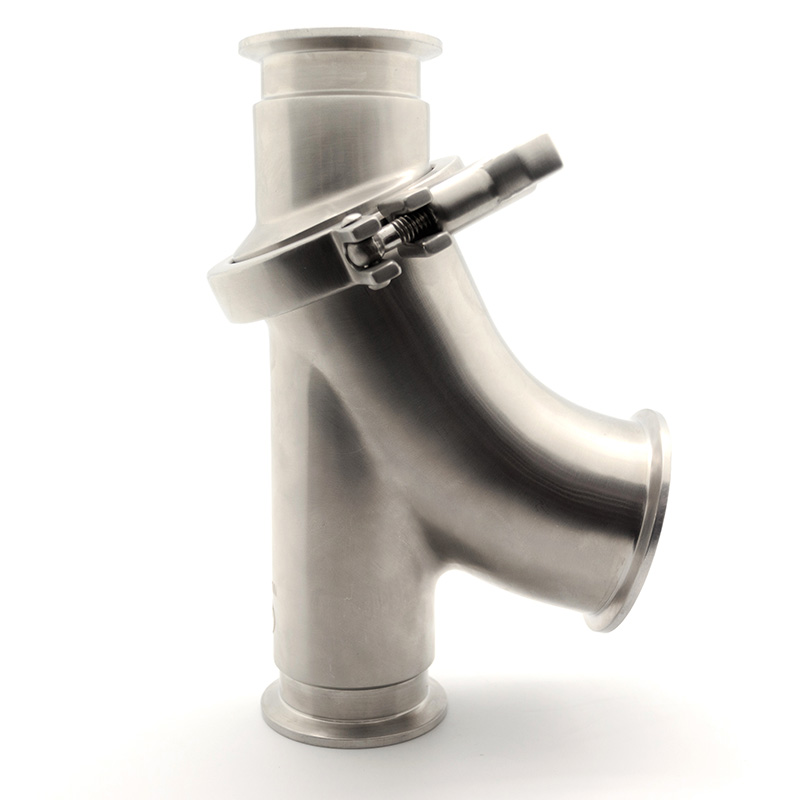

Sanitary Y-Ball Check Valve of SS316L Stainless Steel PTFE Ball Valves 10Bar High Quality Check Valve

Concept

When liquid flows through the valve, the ball is forced into the branchof the valve allowing full fluid flow. When the liquid stops,equalizing the pressure, the ball drops back into the seat, preventingbackflow. Should reverse flow occur, the differential pressure willcause the ball to seal firmly against the seat preventing leakage.

Design Features

*Two piece construction for easier alignment during installation.

*ID and OD polished to 3A standards
*All metal contact surfaces of 316L stainless steel construction
*PTFE ball
*Field serviceable without special tools

Technical Data

• Max. Temperature:   +120℃

• Max. Pressure:       10 Bar

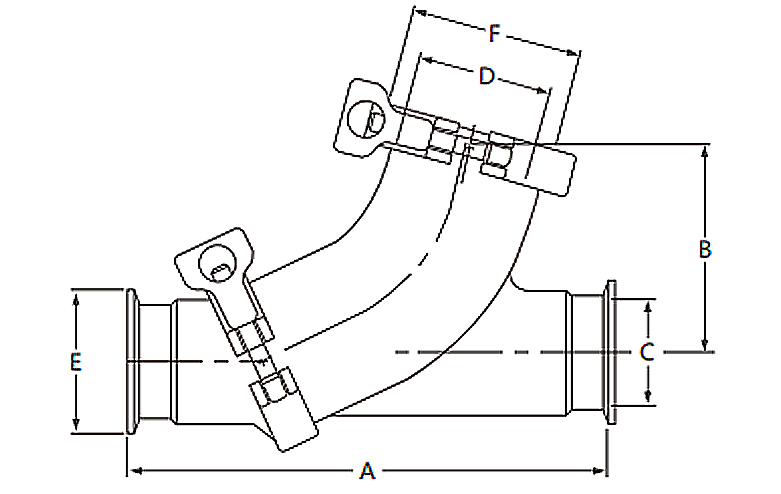

Drawing

	Model No	Size	A	B	C	D	E	F
	VCY22651150	1 1/2''	190.5	83.8	34.5	47.5	50.5	64
	VCY22651200	2''	215.9	99	47.2	59.2	64	77.5
	VCY22651250	21/2"	254	114.3	60.2	72.9	77.5	91
	VCY22651300	3"	292.1	134.6	72.9	97.3	91	119
