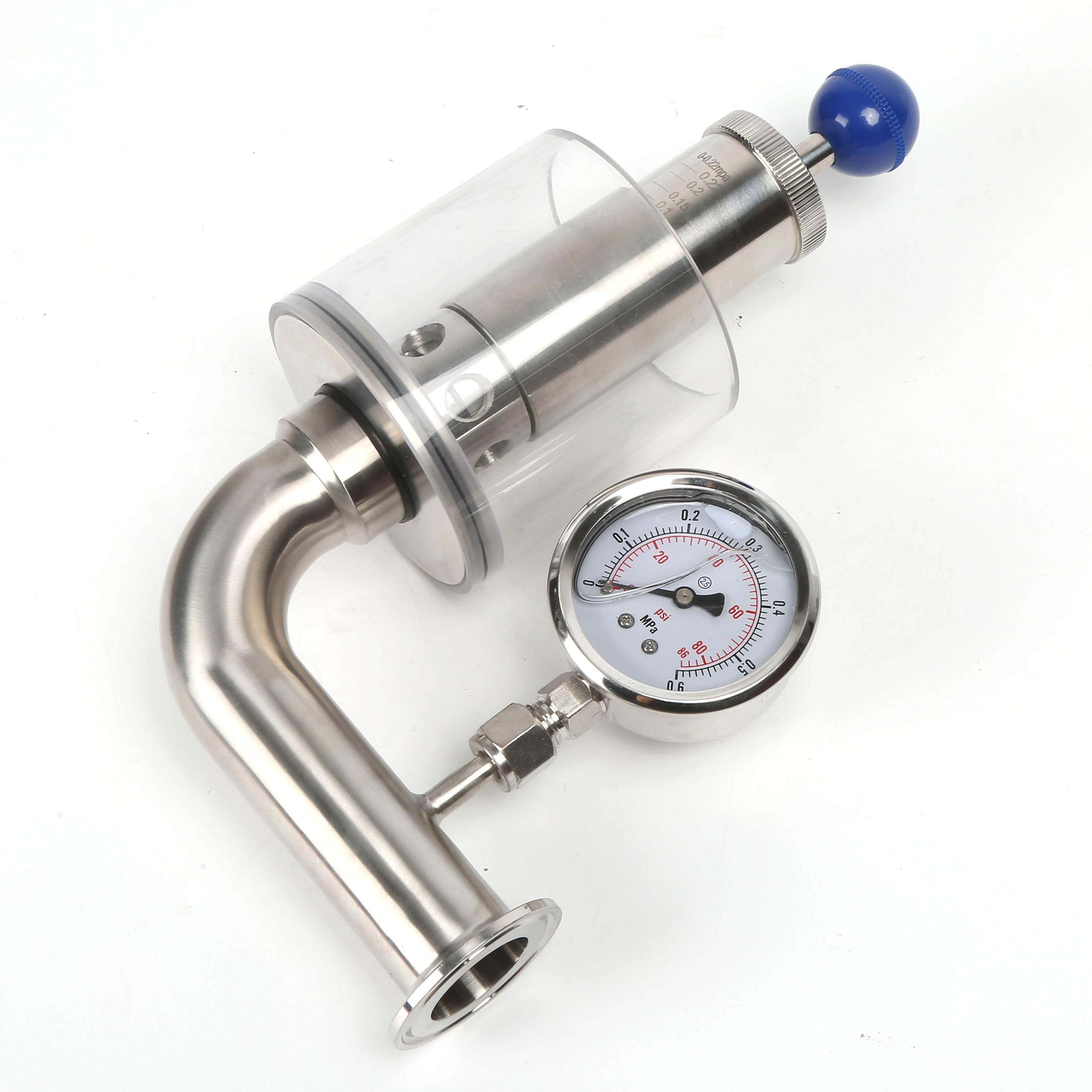

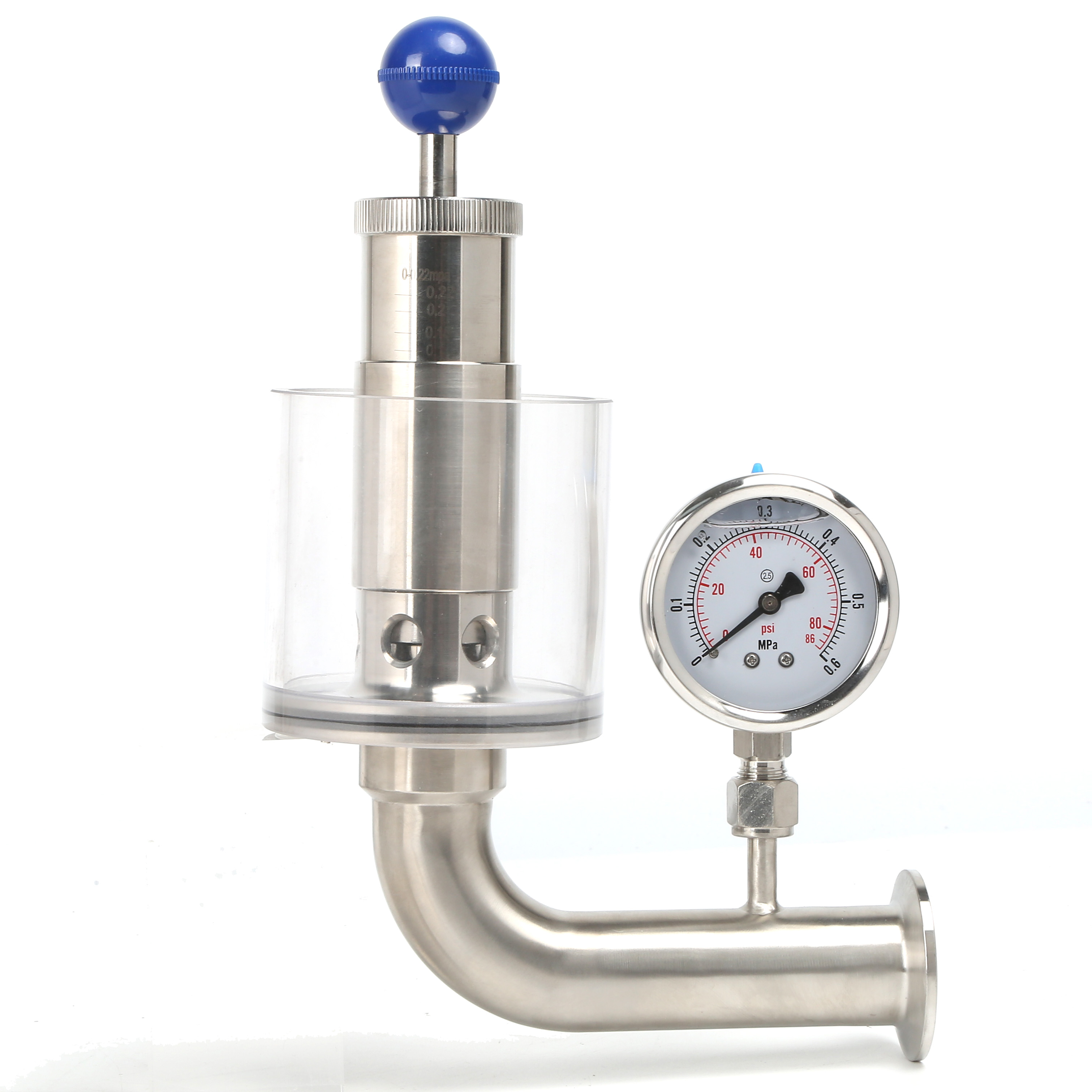

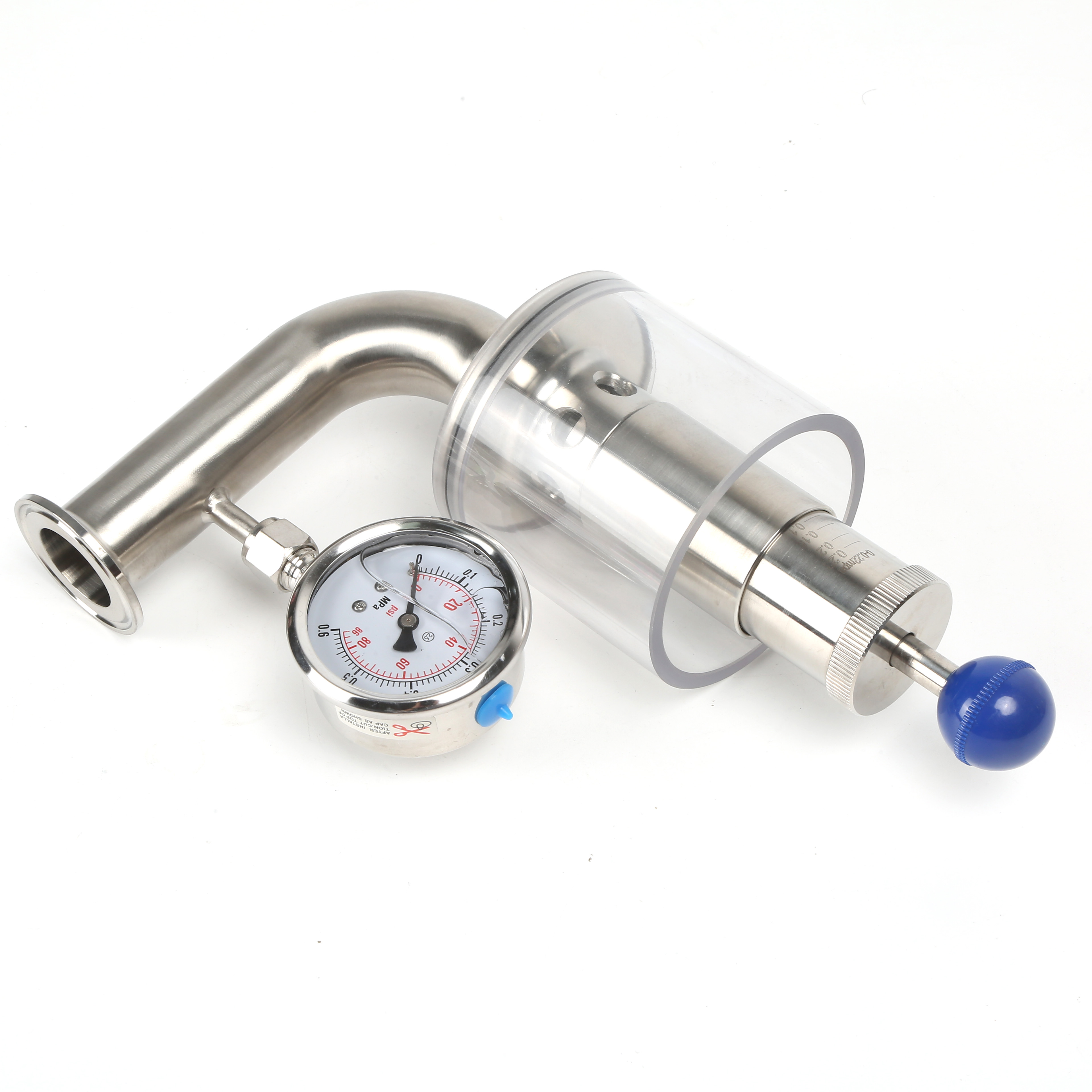

VAR Sanitary Clamp Air Release Valve with Pressure Gauge SS304/SS316L Stainless Steel Bunging Pressure Valve

Application

VAR series valves with spring return are continuously adjustable.Exactly adjustable to the desired opening pressure, the valves are closed and opened very sensitively with low differential pressure.

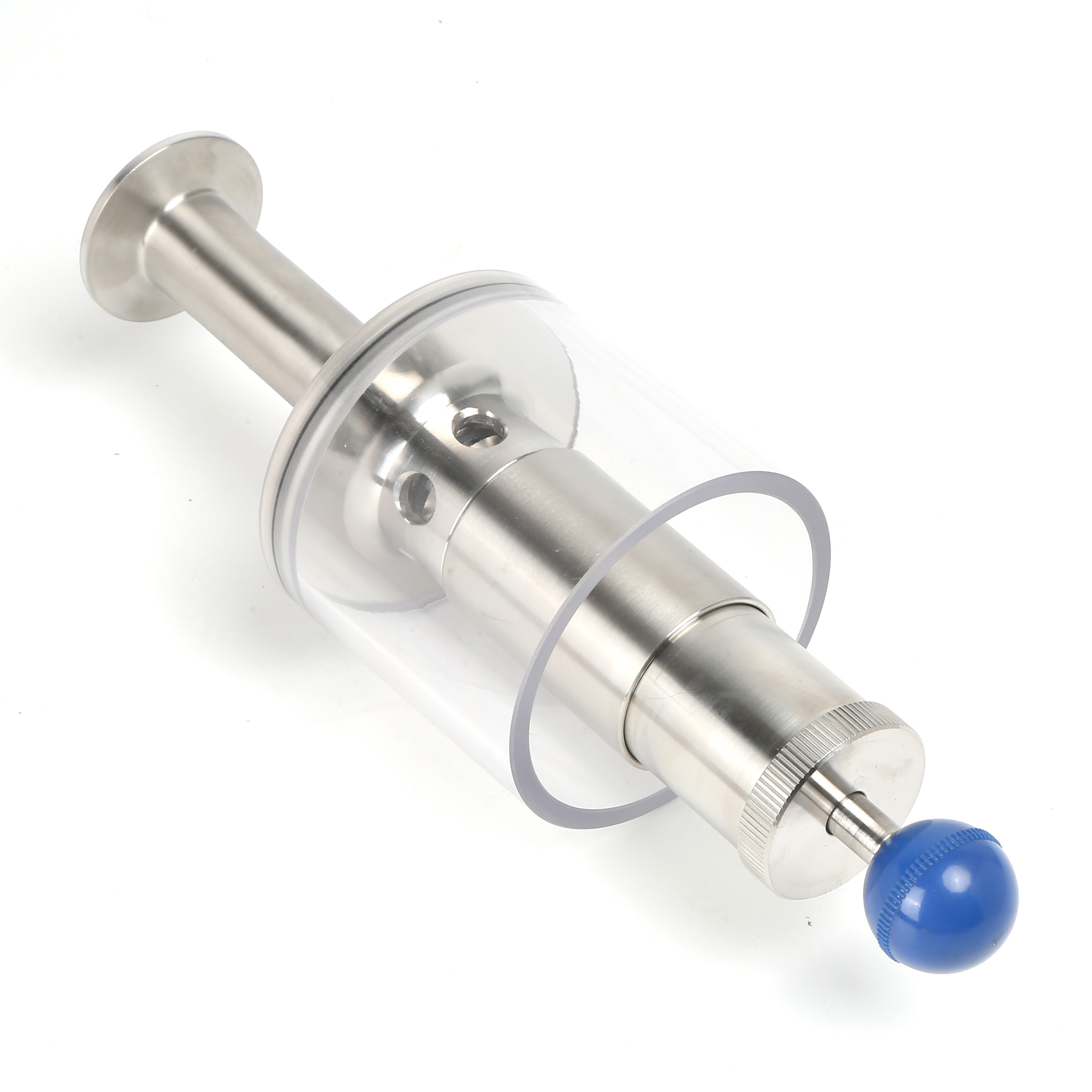

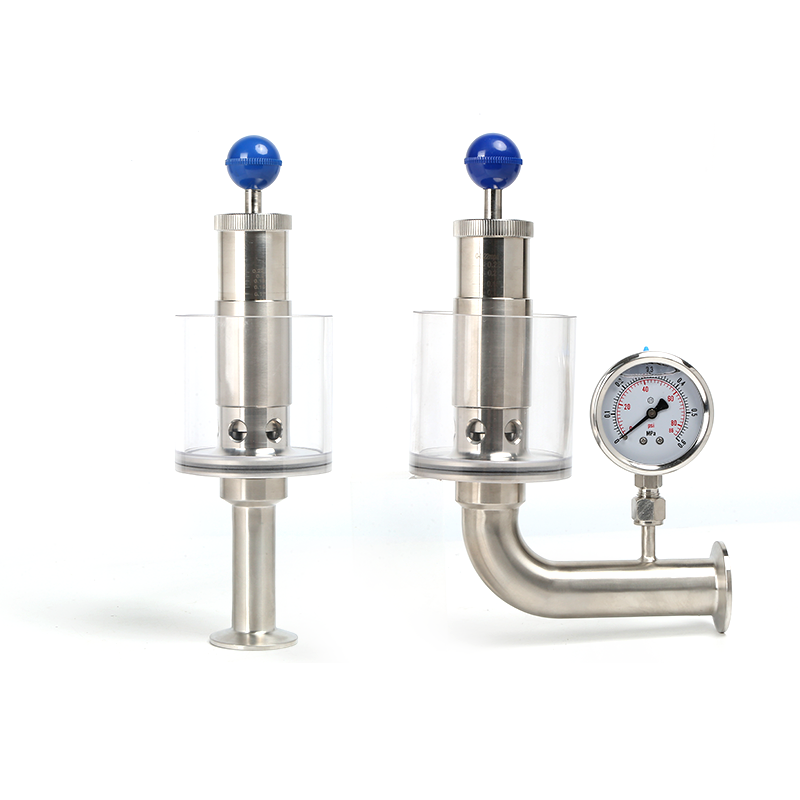

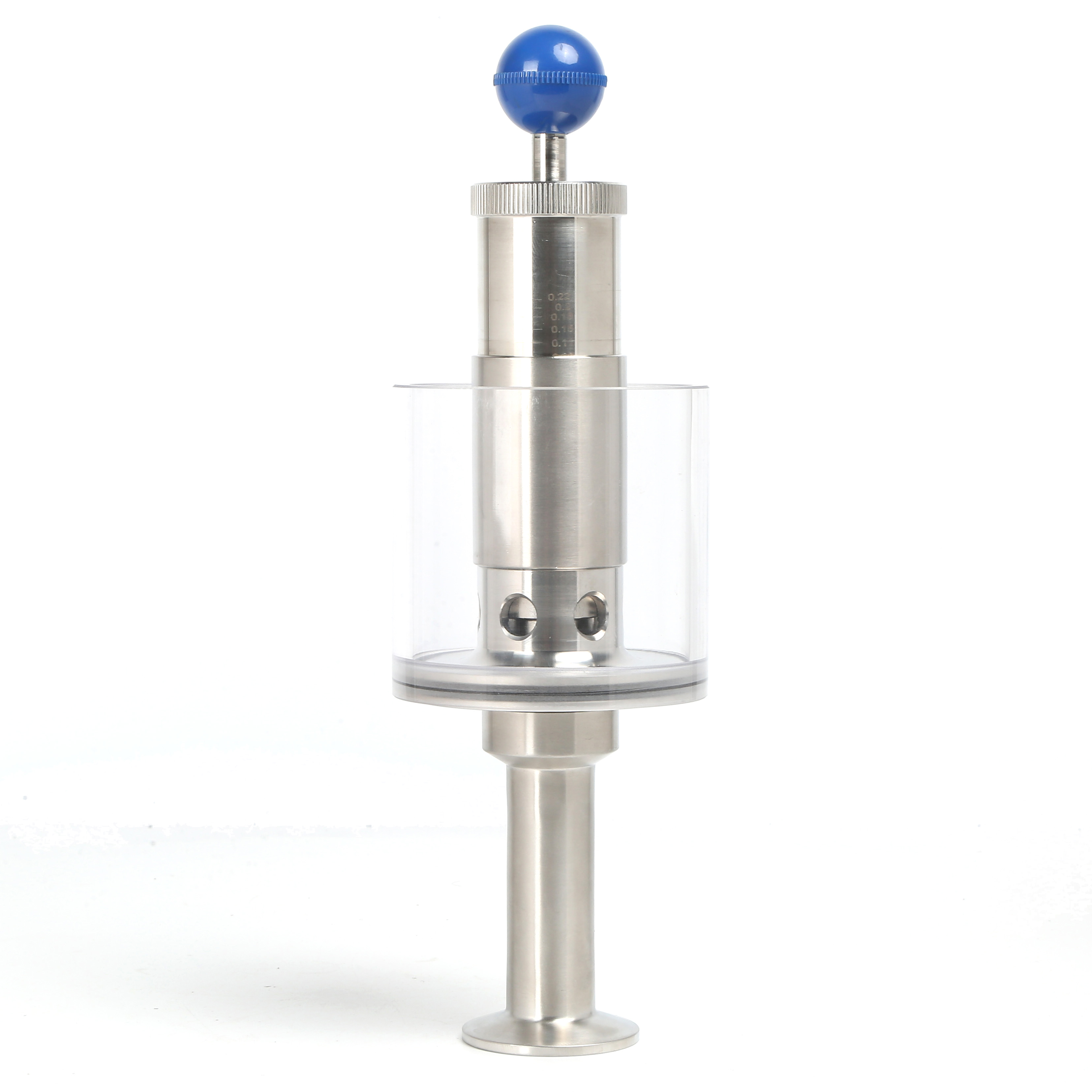

VAR valves are available both in open design(free blowing-off of CO ) and in closed design with pipe connection. The closed 2 design enables to collect the excess CO .2

Materials

• Body Materials: SS-304 or SS-316L

• Glass Cylinder : Organic Glass

Standard Design

• Available in size: 1",1 1/4", 1 1/2" Or DN25, DN32, DN40

• Connection for Pressure Gauge: SS304/SS316L

• Pressure Gauge: SS304

• Spring Mat:  SS304

• O-Ring: EPDM

Technical Specification

• Working Pressure: 14.5psi/ 1bar (standard), could be adjustable before production

• Temperature range: medium

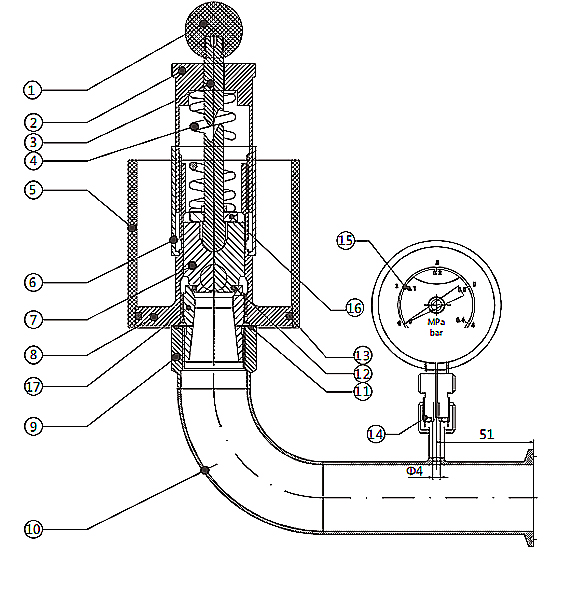

  	Item	Name	Matrtial	QTY
  	1	Pull Ball	ABS	1
  	2	Adjustable Nut	SS304	1
  	3	Valve Stem	SS304	1
  	4	Spring	SS304	1
  	5	Glass Cylinder	Organic Glass	1
  	6	Pressure Setting Sleeve	SS304	1
  	7	Valve Pug	SS304/SS316L	1
  	8	Valve Body	SS304/SS316L	1
  	9	Adaptor	SS304/SS316L	1
  	10	Elbow	SS304/SS316L	1
  	11	O-Ring	EPDM	1
  	12	O-Ring	EPDM	1
  	13	O-Ring	EPDM	1
  	14	Connection for Pressure Gauge	SS304/SS316L	1
  	15	Pressure Gauge	SS304	1
  	16	Spring Mat	SS304	1
  	17	Valve Seal	SS304/SS316L	1

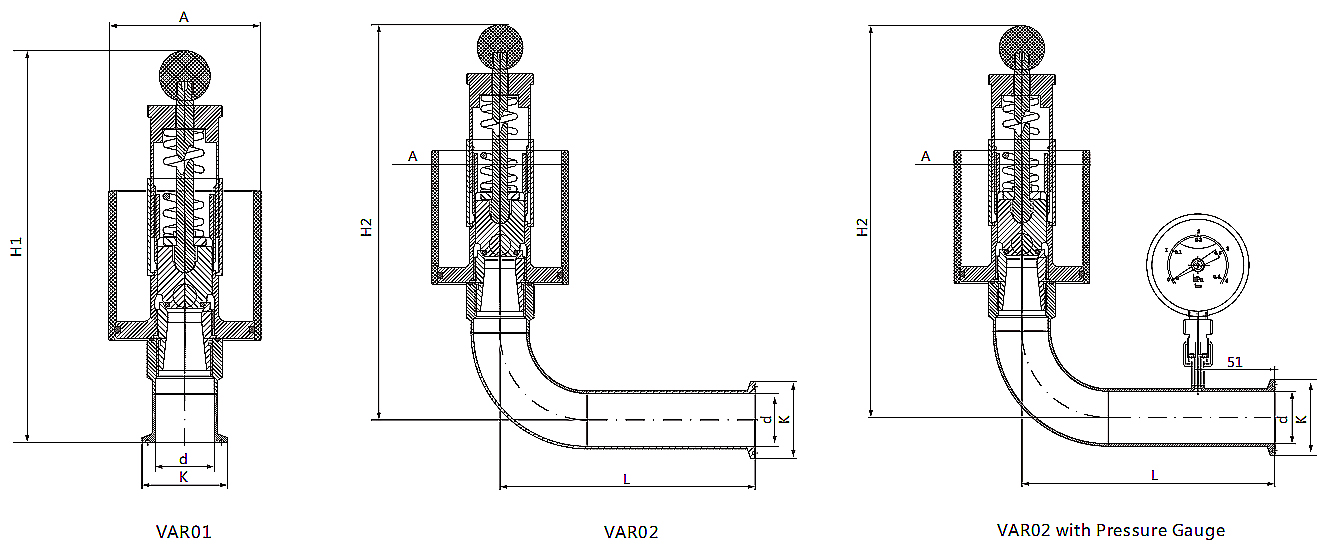

  Model No	Size	D	H1	H2	K	d	L
  VAR01C41100	1"	90	230	/	50.5	22.4	168
  VAR01C41125	11/4"	90	230	/	50.5	28.8	168
  VAR01C41150	11/2"	90	230	/	50.5	35.1	168
  VAR01C42025	DN25	90	230	/	50.5	25	168
  VAR01C42032	DN32	90	230	/	50.5	31	168
  VAR01C42040	DN40	90	230	/	50.5	37	168
  VAR02C41100	1"	90	/	251	50.5	22.4	168
  VAR02C41125	11/4"	90	/	251	50.5	28.8	168
  VAR02C41150	11/2"	90	/	251	50.5	35.1	168
  VAR02C42025	DN25	90	/	251	50.5	25	168
  VAR02C42032	DN32	90	/	251	50.5	31	168
  VAR02C42040	DN40	90	/	251	50.5	37	168
