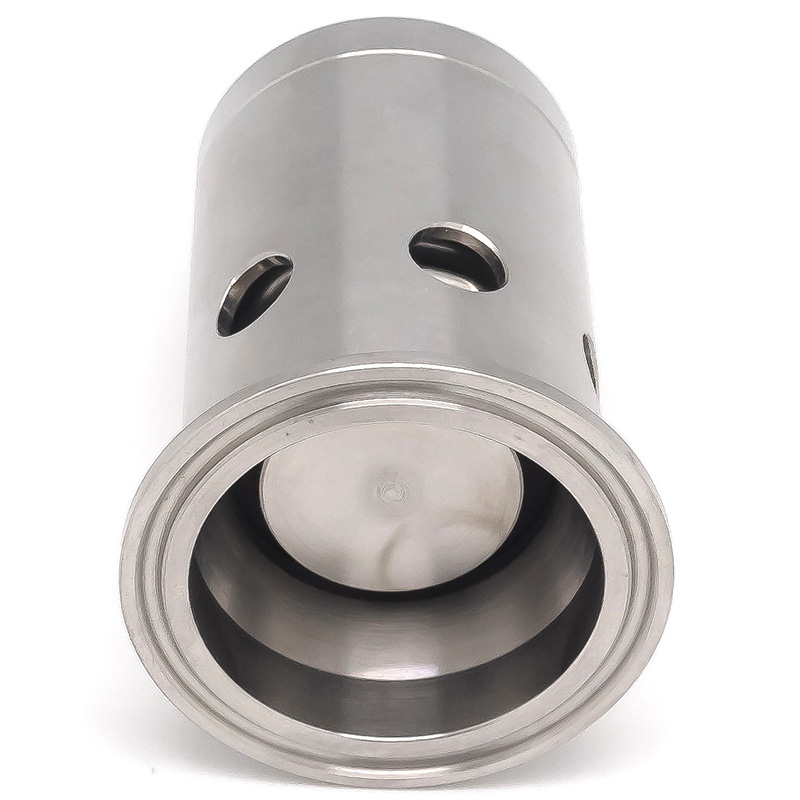

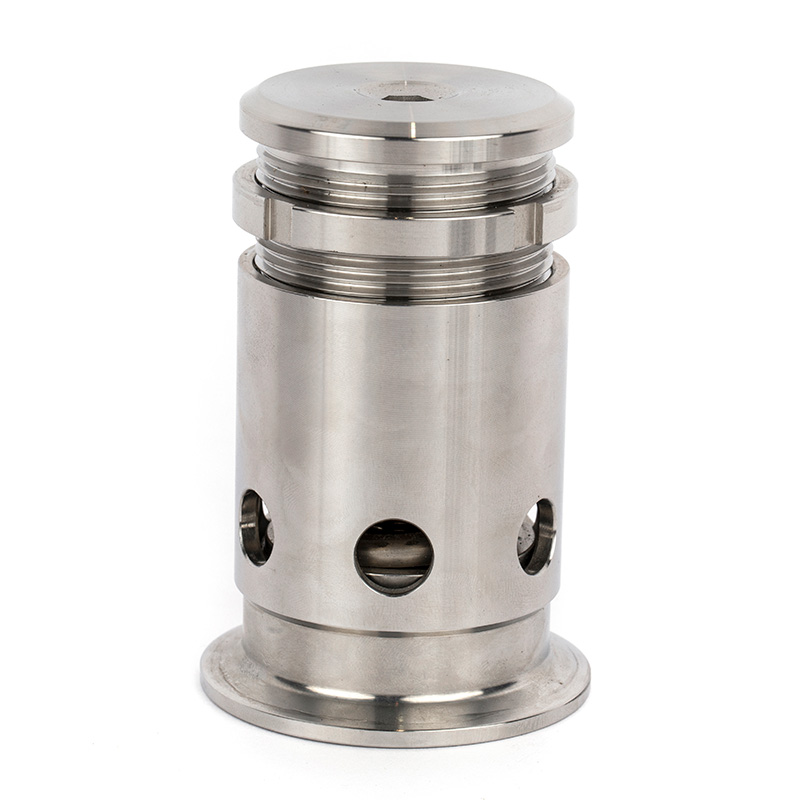

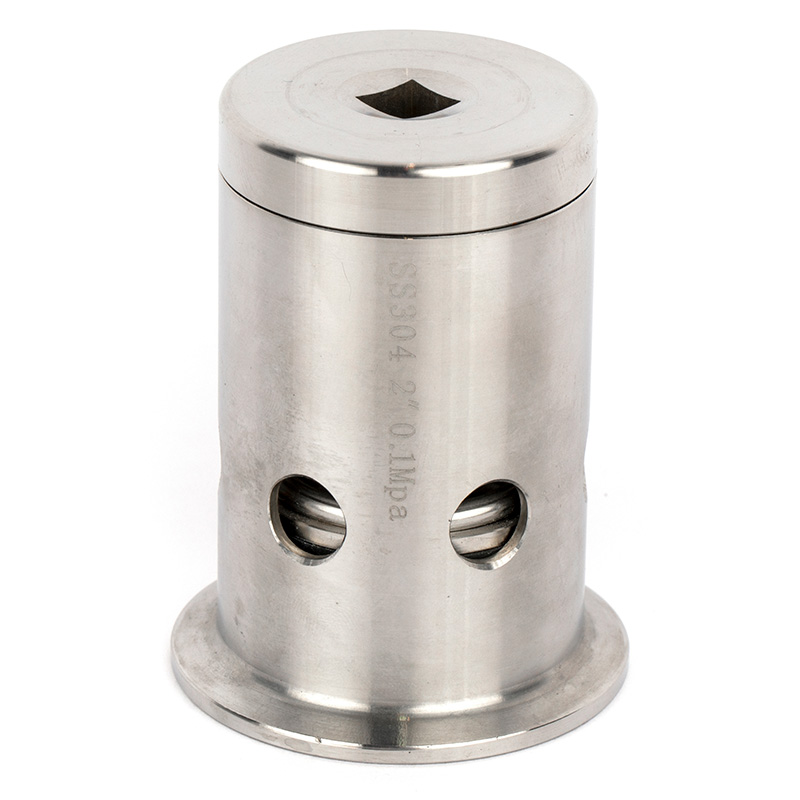

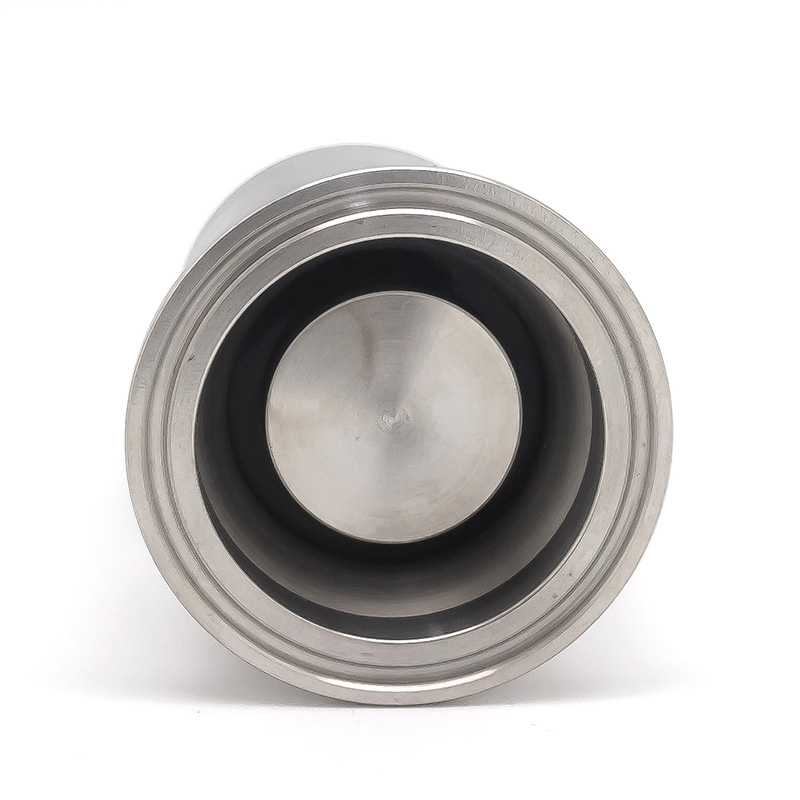

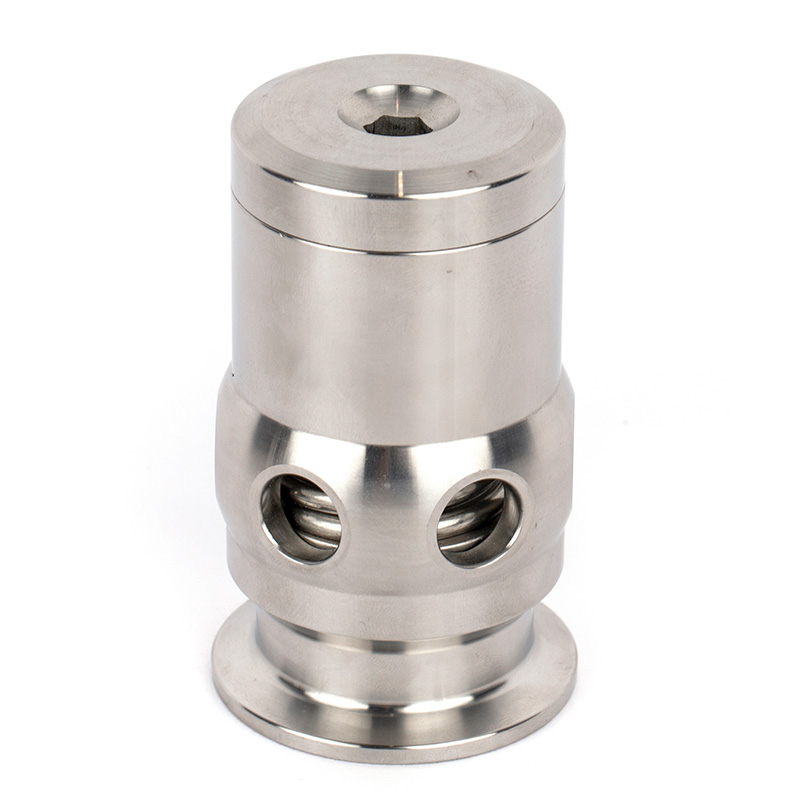

VAV Sanitary Clamp Thread Tank Pressure and Vacuum Relief Valve SS304 Stainless Steel Tank Fitting 1.5"-2.5" or DN20-DN80

Concept

Tank Pressure and Vacuum Relief Valve/Vent is designed to protect stainless tank working in safety. From pressure side, whenthe valve is normally closed and tank pressure exceeds the rated pressure on the outside of valve, the valve automaticallyopens and vents alr to atmosphere. From vacuum side, when the valve is normally closed and there is vacuum in tank, thevacuum piston inside the valve opens automatically and draws air into the tank. in retumn, this keeps the pressure inside andoutside the tank balanced.

Materials

• Materials:SS304

• Gasket:EPDM,FKM per FDA 177.2600

Design and Features

• Pressure Range:0.2 to 3Bar

• Vacuum:0.1 to 0.5Bar

Technical Data

• Max.Temperature:121℃

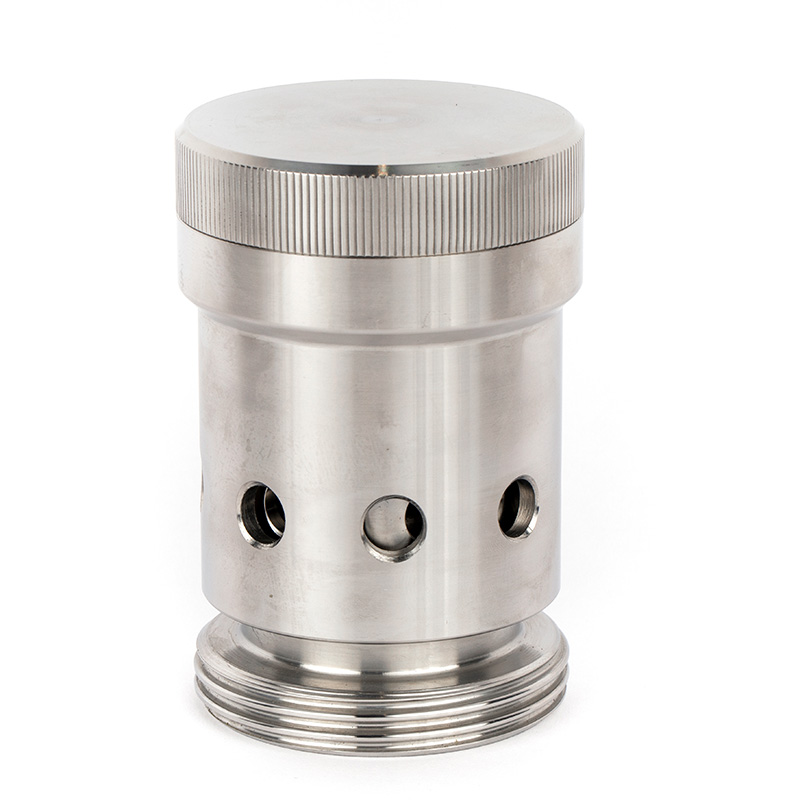

• Connection:Clamp，Tjread

• Size:1"-2.5"or DN20-DN80

Excessive Pressure

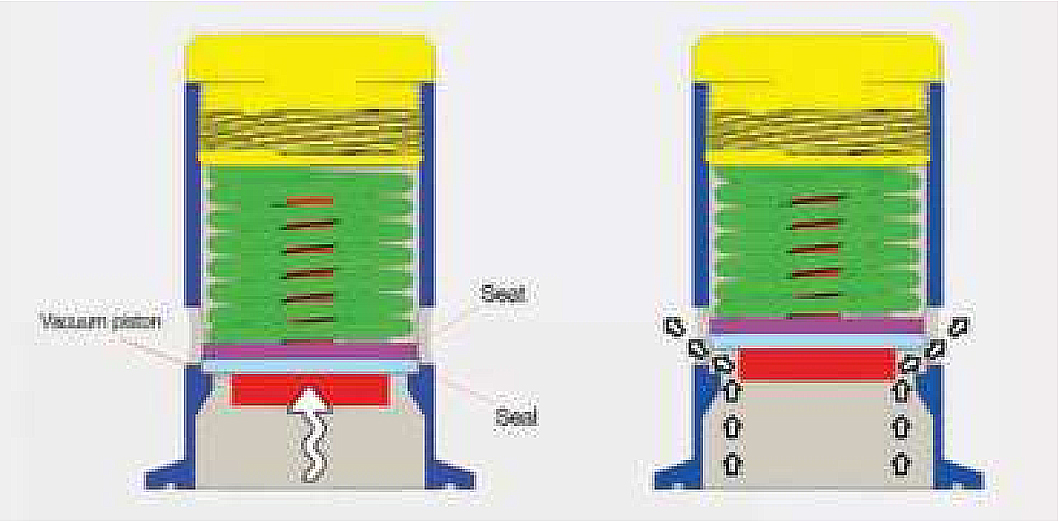

Normally closed, but when the tank pressure exceeds the rated pressure.the valve automatically opens to vent air out.

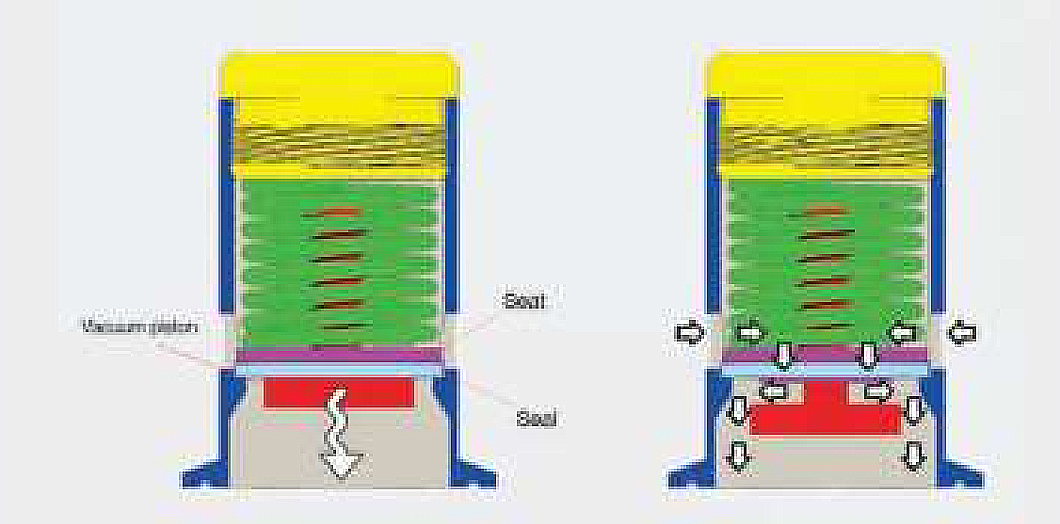

Vacuum

Normally closed,but when there is a vacuum in the tank,the vacuumpiston opens automatically,drawing air into the tank. Thus, keepingpressure balanced inside and outside the tank.

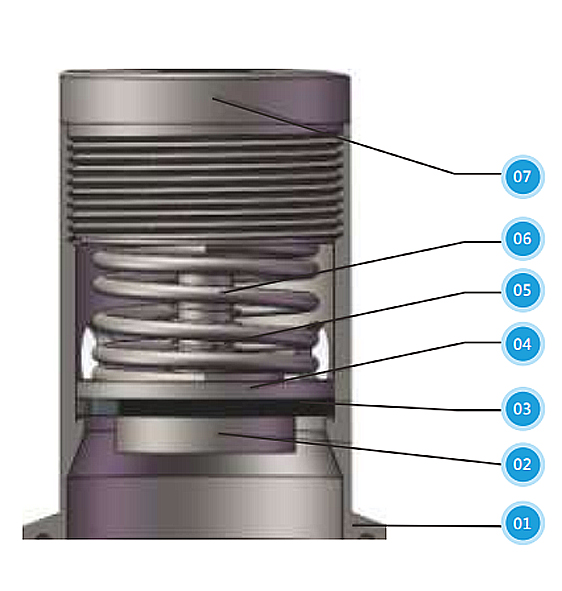

• Item	Name	Matrtial	QTY
  1	Valve Body	SS304	1
  2	Valve Stem	SS304	1
  3	Seat Seal	EPDM	1
  4	Valve Seat	SS304	1
  5	Spring(Vacuum)	SS304	1
  6	Spring(Pressure)	SS304	1
  7	Nut(Valve Cover)	SS304	1

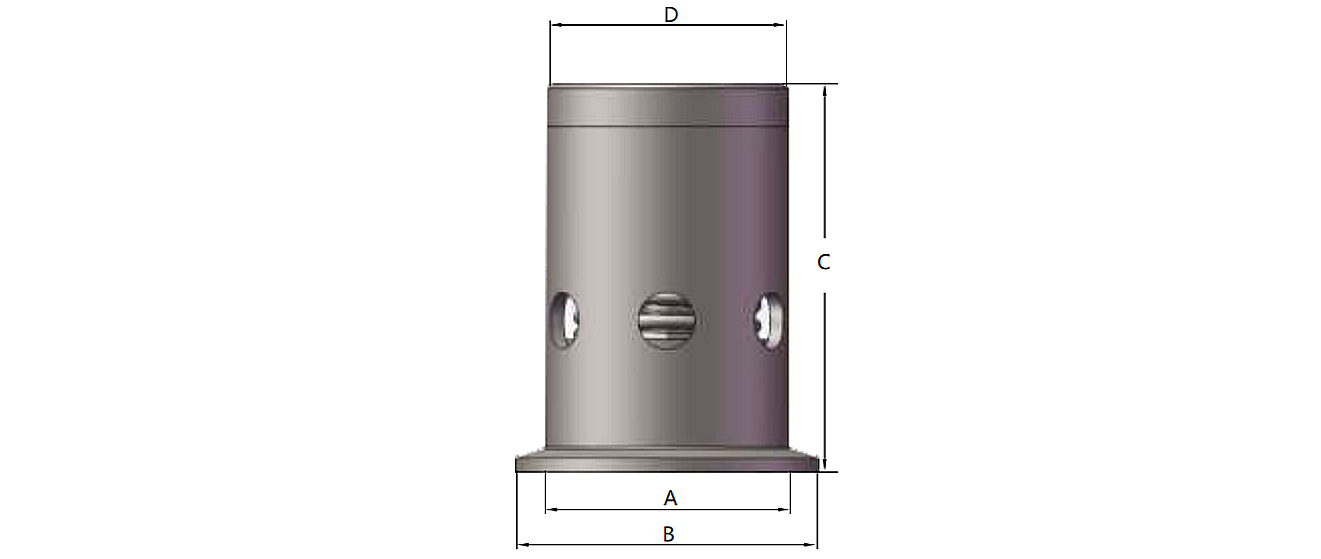

  Model No	Size	A	B	D	C	Max.Pressure	L
  VAV01C421100	1"	25	50.5	30.5	49	2Bar	168
  VAV01C421150	1.5"	35	50.5	42	72	3Bar	168
  VAV01C421200	2"	47	64	51	85	6Bar	168
  VAV01C421250	2.5"	59	77.5	64	90	2.5Bar	168
  VAV01C422020	DN20	25	34	30.5	49	2Bar	168
  VAV01C422025	DN25	25	50.5	30.5	49	2Bar	168
  VAV01C422040	DN40	35	50.5	42	72	3Bar	168
  VAV01C422050	DN50	47	64	51	85	6Bar	168
  VAV01C422065	DN65	59	91	64	90	2.5Bar	168
  VAV01C422080	DN80	83	105	88	135	3.5Bar	168
