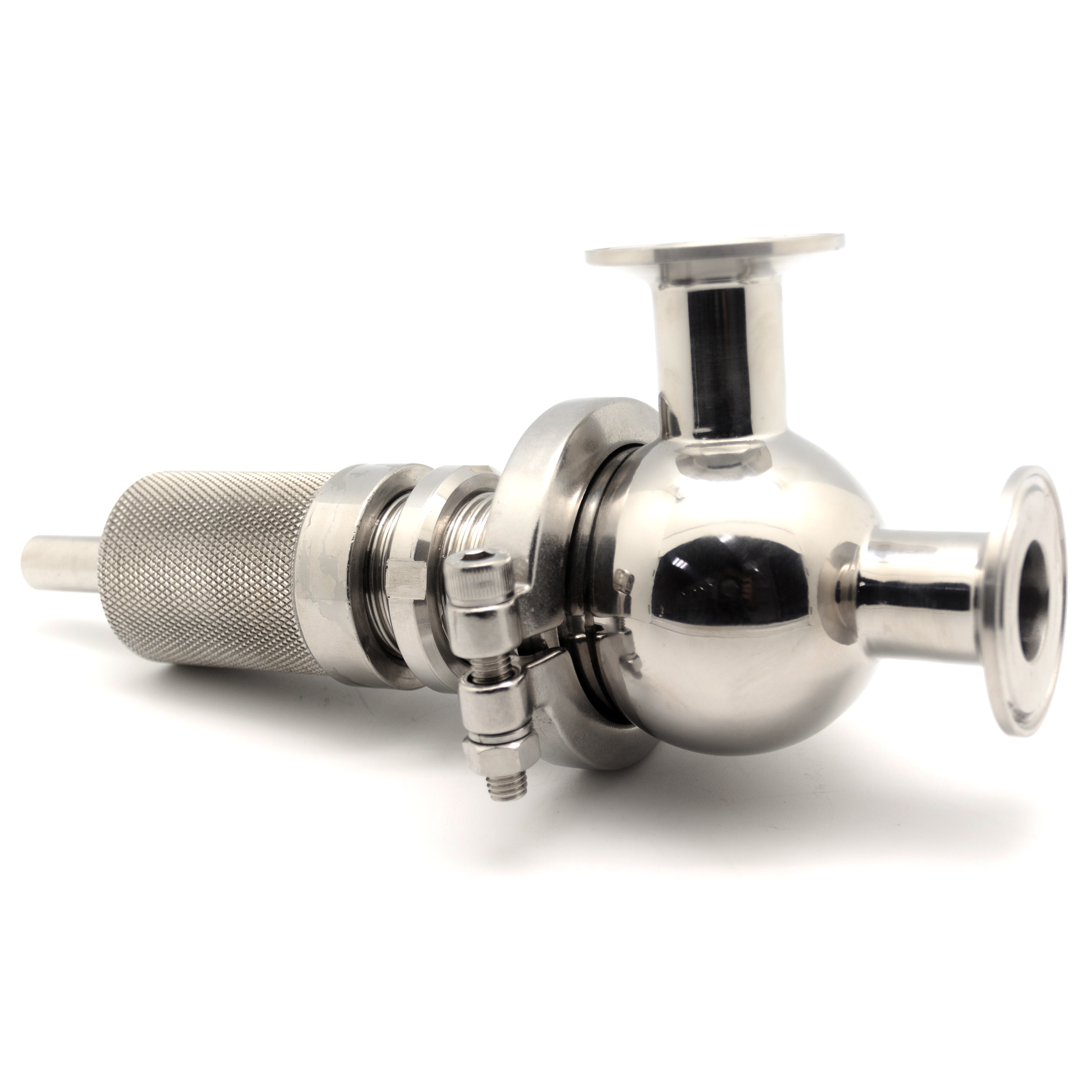

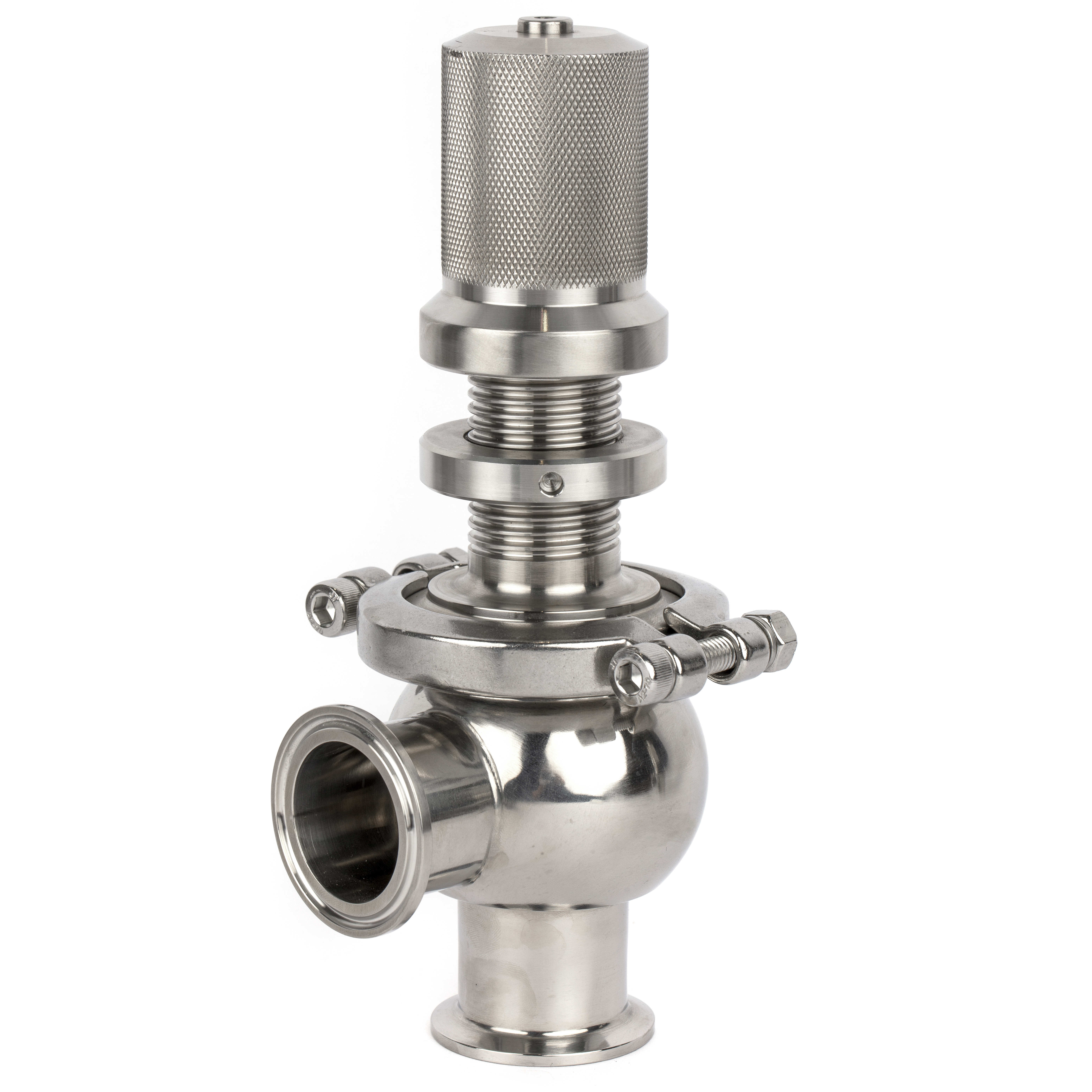

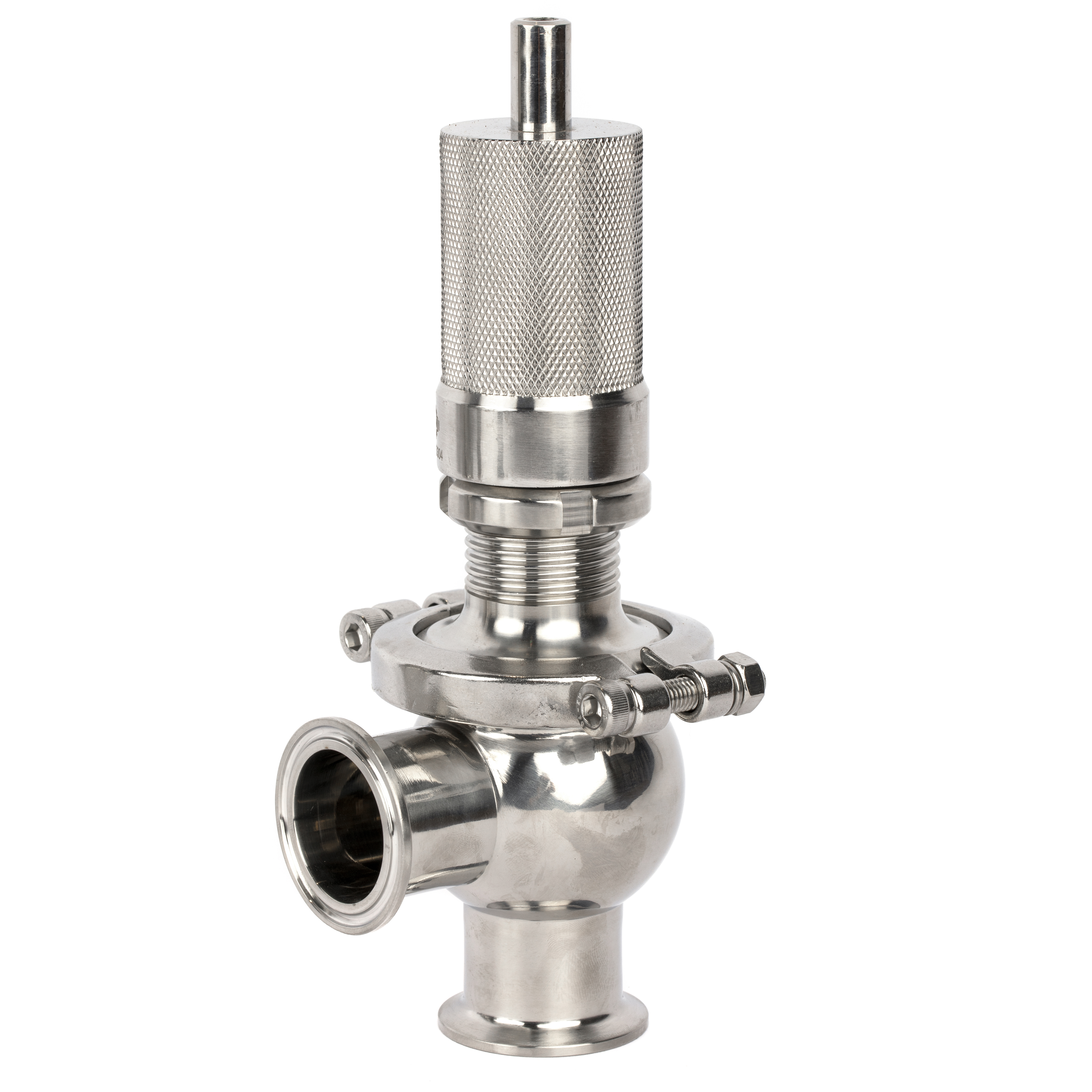

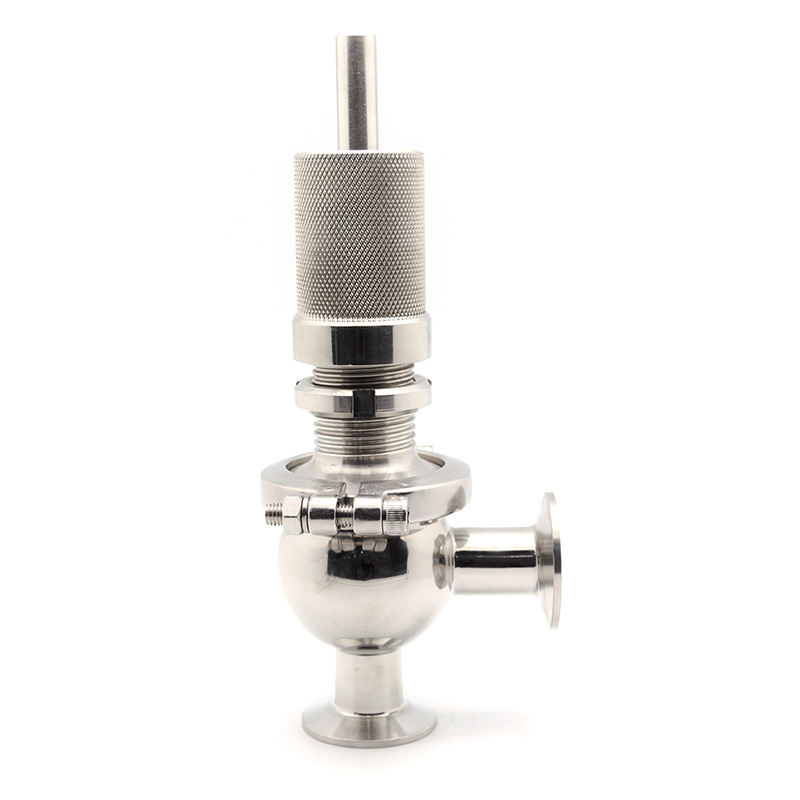

SS304/SS316L Clamp Sanitary Safety Valve Stainless Steel Pressure Relief Valve 1-8 Bar

Concept

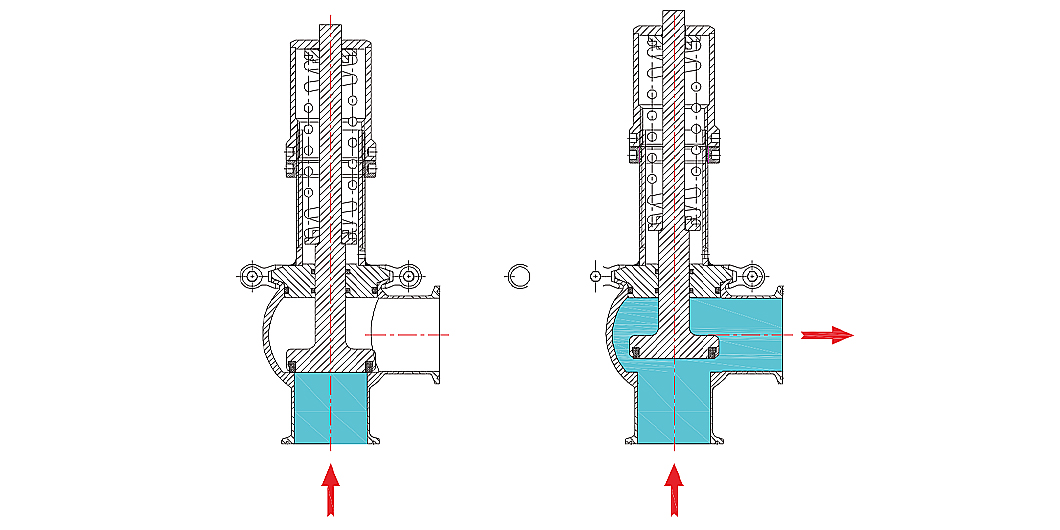

VAS series sanitary stainless steel safety valve, alsoknown as "pressure relief valve", is used to control overpressurization in a process piping system.When the line pressure exceeds the limit set for thesafety valve, the valve plug will lift and release thepressure through the side port. The valve will remainopen until the line pressure decreases to a value lowerthan the set value.

Technical Specification

Normal Size :                        1"-4" or DN25-DN100

Materials:                              304 or 316 for Wetted Pats

Seal material:                        EPDM,NBR, FPM per FDA 177.2600

Set Pressure:                         1 to 8 bar
Max. Temperature:               121°C(EPDM)

Standard connection:            Tri-Clamp, Liner&Nut, Weld or per request

When the line pressure exceeds the limit set for the safety valve, the valve plug will lift and release the pressure through the side port

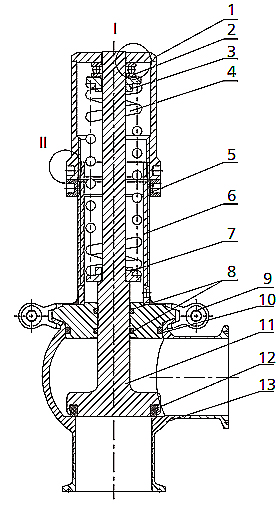

	Item	Name	Matrtial	QTY
	1	Cap	304	1
	2	Bearing	GCr15	0/1
	3	Upper Gasket	POM/304	1
	4	Spring	65Mn/304	1
	5	Locking Nut	304	1
	6	Adjustive Seal	304/316L	1
	7	Lower Gasket	304	1
	8	O-Seal	Silicon*	1/2
	9	Clamp	304	1
	10	O-Seal	Silicon*	1
	11	Valve Seal	304/316L	1
	12	Gasket	Silicon*	1
	13	Valve Body	304/316L	1

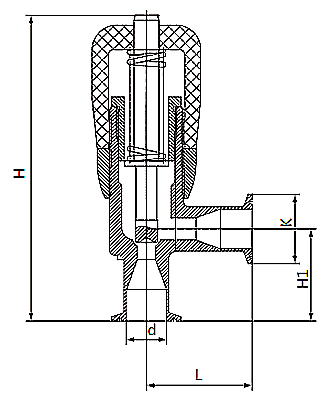

Clamp Mini Type Safety Valve VAP

	Model No	Size	d	K	H	H1	L
	VAP0122M1X21050	1/2"	9.5	25.2	129	30	35
	VAP0122M1X21075	3/4"	15.75	25.2	129	30	35
	VAP0122M1X22015	DN15	15	34	129	30	35
	VAP0122M1X22020	DN20	19	34	129	30	35

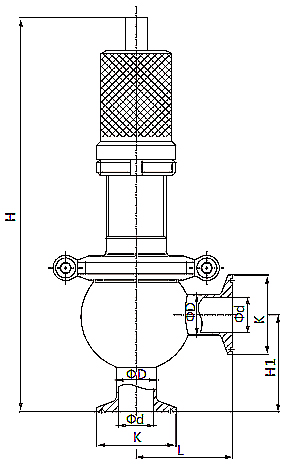

Clamp Sanitary Safety Valve VAS

	Model No	Size	d	D	K	H	H1	L
	VAS0122M1X21100	1"	22.4	25.4	50.5	227	61	61
	VAS0122M1X21125	11/4"	28.8	31.8	50.5	227	61	61
	VAS0122M1X21150	11/2"	35.1	38.1	50.5	227	58	59
	VAS0122M1X21200	2"	47.8	50.8	64	270	66	66
	VAS0122M1X21250	21/2"	59.5	63.5	77.5	318	77	77
	VAS0122M1X21300	3"	72.2	76.2	91	351	97	97
	VAS0122M1X21400	4"	97.6	101.6	119	399	127	135
	VAS0122M1X22025	DN25	25	28	50.5	227	61	61
	VAS0122M1X22032	DN32	31	34	50.5	227	61	61
	VAS0122M1X22040	DN40	37	40	50.5	227	58	59
	VAS0122M1X22050	DN50	49	52	64	270	66	66
	VAS0122M1X22065	DN65	66	70	91	351	77	77
	VAS0122M1X22080	DN80	81	85	106	362	97	97
	VAS0122M1X22100	DN100	100	104	119	399	127	135
