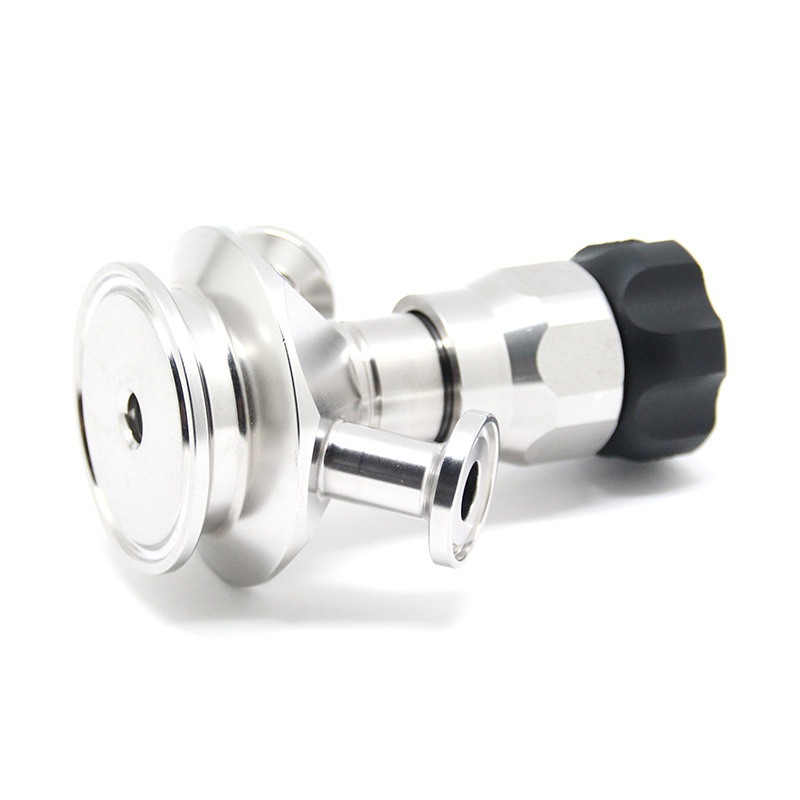

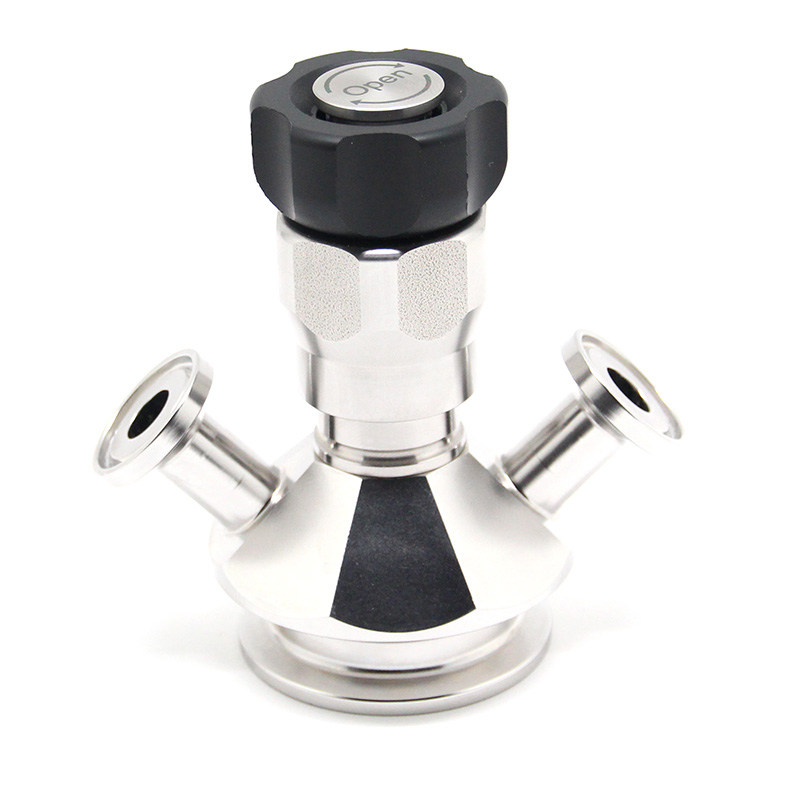

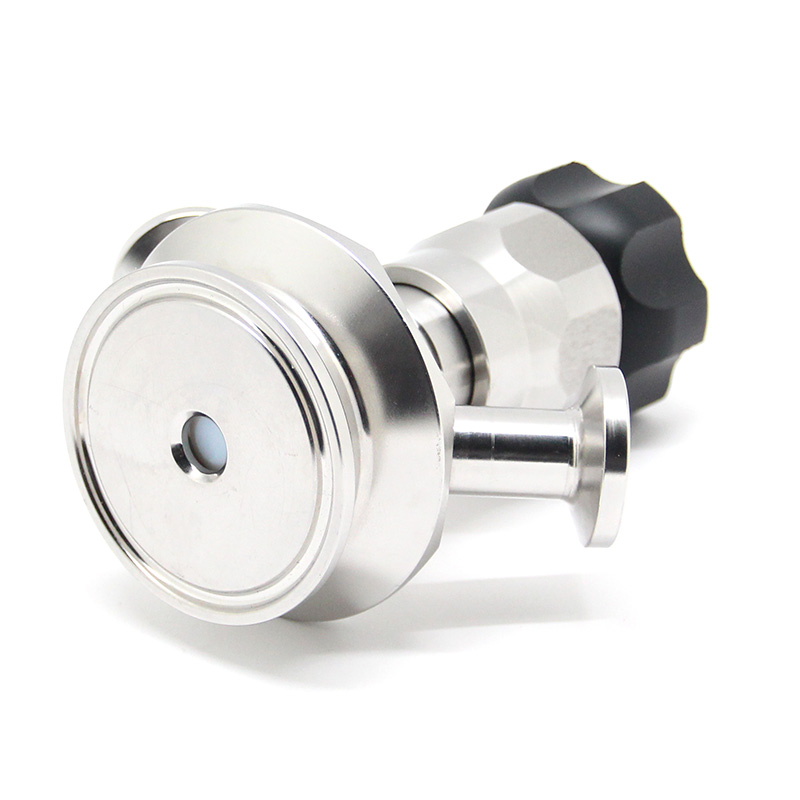

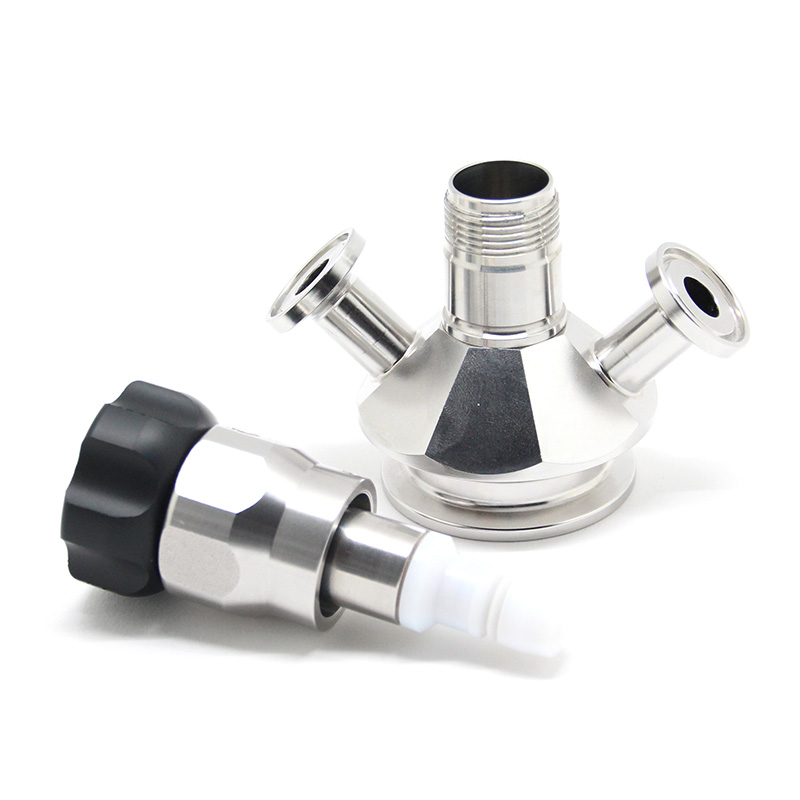

VSA series Aseptic sampling vavles are measured to designed for sampling medium viscosity products with about 0-1,000cP in viscosity and with particles up to 3mm in diameter.
Such as Unprocessed Milk,Medical solutions, Filtered and unfiltered beer, Perfume, Creams and lotions, and much more.
Body: AISI-304 or AISI-316L
Head: AISI-304 or AISI-316L
Seal: EPDM or PTFE
Valve seat and gasket comply with FDA 21CFR177.2600
Available Size: 1/2" or 1"
End connection: triclamp or weld
Max. pressure: 10bar (145psi)
Temperature range: EPDM 32 ~ 266°F (0 ~ 130°C)
Temperature range: PTFE 32 ~ 302°F (0 ~ 150°C)
Surface treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm)
Connection Way
Assembly Drawing
 |
Item | Description | Matrtial | QTY |
| 1 | Valve Stem | SS304/SS316L | 1 | |
| 2 | Hand Wheel | ABS | 1 | |
| 3 | Nut | SS304 | 1 | |
| 4 | Spring | SS304 | 1 | |
| 5 | Locating Bush | SS304/SS316L | 1 | |
| 6 | Valve Spool | SS304/SS316L | 1 | |
| 7 | Membrane | Silicon* | 1 | |
| 8 | Valve Body | SS304/SS316L | 1 | |
| 9 | Inlet/Outlet Bush | EPDM | 2 |
 |
Item | Description | Matrtial | QTY |
| 1 | Valve Body | SS304/SS316L | 1 | |
| 2 | Membrane | Silicon* | 1 | |
| 3 | Valve Stem | SS304/SS316L | 1 | |
| 4 | Inlet/Outlet Bush | EPDM | 1 | |
| 5 | Spring | SS304 | 1 | |
| 6 | Spring Bushing | SS304 | 1 | |
| 7 | Nut | SS304 | 1 | |
| 8 | Lvevl Handle | SS304 | 1 | |
| 9 | Handle Seat | SS304 | 1 | |
| 10 | Spacer | SS304 | 1 | |
| 11 | Hexagon Socket | A2-70 | 1 | |
| 12 | Seat Seal | A2-70 | 1 | |
| 13 | Seal | PTFE | 1 |
Weld Sampling Valve with Turn Knob
 |
||||||
| Model No | Size | d | D | A | C | H |
| VSA01M1W12612006 | DN6 | 4 | 28 | 9.5 | 3 | 68 |
| VSA01M1W12612010 | DN10 | 8 | 28 | 14 | 7 | 93 |
Clamp Sampling Valve with Turn Knob
 |
||||||
| Model No | Size | d | K | A | C | H |
| VSA01M1C12612006 | DN6 | 4 | 25.2 | 9.5 | 3 | 68 |
| VSA01M1C12612010 | DN10 | 8 | 50.5 | 14 | 7 | 93 |
Weld Sampling Valve with Level Handle
 |
||||||
| Model No | Size | d | D | A | C | H |
| VSA02M1W12612010 | DN10 | 8 | 30 | 14 | 8.2 | 84 |
Clamp Sampling Valve with Level Handle
 |
||||||
| Model No | Size | d | K | A | C | H |
| VSA02M1C12612006 | DN6 | 4 | 25.2 | 14 | 7.2 | 84 |
| VSA02M1C12612010 | DN10 | 8 | 50.5 | 14 | 7.2 | 84 |
Pneumatic Clamp Sampling Valve
 |
||||||
| Model No | Size | d | K | A | C | H |
| VSA02NCC12612010 | DN10 | 8 | 25.2 | 14 | 7.2 | 128 |
| VSA02NCC12612025 | DN25 | 8 | 50.5 | 14 | 7.2 | 128、 |
Pneumatic Weld Sampling Valve
 |
||||||
| Model No | Size | d | K | A | C | H |
| VSA02NCW12612010 | DN10 | 8 | 28 | 14 | 7.2 | 128 |
| VSA02NCW12612025 | DN25 | 8 | 30 | 14 | 7.2 | 128 |
