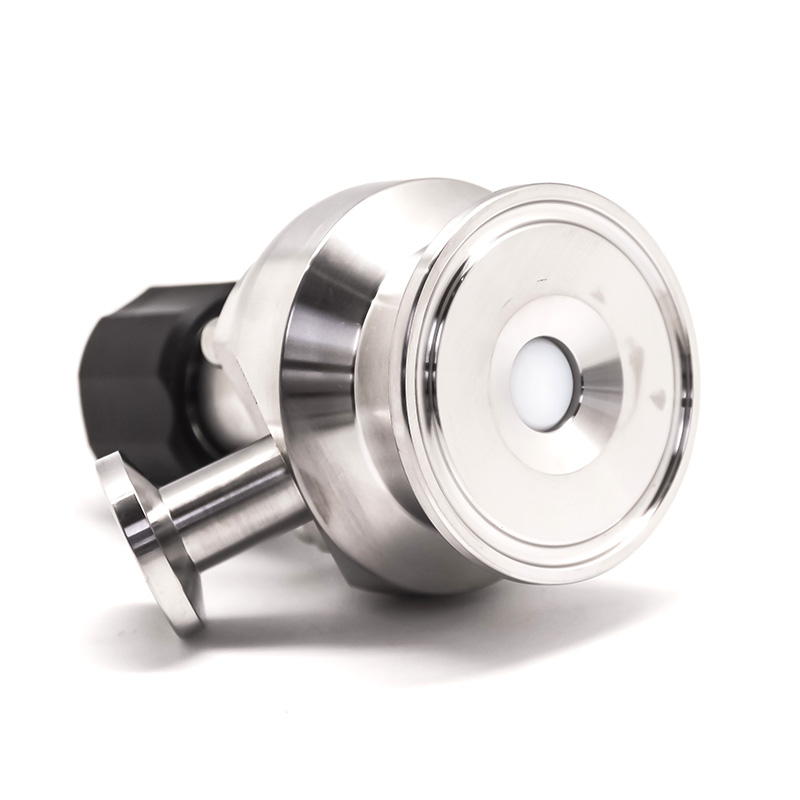

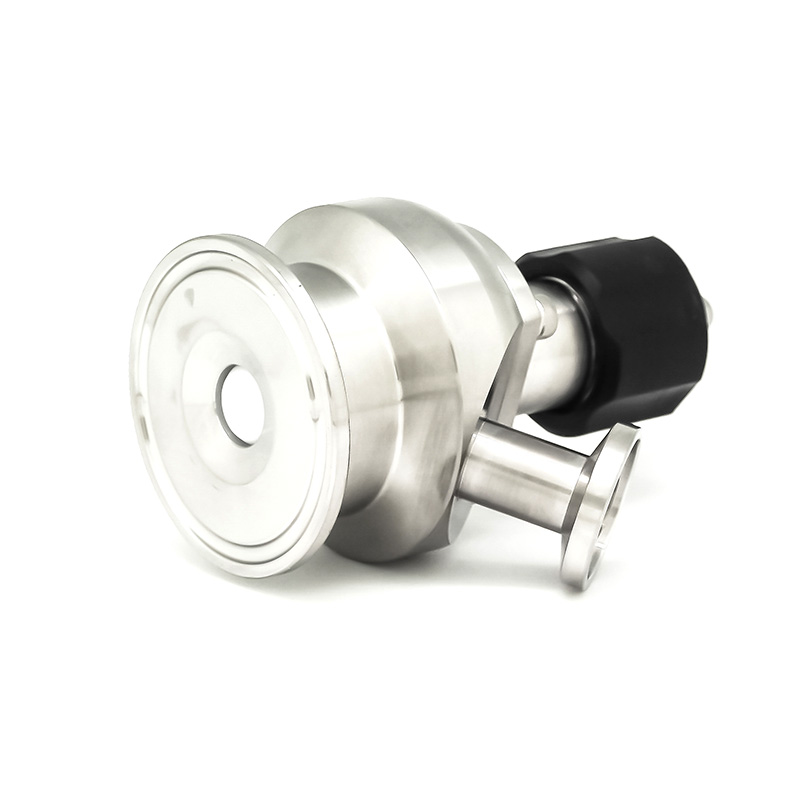

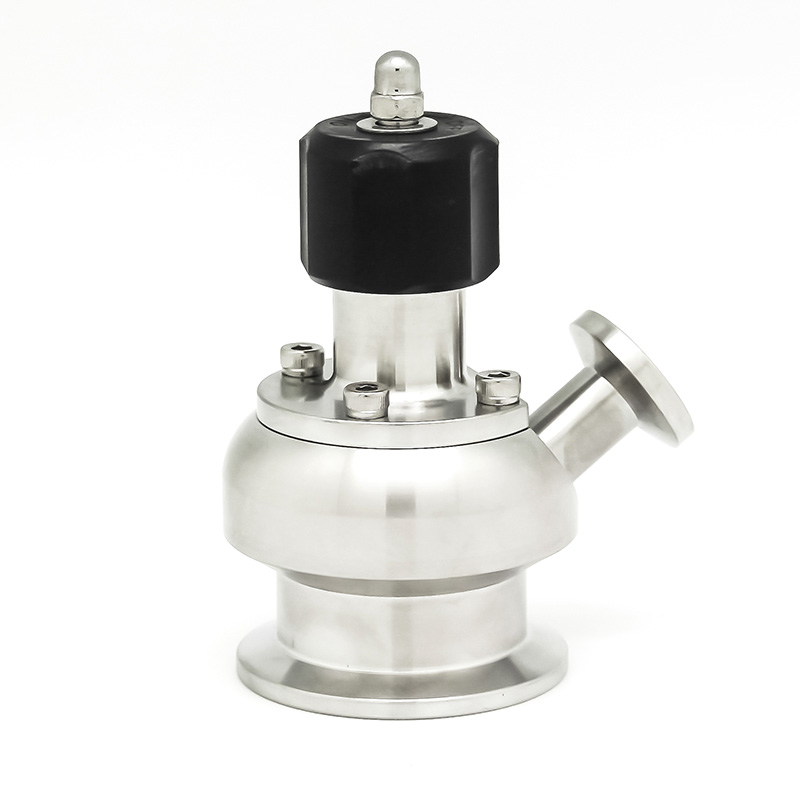

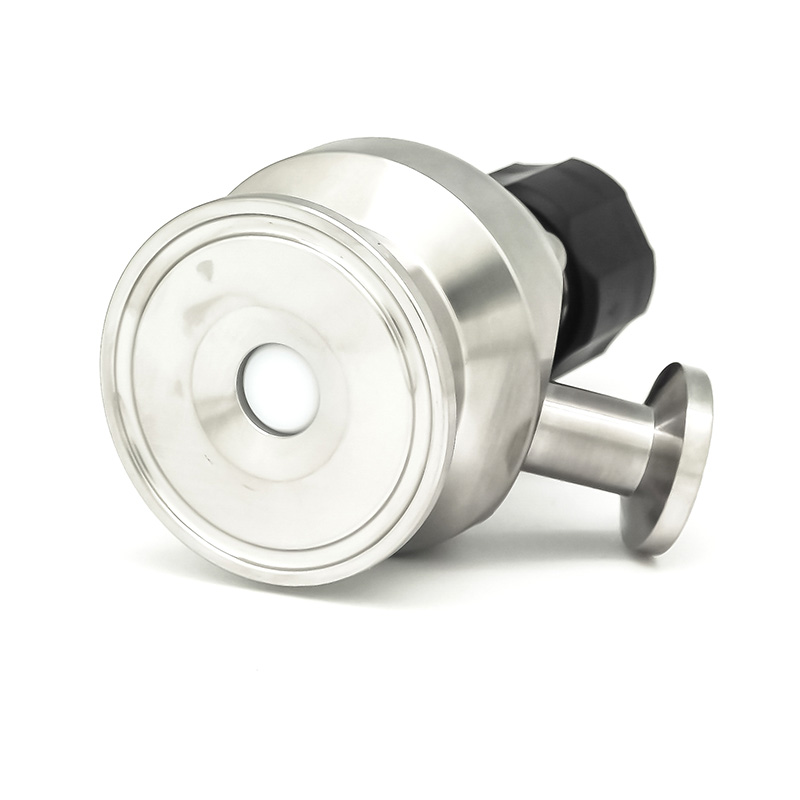

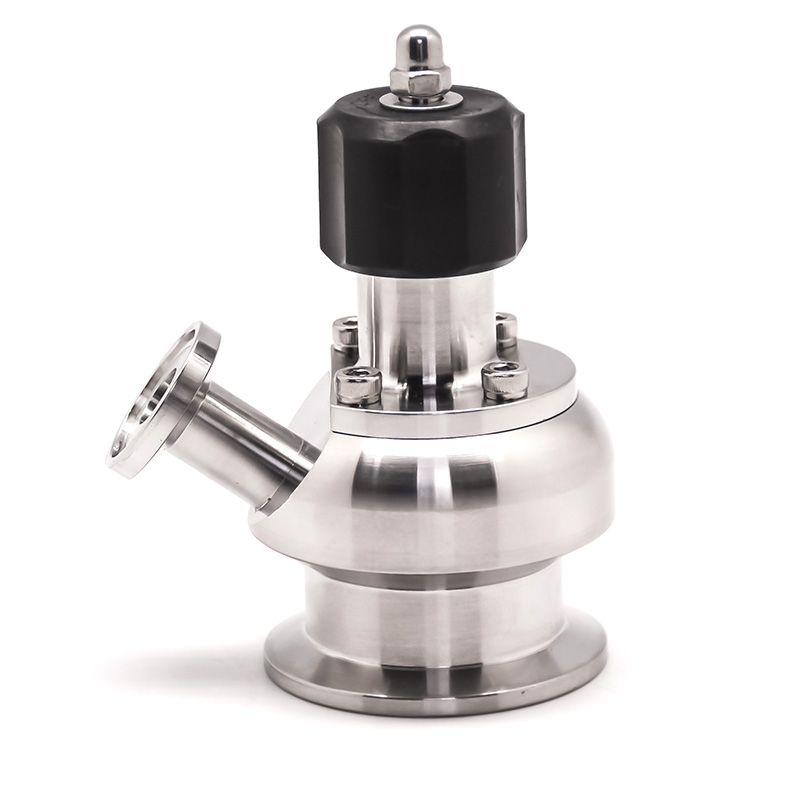

Aseptic sampling valves are measured and designed for sampling, medium viscosity products with about 0-1,000cP in viscosity and with particles up to 3mm in diameter. Such as Unprocessed Milk,Medical solutions, Filtered and unfiltered beer, Perfume, Creams and lotions, and much more.
·Available Sizes: DN6, DN8, DN10, DN15
·End Connections: Tank Weld, Tri-Clamp or on request
Temperature range of PTFE: 0 to 150ºC / 32 to 302ºF
Max. Working Pressure: 6Bar (87Psi)
Body: SS316L
Membrane: PTFE
Available in sizes from 1/4" to 1"
Max. pressure: 10bar (145psi); DN25 ~ 100
Temperature range: 50 ~ 248°F (-10 ~ 120°C), EPDM
End connections: butt-welded, sanitary clamp, threaded, flanged, I-line or others upon request.
Surface treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm)

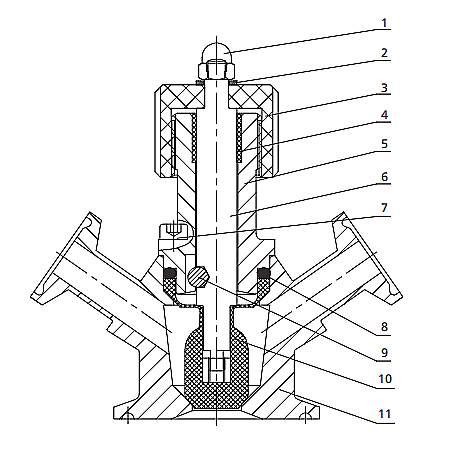

Assembly Drawing
 |
Item | Description | Matrtial | QTY |
| 1 | Hexagon Nut | SS304 | 1 | |
| 2 | Flat Ring | SS304 | 1 | |
| 3 | Hand Wheel | POM | 1 | |
| 4 | Bushing | ABS | 1 | |
| 5 | Support | SS304 | 1 | |
| 6 | Shaft | SS304 | 1 | |
| 7 | Bolt | SS304 | 4 | |
| 8 | O-Ring | Silicon* | 1 | |
| 9 | Ball Bearing | SS304 | 1 | |
| 10 | Membrane | PTFE | 1 | |
| 11 | Valve Body | SS304/SS316L | 1 |

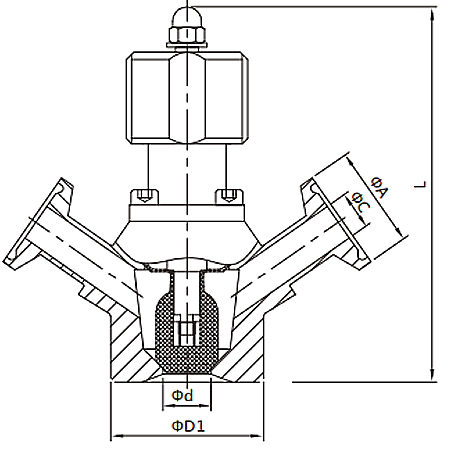

Weld Sampling Valve
 |
||||||
| Model No | Size | d | D1 | A | C | L |
| VSC01M1W32652008 | DN8 | 8 | 28 | 25.2 | 5 | 85 |
| VSC01M1W32652010 | DN10 | 9.5 | 28 | 25.2 | 9.5 | 93 |

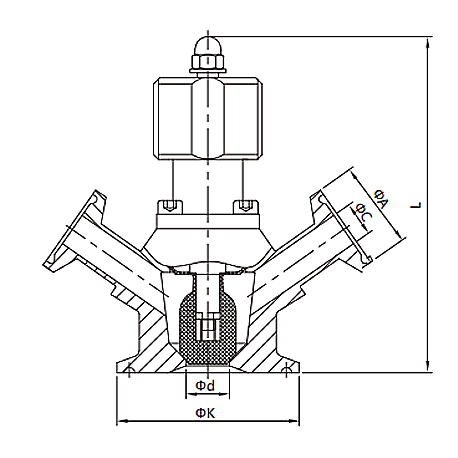

Clamp Sampling Valve
 |
||||||
| Model No | Size | d | K | A | C | L |
| VSC01M1C32652008 | DN8 | 8 | 25.2 | 25.2 | 5 | 85 |
| VSC01M1C32652010 | DN10 | 9.5 | 50.5 | 25.2 | 9.5 | 93 |
VSN series Sampling Valve mainly applied to extract sample from tank or pipeline. It also can be assemble...
Inquire
Concept VAM Diaphragm type Sampling Valve is a process line accessory to be used for clear or viscous liq...
Inquire
VSA series Aseptic sampling vavles are measured to designed for sampling medium viscosity products with a...
Inquire
VSA series Aseptic sampling vavles are measured to designed for sampling medium viscosity products with a...
