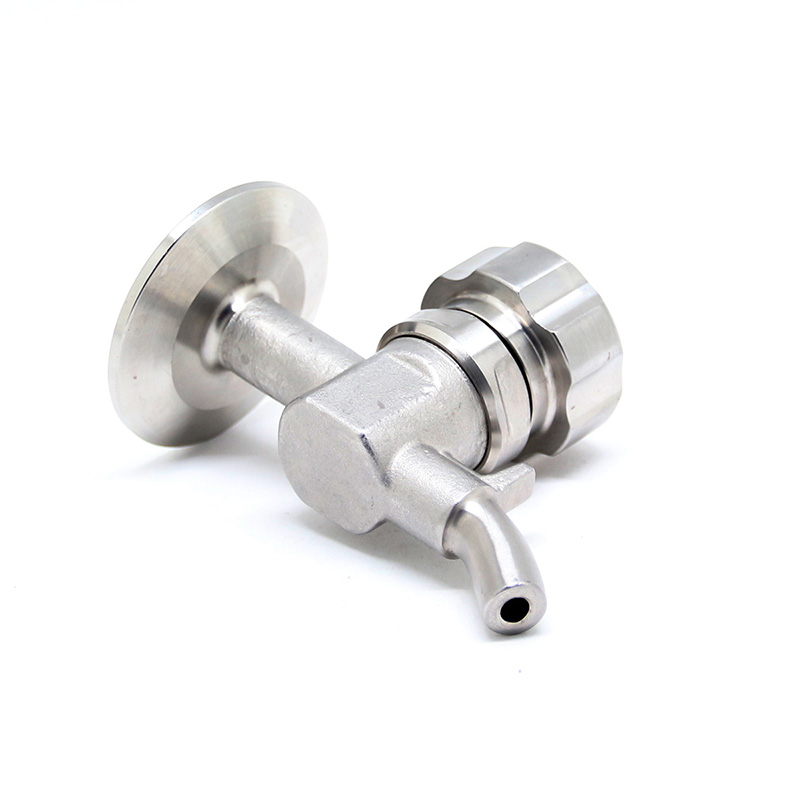

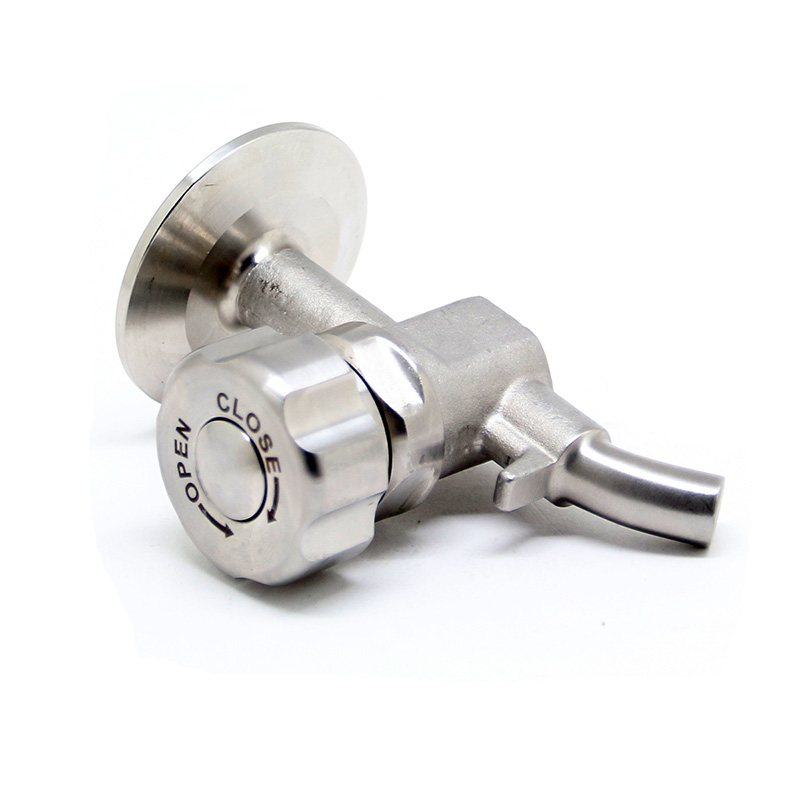

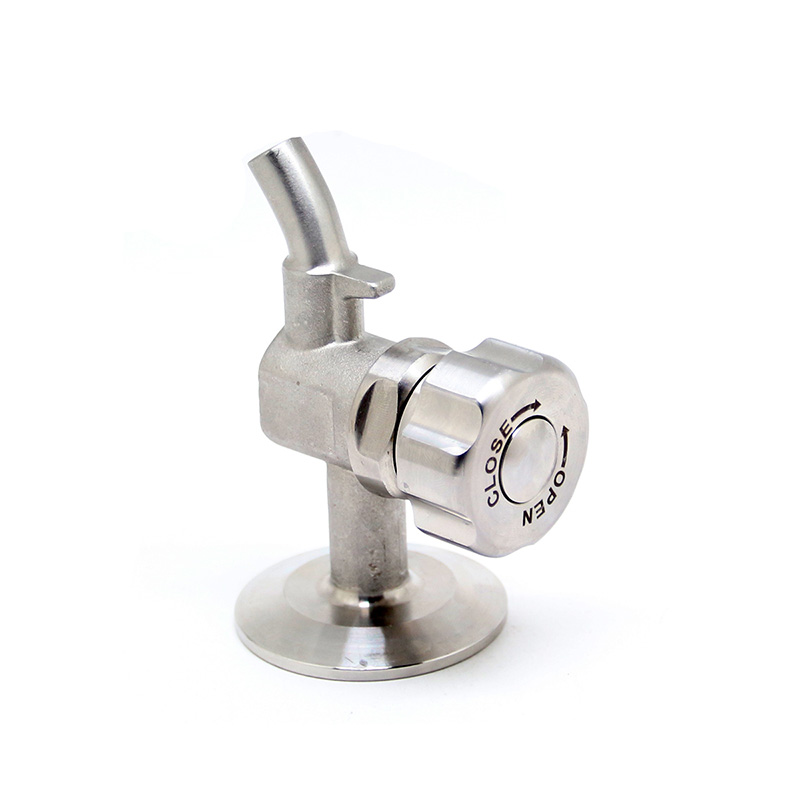

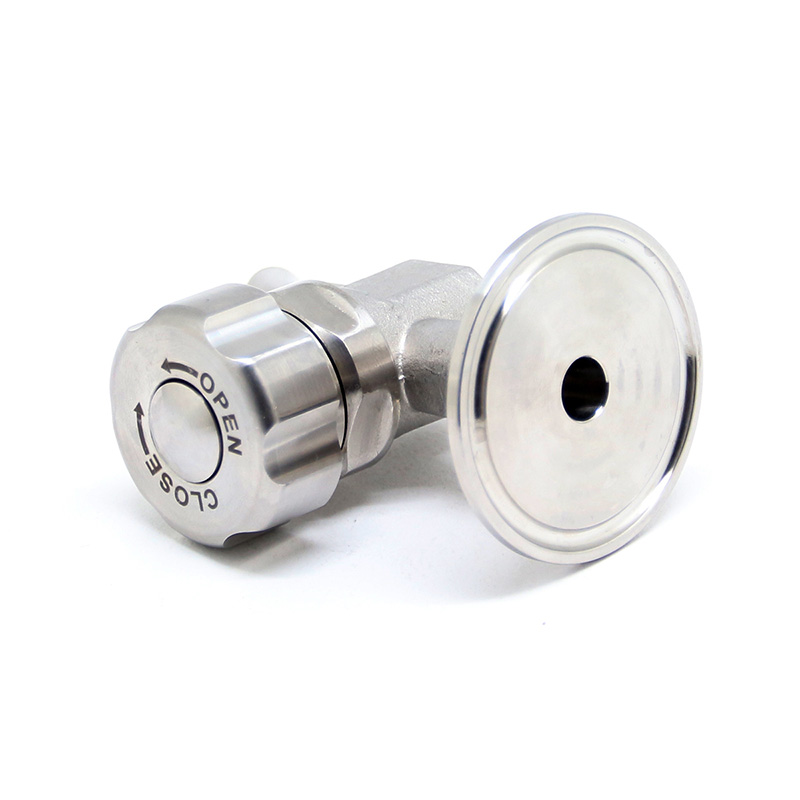

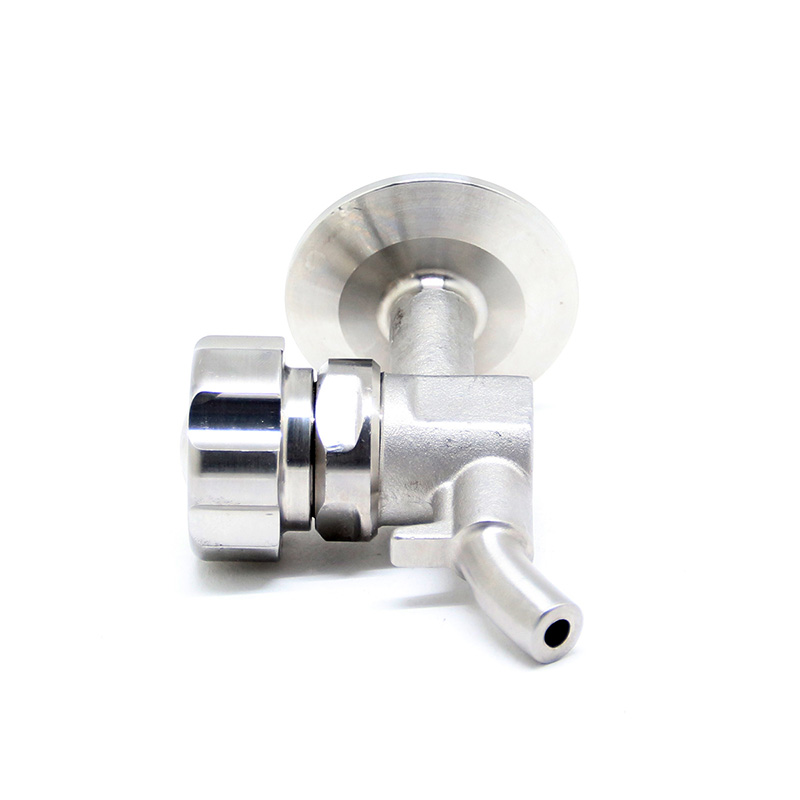

VSW Sampling Valve Clamp NPT Male SS304 Stainless Steel with Silicon O-Ring process sampling 1/2"-11/2"

Concept

VSW sample valve offers a truly hygienic design. EPDM seats ensure positive seal and ears allow for pigtail hook up. Replaceable seat assembly and 304ss construction makes for a long term sanitary solution for tank or process sampling requirements.

Design and Features

·Positive Travel Stop prevents over closing the valve to increase seat life

·Stainless Steel Cap

·Red Silicone "O" Ring indicates when valve is open and provides positive seal when closed.

·Seat Cap - Available in FDA approved EPDM (STD) or Silicone

·Pressure Rating 150 P.S.I.G.

·With lip for pigtail hook up

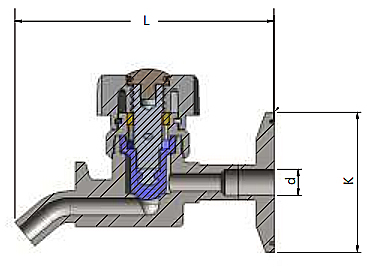

Clamp Sampling Valve

Model No	Size	d	K	L
VSW01C421050	1/2''	9.3	25.2	91
VSW01C421150	11/2''	9.3	50.5	91

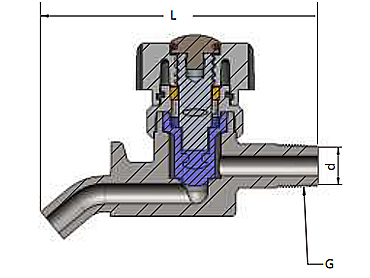

NPT Male Sampling Valve

Model No	Size	d	G	L
VSW01M421025	1/4''	9.3	NPT.1/4"	85
VSW01M421038	3/8''	9.3	NPT.3/8"	85
