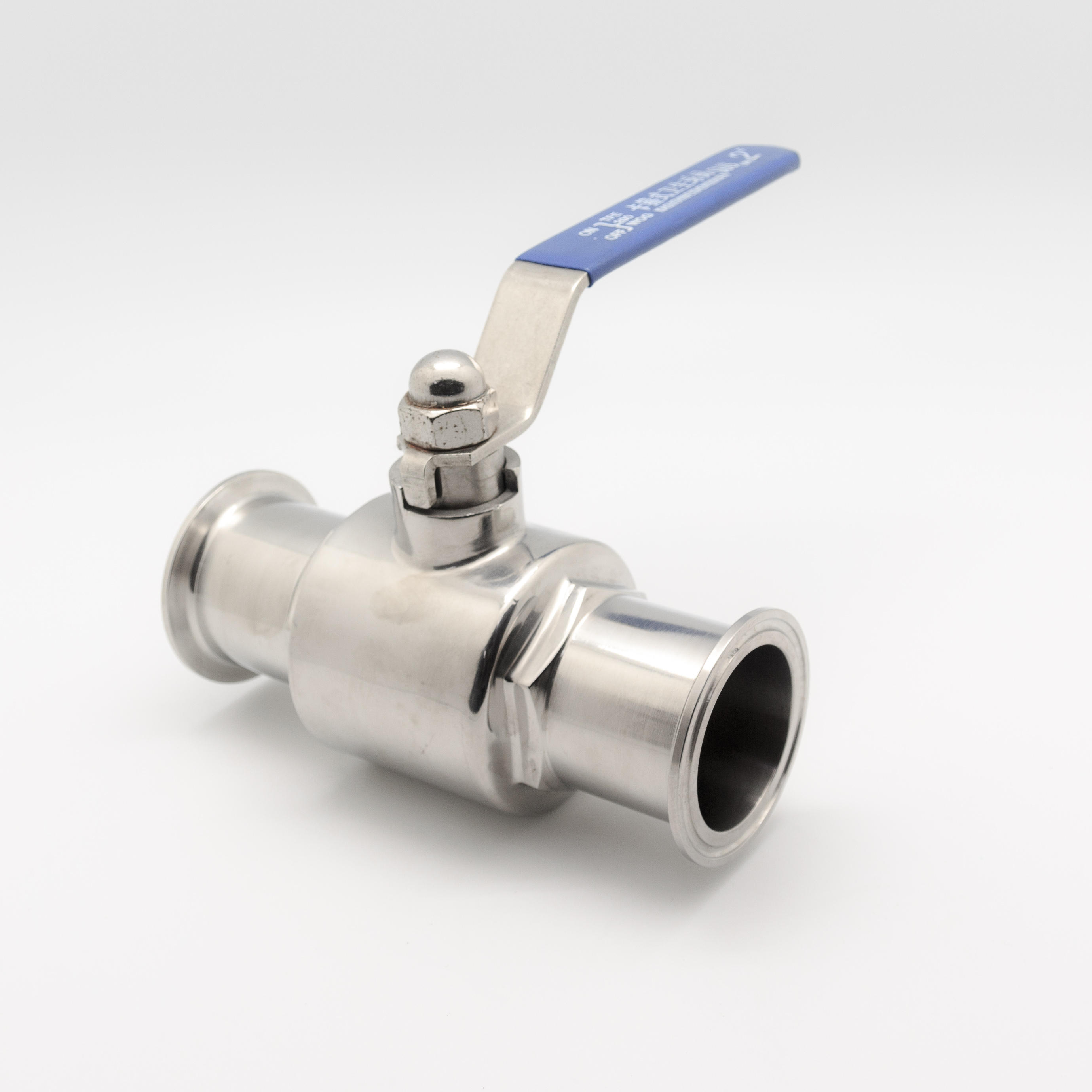

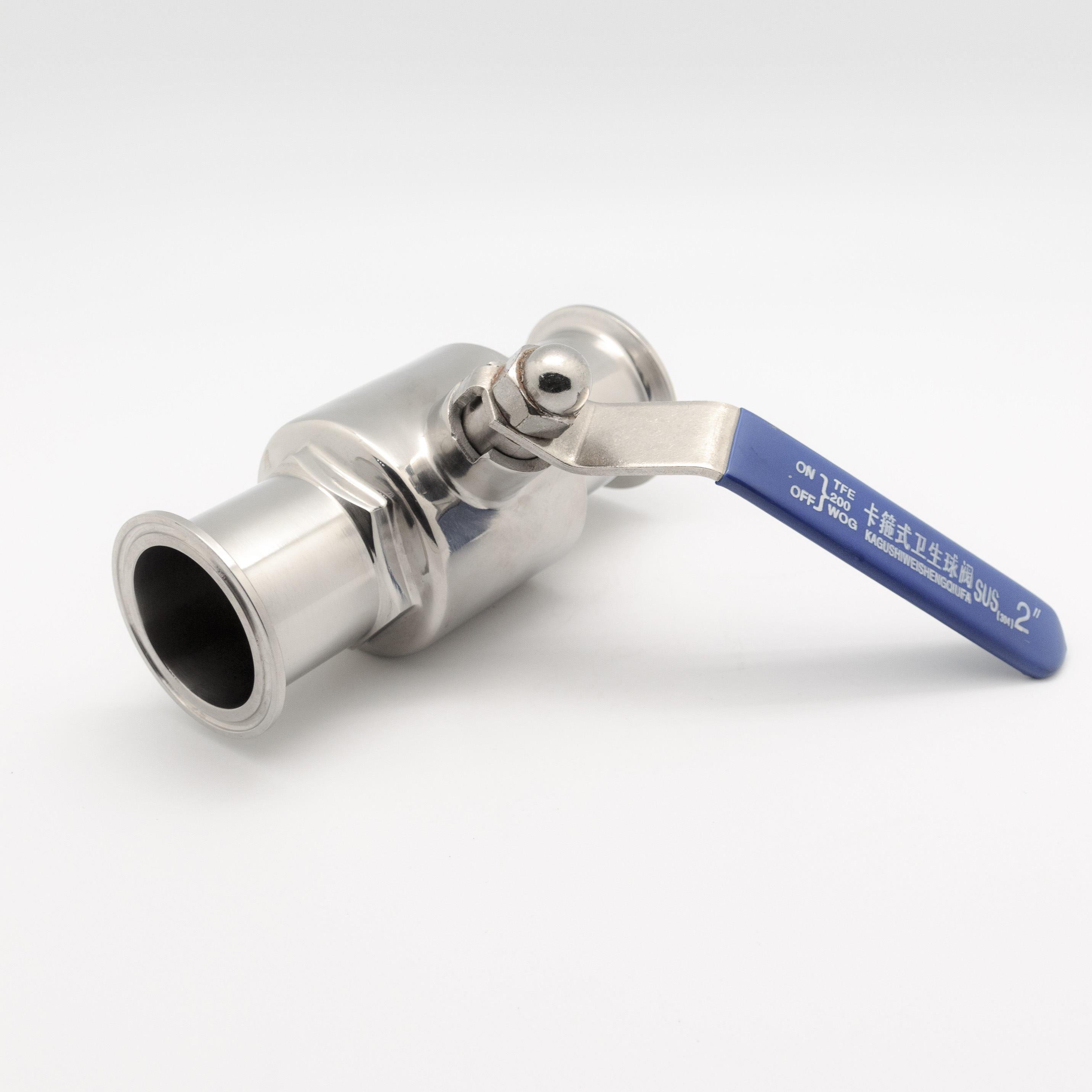

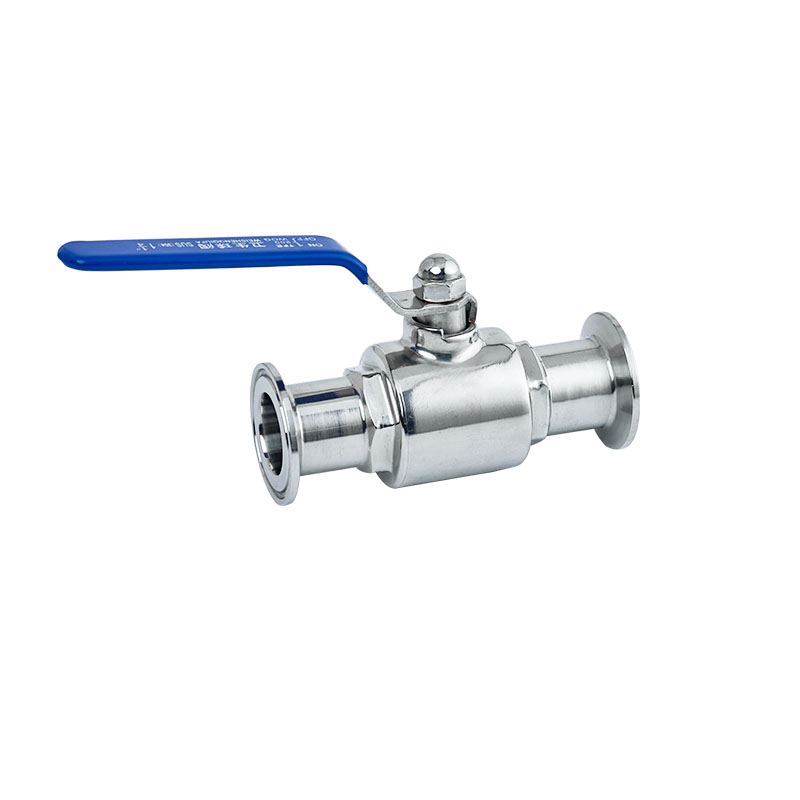

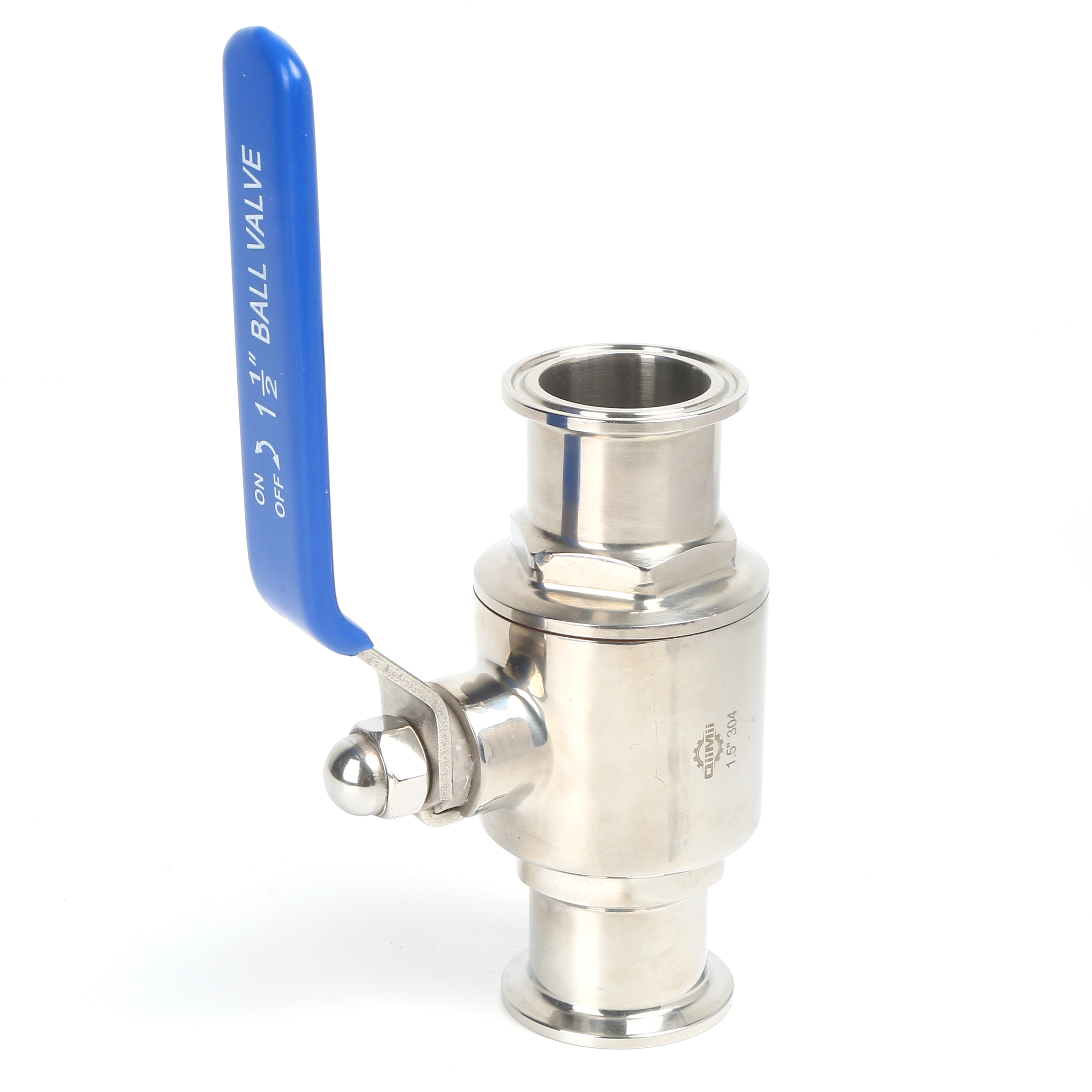

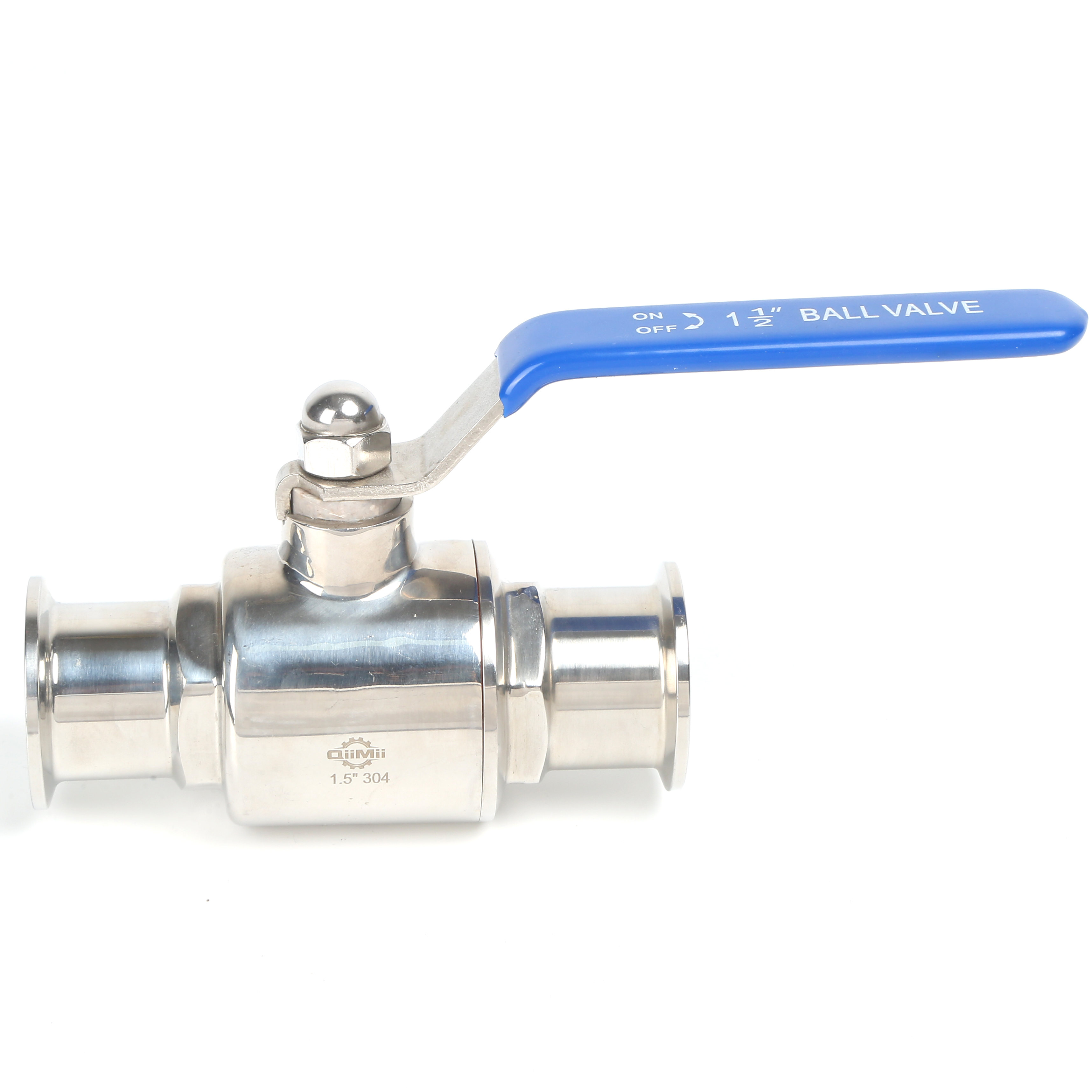

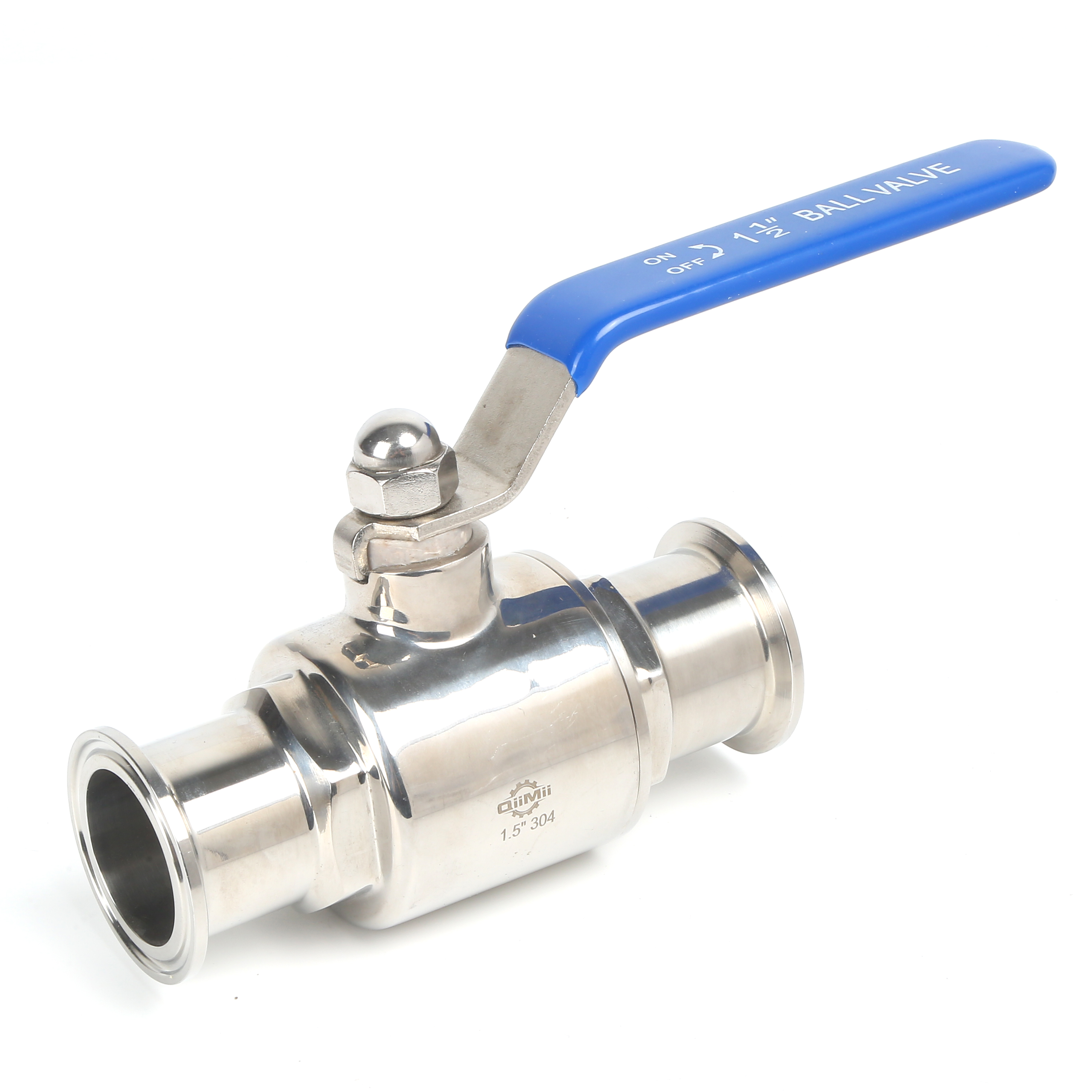

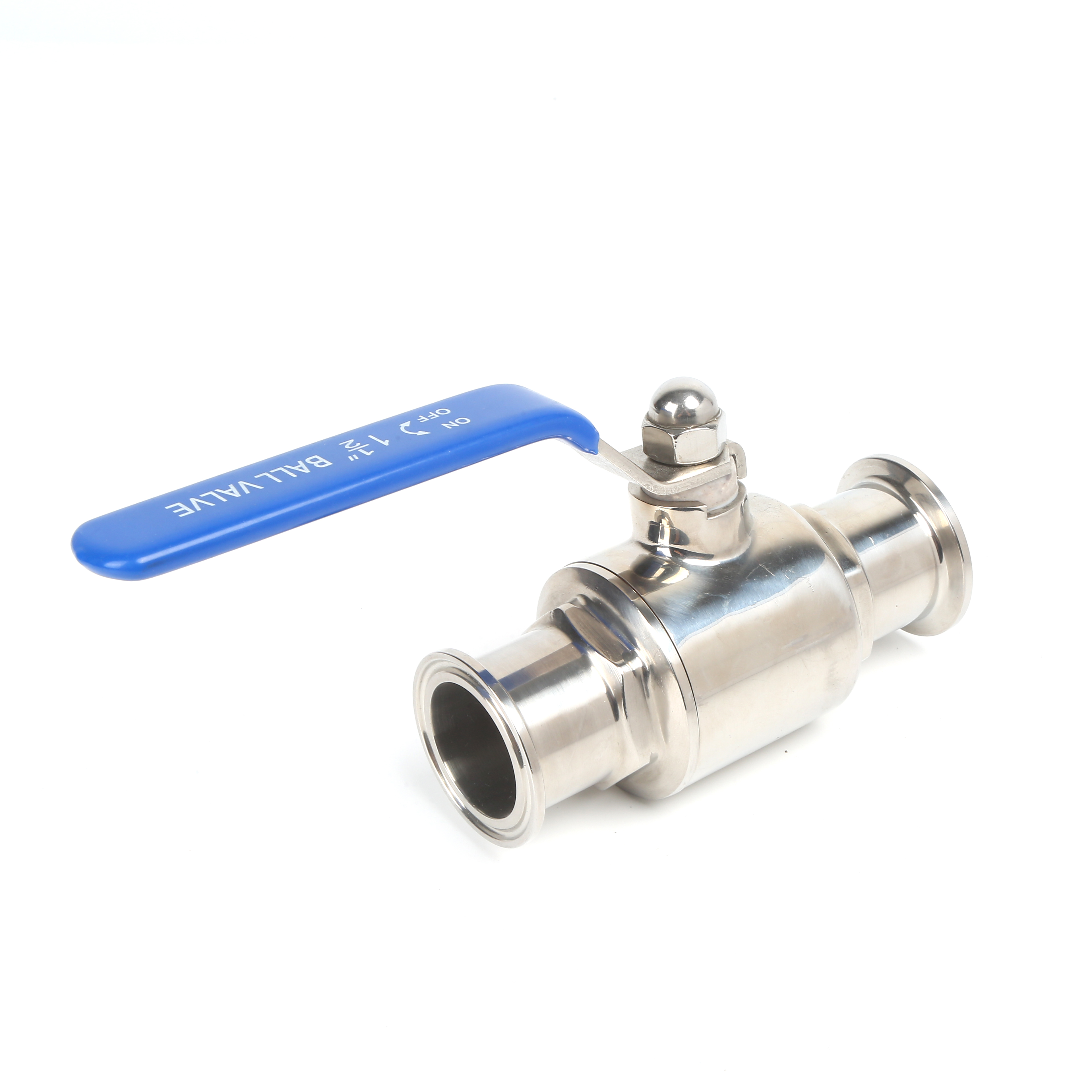

Tri Clamp Male Manual 3A Direct 2-Way Ball Valve Sanitary SS304/SS316L Stainless Steel Food Grade

Model No.:VFN01

SKU:VFN01

End Connections:

Operation:

Materials:

Gasket Material:

Size.:

Solenoid valve:

Limit Switch Box:

Application

VFN Two Way Sanitary Ball Valve has a full port design to reduce turbulence and pressure drop through the valve. The hygienic design is widely used in the field of food processing, beverages, fruit juices, wine.

Technical Specification

Material: SS304 or SS316L

Seat Gasket: PTFE

Operating pressure: Max. 800kPa(8 bar)/ 115 psi

Temperature range: -10°C to 120°C

Actuator

Air pressure: 4-7 Bar

Temperature range: -25°C to 120°C

Standard Design

· Connection: Tri Clamp, Male

· Stanard: 3A, SMS, DIN

· Ball Core: T port or L Port

· Operating : Manual, Pneumatic Actuator, Electric Actuator

with or without position sensor and solenoid valve

Tri Clamp 2-Way Ball Valve

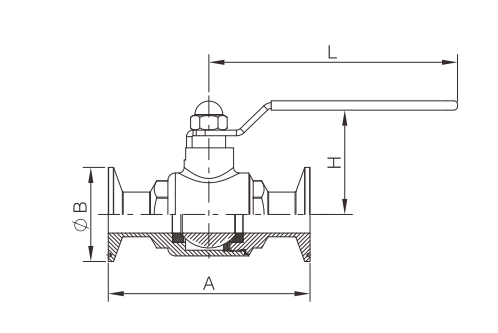

Model No	Size	A	B	H	L
VFN22H1X51050NN	1/2''	75	25.2	53	111
VFN22H1X51075NN	3/4‘’	100	25.2	55	114
VFN22H1X51100NN	1''	120	50.5	55	140
VFN22H1X51125NN	1 1/4‘’	130	50.5	55	140
VFN22H1X51150NN	1 1/2''	140	50.5	65	160
VFN22H1X51200NN	2''	164	64	75	175
VFN22H1X51250NN	2 1/2''	189	77.5	85	230
VFN22H1X51300NN	3''	212	91	100	246
VFN22H1X51400NN	4‘’	260	119	120	333
VFN22H1X52015NN	DN15	75	34	53	111
VFN22H1X52020NN	DN20	100	34	55	114
VFN22H1X52025NN	DN25	120	50.5	55	140
VFN22H1X52032NN	DN32	130	50.5	55	140
VFN22H1X52040NN	DN40	140	50.5	65	160
VFN22H1X52050NN	DN50	164	64	75	175
VFN22H1X52065NN	DN65	189	91	85	230
VFN22H1X52080NN	DN80	212	106	100	246
VFN22H1X52100NN	DN100	260	119	120	333
