Tank Bottom Ball Valve
Tank Bottom Ball Valve

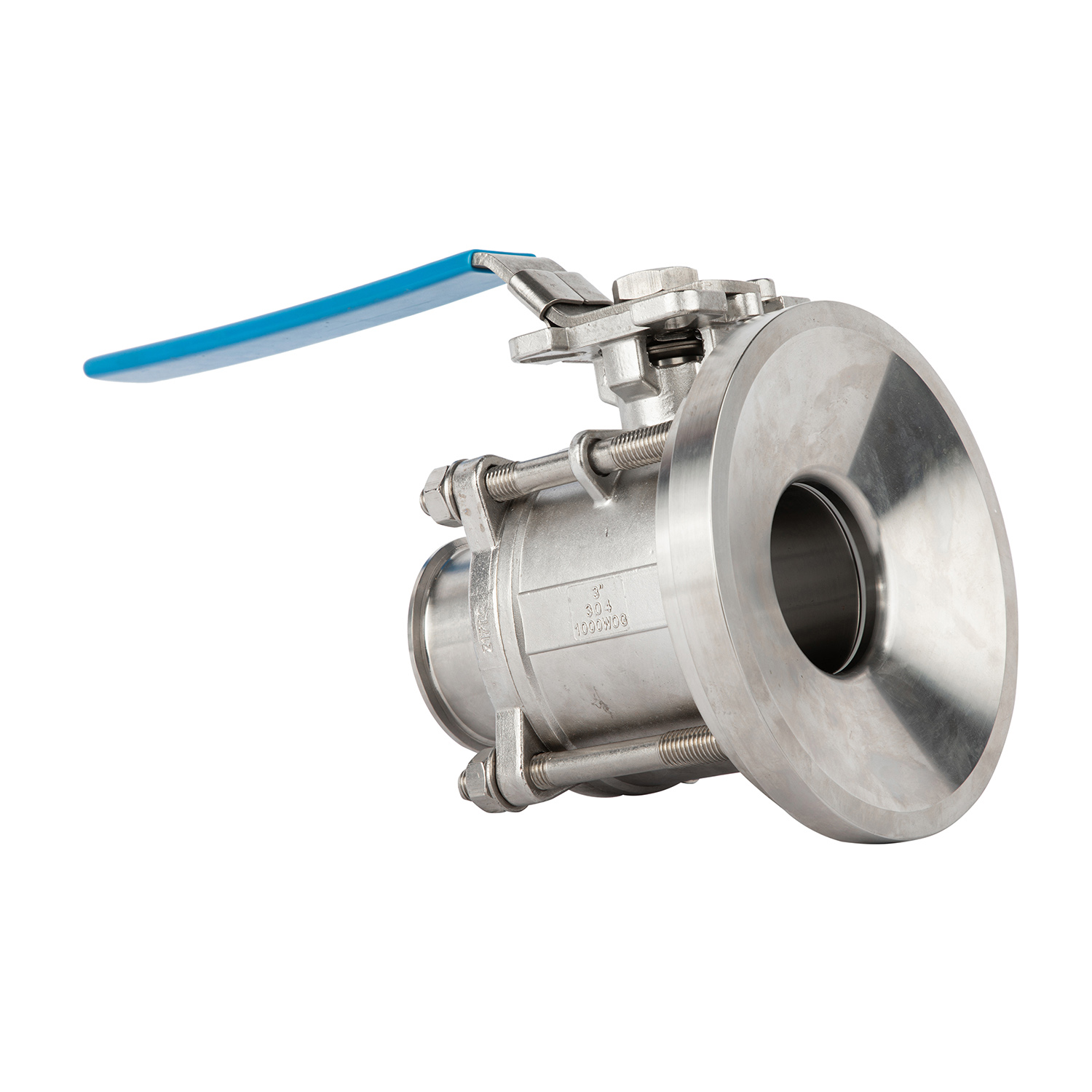

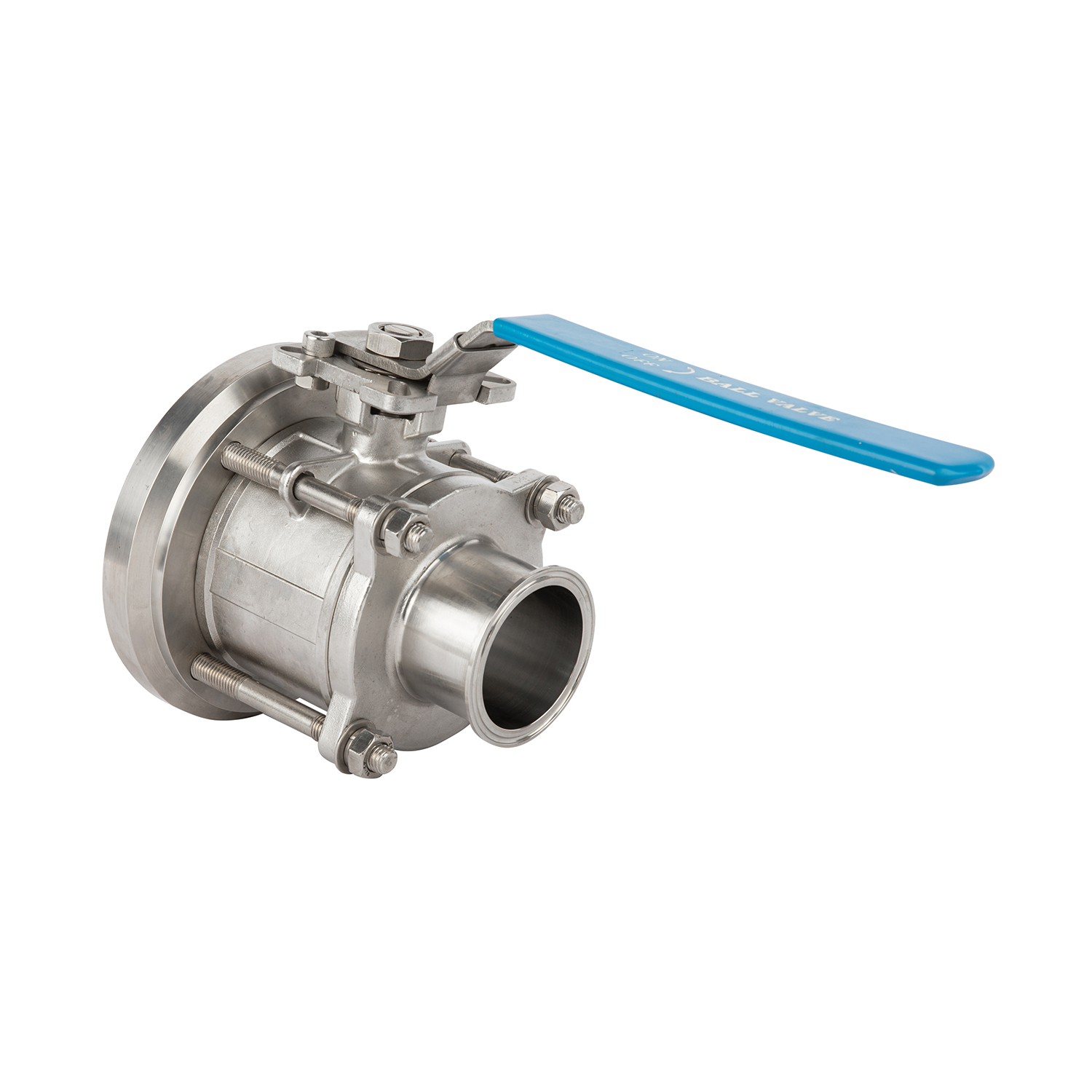

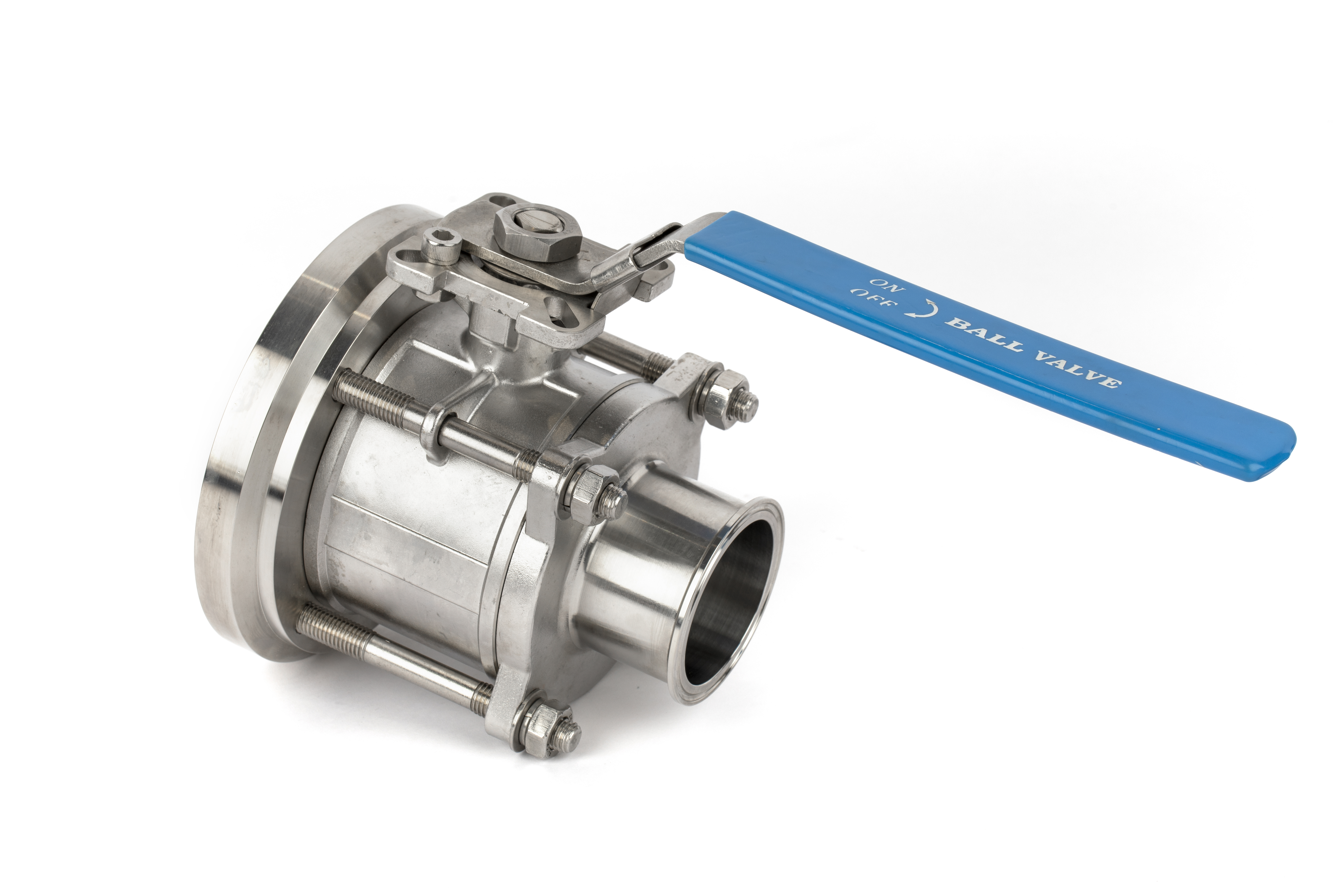

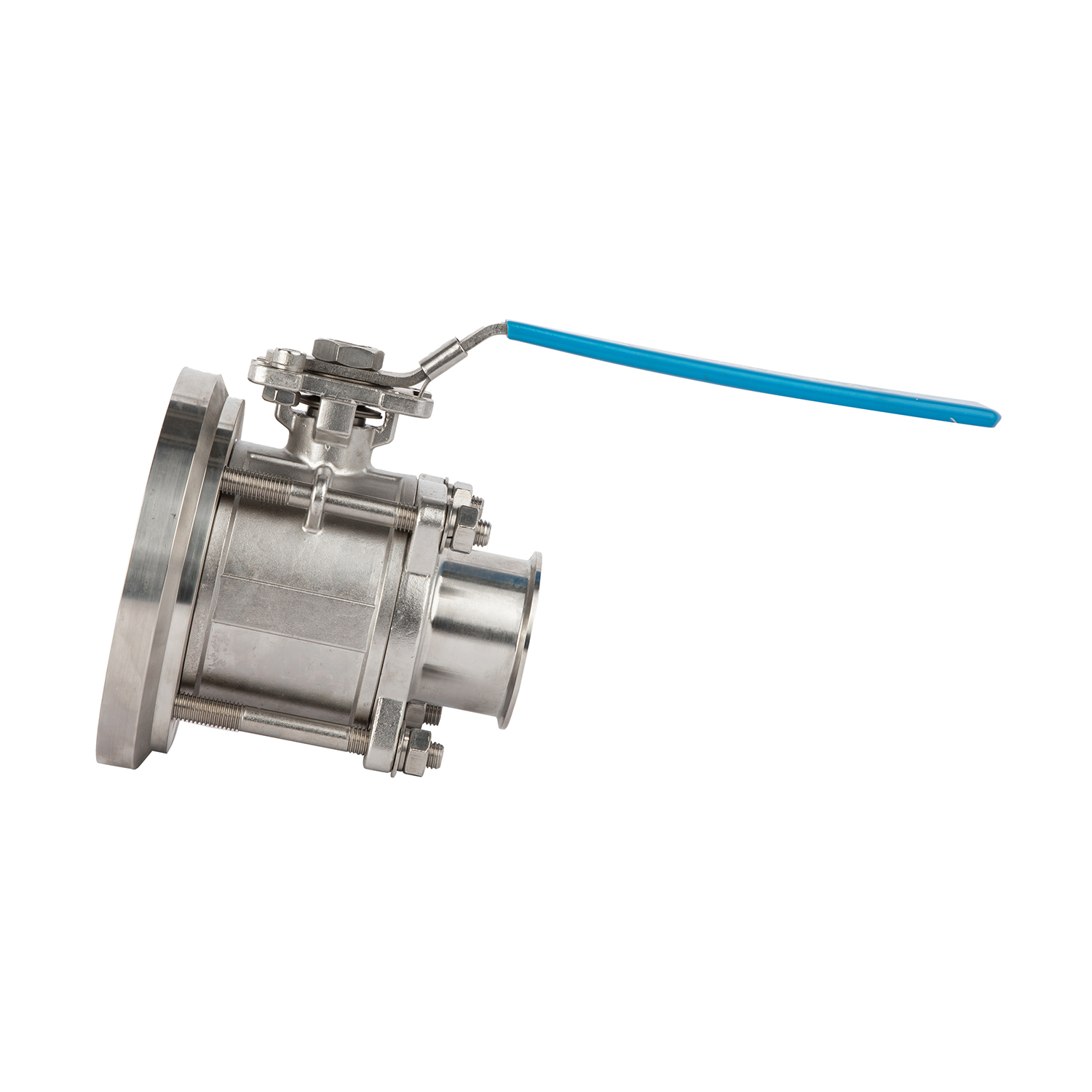

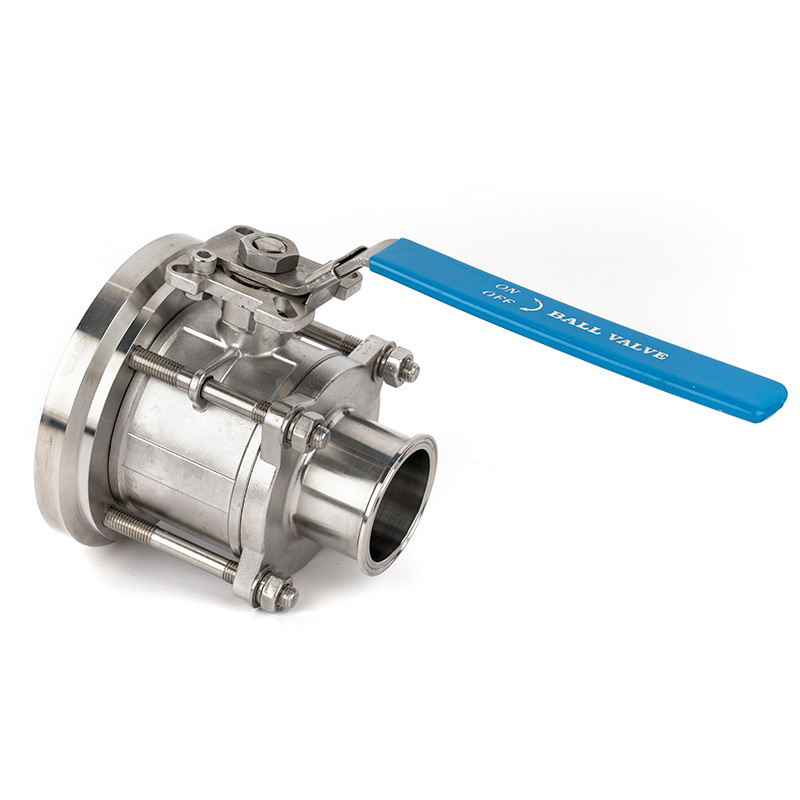

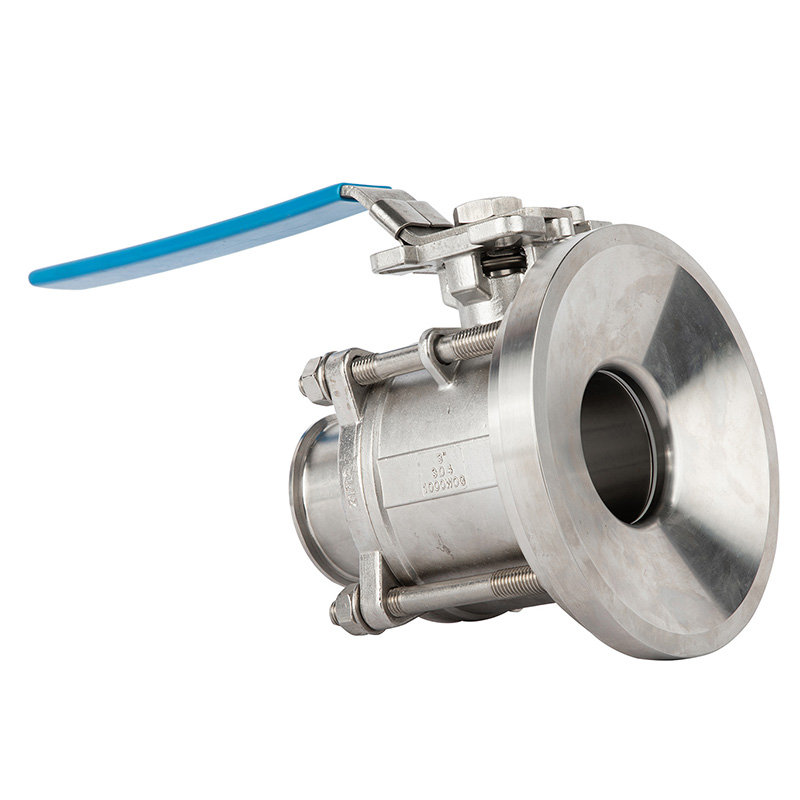

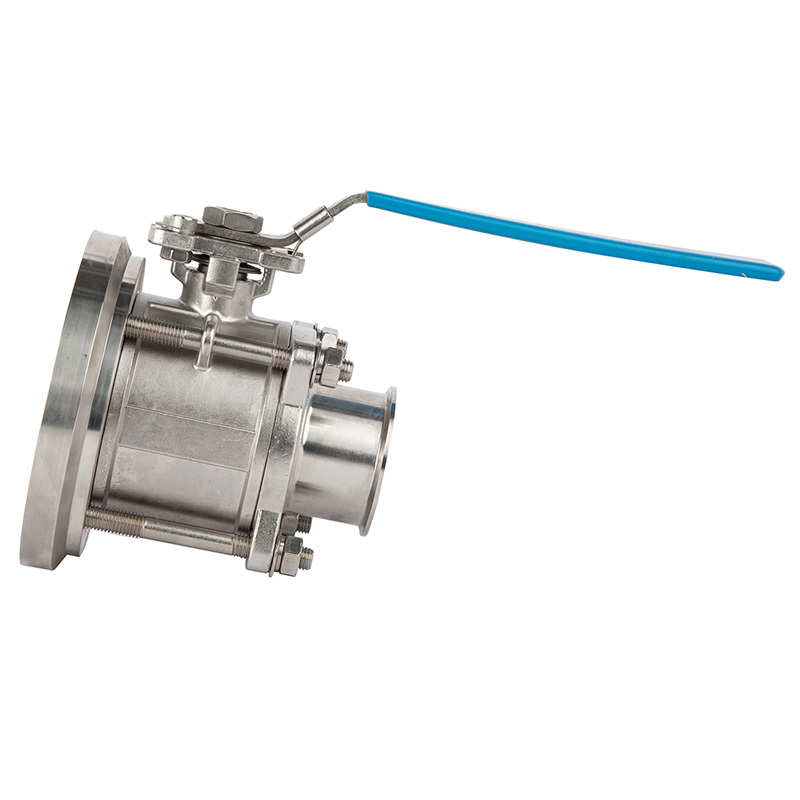

VFD Tank Bottom Ball Valve

Model:VFD 11/12

Inquire Now PDF Datasheet

Application

VFD Series Tank Bottom Valves are of SS304 or SS316 construction, are welded flush to the tank bottom, providing a fast, unrestricted drainage of tank media. The 3-piece design allows for easy maintenance and assembly. The weld-in-place tank pad is designed to bolt directly to the valves center body. It can be fitted with triclamp, butt weld, or flanged mating end.

Design Features

·Full port design

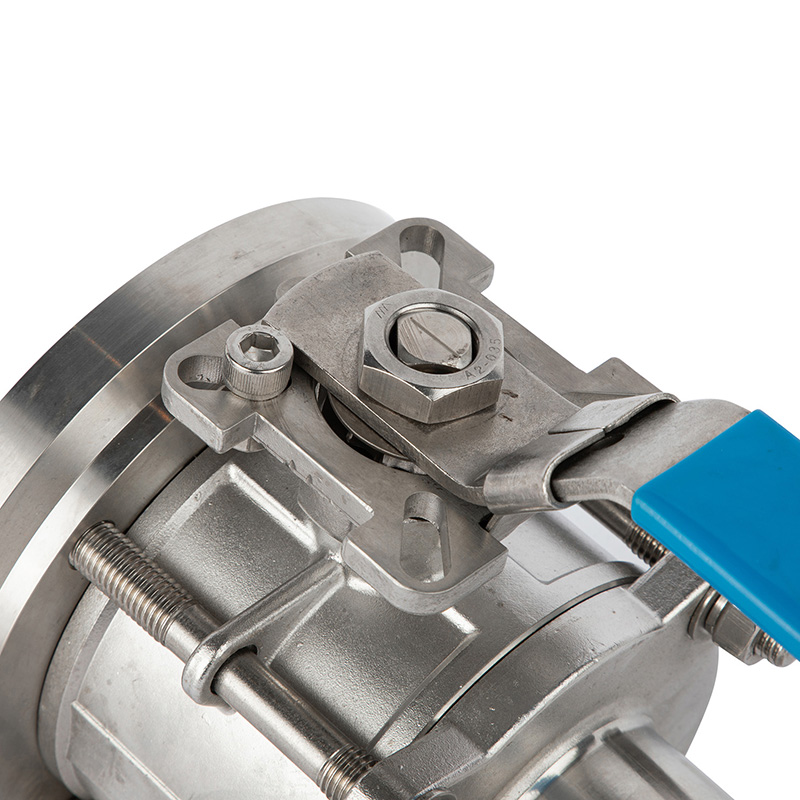

·Integral ISO 5211 mounting pad

·1000 psi WOG

·Lockable handle can prevent accidental actuation

·Sizes are available from 1/2"/DN15 to 4"/DN100

·Connection: Welding, Clamp, Flange or others upon request

Materials

Valve body: CF8 or CF8M

Valve seat: PTFE

Size: 1/2''

FDA seal

Valve seat: PTFE

Gasket: Silicon,FPM,EPDM+PTFE

Technical Specification

Max. pressure: 10Bar (DN15-DN65/ 1/2"-21/2")

                          8Bar (DN80-DN100/ 3"-4")

Working temperature: -20℃ to + 150℃ (PTFE)

Option

·Automatic operation : pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator

 NC operated: normally closed (fail closed)---air to open, spring to close

 NO operated: normally open (fail open)---air to close, spring to open

 AA operated: double acting---air to open, air to close

·Valve intelligent control: position sensor, C-top controller, C-top controller (AS-I)

Weld Tank Bottom 3 Piece Ball Valve

Model No Size D Dn L K H F
VFD11P2SX51100NN 1'' 25.4 22.1 106 165 52.5 120
VFD11P2SX51150NN 1 1/2'' 38.1 34.8 125 215 73 120
VFD11P2SX51200NN 2'' 50.8 47.5 140 215 78.5 150
VFD11P2SX51250NN 2 1/2'' 63.5 60.2 155 215 95 180
VFD11P2SX51300NN 3'' 76.2 72.9 176 320 110.5 212
VFD11P2SX51400NN 4'' 101.1 97.6 210 320 122.5 248
VFD11P2SX52025NN DN25 28 25 106 165 52.5 120
VFD11P2SX52040NN DN40 41 38 125 215 73 120
VFD11P2SX52050NN DN50 52 49 140 215 78.5 150
VFD11P2SX52065NN DN65 70 66 155 215 95 180
VFD11P2SX52080NN DN80 84 81 176 320 110.5 212
VFD11P2SX52100NN DN100 104 100 210 320 122.5 248

Clamp Tank Bottom 3 Piece Ball Valve

Model No Size D Dn L K H F
VFD12P2SX51100NN 1'' 50.5 22.1 106 165 52.5 120
VFD12P2SX51150NN 1 1/2'' 50.5 34.8 125 215 73 120
VFD12P2SX51200NN 2'' 64 47.5 140 215 78.5 150
VFD12P2SX51250NN 2 1/2'' 77.5 60.2 155 215 95 180
VFD12P2SX51300NN 3'' 91 72.9 176 320 110.5 212
VFD12P2SX51400NN 4'' 119 97.6 210 320 122.5 248
VFD12P2SX52025NN DN25 50.5 25 106 165 52.5 120
VFD12P2SX52040NN DN40 50.5 38 125 215 73 120
VFD12P2SX52050NN DN50 64 49 140 215 78.5 150
VFD12P2SX52065NN DN65 91 66 155 215 95 180
VFD12P2SX52080NN DN80 106 81 176 320 110.5 212
VFD12P2SX52100NN DN100 119 100 210 320 122.5 248
