Butterfly Type Ball Valve
Butterfly Type Ball Valve

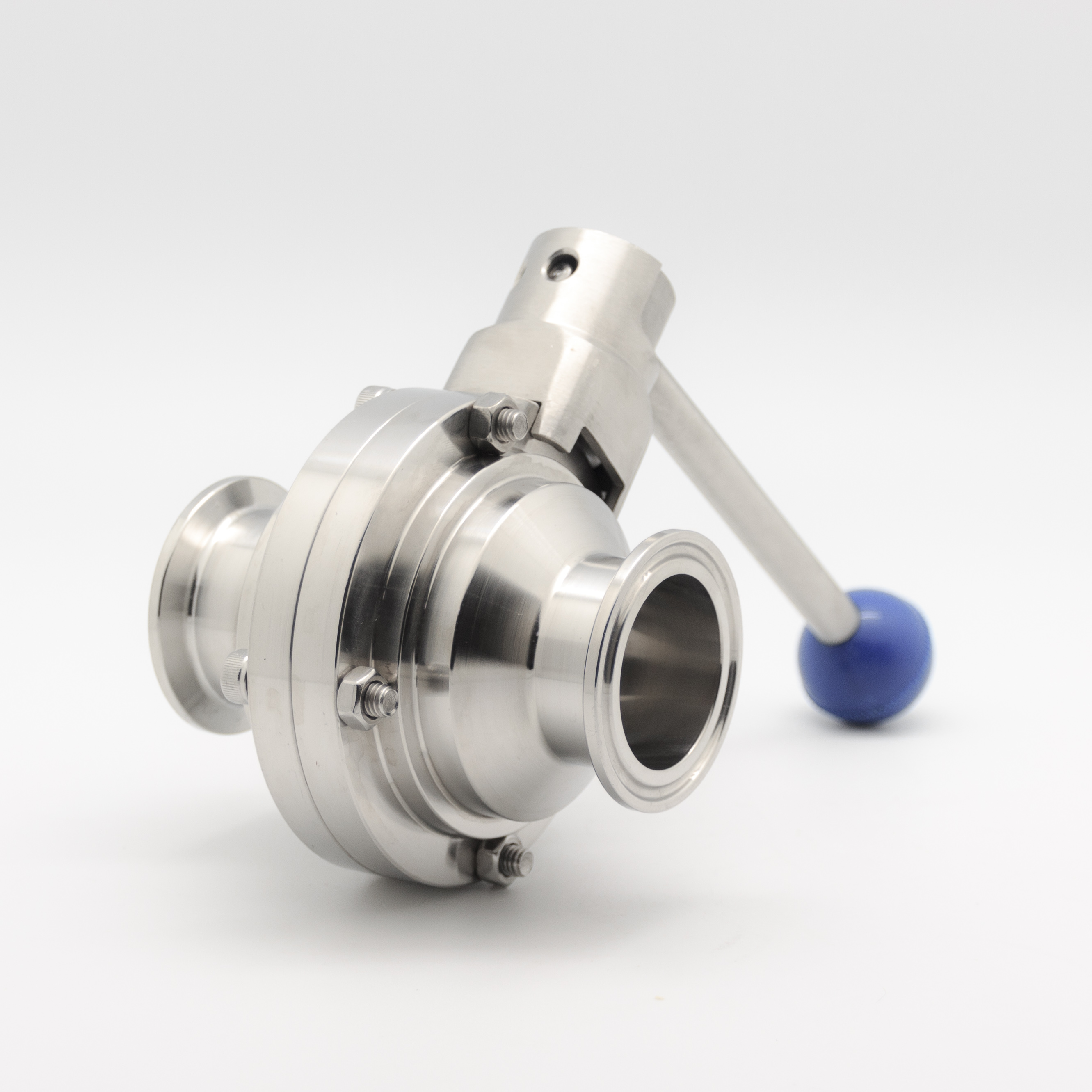

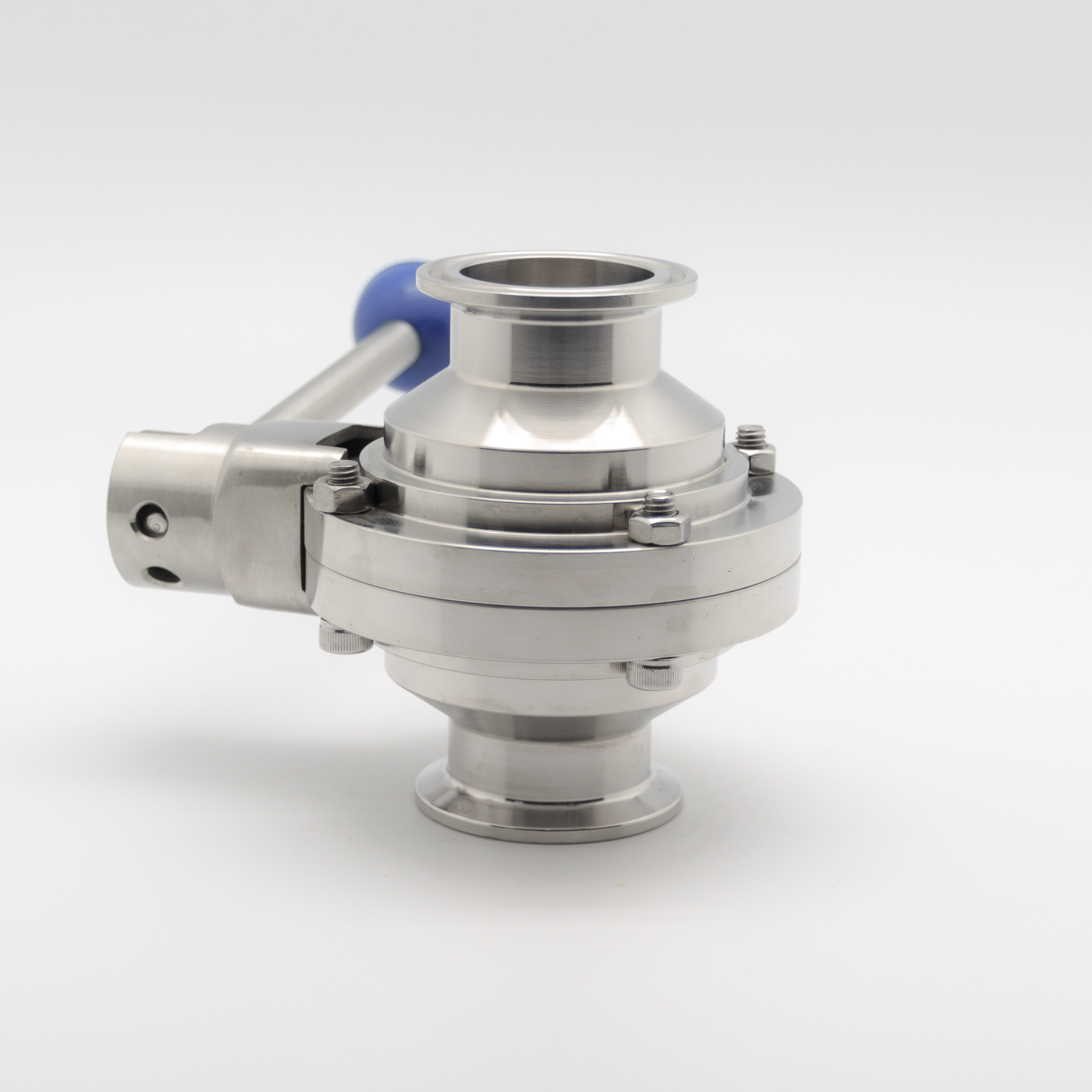

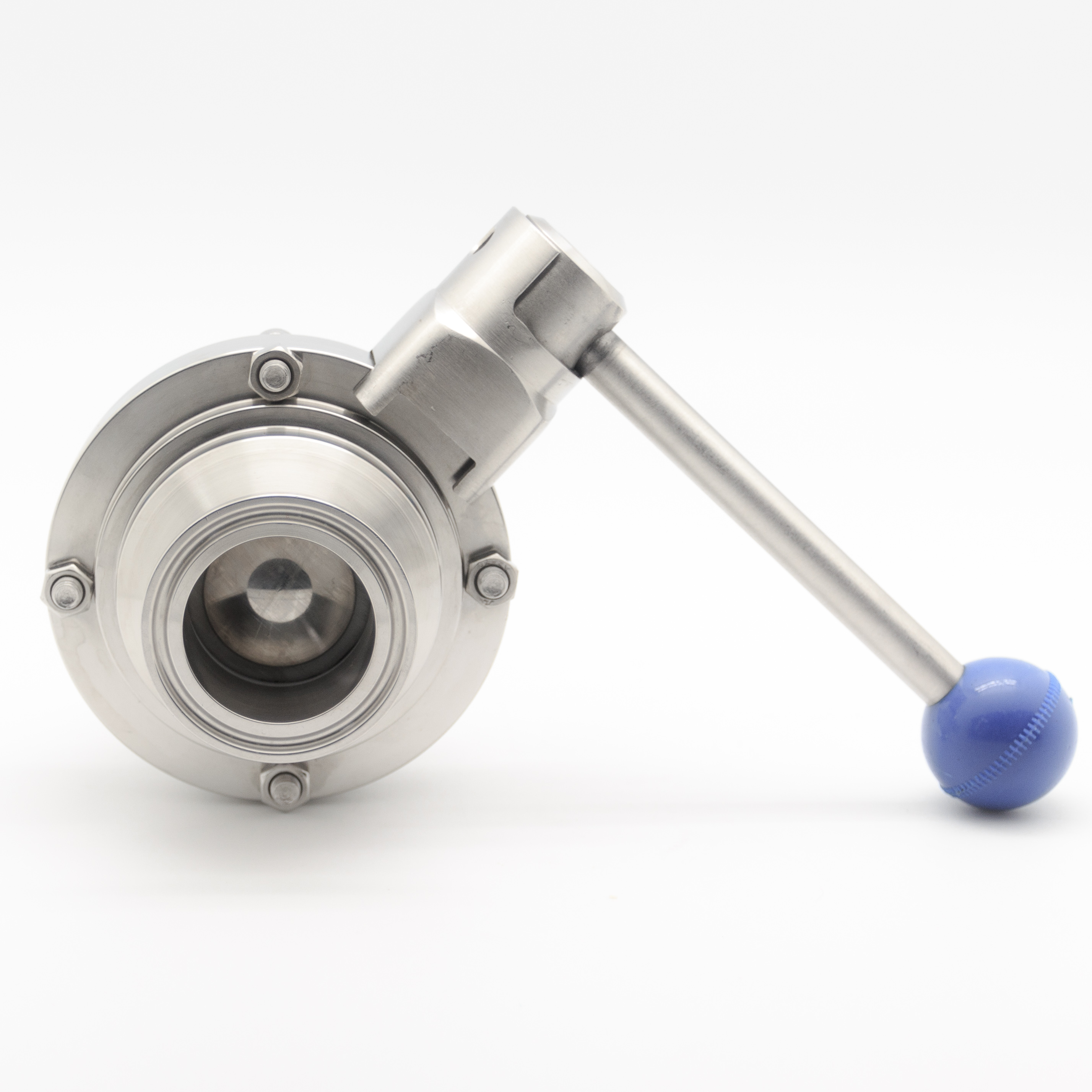

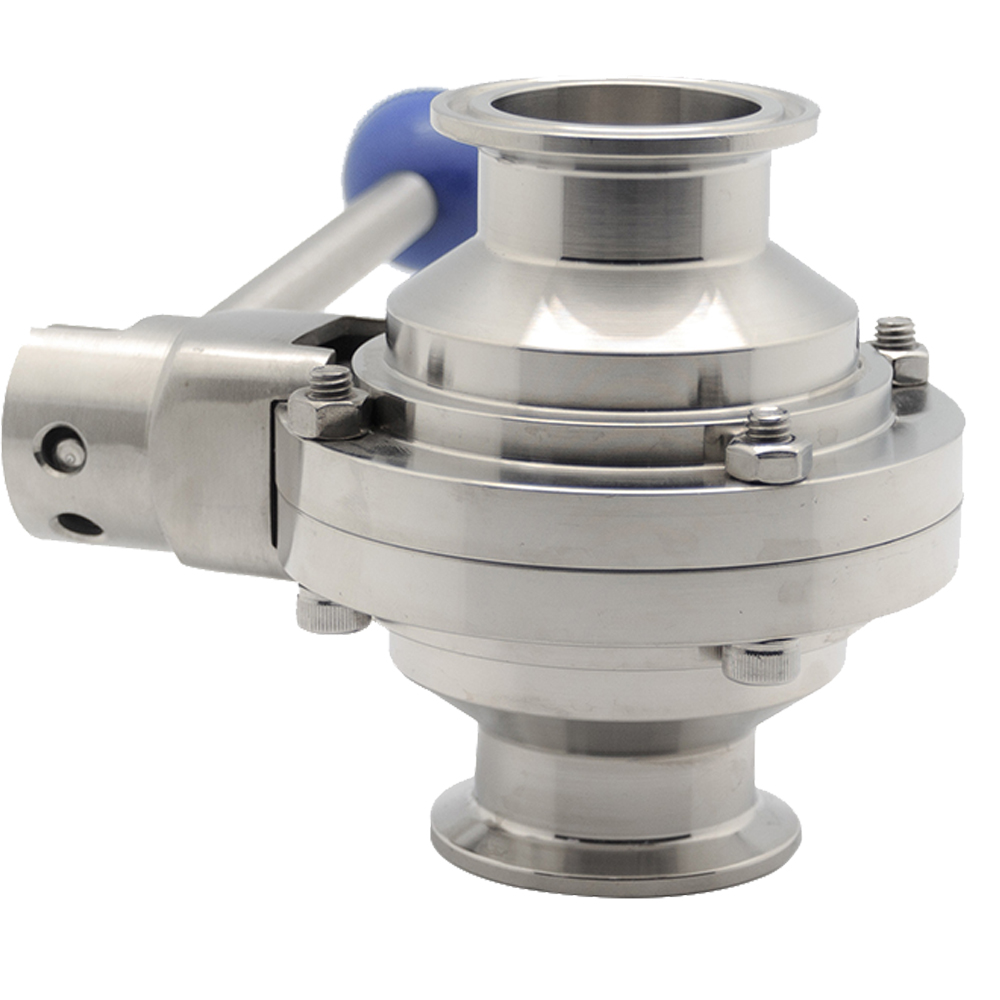

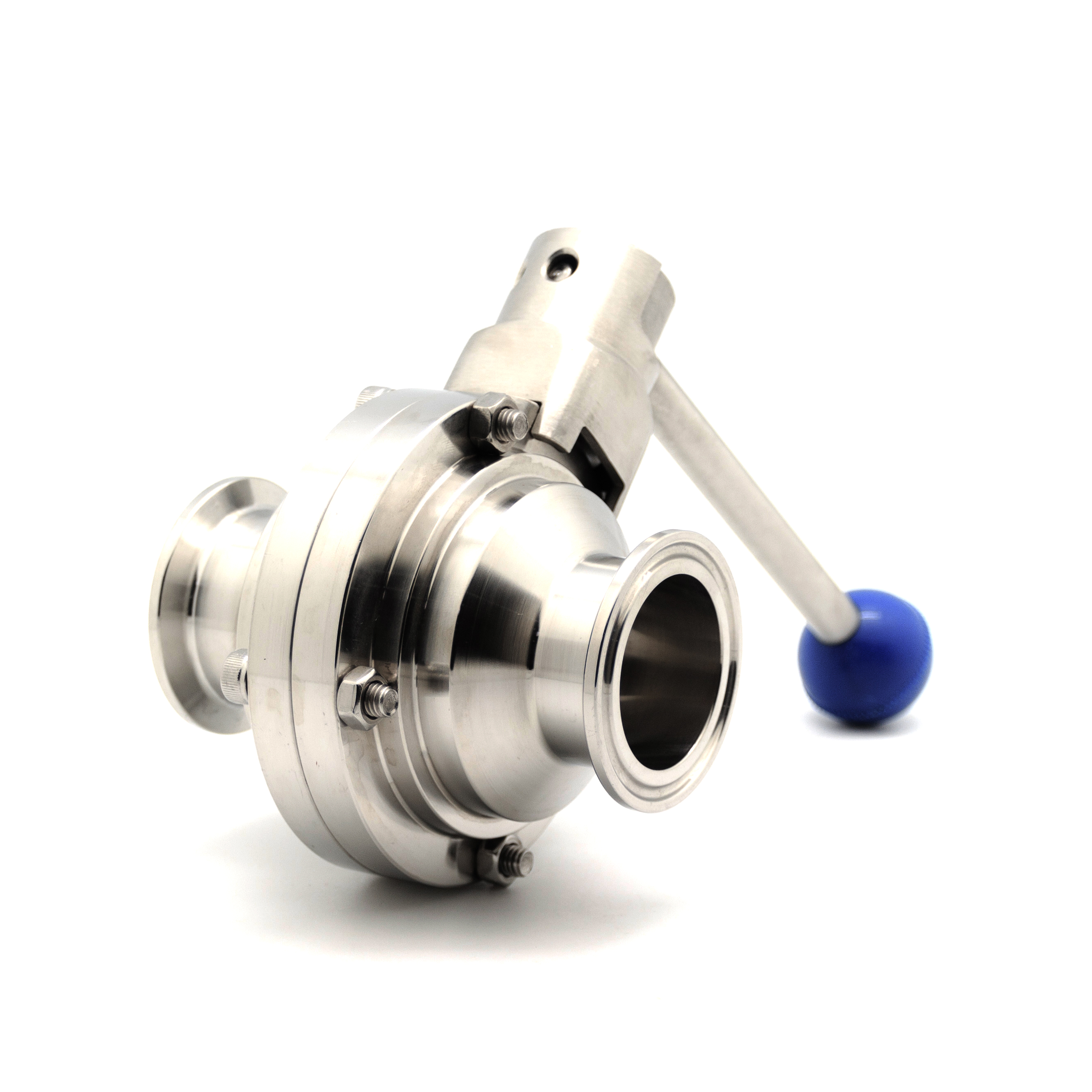

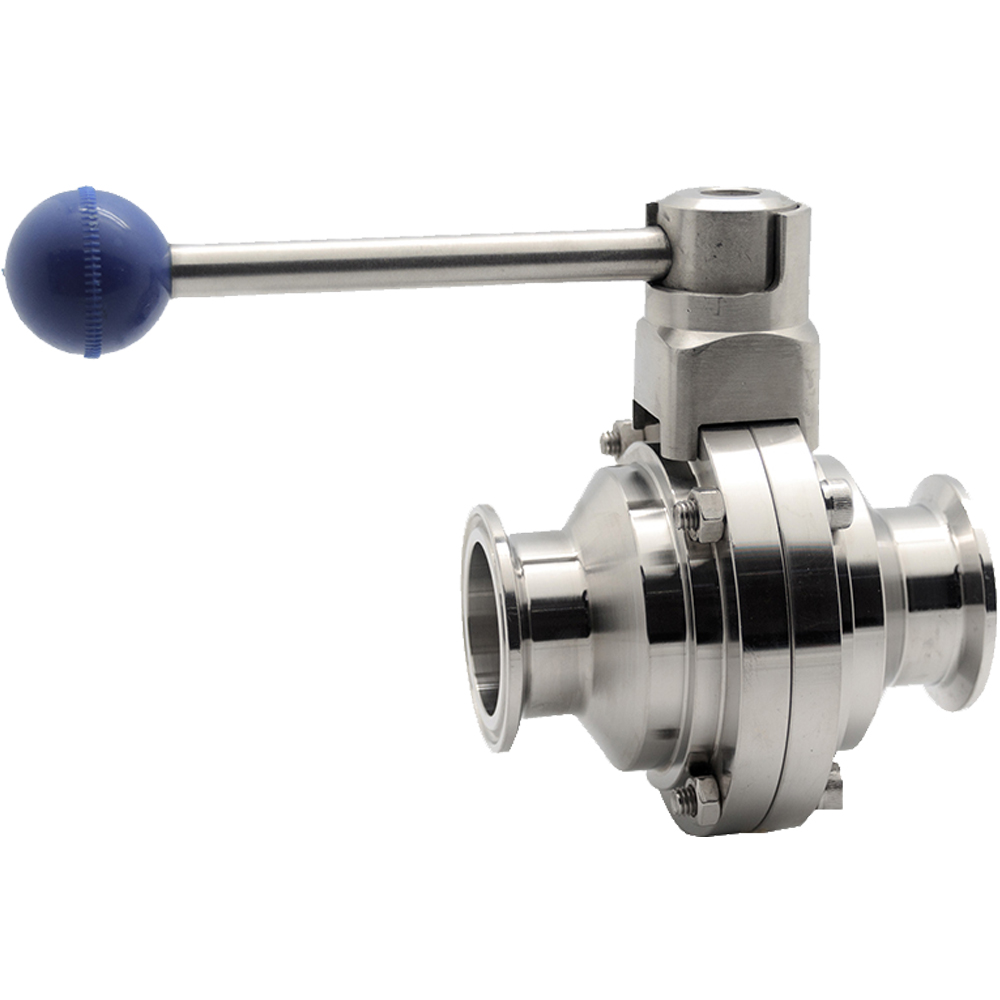

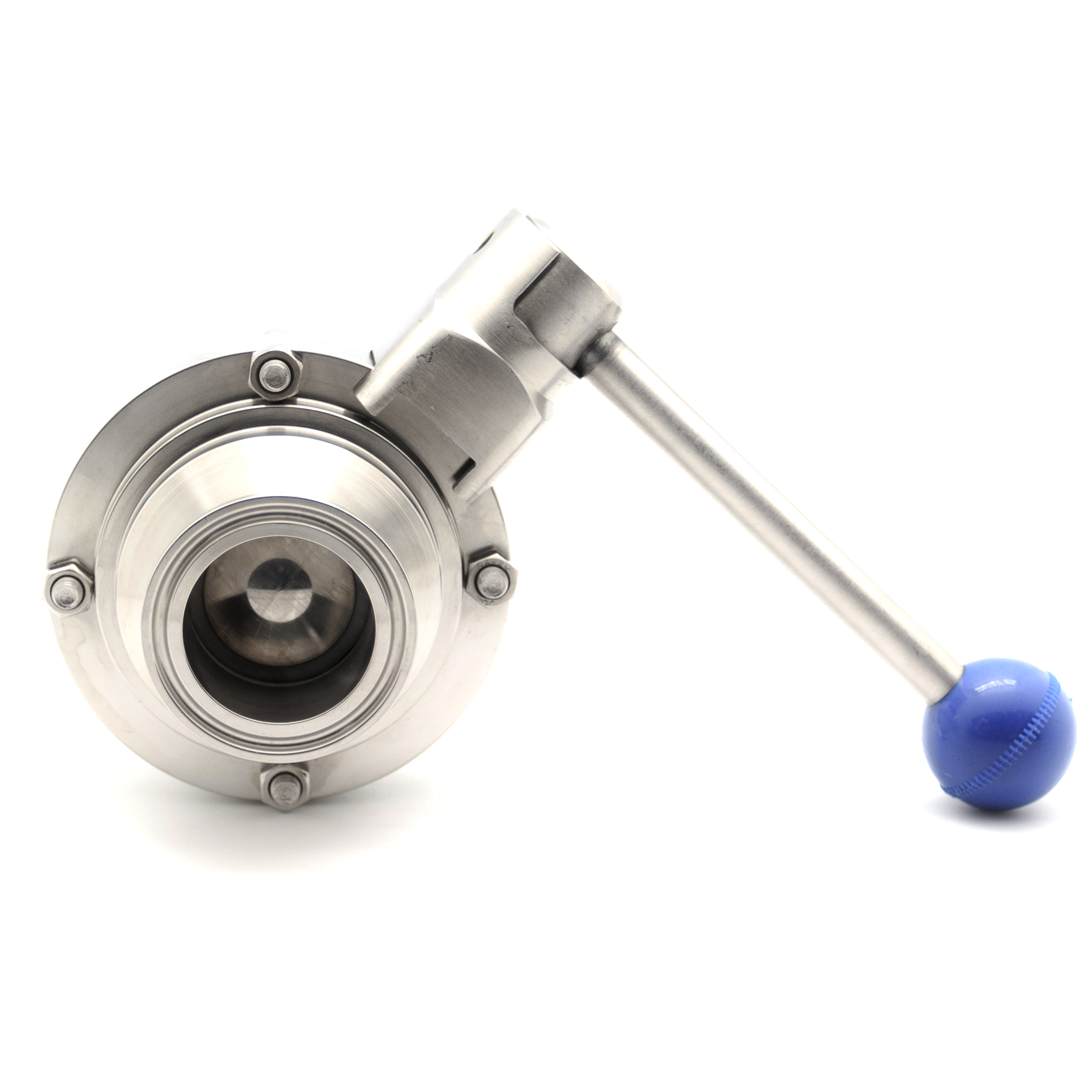

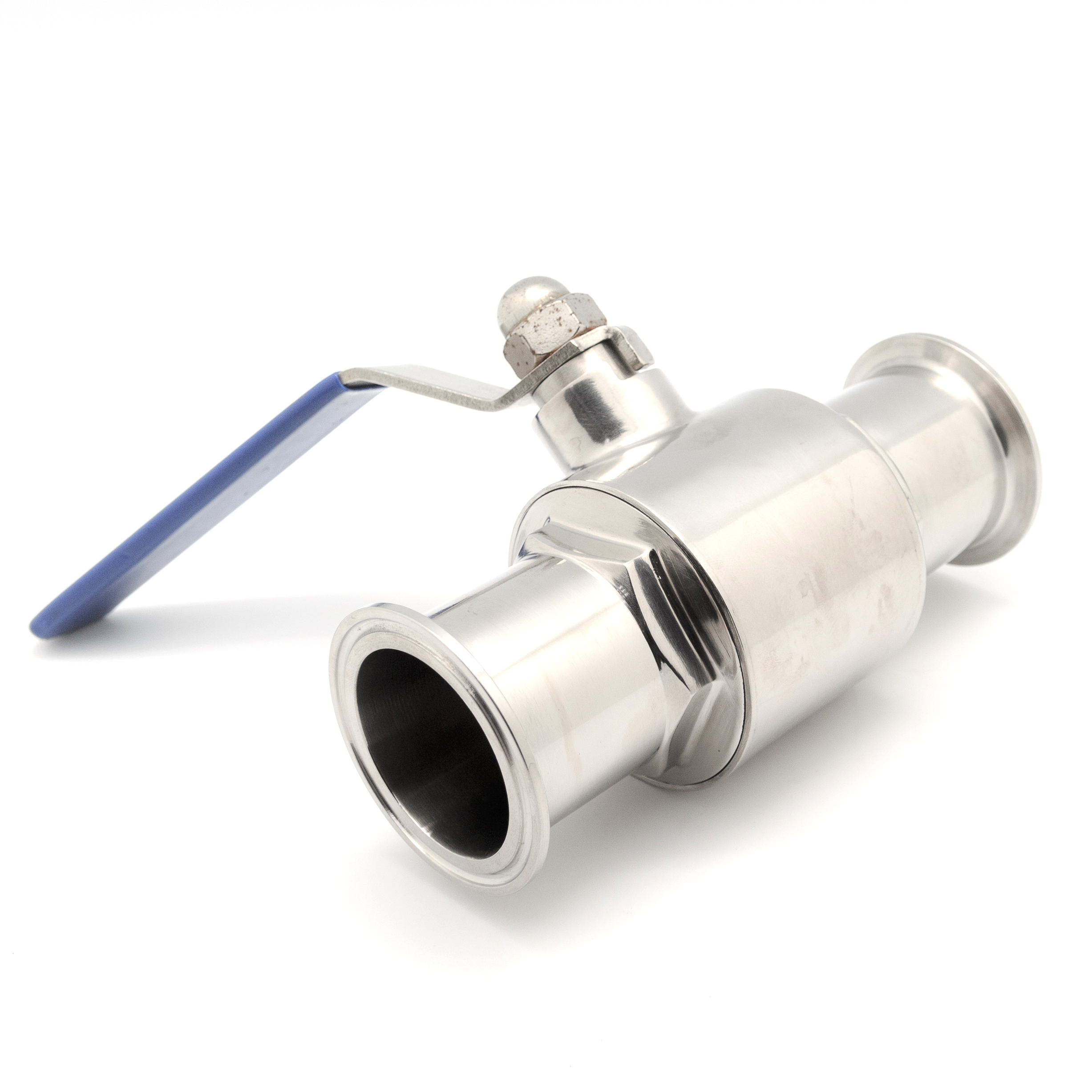

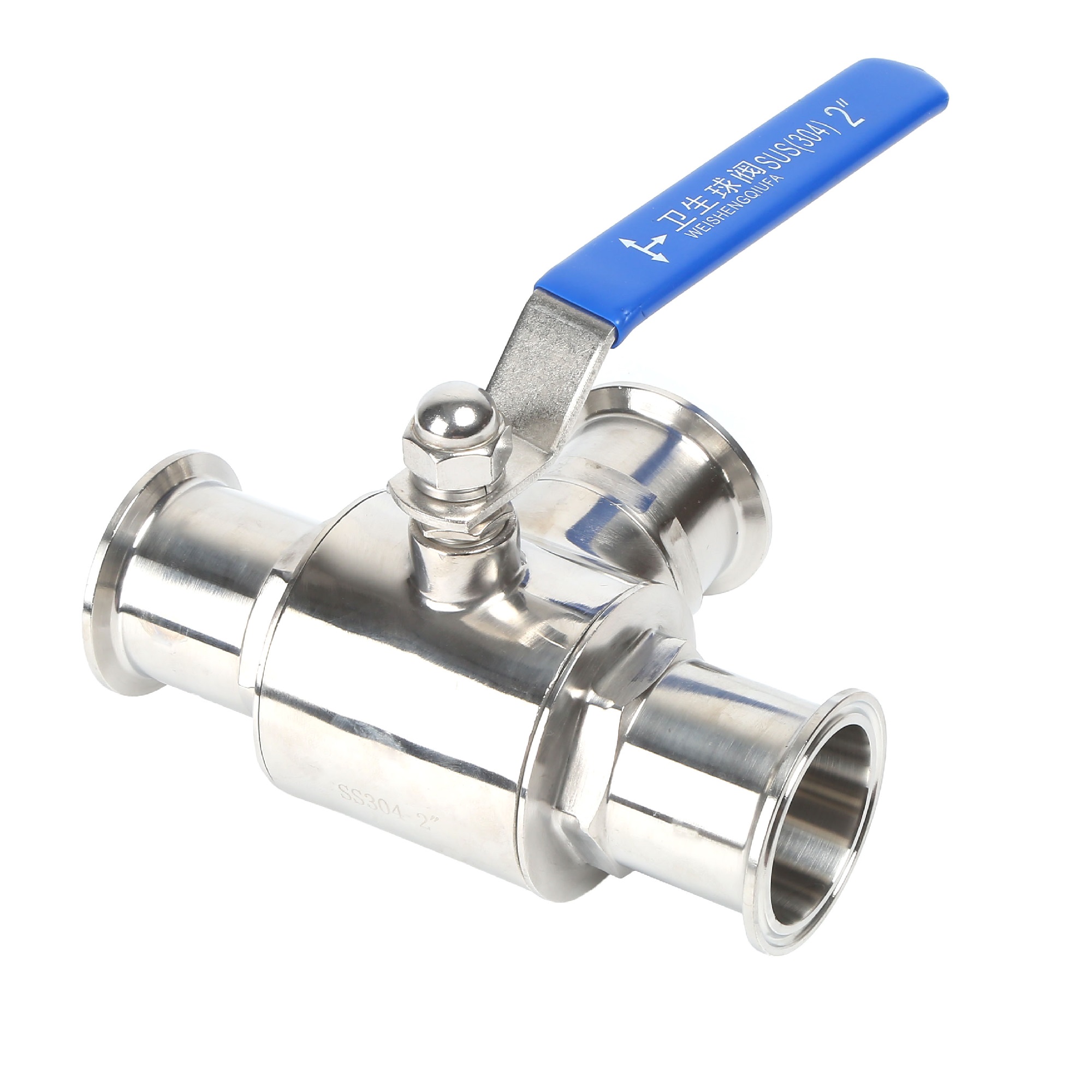

VFB Butterfly Type Ball Valve

Model:VFB 11/22/33

Inquire Now PDF Datasheet

Application

VFB Series are butterfly type ball valves which are extensively used in food & beverage processing, brewing industries.

Materials

Valve body: AISI 304 or AISI 316 L

Ball: AISI 304 or AISI 316 L

Gasket: EPDM, VMQ, NBR or FPM according to FDA 177.2600

Seat Seal: PTEE

Handle: AISI 304 / PP

Option

· Valve body can be with purge ports for SIP / CIP

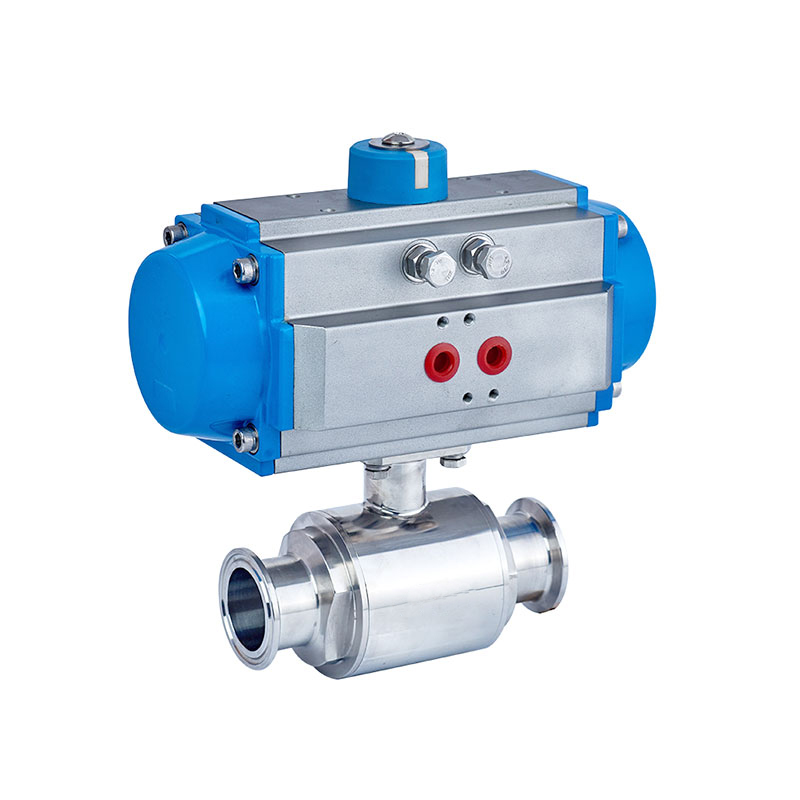

· Automatic operation : pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type),  and electric actuator

     NC operated: normally closed (fail closed)---air to open, spring to close

     NO operated: normally open (fail open)---air to close, spring to open

     AA operated: double acting---air to open, air to close

· Valve intelligent control: position sensor, C-top controller, C-top controller (AS-I)

Design Features

 Low Maintenance

 Compact and portable

 Small Torquemoment

 Sizes are available from 1"/DN25 to 4"/DN100

 Connection: Sanitary clamp, butt-welded, female,union,flange or others upon request.

 Handle level can be installed on the side of the valve body,no matter of the flow direction

 It can be match with pneumatic and electric actuators

 Valve Type: One piece, Two piece, Three-piece, Butterfly ball type

 Cores Type: T type,L type,Direct type

Technical Specification

Max. pressure: 10Bar (DN25-DN65/ 1"-21/2")

                          8Bar (DN80-DN100/ 3"-4")

Working temperature: -10℃ to + 120℃(EPDM)

Weld Butterfly Type Ball Valve

Model No Size D Dn L H H1
VFB11H1X51050NN 1/2'' 12.7 9.4 72 126 86.5
VFB11H1X51075NN 3/4'' 19.1 15.8 72 126 86.5
VFB11H1X51100NN 1'' 25.4 22.1 72 126 90.5
VFB11H1X51150NN 1 1/2'' 38.1 34.8 87 126 100.5
VFB11H1X51200NN 2'' 50.8 47.5 101 133 113.5
VFB11H1X51250NN 2 1/2'' 63.5 60.2 125 144 125.5
VFB11H1X51300NN 3'' 76.2 72.9 135 144 135.5
VFB11H1X51400NN 4'' 101.6 97.6 170 160 128.5
VFB11H1X52015NN DN15 18 15 72 126 86.5
VFB11H1X52020NN DN20 22 19 72 126 86.5
VFB11H1X52025NN DN25 28 25 72 126 90
VFB11H1X52040NN DN40 41 38 87 126 100.5
VFB11H1X52050NN DN50 52 49 101 133 113.5
VFB11H1X52065NN DN65 70 66 125 144 125.5
VFB11H1X52080NN DN80 84 81 135 144 135.5
VFB11H1X52100NN DN100 104 100 170 160 158.5

Tri Clamp Butterfly Type Ball Valve

Model No  Size D Dn L H H1
VFB22H1X51050NN 1/2'' 25.2 9.4 72 126 86.5
VFB22H1X51075NN 3/4'' 25.2 15.8 72 126 86.5
VFB22H1X51100NN 1'' 50.5 22.1 72 126 90.5
VFB22H1X51150NN 1 1/2'' 50.5 34.8 87 126 100.5
VFB22H1X51200NN 2'' 64 47.5 101 133 113.5
VFB22H1X51250NN 2 1/2'' 77.5 60.2 125 144 125.5
VFB22H1X51300NN 3'' 91 72.9 135 144 135.5
VFB22H1X51400NN 4'' 119 97.6 170 160 128.5
VFB22H1X52015NN DN15 34 15 72 126 86.5
VFB22H1X52020NN DN20 34 19 72 126 86.5
VFB22H1X52025NN DN25 50.5 25 72 126 90
VFB22H1X52040NN DN40 50.5 38 87 126 100.5
VFB22H1X52050NN DN50 64 49 101 133 113.5
VFB22H1X52065NN DN65 91 66 125 144 125.5
VFB22H1X52080NN DN80 106 81 135 144 135.5
VFB22H1X52100NN DN100 119 100 170 160 158.5

DIN Male Thread Butterfly Type Ball Valve

Model No Size G/RD Dn L H H1
VFB33H1X52015NN DN15 RD34*1/8 15 72 126 86.5
VFB33H1X52020NN DN20 RD44*1/6 19 72 126 86.5
VFB33H1X52025NN DN25 RD52*1/6 25 72 126 90.5
VFB33H1X52040NN DN40 RD65*1/6 38 87 126 100.5
VFB33H1X52050NN DN50 RD78*1/6 49 101 133 113.5
VFB33H1X52065NN DN65 RD95*1/6 66 125 144 125.5
VFB33H1X52080NN DN80 RD110*1/4 81 135 144 135.5
VFB33H1X52100NN DN100 RD130*1.4 100 170 160 158.5

SMS Male Thread Butterfly Type Ball Valve

Model No Size G/RD Dn L H H1
VFB33H1X53075NN 3/4'' RD36*1/8 15.8 72 126 86.5
VFB33H1X53100NN 1 RD40*1/6 22.1 72 126 90.5
VFB33H1X53150NN 1 1/2 RD60*1/6 34.8 87 126 100.5
VFB33H1X53200NN 2 RD70*1/6 47.5 101 133 113.5
VFB33H1X53250NN 2 1/2 RD85*1/6 60 125 144 125.5
VFB33H1X53300NN 3 RD98*1/6 72.9 135 144 135.5
VFB33H1X53400NN 4 RD125*1/4 97.6 170 160 158.5
