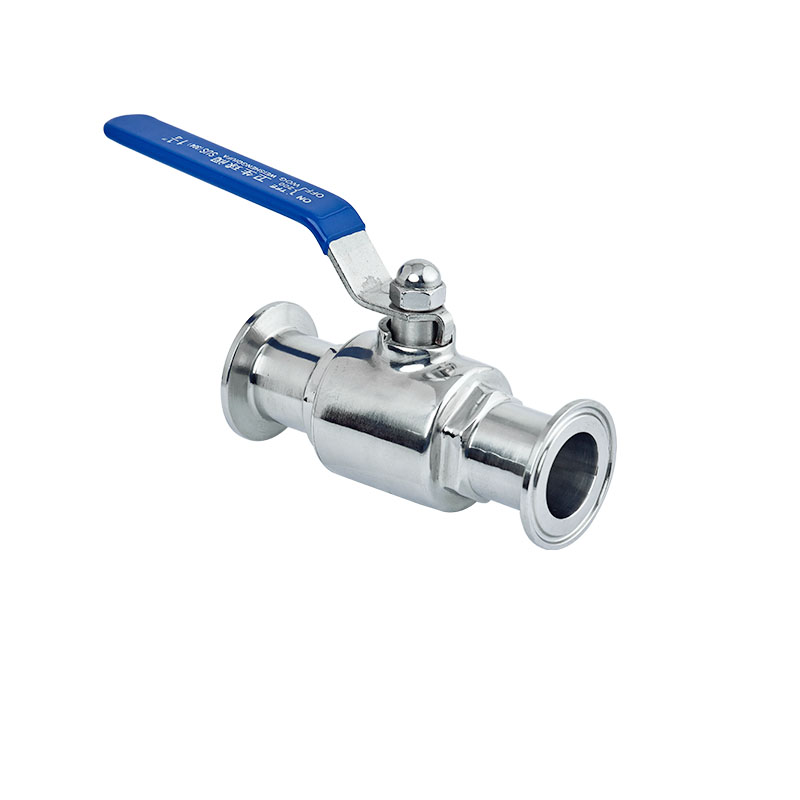

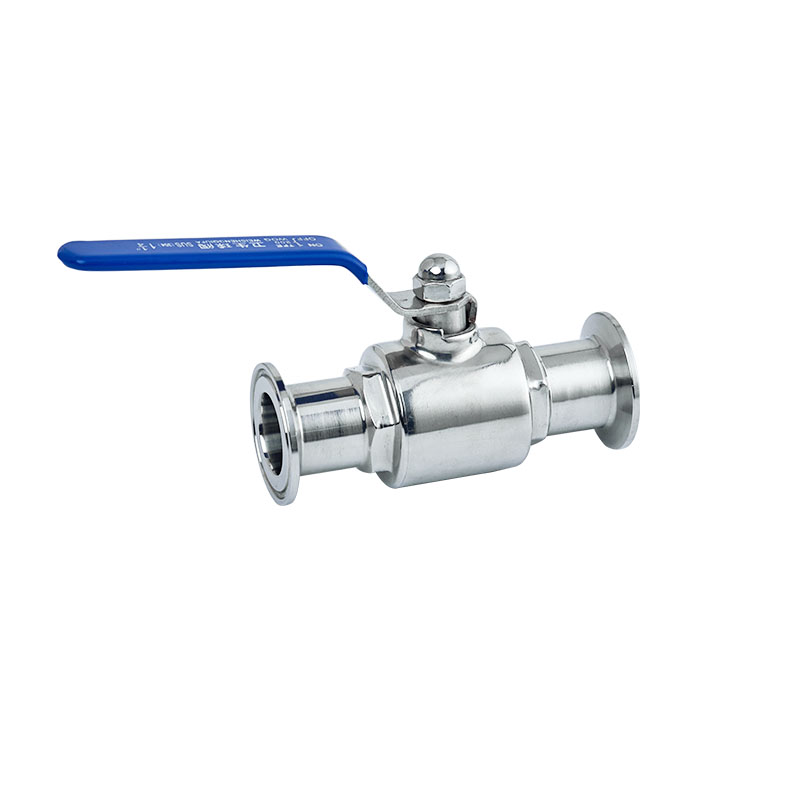

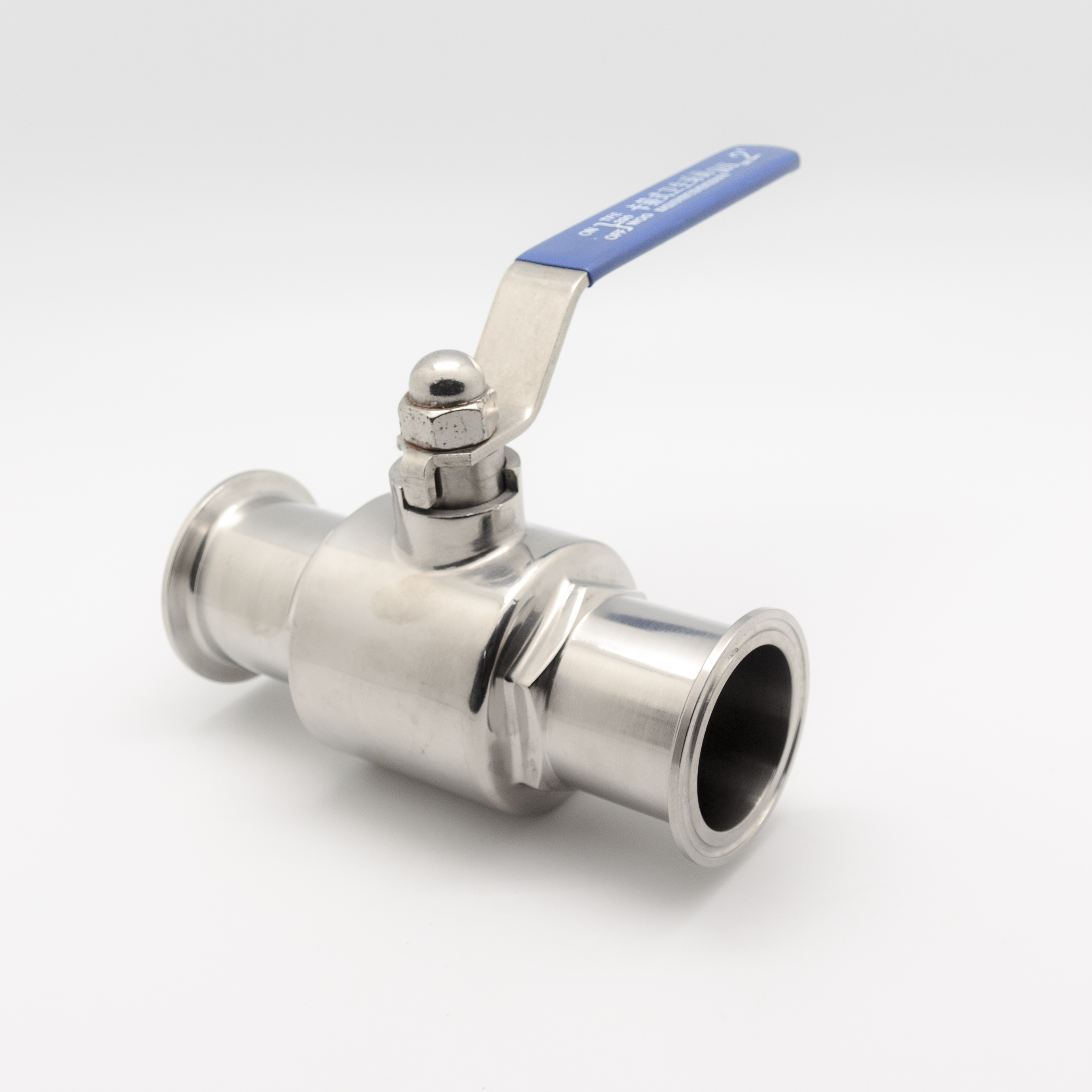

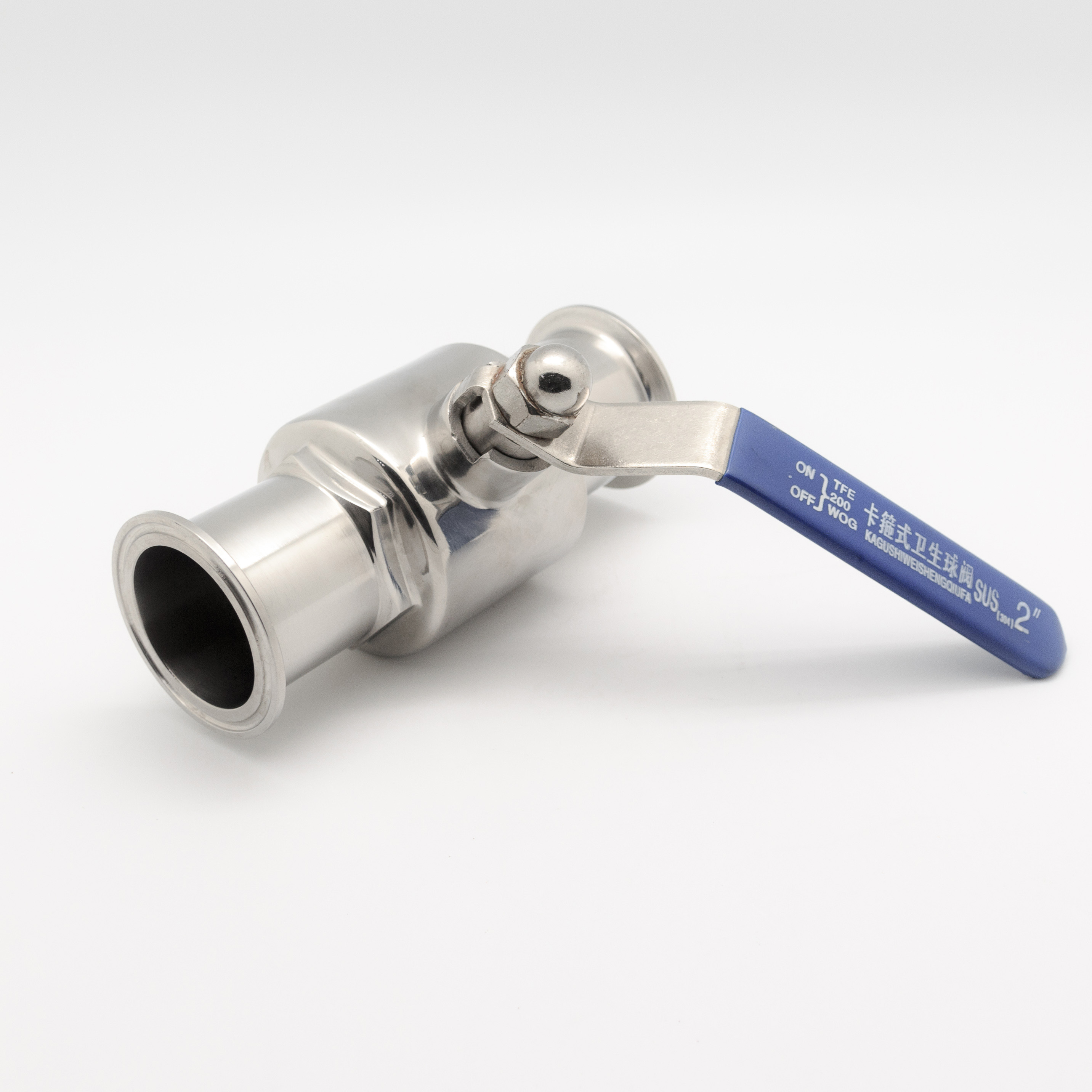

Standard Sanitary Clamp Pneumatic Electric SS304 SS316L Stainless Steel Direct Way Ball Valve

Application

VFN series is a sanitary ball valve with tri clamp / Male ends, which is extensively used in food & beverage processing, brewing, oil refinery, cosmetic, pharmaceutical, and chemical industries to control medium flow. The full port design makes it an optimum choice for viscous and particulate liquids. It is economy choice!

Standard Design

• Connection: Tri Clamp, Male
• Stanard: 3A, SMS, DIN
• Operating : Manual, Pneumatic Actuator, Electric Actuator
• with or without position sensor and solenoid valve

Technical Specification

• Material: SS304 or SS316L

• Seat Gasket: PTFE

• Operating pressure: Max. 800kPa(8 bar)/ 115 psi

• Temperature range: -10°C to 120°C

• Actuator

• Air pressure: 4-7 Bar

• Temperature range: -25°C to 120°C

Tri Clamp 2-Way Ball Valve

	Model No	Size	A	B	H	L
	VFN22H1X51050NN	1/2''	75	25.2	53	111
	VFN22H1X51075NN	3/4''	100	25.2	55	114
	VFN22H1X51100NN	1''	120	50.5	55	140
	VFN22H1X51125NN	1 1/4''	130	50.5	55	140
	VFN22H1X51150NN	1 1/2''	140	50.5	65	160
	VFN22H1X51200NN	2''	164	64	75	175
	VFN22H1X51250NN	2 1/2''	189	77.5	85	230
	VFN22H1X51300NN	3''	212	91	100	246
	VFN22H1X51400NN	4''	260	119	120	333
	VFN22H1X52015NN	DN15	75	34	53	111
	VFN22H1X52020NN	DN20	100	34	55	114
	VFN22H1X52025NN	DN25	120	50.5	55	140
	VFN22H1X52032NN	DN32	130	50.5	55	140
	VFN22H1X52040NN	DN40	140	50.5	65	160
	VFN22H1X52050NN	DN50	164	64	75	175
	VFN22H1X52065NN	DN65	189	91	85	230
	VFN22H1X52080NN	DN80	212	106	100	246
	VFN22H1X52100NN	DN100	260	119	120	333
