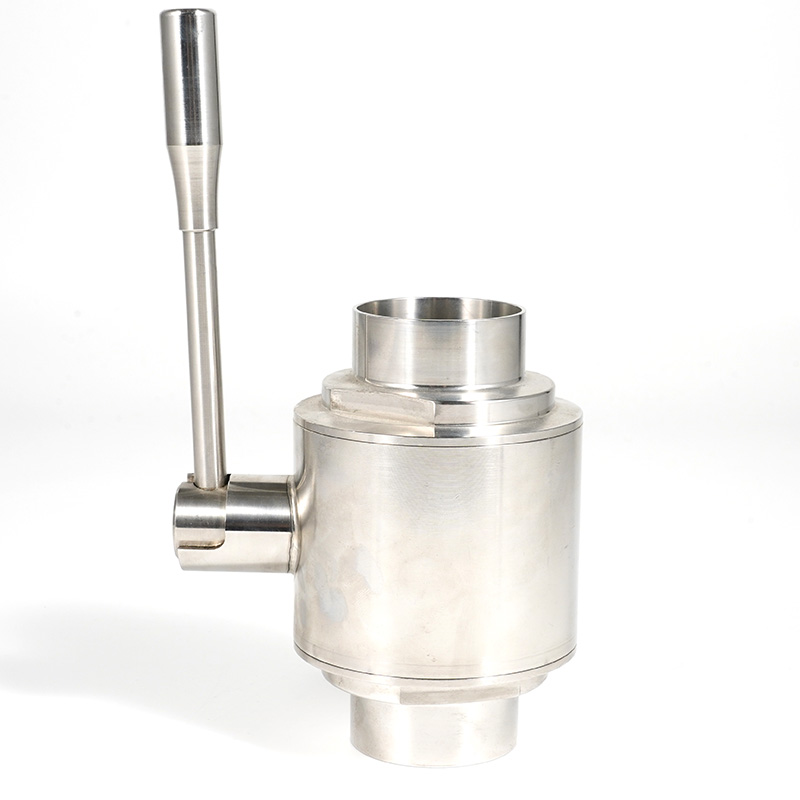

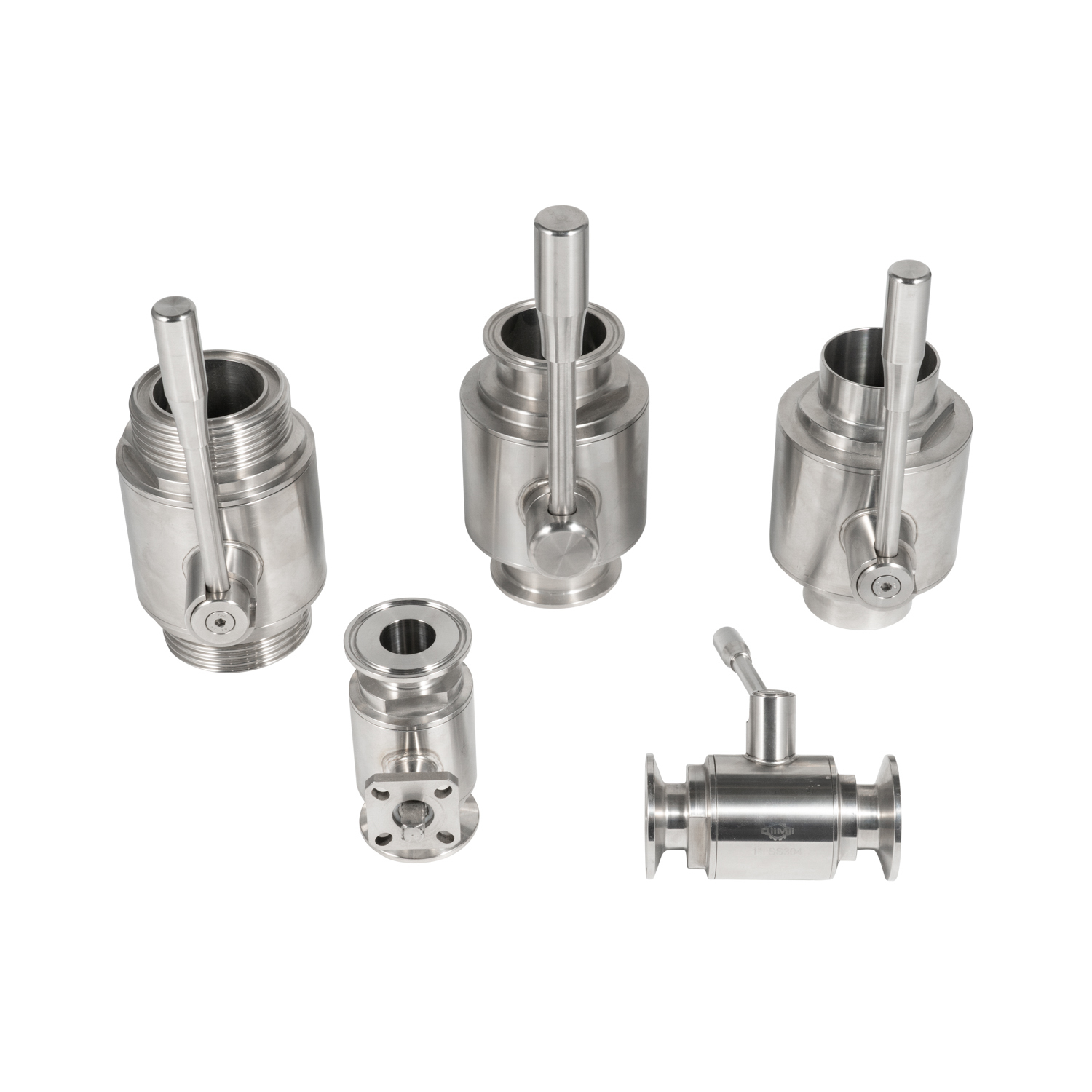

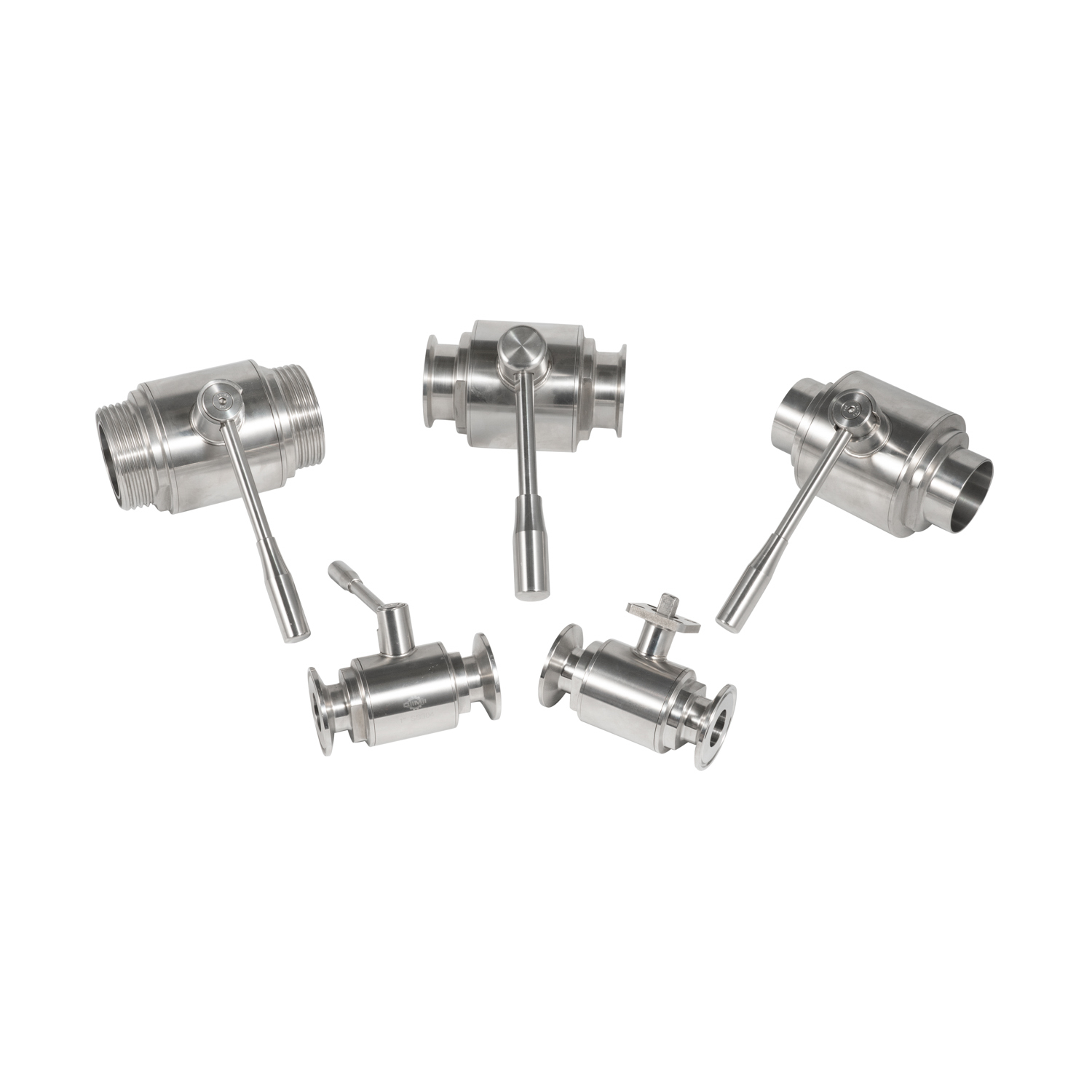

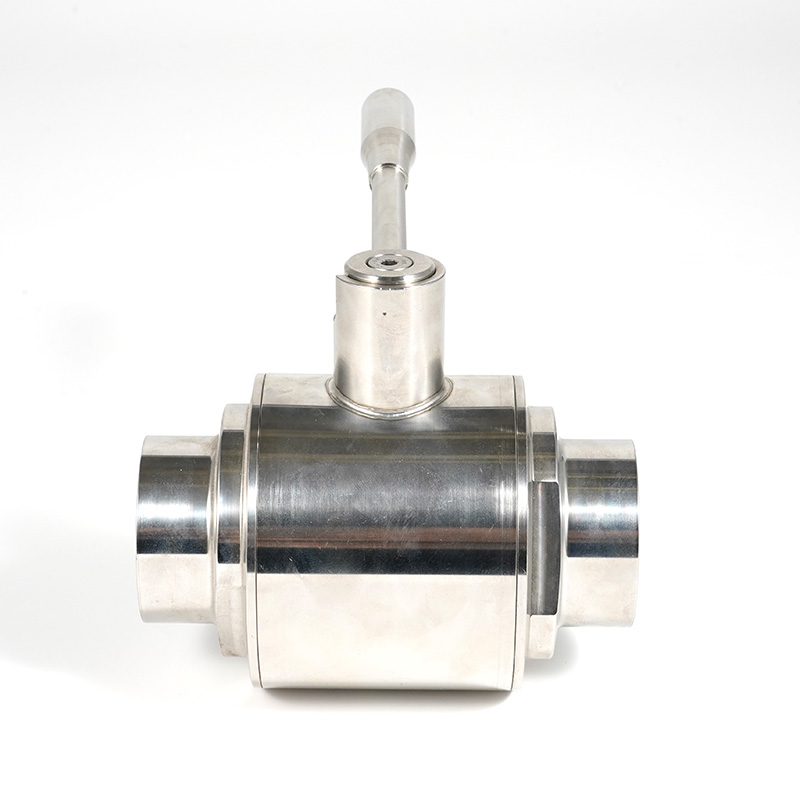

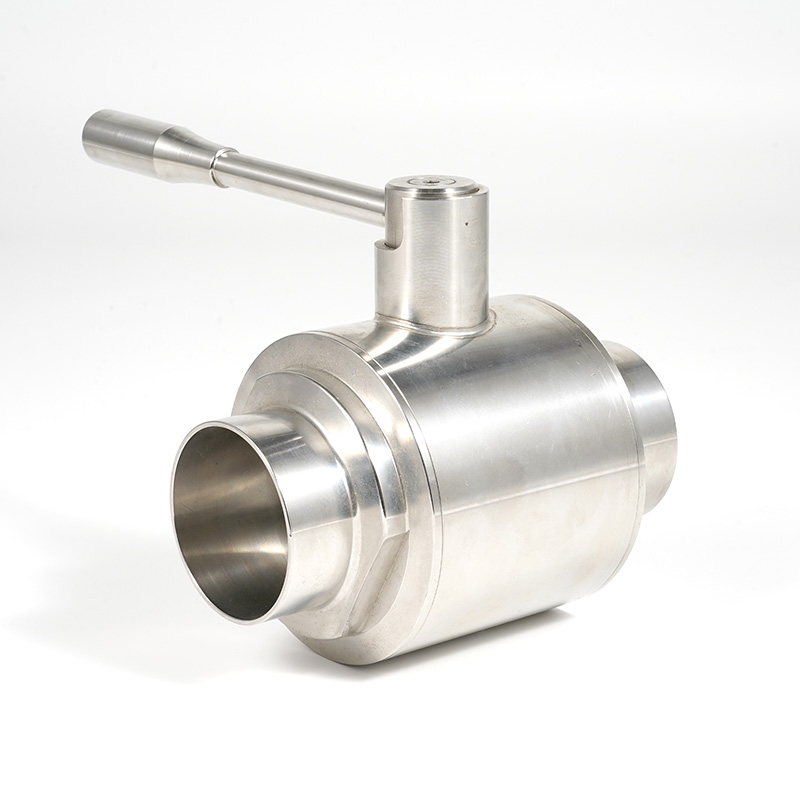

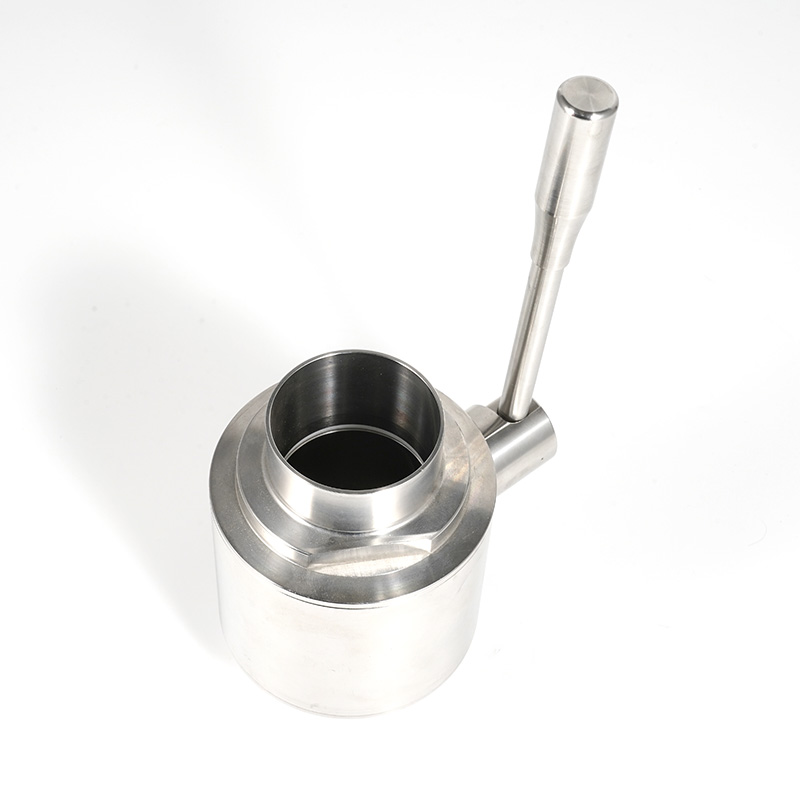

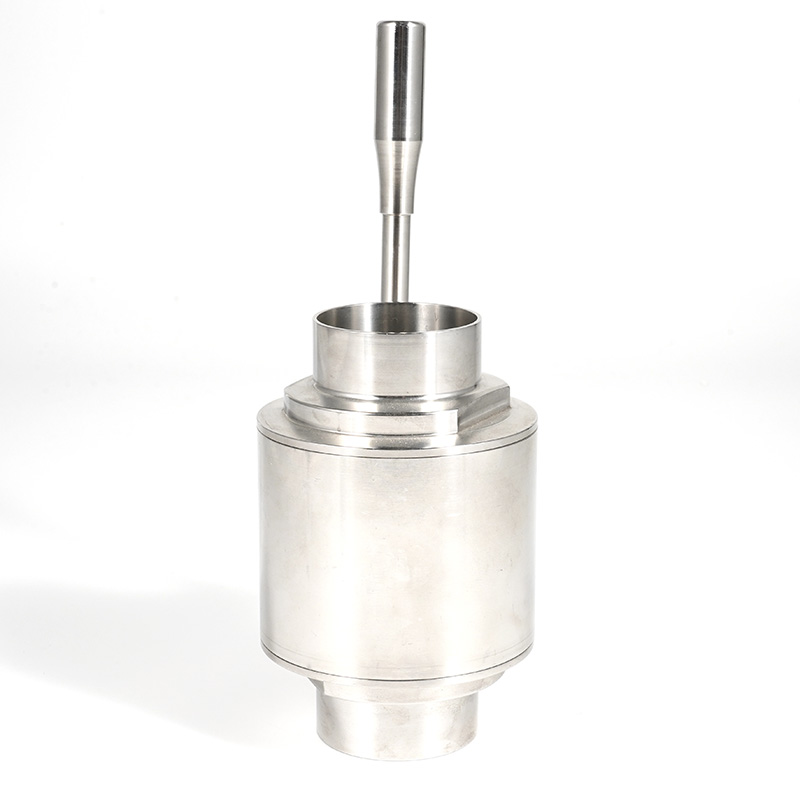

VFM Two Way Ball Valve

Model:VFM 11/22/33

Inquire Now PDF Datasheet

Application

VFM series ball valves are used to transfer controlling the materials. Which extensively use to food,beverage,pharmacy,cosmetics and chemical industries.

Materials

Materials: AISI-304

Size: 3/4''

Seal Material: Silicon,EPDM,PTFE

Design Features

• Free of maintenance

• Compact and portable

• Small operating torque

• Gasket complies with PTFE FDA 177.2600

• Handle level can be installed on the side of the valve body,no matter of the flow direction

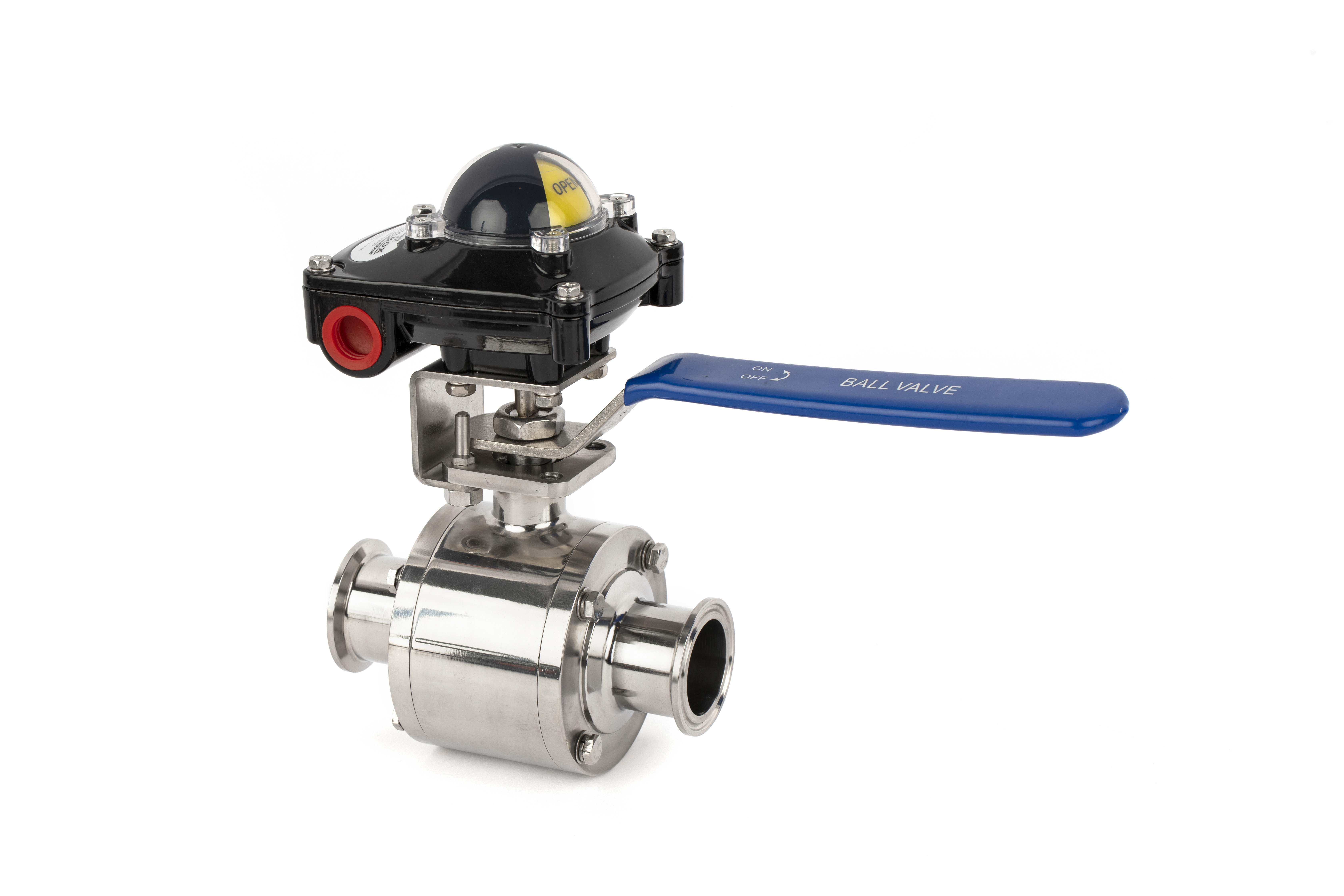

• It can be match with pneumatic and electric actuators

• Valve Type: One piece, Two piece, Three-piece, Butterfly ball type

• Cores Type: T type,L type,Direct type

• Material :AISI304,316L

Technical Specification

• Sizes available: 1/2" -4" , DN15-DN100

• Max. pressure: 10bar (147psi)

• Temperature range: 14 ~ 248°F (-10 ~ 120°C), EPDM

• End connections: sanitary clamp, butt-welded, threaded, flange, I-line or others upon request

• Inside polish: Ra 32μin (0.8μm); Outside polish: CNC machining

• Supply pressure for air actuator: 70 ~ 115psi

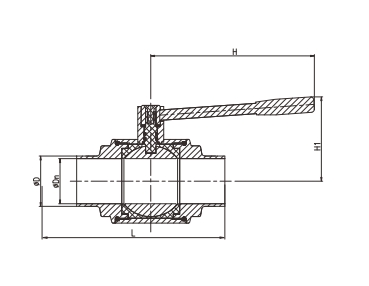

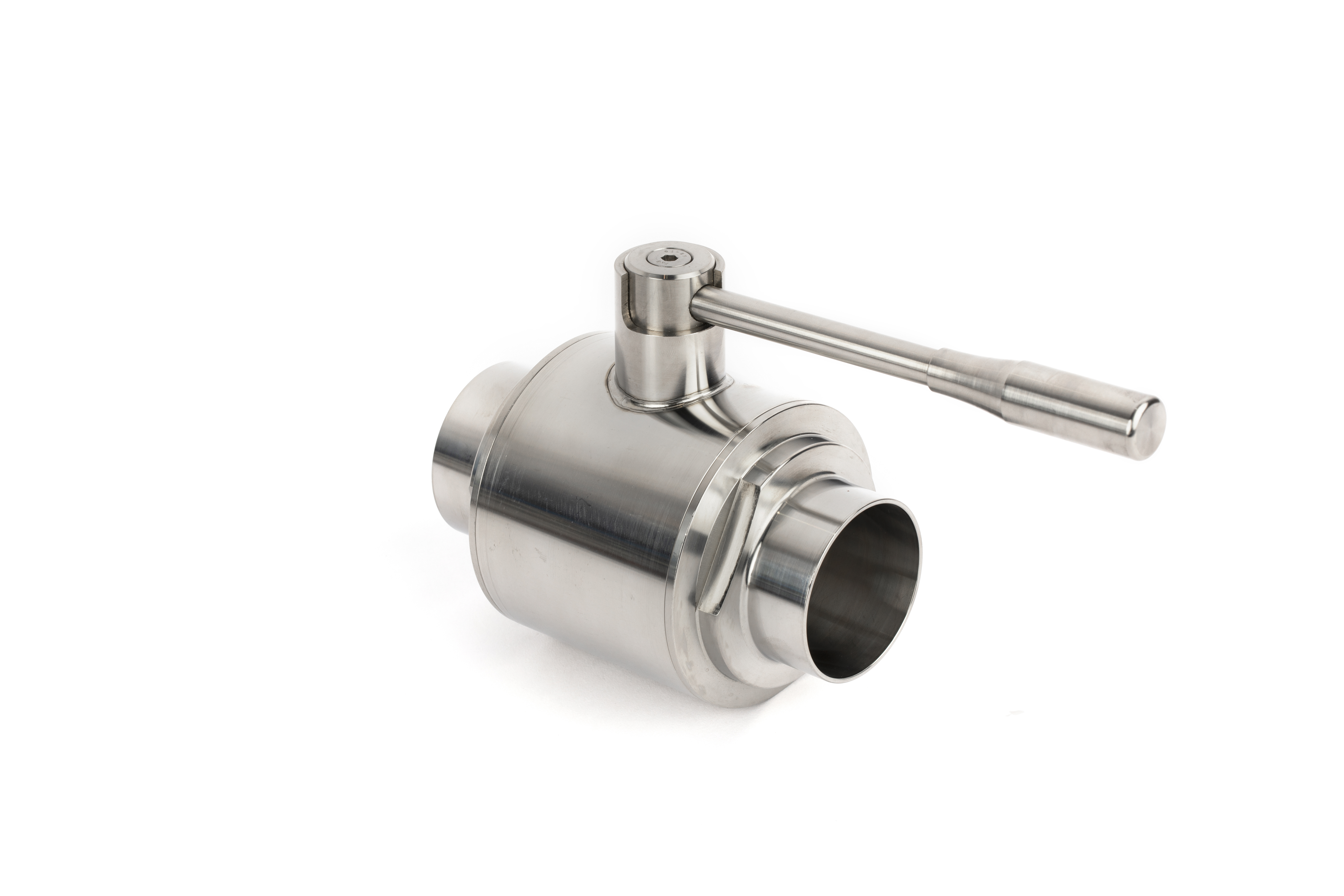

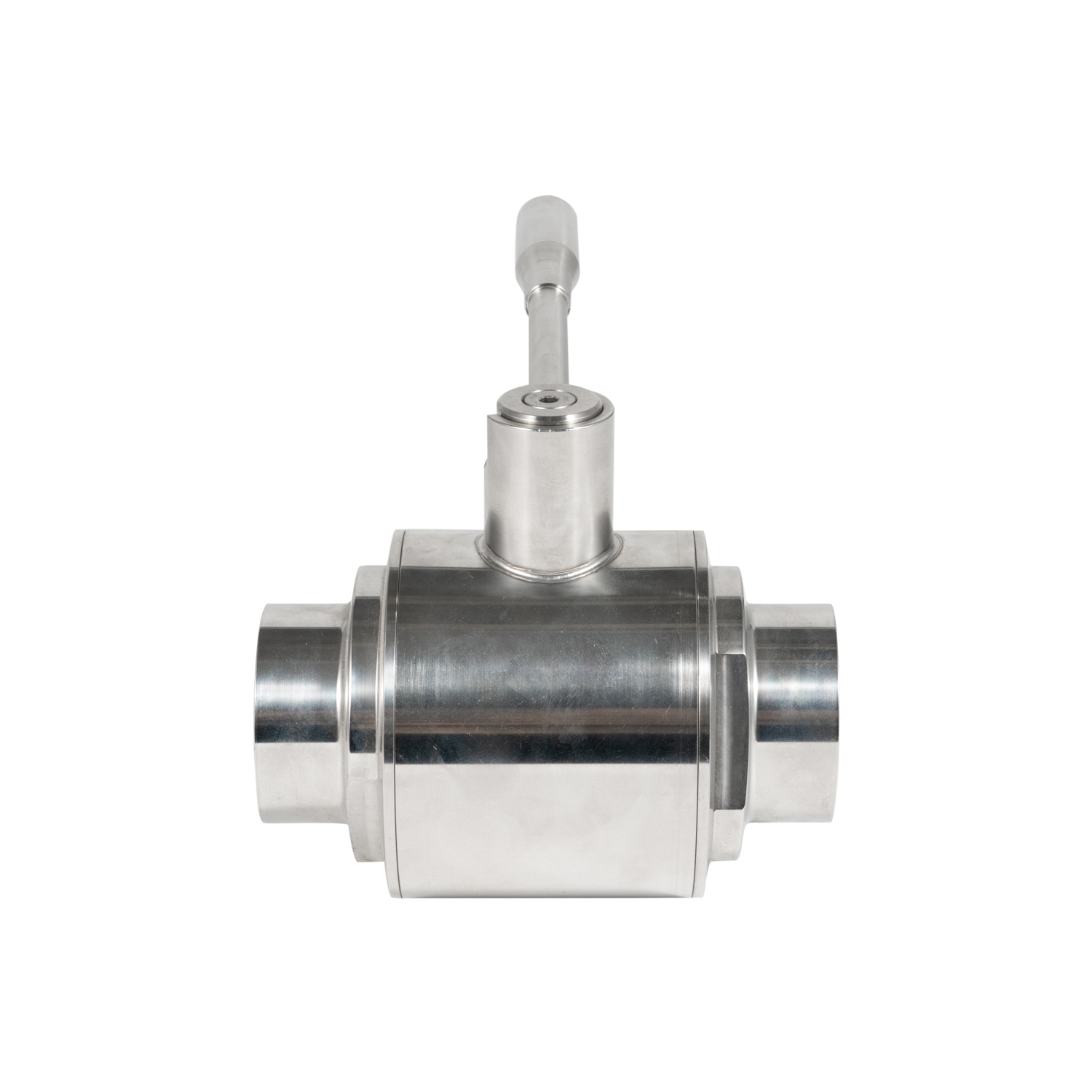

Weld Direct Way Ball Valve

Model No Size D Dn L H H1
VFM11H1SX51050NN 1/2" 12.7 9.4 76 103 43.5
VFM11H1SX51075NN 3/4" 19.1 15.8 76 103 47.5
VFM11H1SX51100NN 1" 25.4 22.1 100 127 57
VFM11H1SX51150NN 1 1/2" 38.1 34.8 115 127 64.5
VFM11H1SX51200NN 2" 50.8 47.5 134 154 86
VFM11H1SX51250NN 2 1/2" 63.5 60.2 155 170 98
VFM11H1SX51300NN 3" 76.2 72.9 168 257 146
VFM11H1SX51400NN 4" 101.6 97.6 222 257 127
VFM11H1SX52015NN DN15 18 15 76 87 47.5
VFM11H1SX52020NN DN20 22 19 76 103 47.5
VFM11H1SX52025NN DN25 28 25 100 127 57
VFM11H1SX52040NN DN40 41 38 115 127 64.5
VFM11H1SX52050NN DN50 52 49 134 154 86
VFM11H1SX52065NN DN65 70 66 155 170 98
VFM11H1SX52080NN DN80 85 81 168 257 127
VFM11H1SX52100NN DN100 104 100 222 257 146

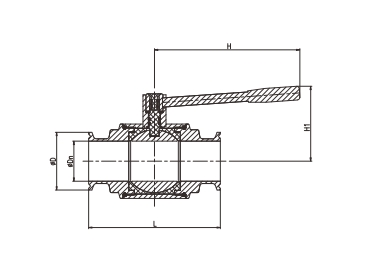

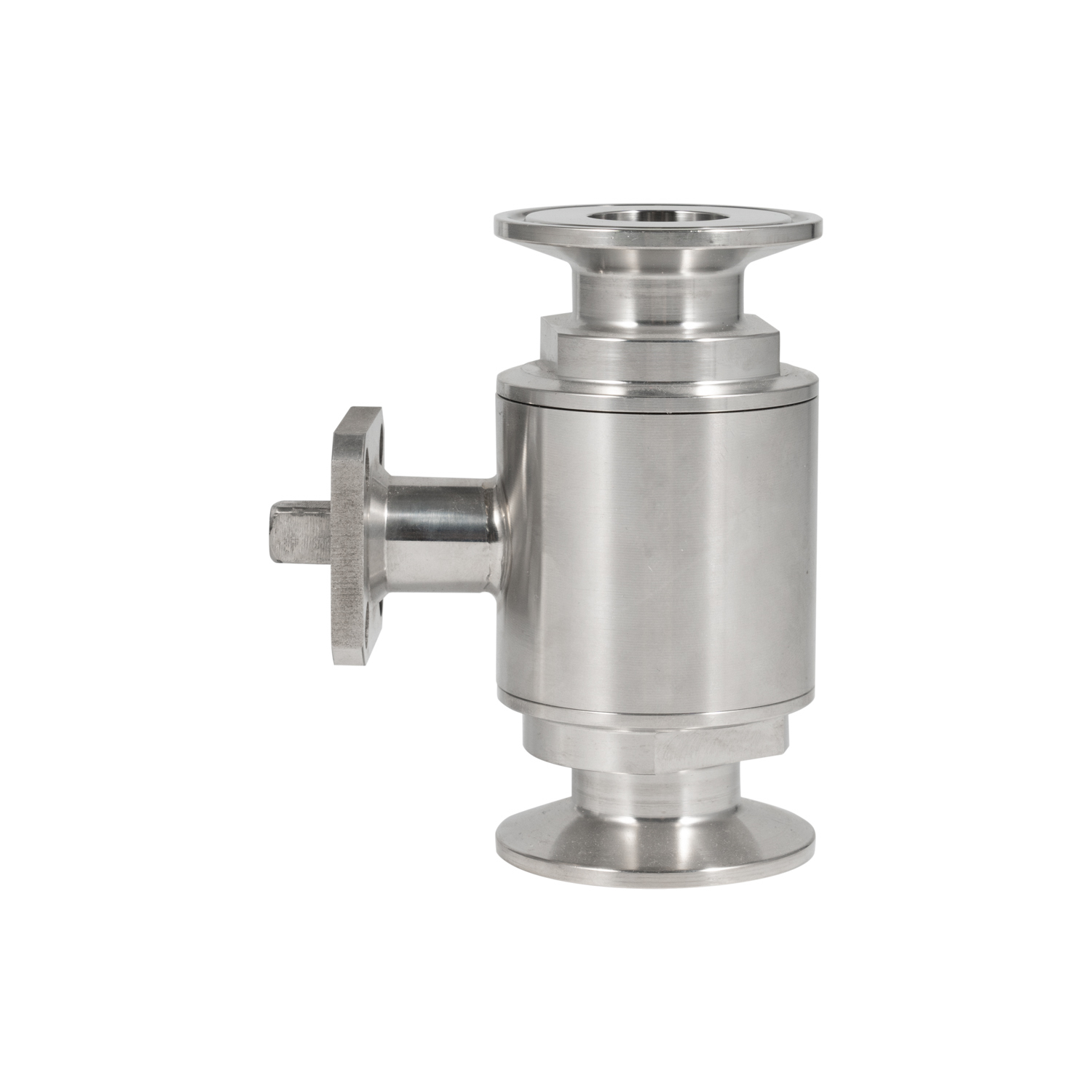

Tri Clamp Direct Way Ball Valve

Model No Size D Dn L H H1
VFM22H1SX51050NN 1/2" 25.2 9.4 76 103 43.5
VFM22H1SX51075NN 3/4" 25.2 15.8 76 103 47.5
VFM22H1SX51100NN 1" 50.5 22.1 100 127 57
VFM22H1SX51150NN 1 1/2" 50.5 34.8 115 127 64.5
VFM22H1SX51200NN 2" 64 47.5 134 154 86
VFM22H1SX51250NN 2 1/2" 77.5 60.2 155 170 98
VFM22H1SX51300NN 3" 91 72.9 168 257 146
VFM22H1SX51400NN 4" 119 97.6 222 257 127
VFM22H1SX52015NN DN15 34 15 76 87 47.5
VFM22H1SX52020NN DN20 34 19 76 103 47.5
VFM22H1SX52025NN DN25 50.5 25 100 127 57
VFM22H1SX52040NN DN40 50.5 38 115 127 64.5
VFM22H1SX52050NN DN50 64 49 134 154 86

VFM22H1SX52065NN

DN65 91 66 155 170 98
VFM22H1SX52080NN DN80 106 81 168 257 127
VFM22H1SX52100NN DN100 119 100 222 257 146

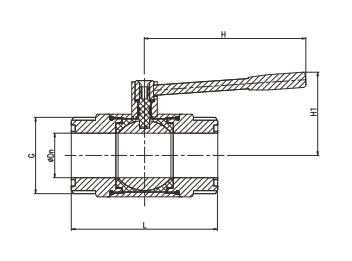

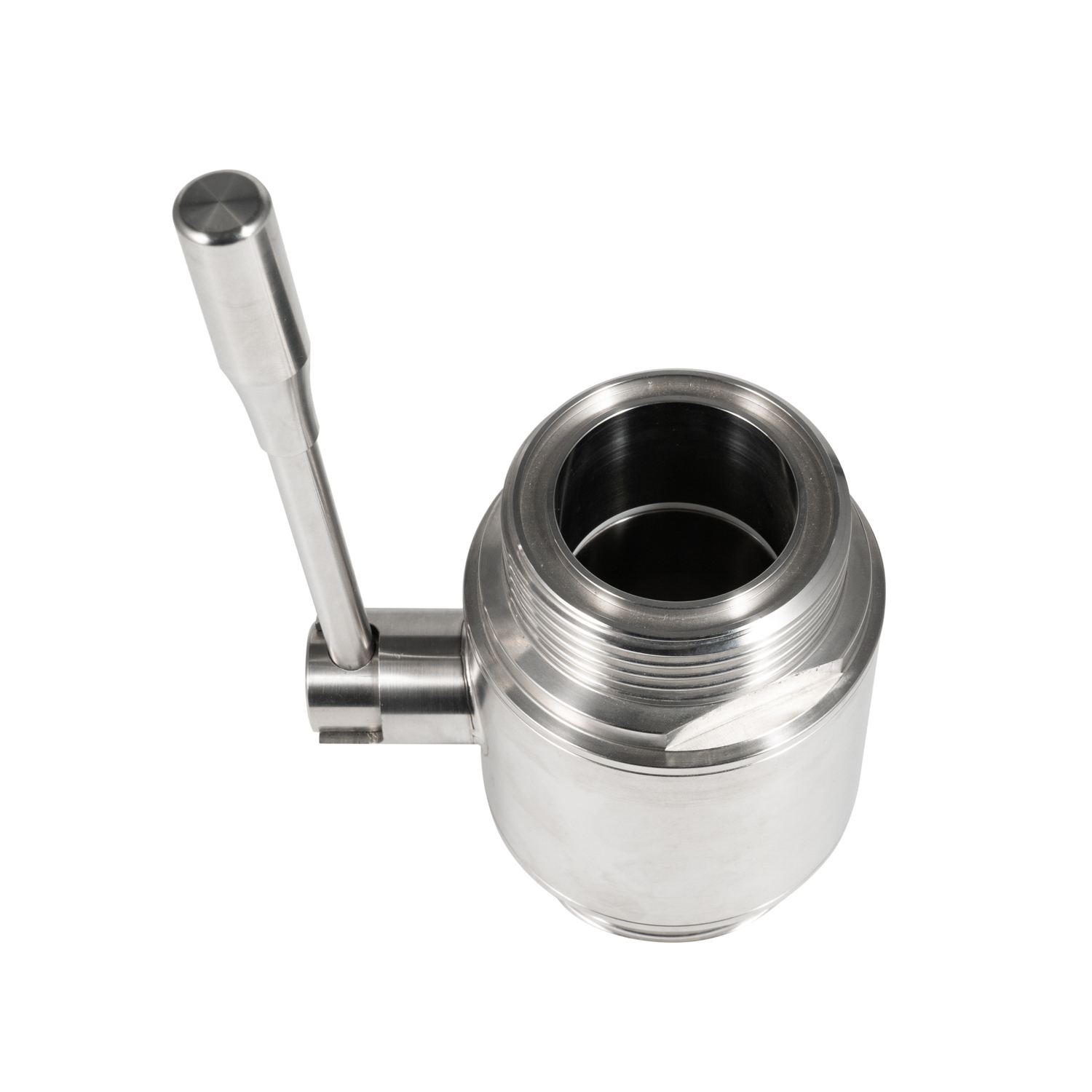

DIN Male Thread Direct Way Ball Valve

Model No Size G/RD Dn L H H1
VFM33H1SX52010NN DN10 RD28*1/8 10 76 103 43.5
VFM33H1SX52015NN DN15 RD34*1/8 15 76 103 47.5
VFM33H1SX52020NN DN20 RD44*1/6 19 76 103 47.5
VFM33H1SX52025NN DN25 RD52*1/6 25 100 127 57
VFM33H1SX52040NN DN40 RD65*1/6 38 115 127 64.5
VFM33H1SX52050NN DN50 RD78*1/6 49 134 154 86
VFM33H1SX52065NN DN65 RD95*1/6 66 155 170 98
VFM33H1SX52080NN DN80 RD110*1/4 81 168 257 127
VFM33H1SX52100NN DN100 RD130*1/4 100 222 257 146

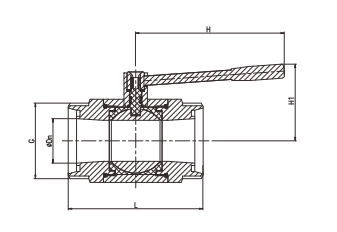

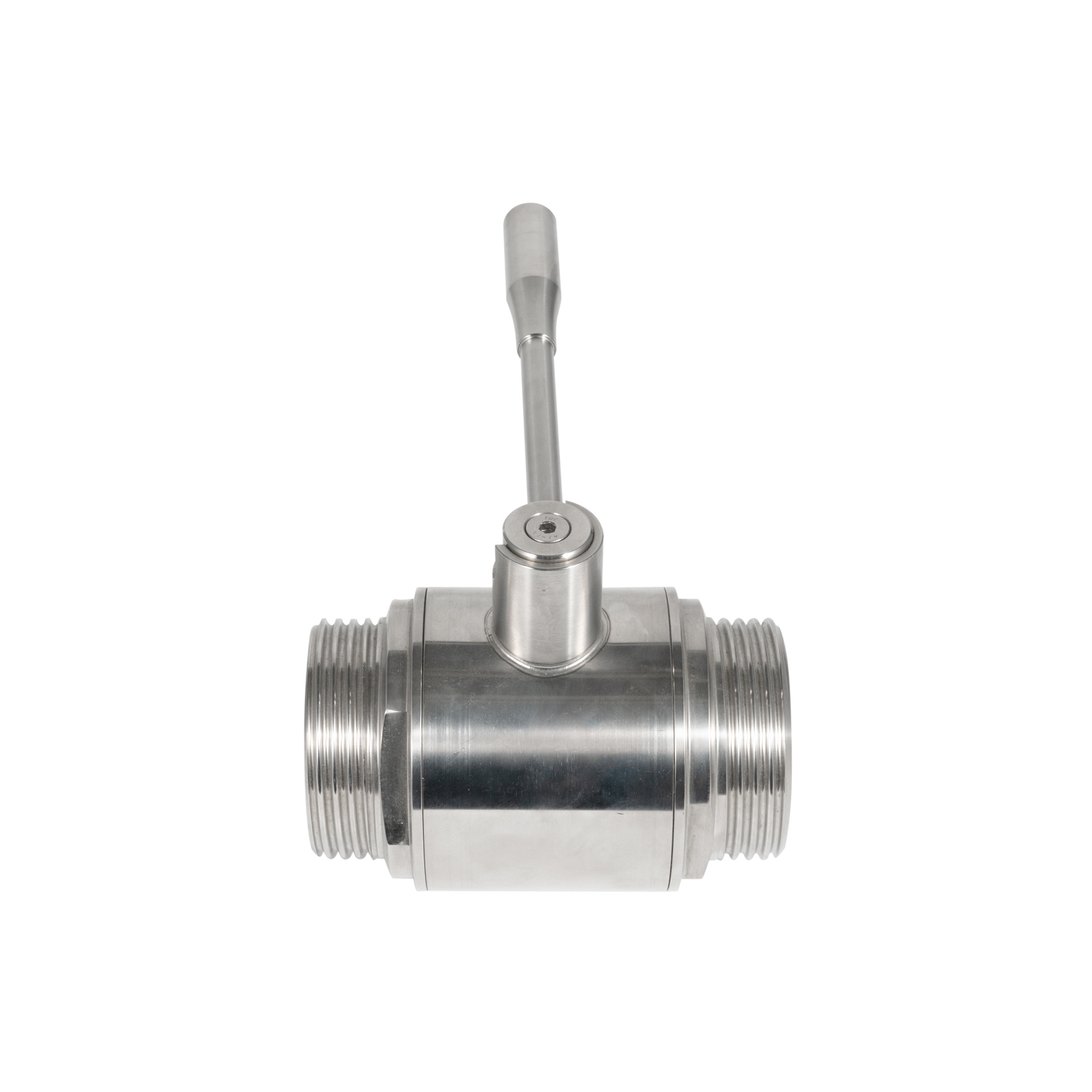

SMS Male Thread Direct Way Ball Valve

Model No Size G/RD Dn L H H1
VFM33H1SX53050NN 1/2" RD28*1/8 9.4 76 103 43.5
VFM33H1SX53075NN 3/4" RD36*1/8 15.8 76 103 47.5
VFM33H1SX53100NN 1" RD40*1/6 22.1 100 127 57
VFM33H1SX53150NN 1 1/2" RD60*1/6 34.8 115 127 64.5
VFM33H1SX53200NN 2" RD70*1/6 47.5 134 154 86
VFM33H1SX53250NN 2 1/2" RD85*1/6 60 155 170 98
VFM33H1SX53300NN 3" RD98*1/4 72.9 168 257 127
VFM33H1SX53400NN 4" RD125*1/4 97.6 222 257 146
