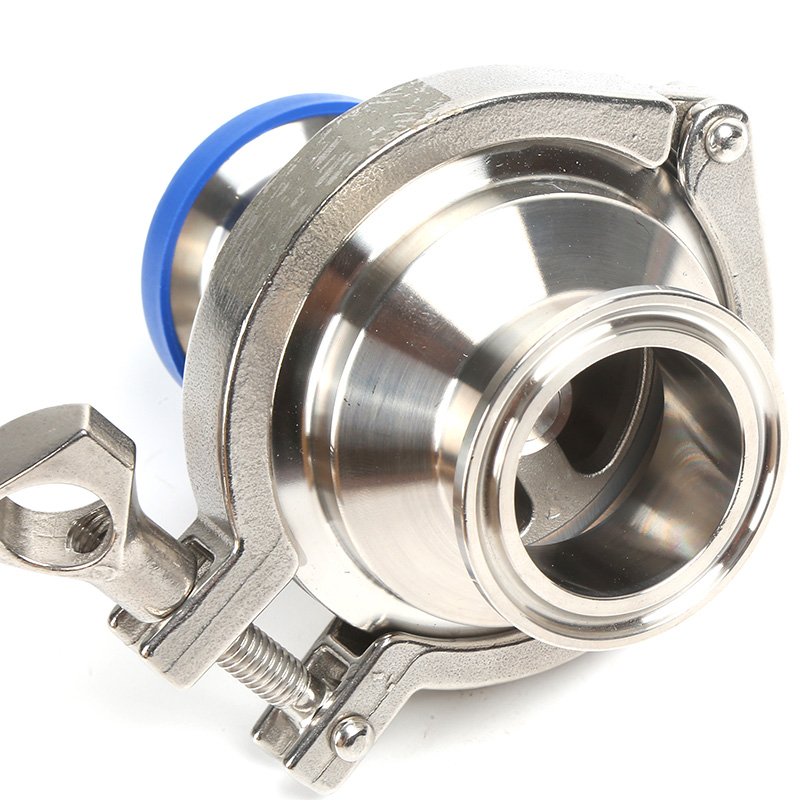

VCN Sanitary Check Valve SS304 SS316L Stainless Steel Non-return Valve

Concept

VCN series check valves also named as "non-return valve", is designed for use in process piping installations to prevent reverse flow. VCN series are a spring check valve with different connection ends.

Working Principle

A check valve opens when the pressure below the valve plug exceeds the pressure above the valve plug and the spring force. The valve close when pressure equalization has been achieved.

Material

• Materials: AISI-304 or AISI-316L

• Standard Gasket Material: EPDM complying with FDA 21CFR177.2600

Options

• O ring and gaskets can be Silicon or Viton, all complying with FDA 21CFR177.2600.

• End connection: Butt-weld, Clamp, Male, Nut, Liner or Flange or others upon request.

Design Features

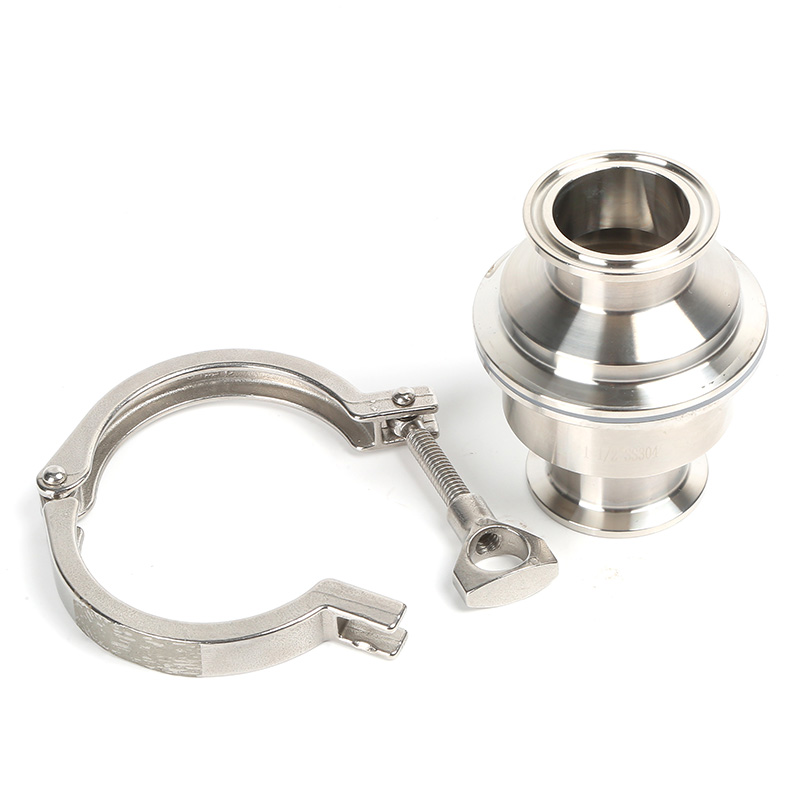

The stainless steel valve body ensures nonporous, smooth surfaces and dimensionally stable construction. The valve body is in two parts, assembled by means of a standard clamp and sealed with a standard gasket. The self draining design of the lower valve body enables flushing of the product. Ribbed construction of the stainless steel disc resists heavy pressure hammer, minimize the resistance to flow and also serves as a guide to the valve plug. All seats and seals are made from FDA approved materials.

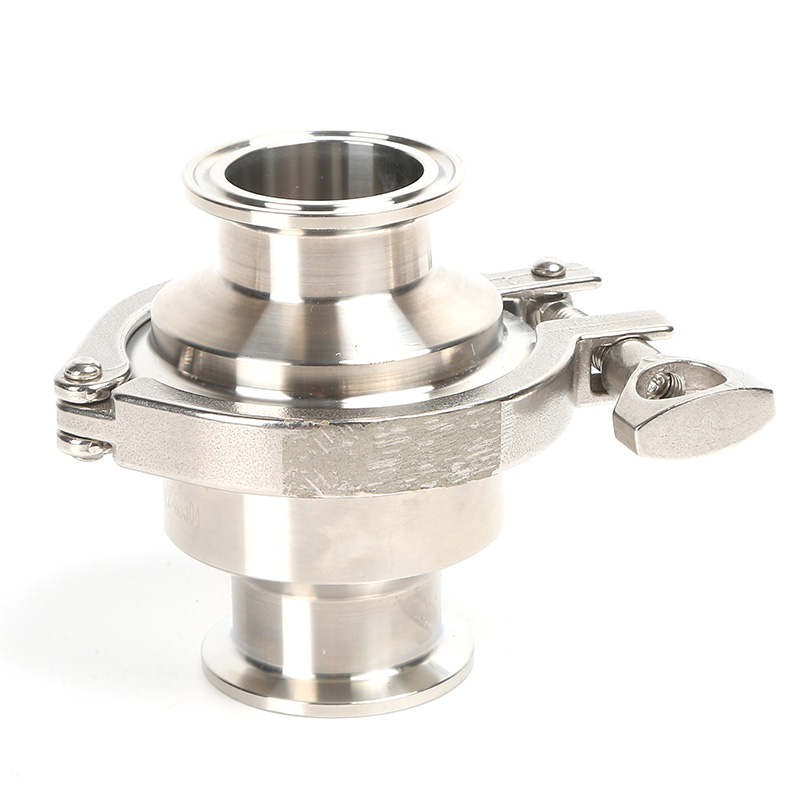

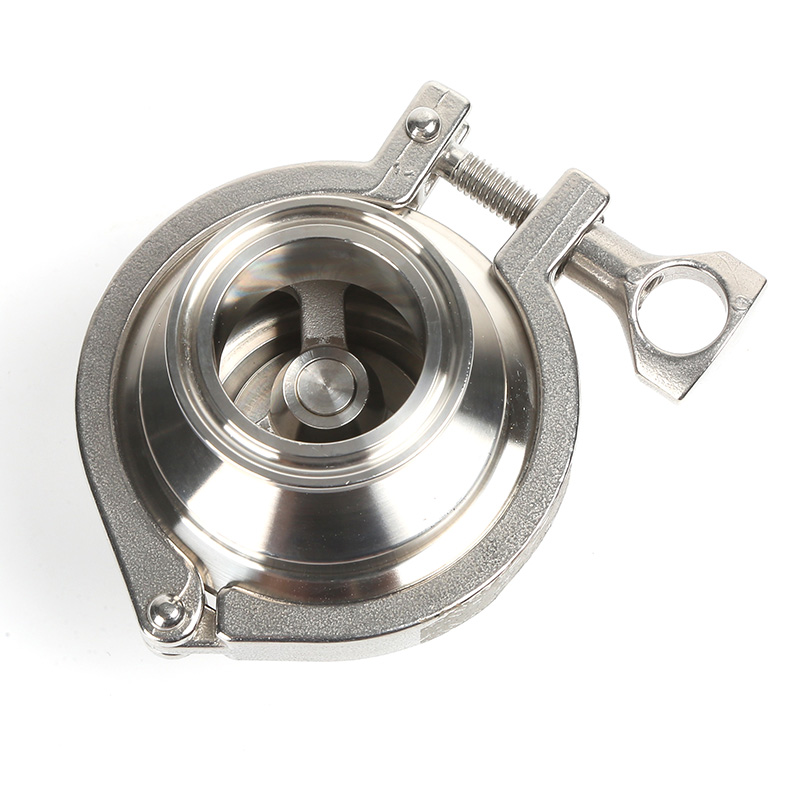

Above picture shows the default configuration. Horizontal positions are also permitted. The four guide legs of the valve ensure good alignment.

Technical Specification

• Max. pressure: 10bar (145psi)

• Opening pressure: 0.3bar (DN25) 0.2bar (DN32-40) 0.1bar (DN50-100). The opening pressure can be set as customers require.

  • Working temperature: 14 ~ 248°F (-10 ~ 120°C), EPDM

    Technical Data
    Metal Material	Contact with the product component	304/316L(1.4301/1.4404)Forging	Can provide material inspection report
    	Material No Contact with the product component	304/316L(1.4301/202)
    Sealing Material	Standard	EPDM	Adopt inport sealing material，which all the meet the FDA117.2600
    	Option
    Pressure	pressure of work	0-10bar
    Temperature	working temperature	VMQ:(-50~+180℃) EPDM:(-20~+135℃)FPM:(-30~+230℃)
    	Sterilization temperature	150℃(MAX 20min)
    Surface Treatment	inside surface treatment	Ra≥0.4-0.8um
    	Surface treatment	Ra≥0.8-1.6um
    Connection	The diameter welding	welding connection:DIN 11850-2 with 11850-1/SMS/3A/ISO Series etc
    	connection mode: welding，clamp，male and female flange，etc
    Check valve's volume flow:flow through the valva per unit time of a cross-section area of the fluid volume		Volume flow: cubic meters / hour (m3/h) detailed technical data, refer to(on the chart)

    Performance curveEXPLODED VIEW

  • 	No	Description
    	1	Heavy Duty Clamp
    	2	Valve Cap
    	3	Body Seal
    	4	Disc
    	5	Spring
    	6	Valve Stem
    	7	Seat Seal
    	8	Valve Body

    Weld Check Valve

    	Model No	Size	L	D	D1
    	VCN01WXX1075	3/4''	54	19.1	54
    	VCN01WXX1100	1''	71	25.4	87
    	VCN01WXX1125	1 1/4''	70	31.8	87
    	VCN01WXX1150	1 1/2''	70	38.1	87
    	VCN01WXX1175	45	80	45	100
    	VCN01WXX1200	2''	80	50.8	100
    	VCN01WXX1225	57	90	57	100
    	VCN01WXX1250	21/2"	90	63.5	115
    	VCN01WXX1300	3"	100	76.2	128
    	VCN01WXX1350	31/2"	100	89	128
    	VCN01WXX1400	4"	106	101.6	164
    	VCN01WXX2015	DN15	54	18	54
    	VCN01WXX2020	DN20	54	22	54
    	VCN01WXX2025	DN25	71	28	87
    	VCN01WXX2032	DN32	70	34	87
    	VCN01WXX2040	DN40	70	40	87
    	VCN01WXX2050	DN50	80	52	100
    	VCN01WXX2065	DN65	90	70	115
    	VCN01WXX2080	DN80	100	85	128
    	VCN01WXX2100	DN100	106	104	164

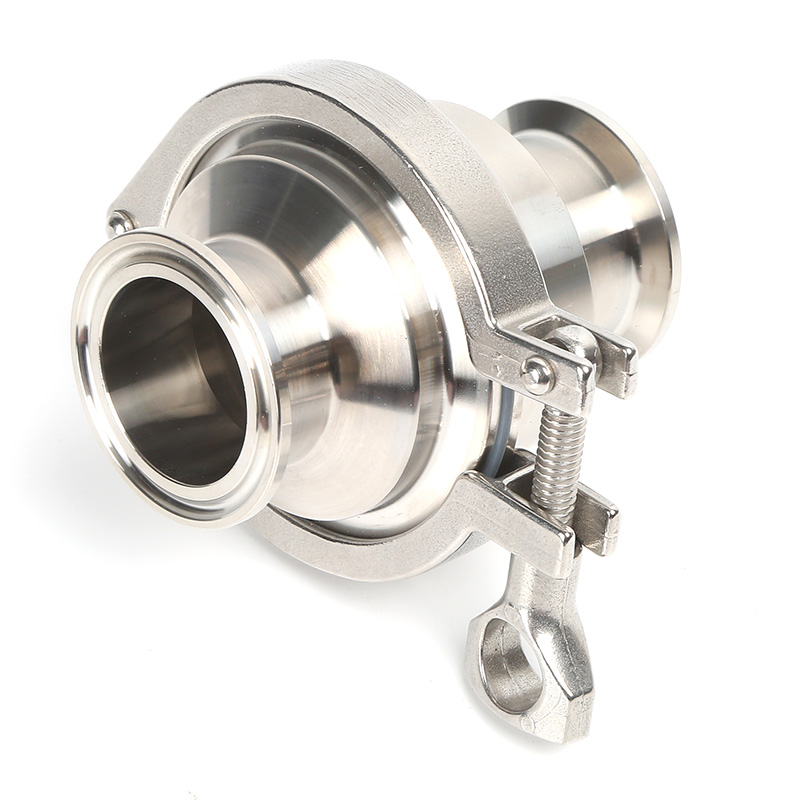

  • Clamp Check Valve

    	Model No	Size	L	D	D1
    	VCN01CXX1050	1/2"	64	25.2	54
    	VCN01CXX1075	3/4''	64	25.2	54
    	VCN01CXX1100	1''	96	50.5	87
    	VCN01CXX1125	1 1/4''	95	50.5	87
    	VCN01CXX1150	1 1/2''	95	50.5	87
    	VCN01CXX1200	2''	105	64	100
    	VCN01CXX1250	21/2"	115	77.5	115
    	VCN01CXX1300	3"	124	91	128
    	VCN01CXX1400	4"	137	119	164
    	VCN01CXX2015	DN15	64	34	54
    	VCN01CXX2020	DN20	64	34	54
    	VCN01CXX2025	DN25	114	50.5	87
    	VCN01CXX2032	DN32	113	50.5	87
    	VCN01CXX2040	DN40	113	50.5	87
    	VCN01CXX2050	DN50	128	64	100
    	VCN01CXX2065	DN65	146	91	115
    	VCN01CXX2080	DN80	156	106	128
    	VCN01CXX2100	DN100	162	119	164

  • Thread Check Valve

    	Model No	Size	L	D	D1
    	VCN33XX1075	3/4''	92	RD34*1/8"	54
    	VCN33XX1100	1''	109	RD40*1/6"	87
    	VCN33XX1125	1 1/4''	116	RD48*1/6"	87
    	VCN33XX1150	1 1/2''	116	RD60*1/6"	87
    	VCN33XX1200	2''	126	RD70*1/6"	100
    	VCN33XX1250	21/2"	144	RD85*1/6"	115
    	VCN33XX1300	3"	154	RD95*1/6"	128
    	VCN33XX1400	4"	176	RD132*1/6"	164
    	VCN33XX2015	DN15	88	RD34*1/8"	54
    	VCN33XX2020	DN20	92	RD44*1/6"	54
    	VCN33XX2025	DN25	115	RD52*1/6"	87
    	VCN33XX2032	DN32	116	RD58*1/6"	87
    	VCN33XX2040	DN40	112	RD65*1/6"	87
    	VCN33XX2050	DN50	124	RD78*1/6"	100
    	VCN33XX2065	DN65	140	RD95*1/6"	115
    	VCN33XX2080	DN80	150	RD110*1/4"	128
    	VCN33XX2100	DN100	166	RD130*1/4"	164
