VBN Pneumatic Butterfly Valve

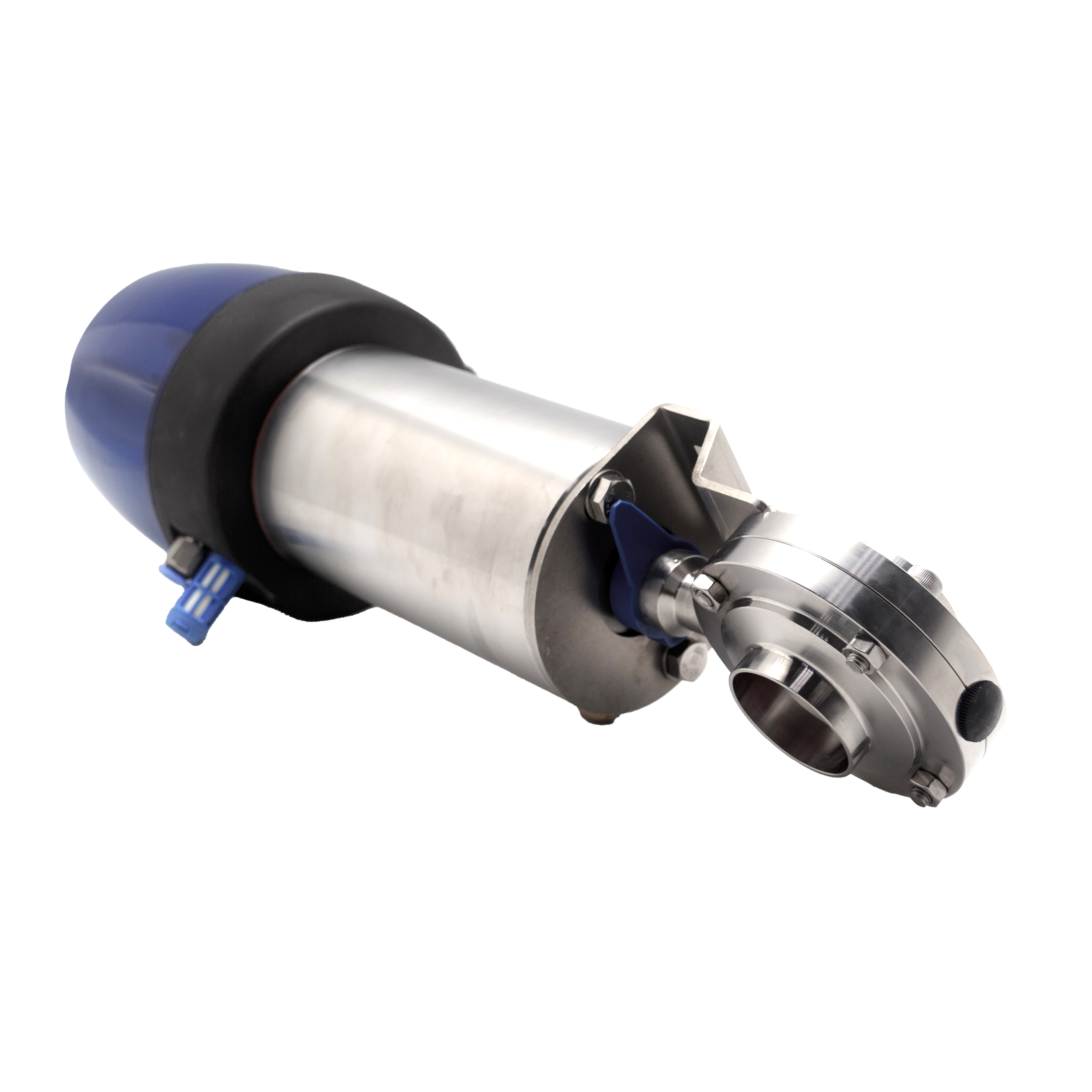

Pneumatic butterfly valve

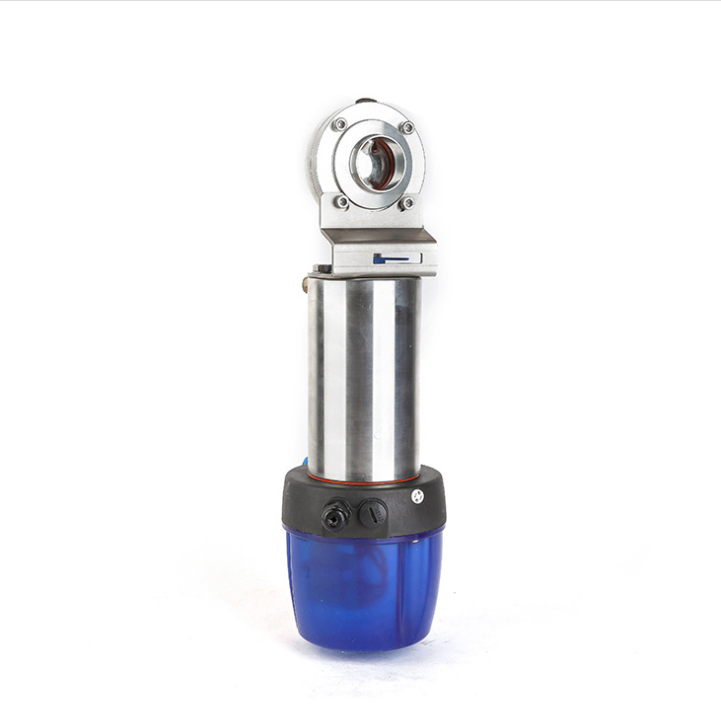

Pneumatic butterfly valve

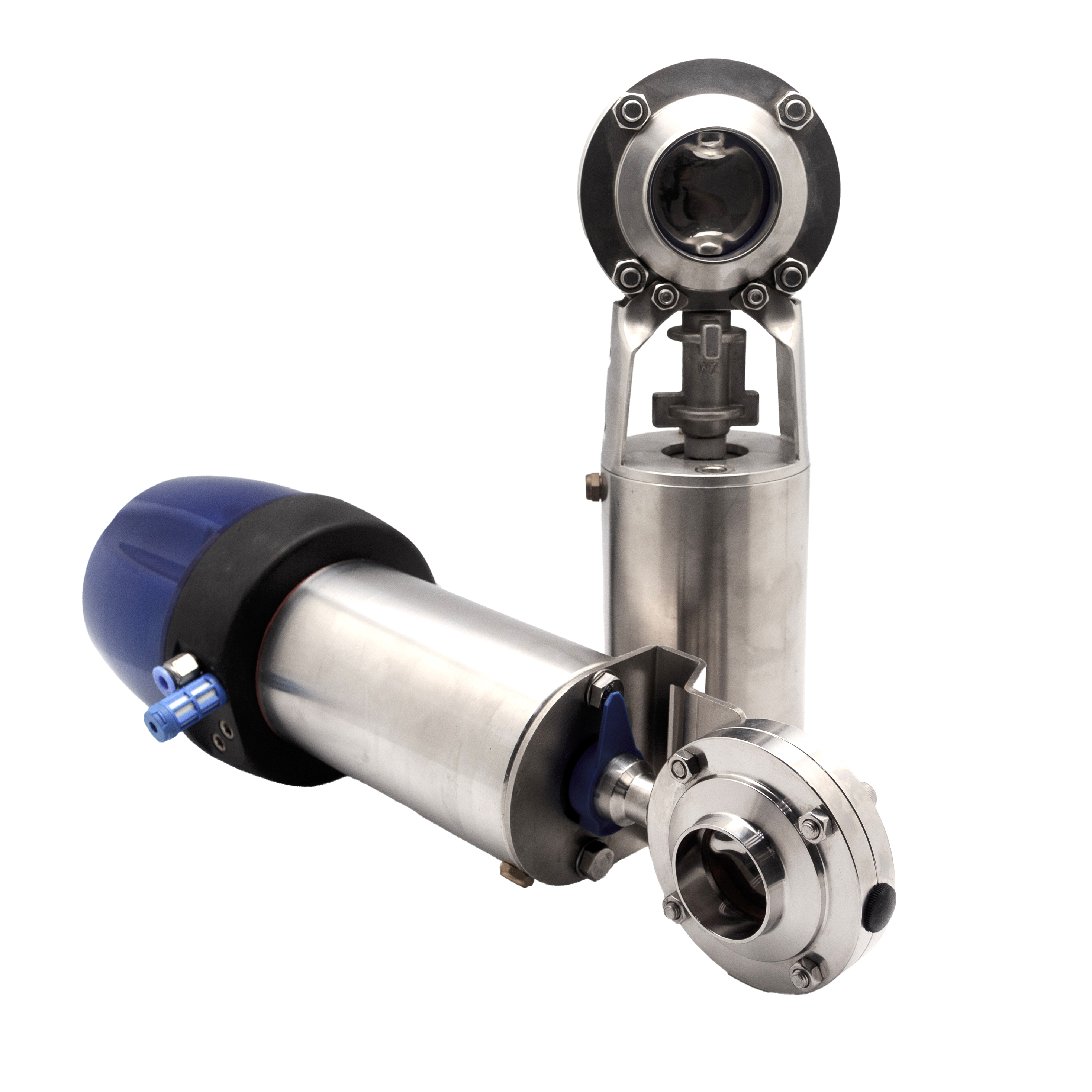

Pneumatic butterfly valve

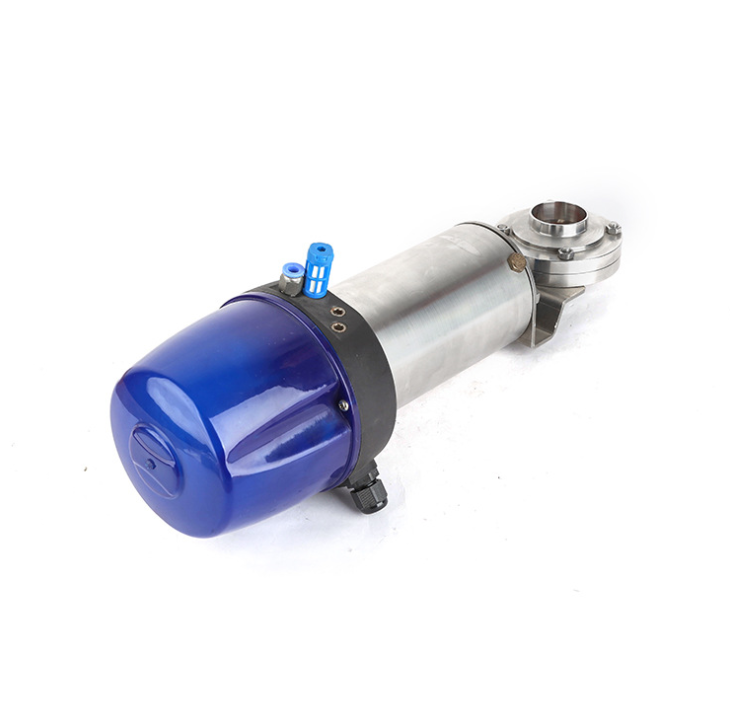

Pneumatic butterfly valve

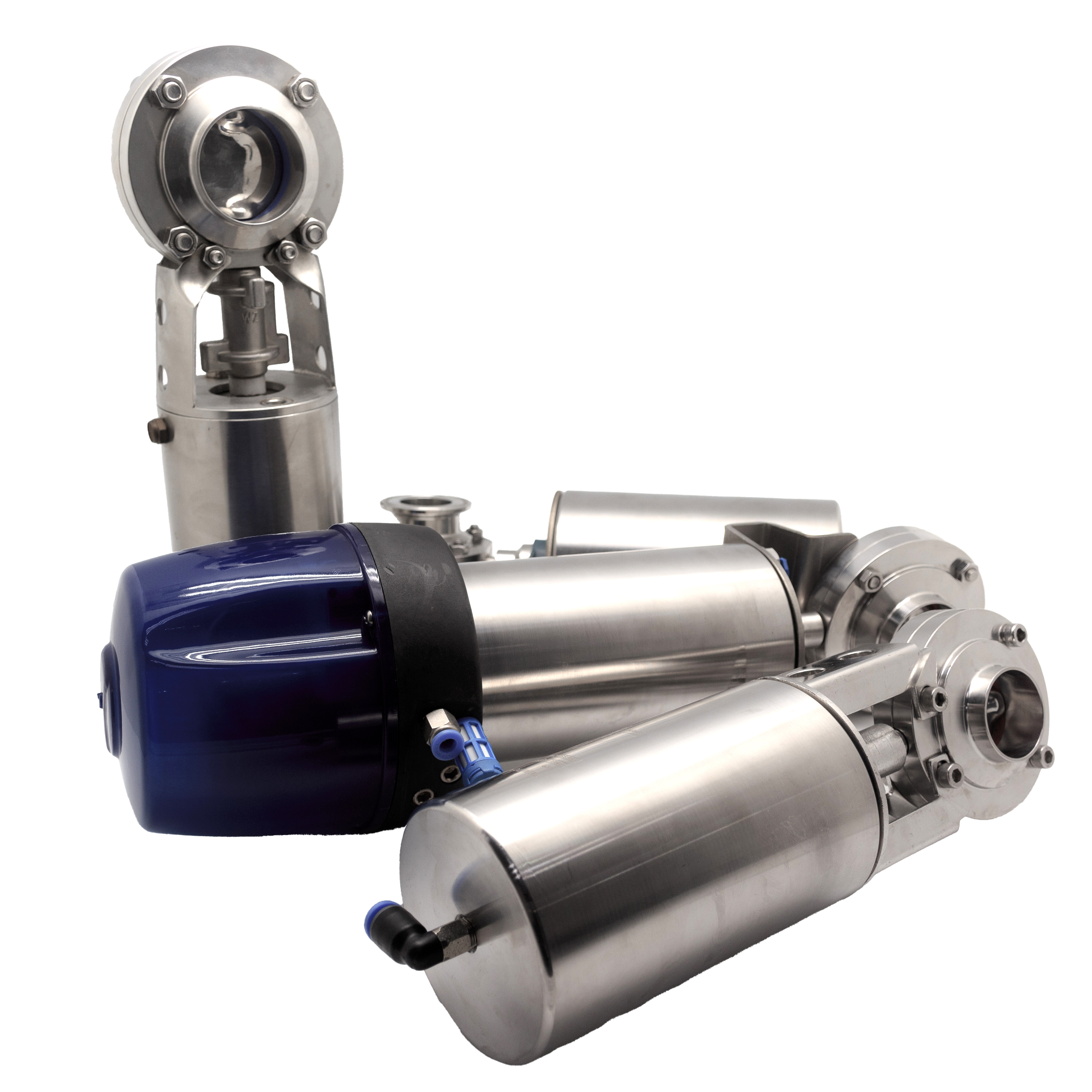

VBN Pneumatic Butterfly Valve

  • Categories:Sanitary Butterfly Valve
  • MOQ:1
  • Brand:QiiMii
  • FOB Port:Ningbo
  • Terms of Payment:Western Union, T/T, Paypal
  • Delivery Time:Contact with us for details

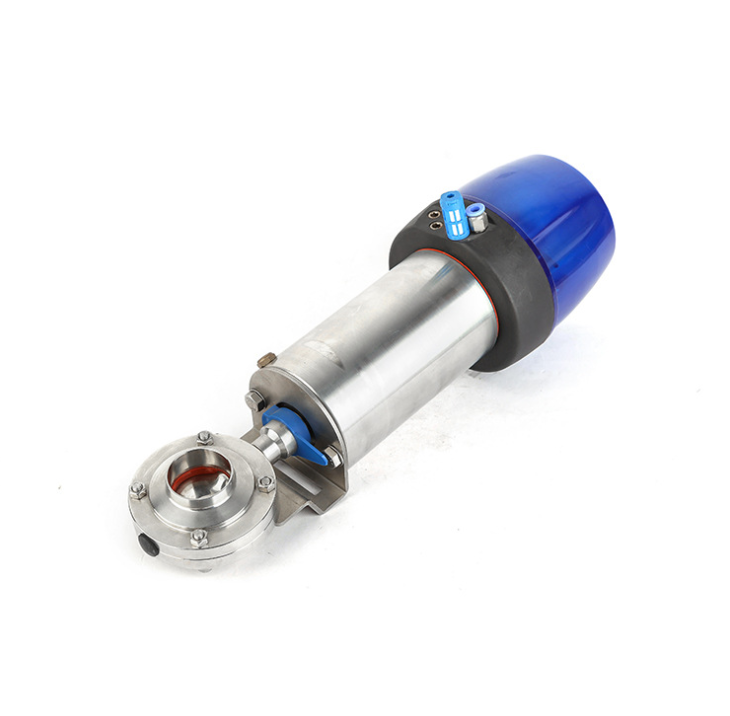

VBN series Pneumatic butterfly valve is a type of flow control device, used to make a fluid start or stop flowing through a section of pipe. It is well applied

to stainless steel pipe systems for food, beverage, dairy, brewing, pharmaceuatical, bio-pharmaceuatical and chemical industries.



  • Body Materials: AISI-304 or AISI-316L

  • Gasket Material:Silicon, EPDM, VITON, NBR

          Valve seat and gasket  comply with FDA 21CFR177.2600


Standard Design

  • Standard Avaliable: DIN, SMS, ISO / IDF, BS / RJT, and ASME / BPE.

  • Available in sizes from DN15 / 1/2" to DN250 / 10"

  • End connection: Butt-weld, Clamp, Male, Nut, Liner or Flange or others upon request.

  • Handle: plastic pull handle (2-4 positions) or plastic/stainless steel squezee handle (13 positions)

  • Actuator: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), electric actuator.

  • Control: position sensor, C-top controller, C-top controller (AS-I)

  • Manual handle, pneumatic actuator and electric actuator are interchangeable.


Technical Specification

  • Max. pressure: 10bar (145psi) DN25 ~ 100; 8bar (120psi) DN125 ~ 150

  • Temperature range: 14 ~ 248°F (-10 ~ 120°C), EPDM

  • Surface treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm)

  • Supply pressure for air actuator: 70 ~ 115psi




Steel material

Product wetted steel parts

AISI 316L / 304 forged
(1.4306 / 1.4404)

Provided with material inspection report

Other steel parts

AISI 304

Seal material



All seal materials comply with FDA 21CFR117.2600




Working pressure

≤10bar (145psi)

Supply pressure for air actuator

5 ~ 8bar (70 ~ 116psi)


Working temperature

EPDM: 14 ~ 248°F (-10 ~ 120°C)
VMQ: -58 ~ 356°F (-50 ~ +180°C)
FPM: -22 ~ 446°F (-30 ~ +230°C)
Other materials are available upon request

Sterilization temperature

302°F (150°C, Max. 20 min)

Surface treatment

Inside surface treatment

Ra 16 ~ 32µin (0.4 ~ 0.8µm)

Outside surface treatment

Ra32 ~ 64µin (0.8 ~ 1.6µm)


The welding diameter

Welding ends:
DIN 11850-2 with 11850-1 / SMS / 3A / ISO Series, etc.

End connections: butt-welded, sanitary clamp, male and female threaded, flanged, I-line or others upon request.
