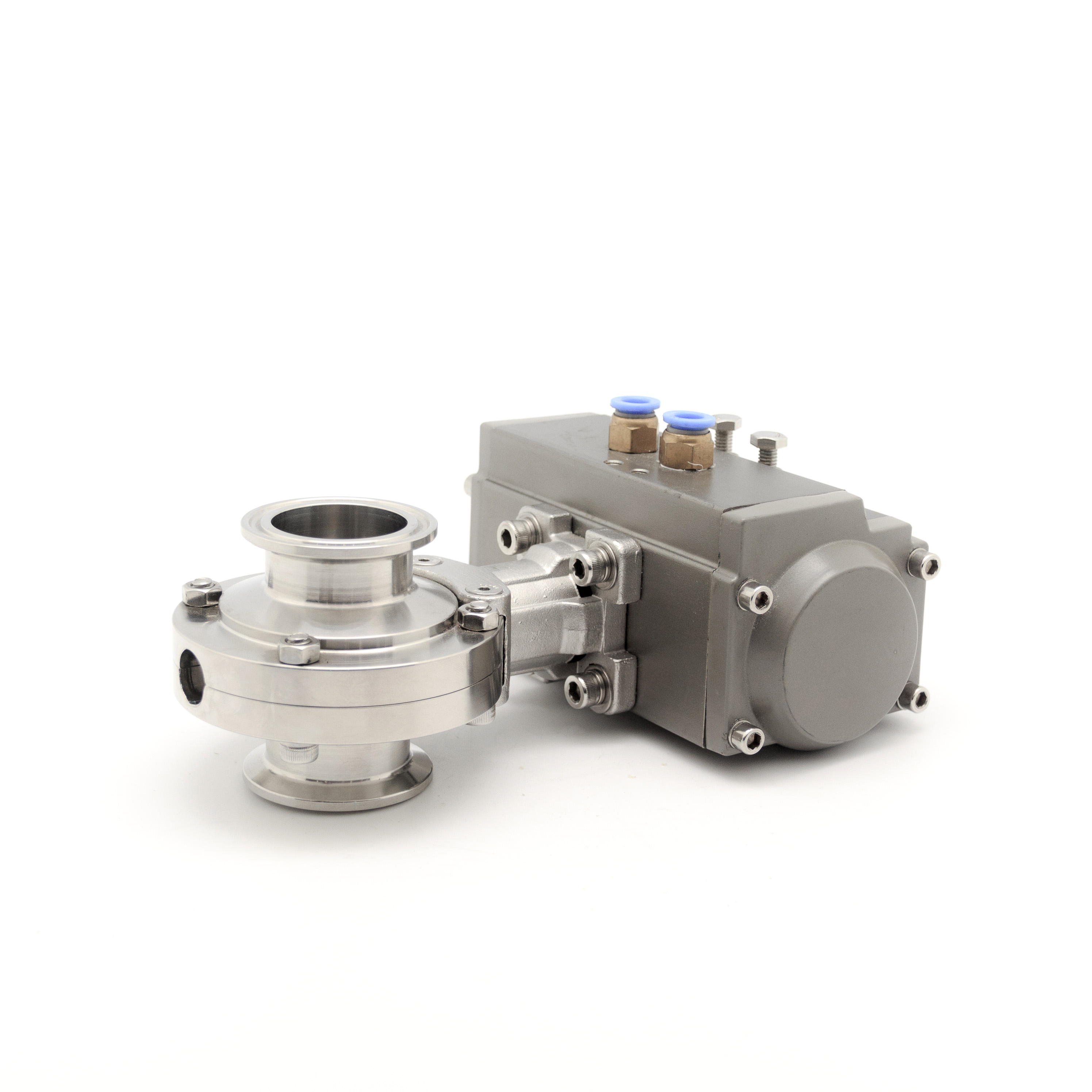

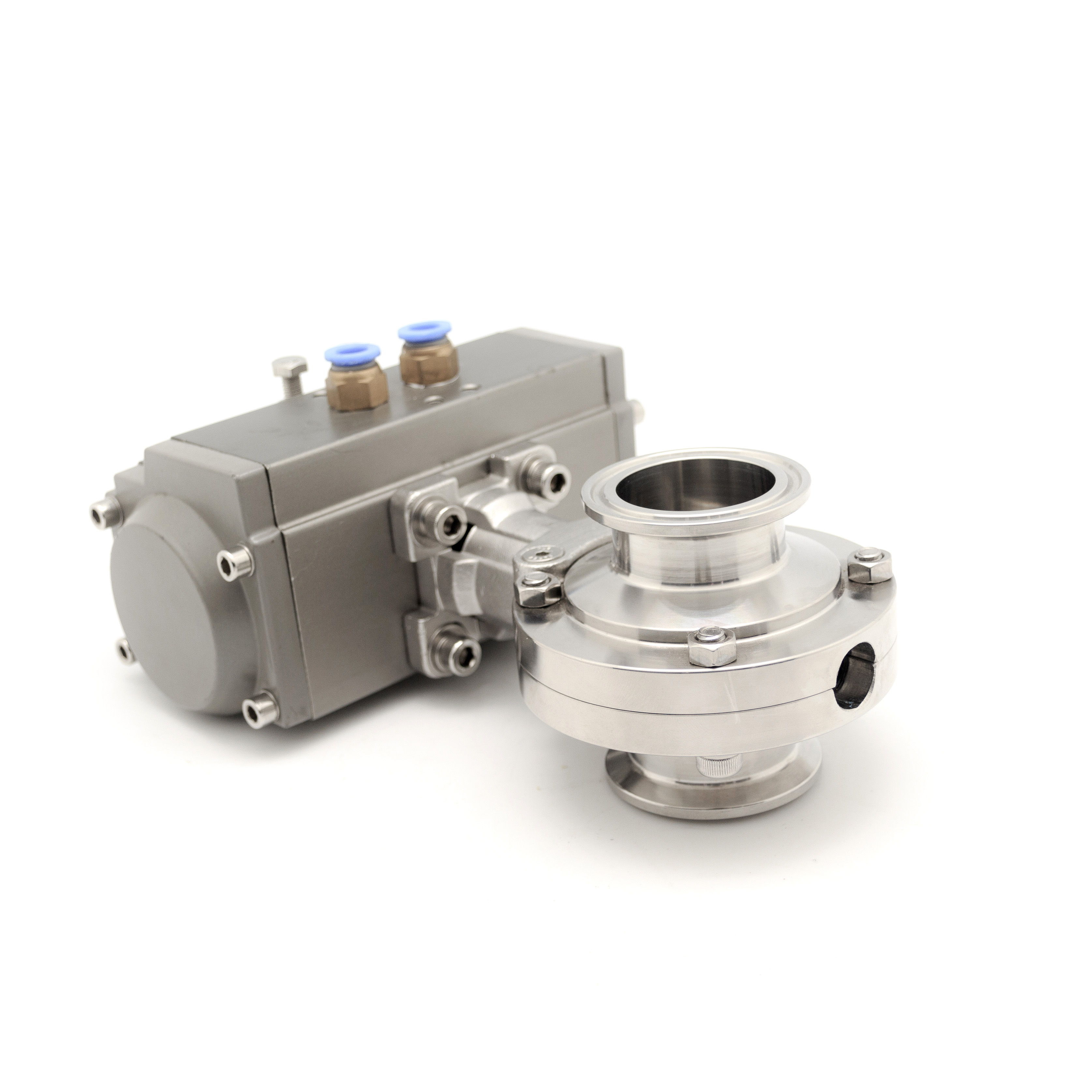

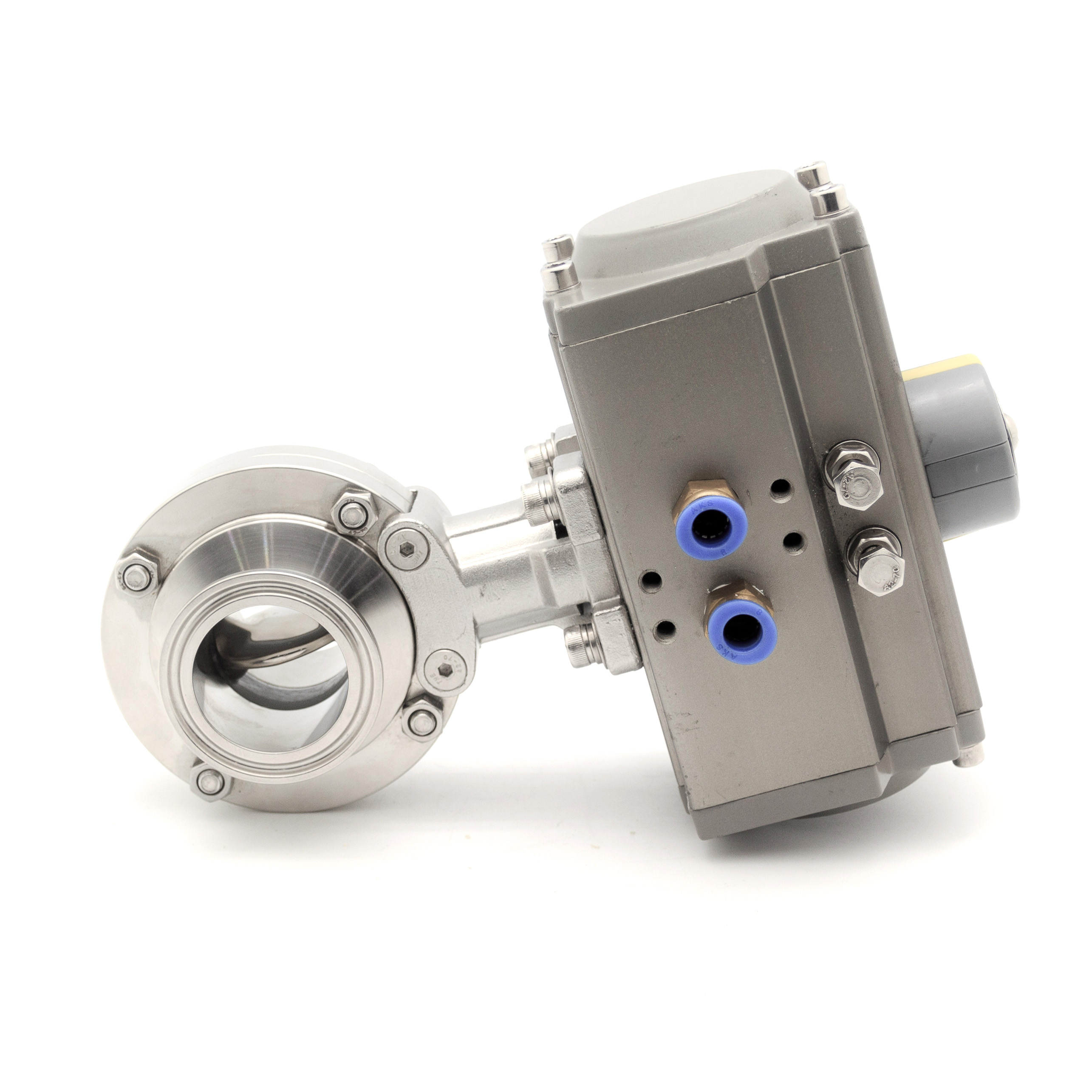

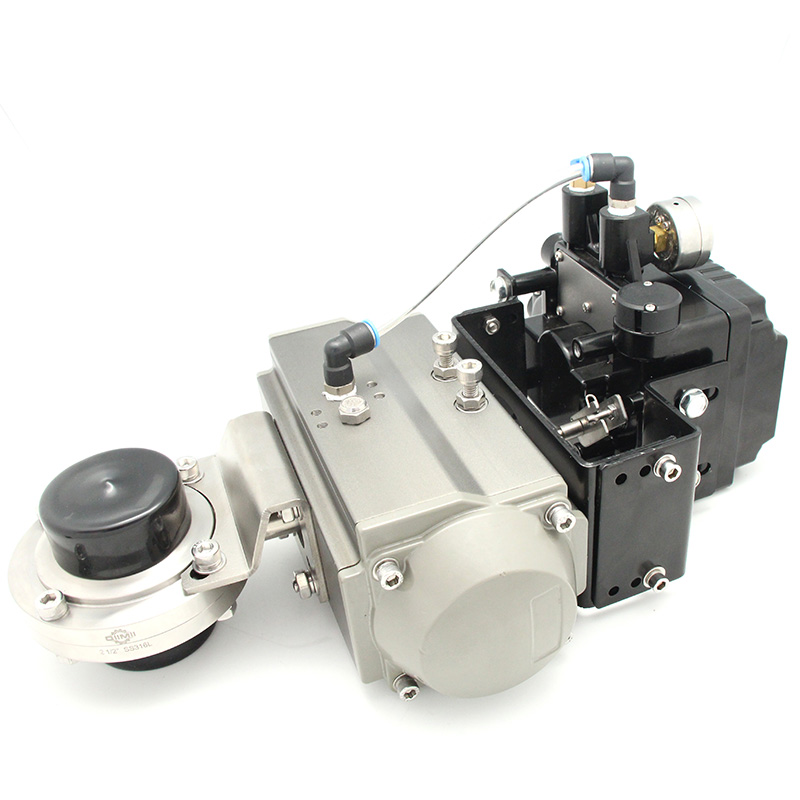

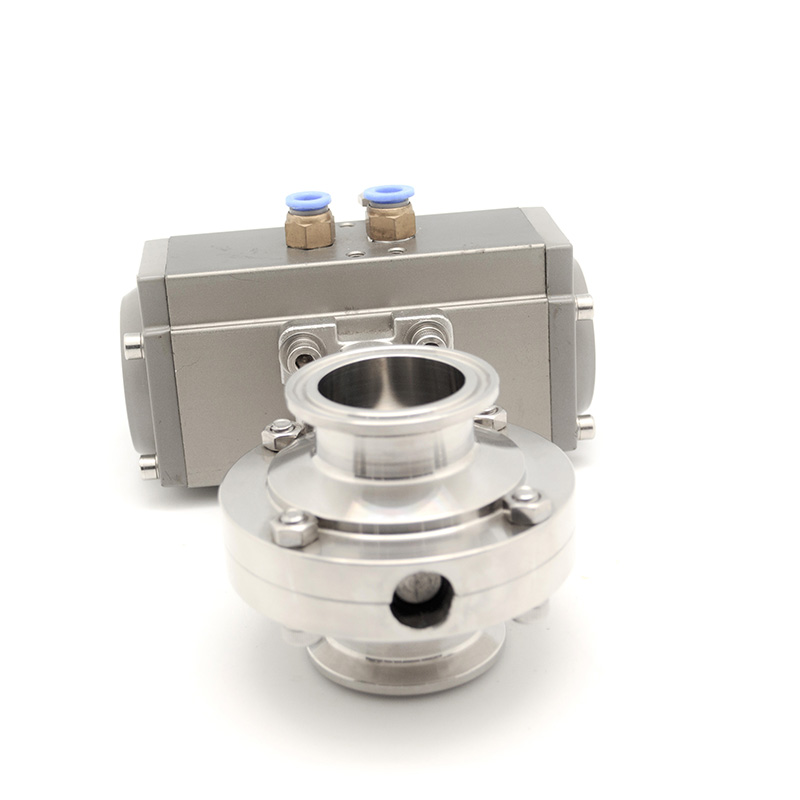

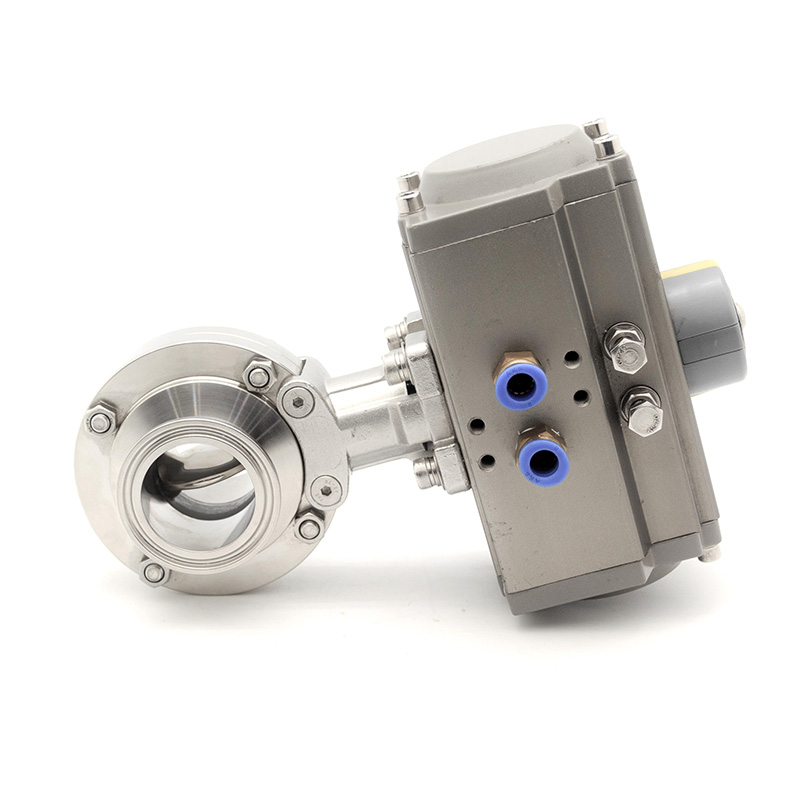

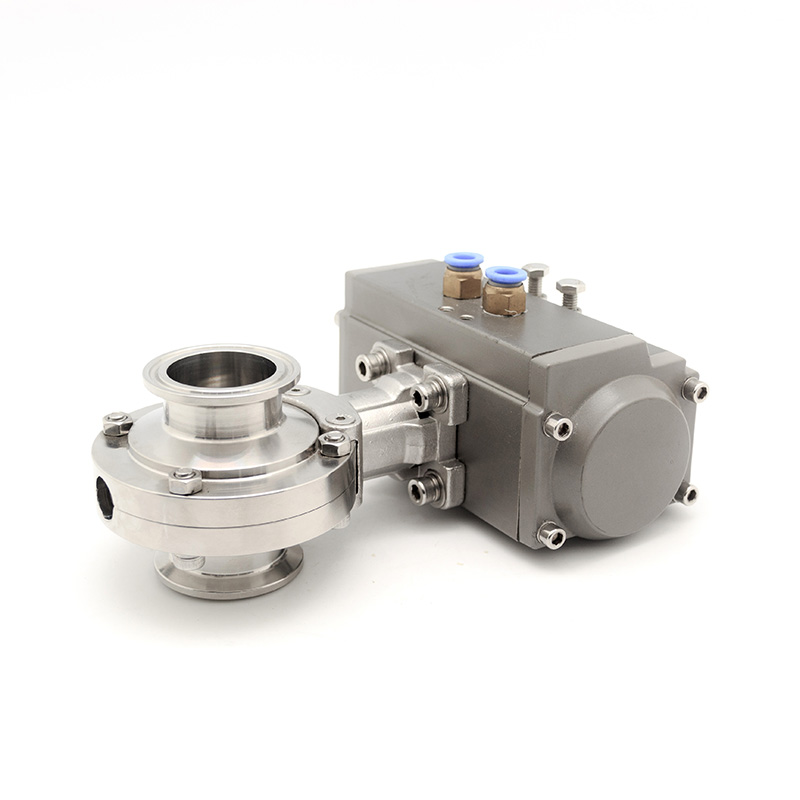

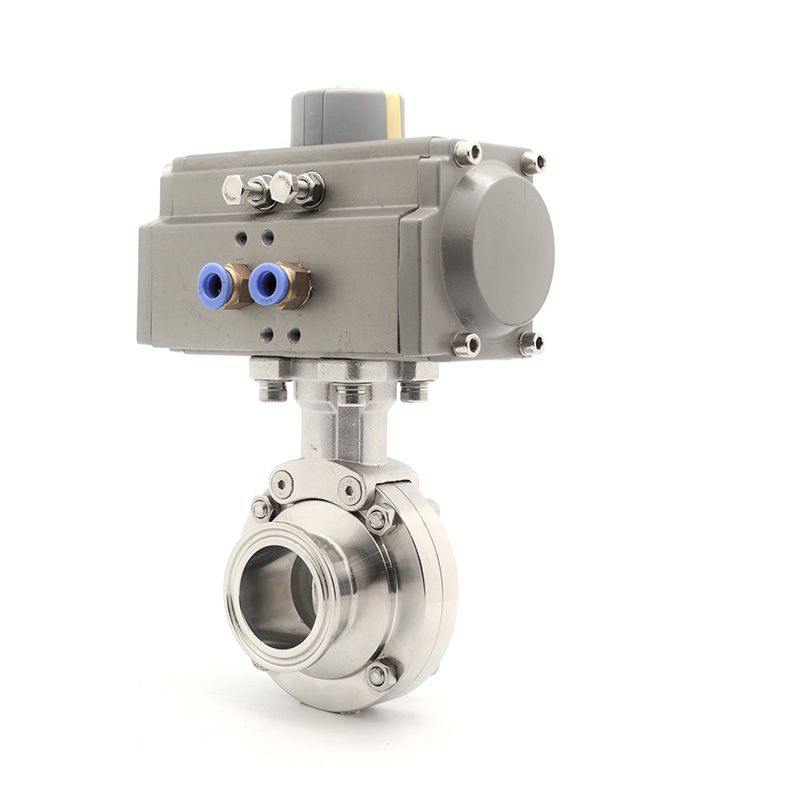

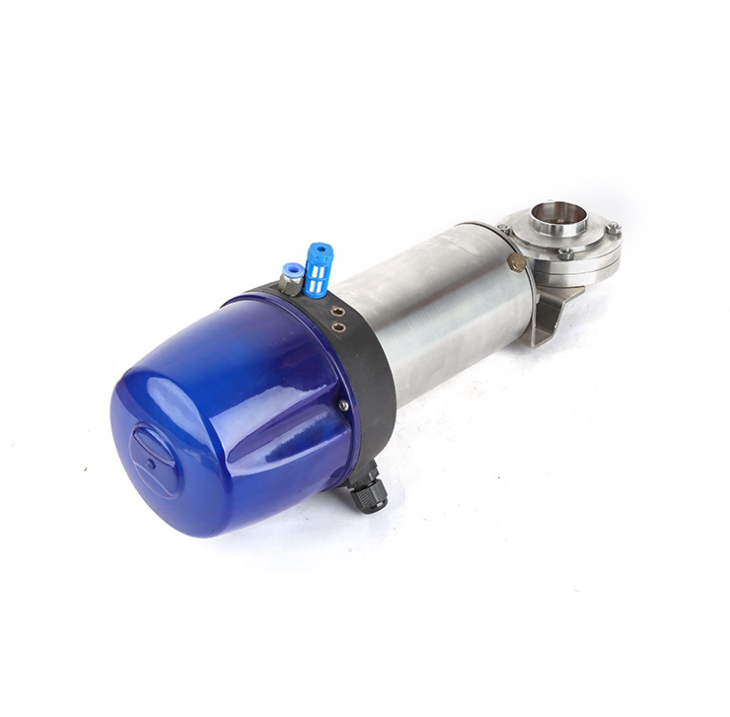

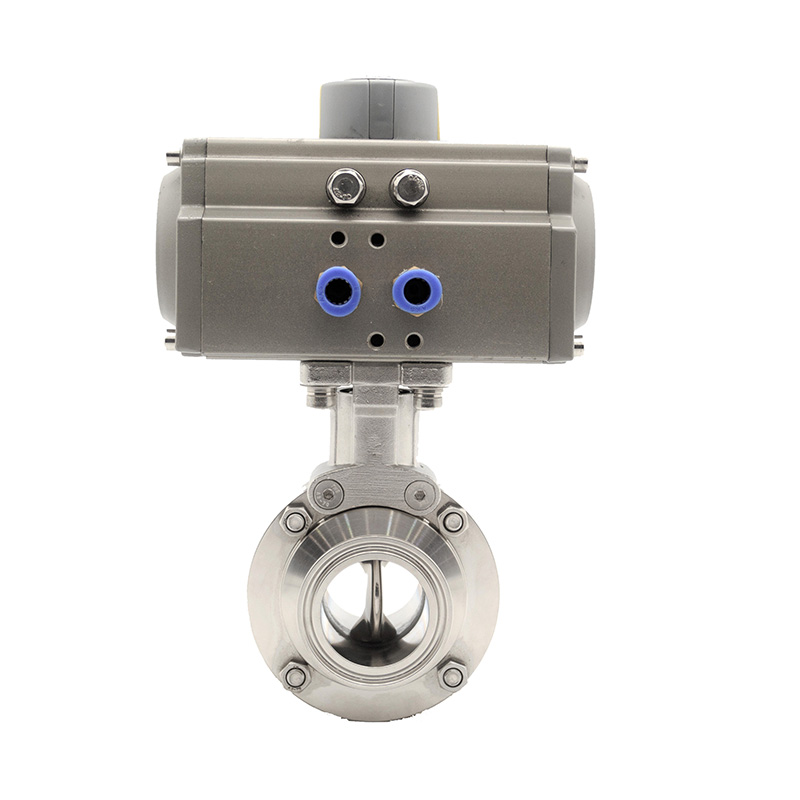

VBN Electric Butterfly Valve

VBN series butterfly valve is a type of flow control device, used to make a fluid start or stop flowing through a section of pipe.

Categories: Sanitary Butterfly Valve
FOB Port: Ningbo, Zhejiang
Terms of Payment: Western Union,T/T Paypal
Delivery Time: 15 Working Days
Inquire Now PDF Datasheet

Application

VBN series butterfly valve is a type of flow control device, used to make a fluid start or stop flowing through a section of pipe. It is well applied to stainless steel pipe systems for food,

beverage, dairy, brewing, pharmaceutical, biopharmaceutical and chemical industries.

Materials

  • Valve wet parts: SS304 or SS316L

  • Disc: SS304 or SS316L

  • Other steel parts: SS304 or SS316L

  • Seal: EPDM, Silicon or FPM

  • Finish: Semi-bright

  • Actuator: SS304

Standard Design

  • The actuator is made in three standard versions, normally closed (NC), normally open (NO) and air/air activated(A/A).
  • Manually handle locks the valve in 3 position: Full open, half open and closed.*
  • For different handles type, see Handle Available.

Technical Specification

  • Valve

  • Max. product pressure: 1000kPa(10Bar) for DN15-DN100, 800kPa(88Bar) for DN125-DN150

  • Min. product pressure: Full vacuum, EPDM

  • Temperature range: -10℃ to +120℃

  • Actuator

  • Max. air pressure: 700kPa(7Bar)

  • Min. air pressure, NC and NO: 400kPa(4Bar)

  • Temperture range: -25℃ to +90℃

Parameters

Steel material

Product wetted steel parts

AISI 316L / 304 forged
(1.4306 / 1.4404)

Provided with material inspection report

Other steel parts

AISI 304

Seal material

Standard

EPDM

All seal materials comply with FDA 21CFR117.2600

Options

VMQ / FPM

Pressure

Working pressure

≤10bar (145psi)

Supply pressure for air actuator

5 ~ 8bar (70 ~ 116psi)

Temperature

Working temperature

EPDM: 14 ~ 248°F (-10 ~ 120℃)
VMQ: -58 ~ 356°F (-50 ~ +180℃)
FPM: -22 ~ 446°F (-30 ~ +230℃)
Other materials are available upon request

Sterilization temperature

302°F (150℃, Max. 20 min)

Surface treatment

Inside surface treatment

Ra 16 ~ 32µin (0.4 ~ 0.8µm)

Outside surface treatment

Ra32 ~ 64µin (0.8 ~ 1.6µm)

Connection

The welding diameter

Welding ends:
DIN 11850-2 with 11850-1 / SMS / 3A / ISO Series, etc.

End connections: butt-welded, sanitary clamp, male and female threaded, flanged, I-line or others upon request.
