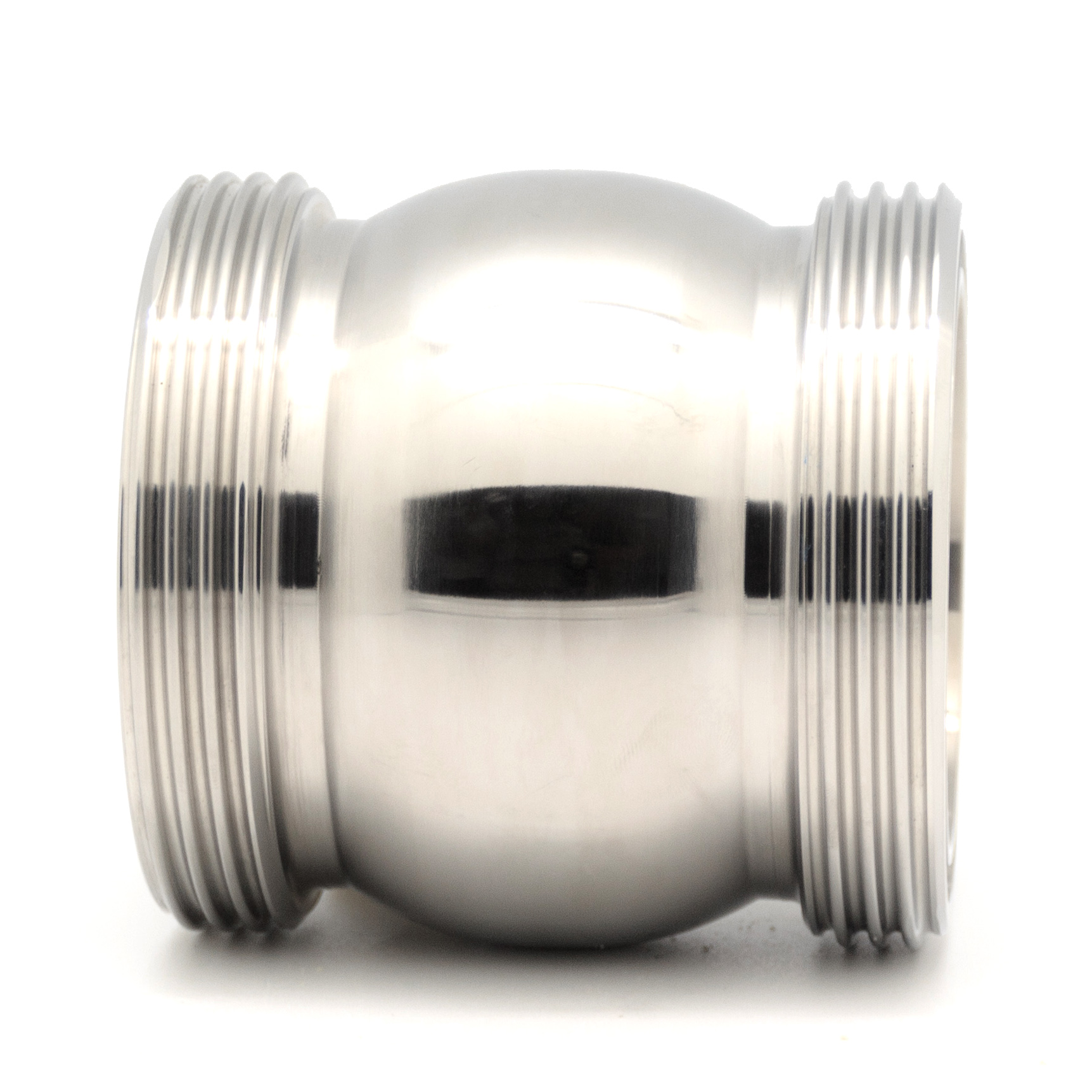

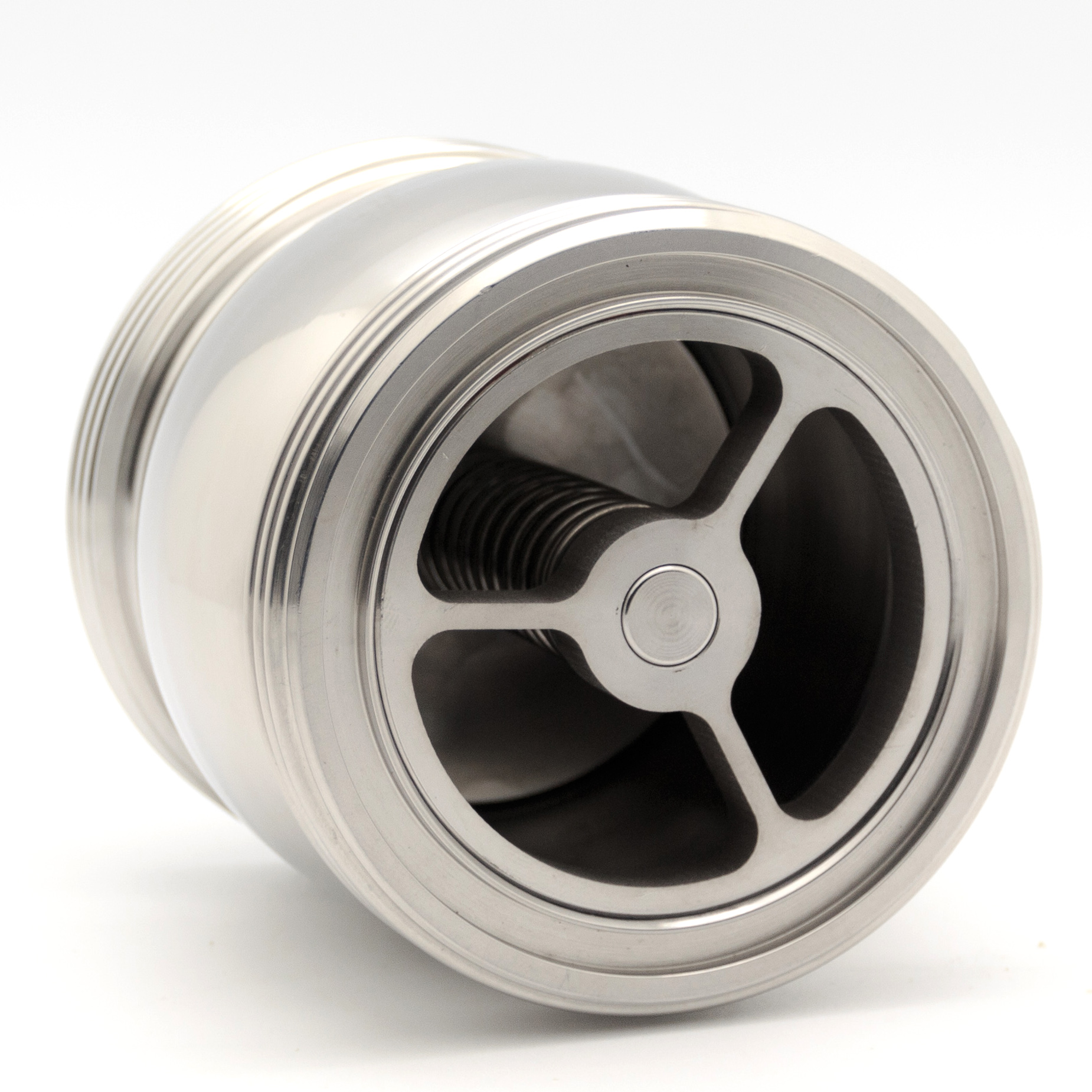

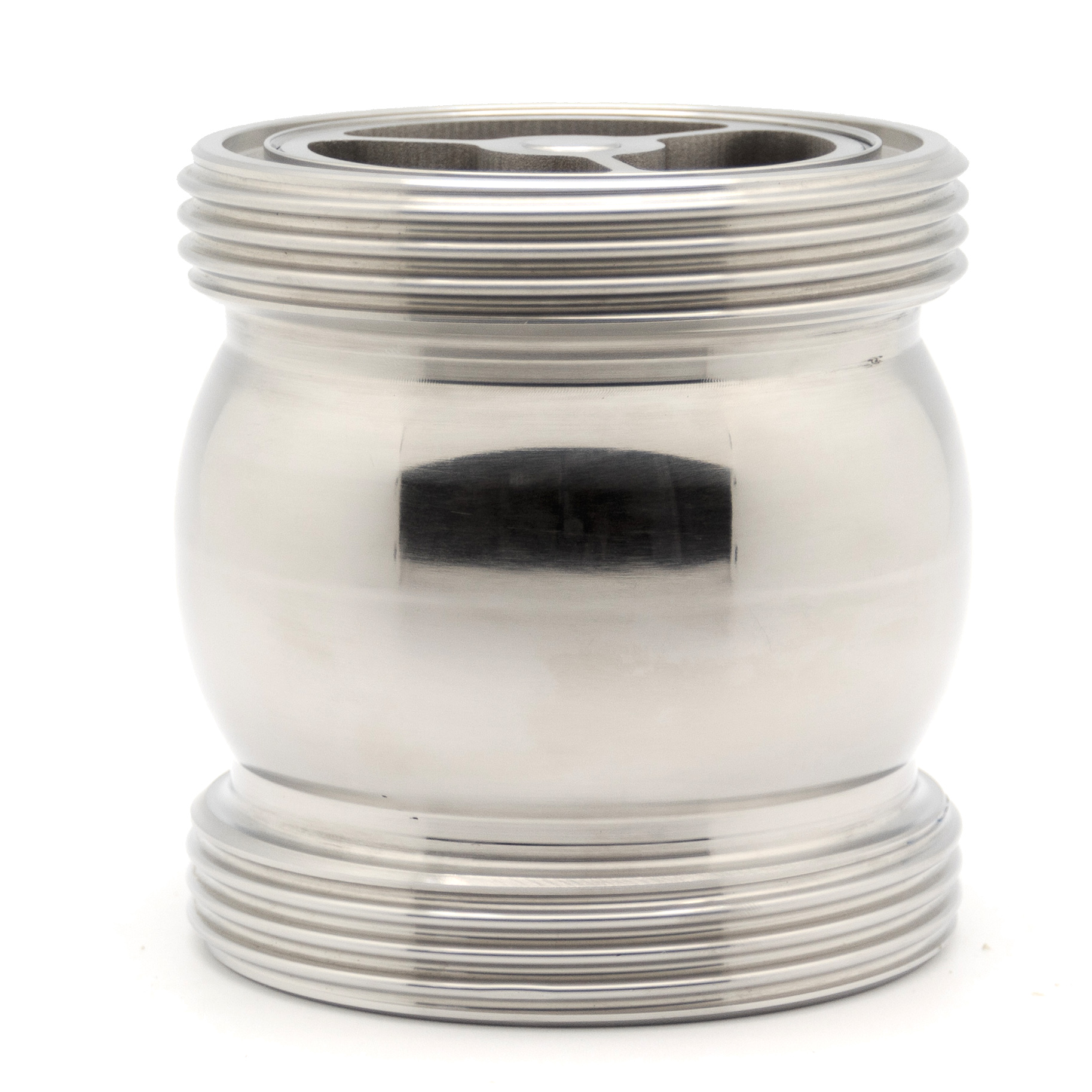

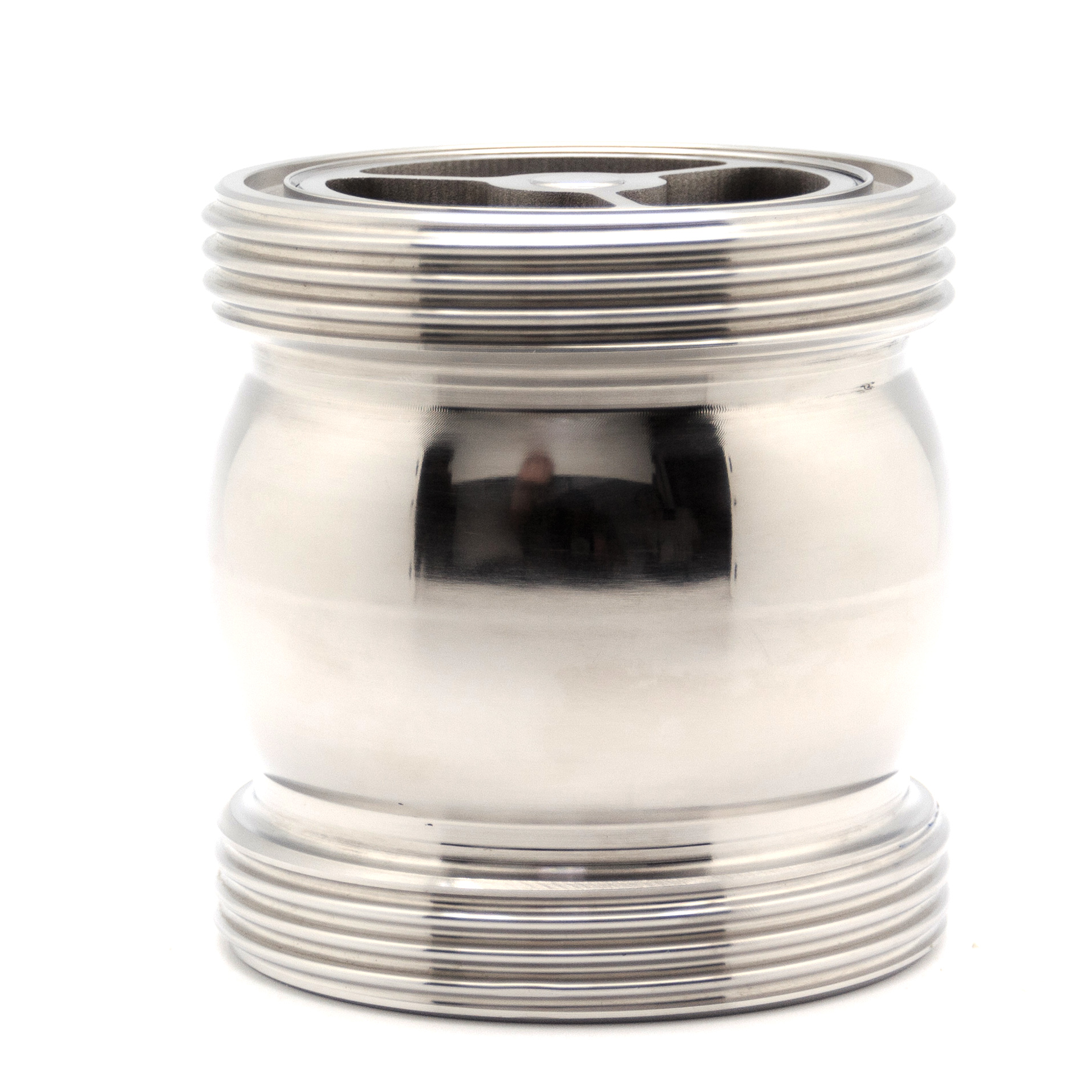

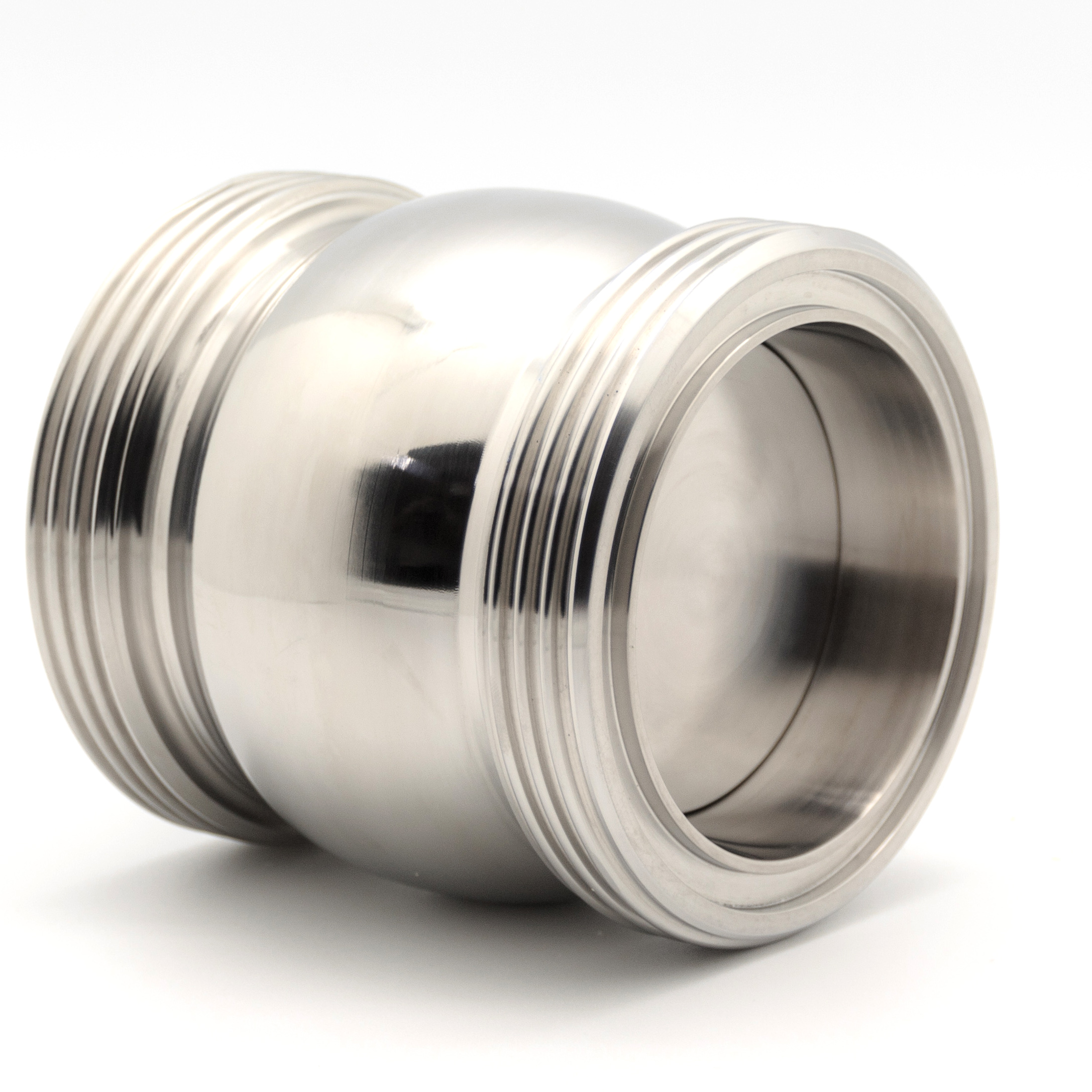

SS304 SS316L Female Union Type Check Valve Sanitary Stainless Steel with EPDM Seal

Application

VCF Series Prevents the fluid from flowing back and ensures that if flows in only one direction. It can be used to prevent the loss of prime of the pump and to avoid pipe-hammering in the food-processing, beverages, wine-making, oil-making, cosmetics, pharmaceutical and chemical industries

Material

Materials: AISI304 316L

The seal materials comply with FDA177.2600 standard.

Standard Design

Technical Specification

Size available: 1", 1 1/2", 2" 2 1/2", 3", 3.5", 4";

Max. working pressure: 147psi (10bar)

Temperature range: 14 ~ 248°F (-10 ~ 120°C), EPDM

Inside polishing: Ra 16-32µin (0.4 ~ 0.8µm)

Connections: Weld, Thread, Clamp, DIN, SMS, RJT, IDF, IS
