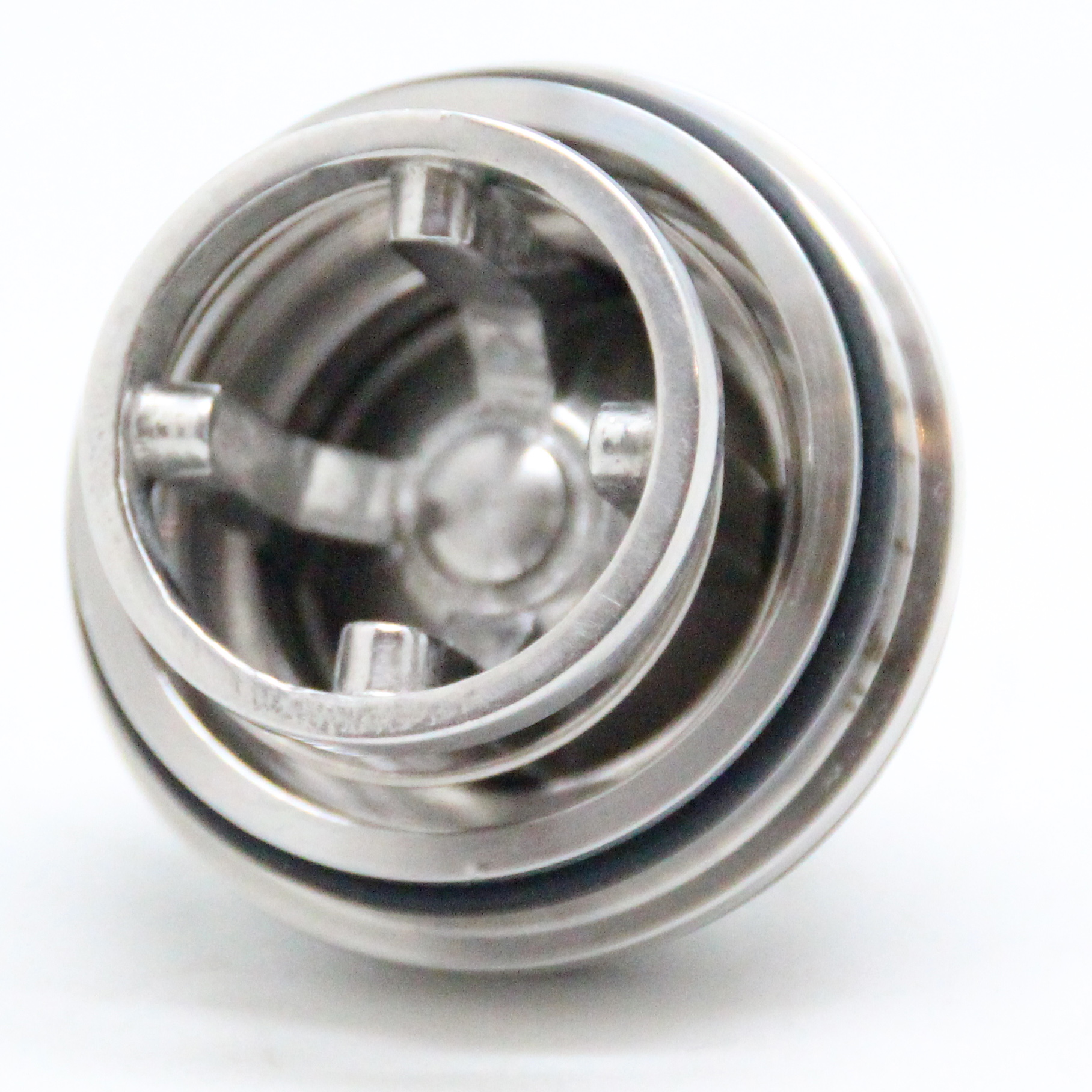

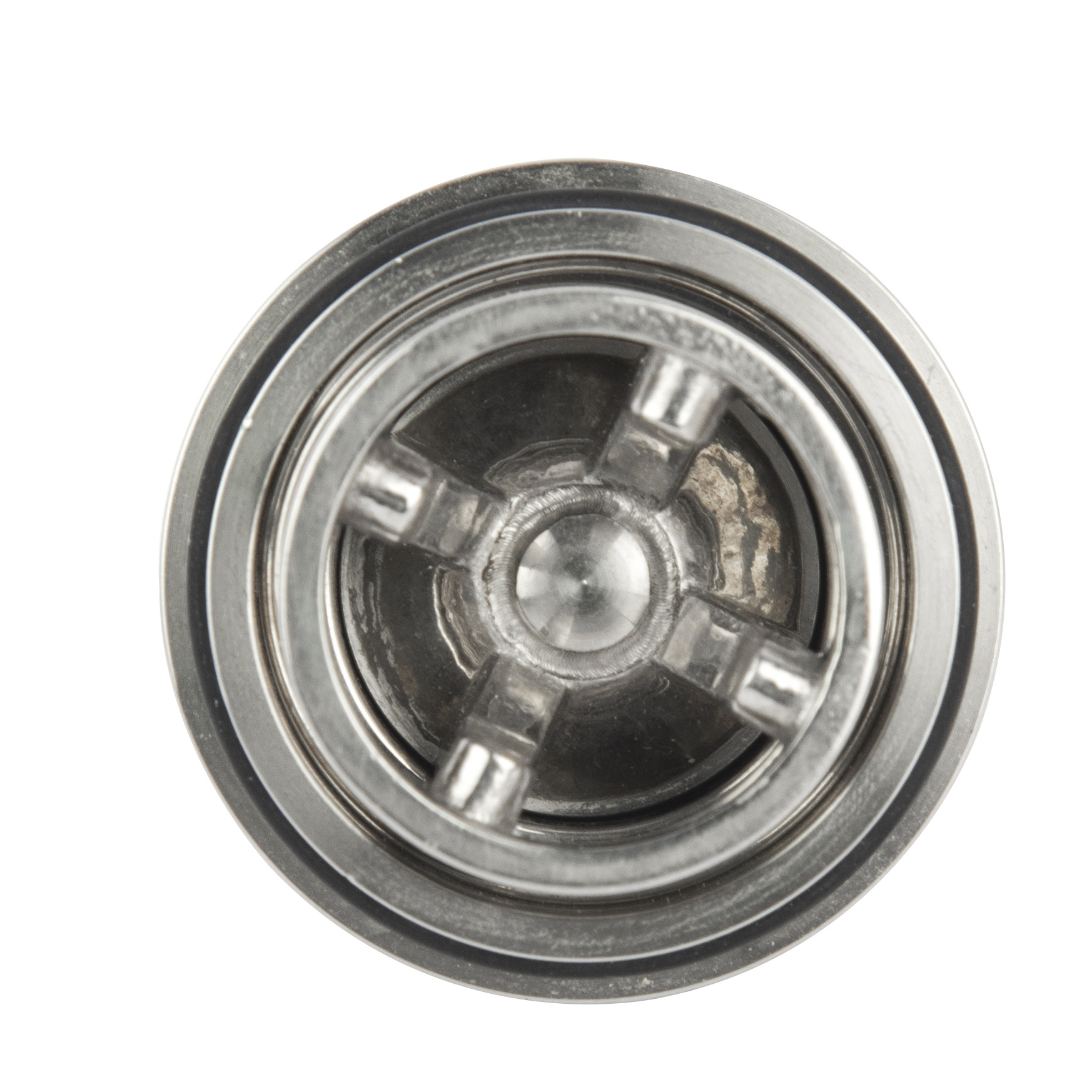

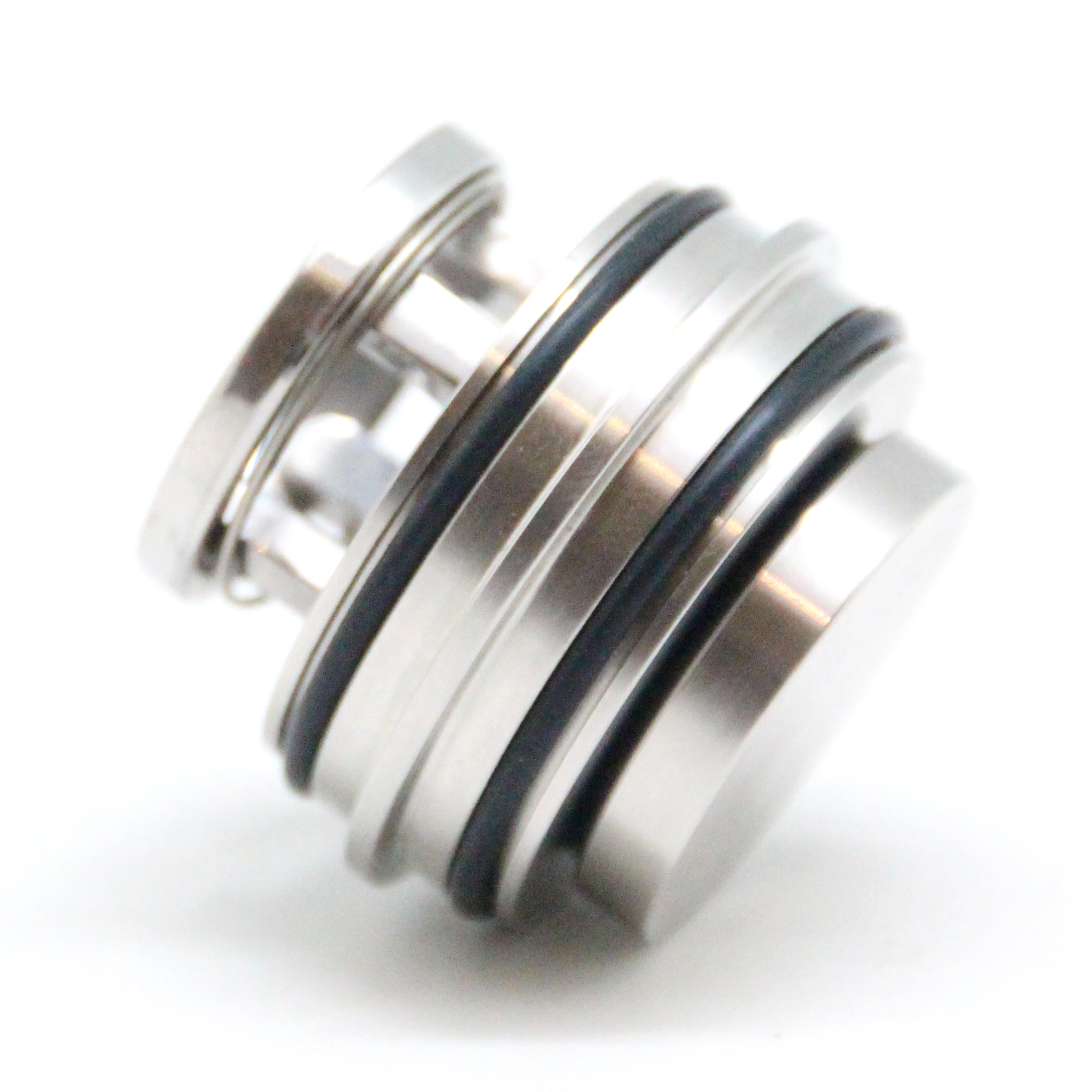

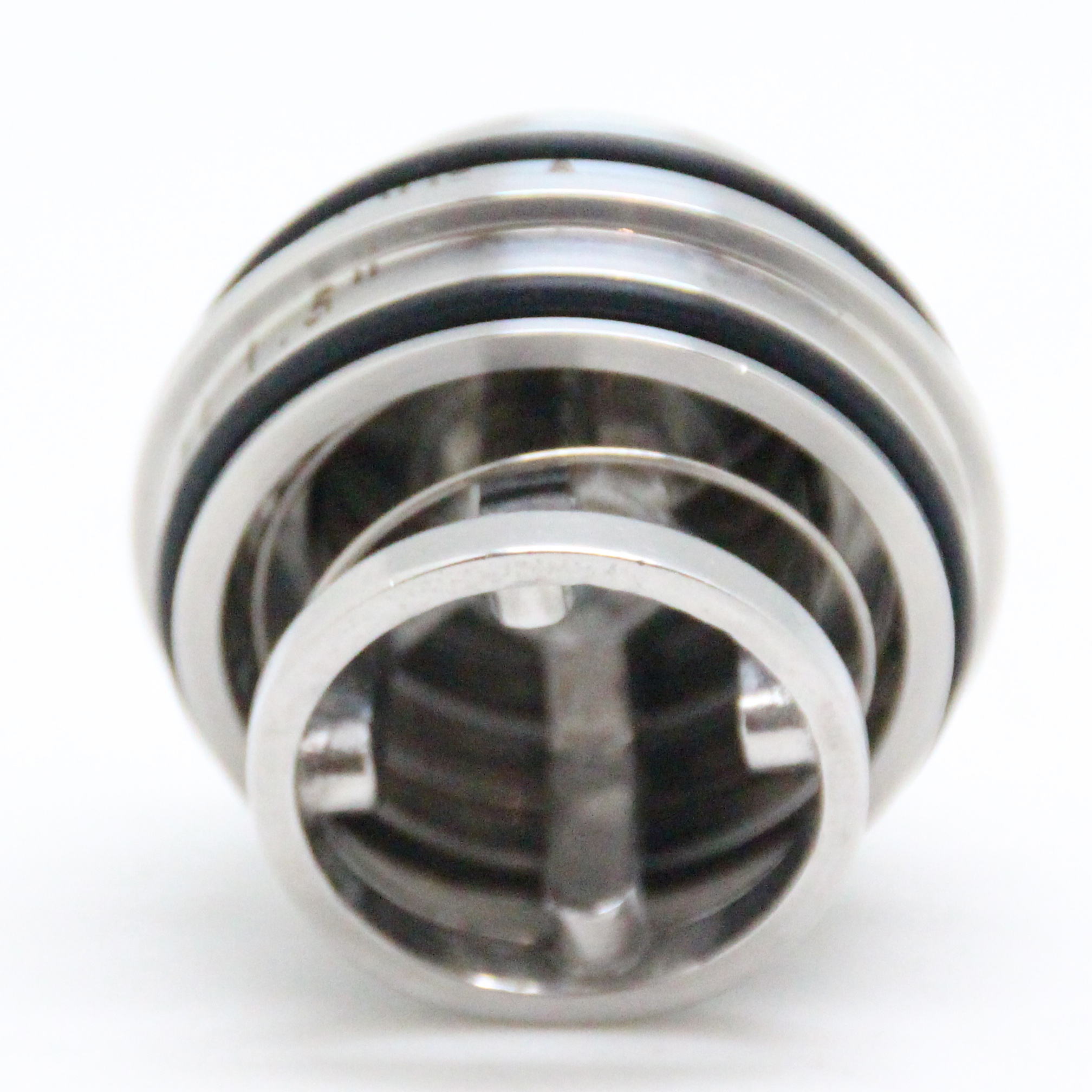

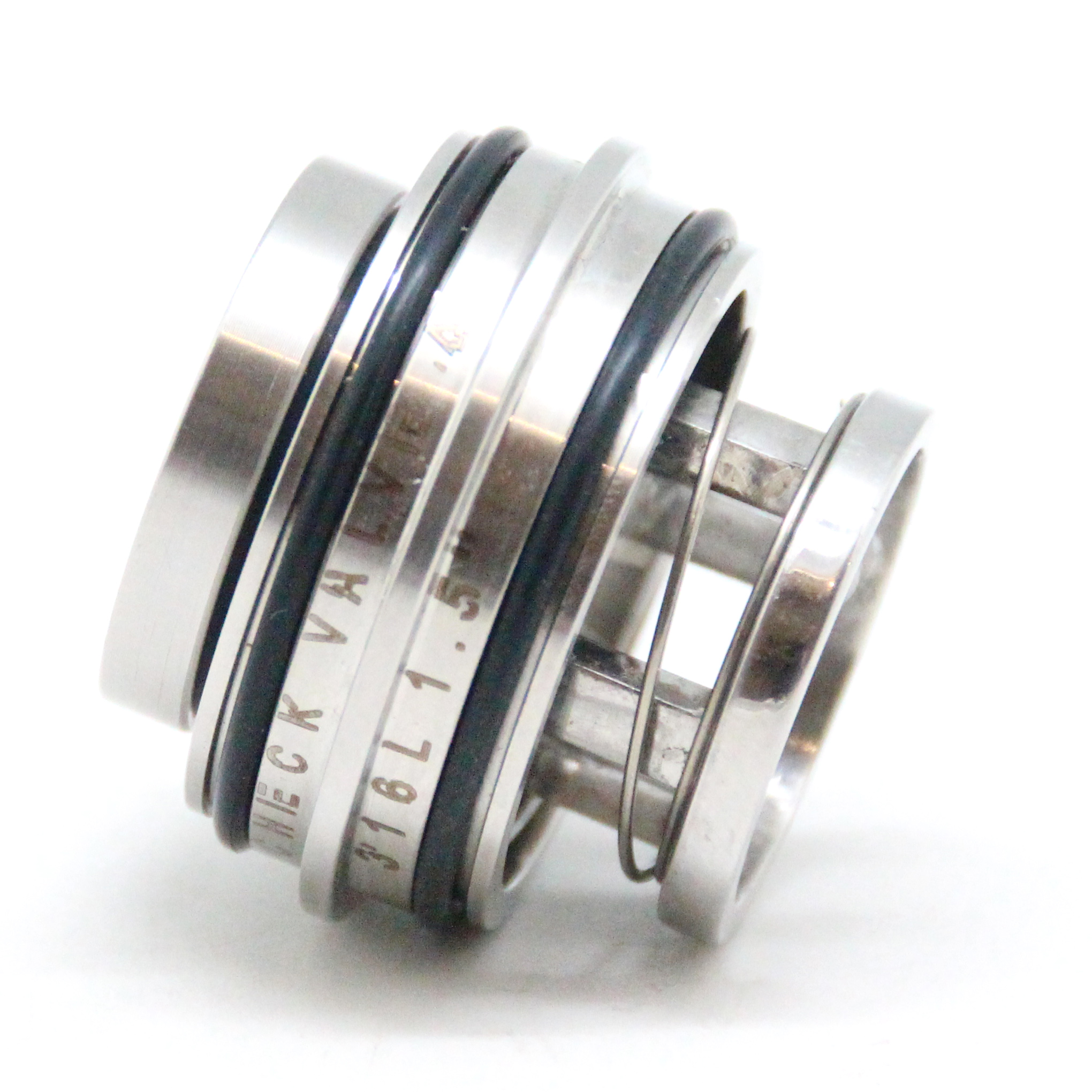

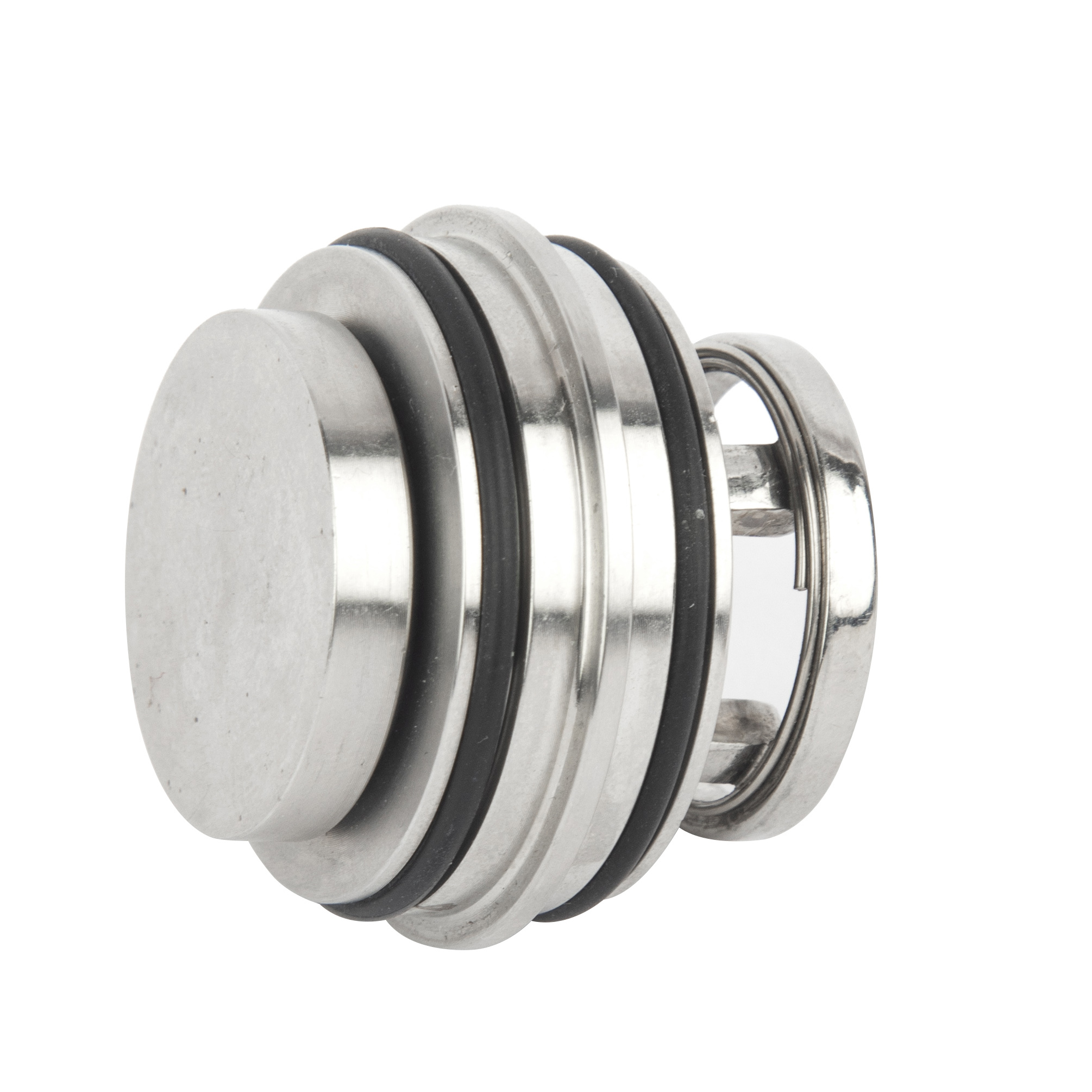

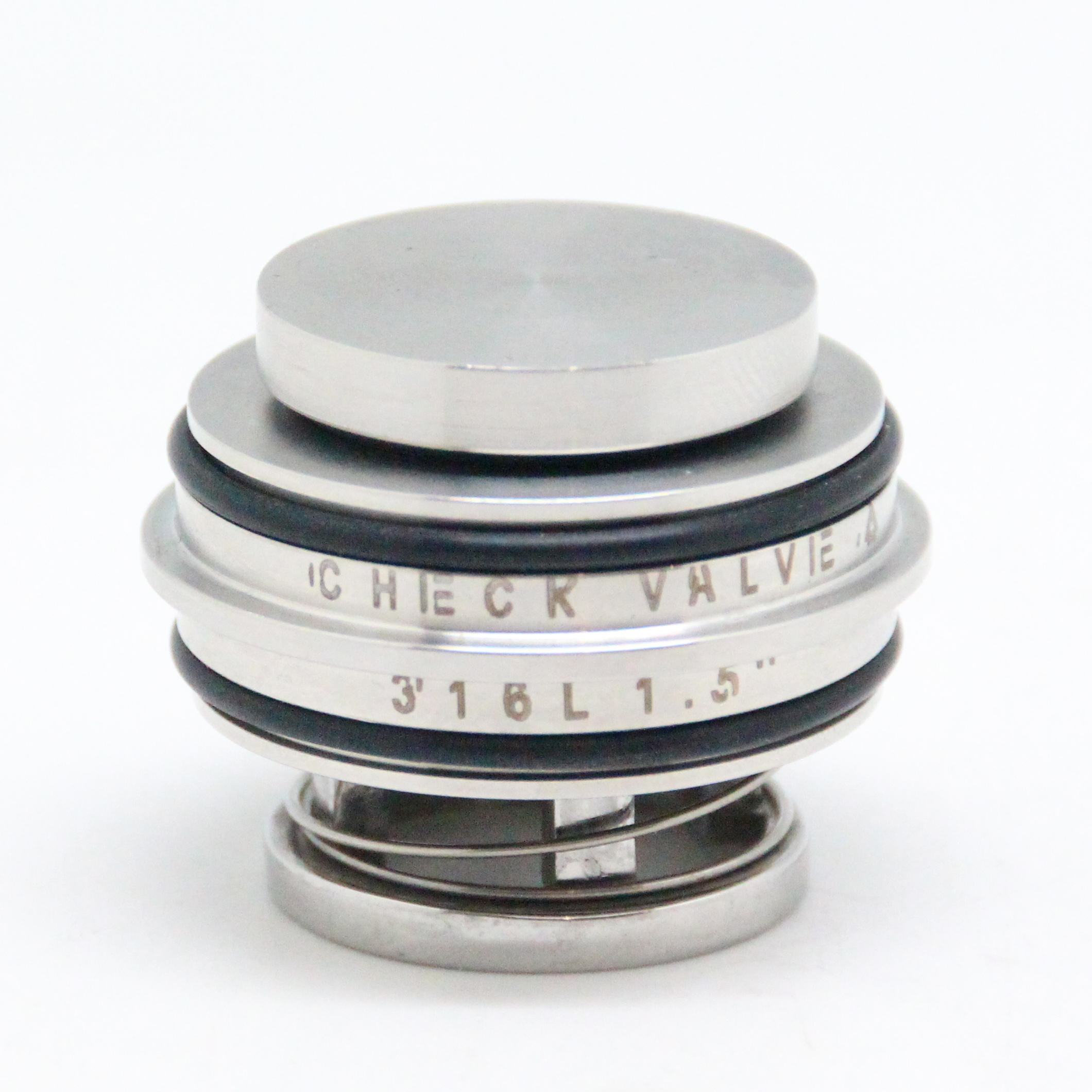

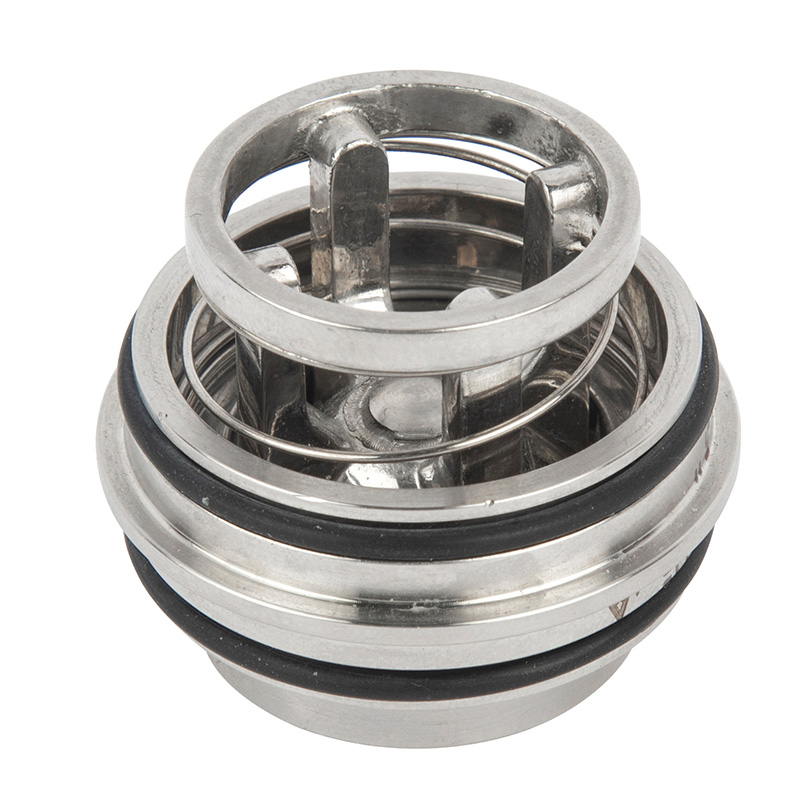

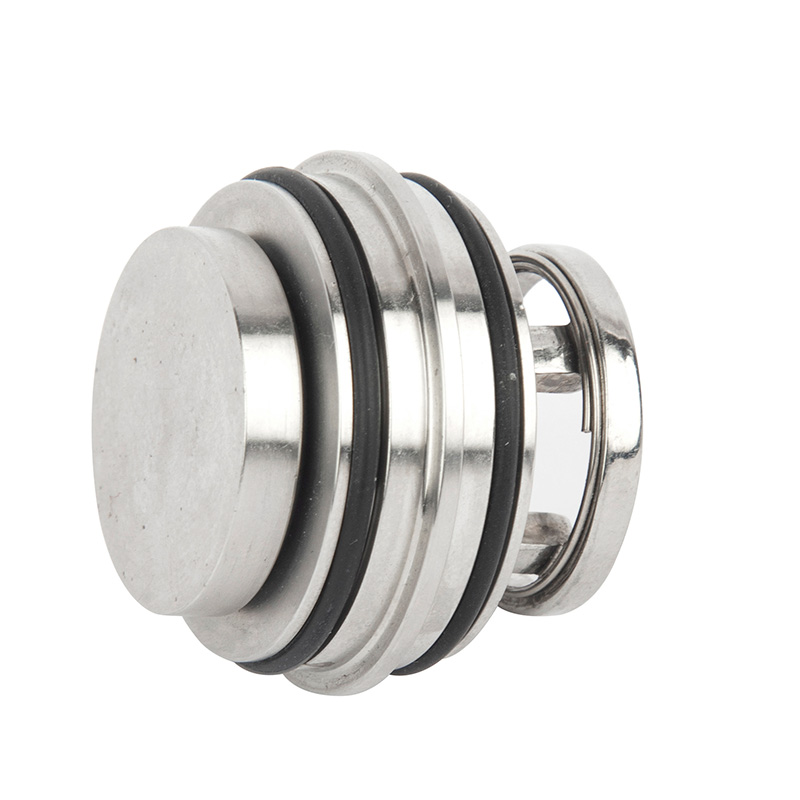

SS316L Stainless Steel Sanitary Insert Check Valve Fits 3A Clamp with EPDM Seal Q/S-Line Fitting

CONCEPT

Insert Check Valve VCP Series are for use with new or existing sanitaryferrules. The SC design seals on the lD of ferrules with replaceable foodgrade seals (Standard is FDA EPDM), the valve fits 3A Clamp fittings, Q-Line and S-Line fittings and others with iD dimensions equal to the “F”dimensions listed below (ferrules not included). The compact SC designfits inside a single fitting and requires no additional space in the line.Its size makes it extremely economical when compared to full-bodied valves.

TECHNICAL DATA

Temperature Range: -0°C to + 121°C

Air Pressure: Min. 1 Bar

MATERIAL

Wetted Steel Parts: SS316L

Spring: SS316L

Wetted Seals: EPDM per FDA 177.2600

Weld Check Valve

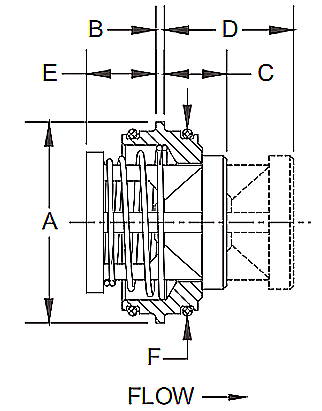

	Model No	Size	A	B	C	D	E	F
	VCP621075	3/4"	19.05	1.65	11	19	7	15.75
	VCP621100	1''	25.4	1.65	12.5	22	7.5	22.1
	VCP621150	1 1/2''	38.1	1.65	12.5	26	16	34.8
	VCP621200	2''	50.8	1.65	15.5	35	16	47.2
	VCP621250	21/2"	63.2	1.65	16.5	39	22	60.2
	VCP621300	3"	76.2	1.65	19	50	32	72.9
	VCP621400	4"	101.6	1.65	22	61	41	97.2
