Name: End Cap Reducer High Quality SS304/SS316L Stainless Steel Sanitary Tri Clamp Flange End Cap Reducer for Food
Brand: QIMING
SKU: 01242
Rating: 4.9 (671 reviews)

End Cap Reducer High Quality SS304/SS316L Stainless Steel Sanitary Tri Clamp Flange End Cap Reducer for Food

Model No.:FBR01

SKU:FBR01

Size.:

Material:

Application

Sanitary clamp fittings are with sanitary clamp ends. They are widely used in pipeline systems for food, dairy, beverage, cosmetic, pharmaceutical, and fine chemical industries.

Materials

Body: AISI-304 and AISI-316L

Standard Design

Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE
End connections: Weld or Tri-clamp
Size available: 1/2"-8" or DN10-DN200

Detailed specifications on the drawing label

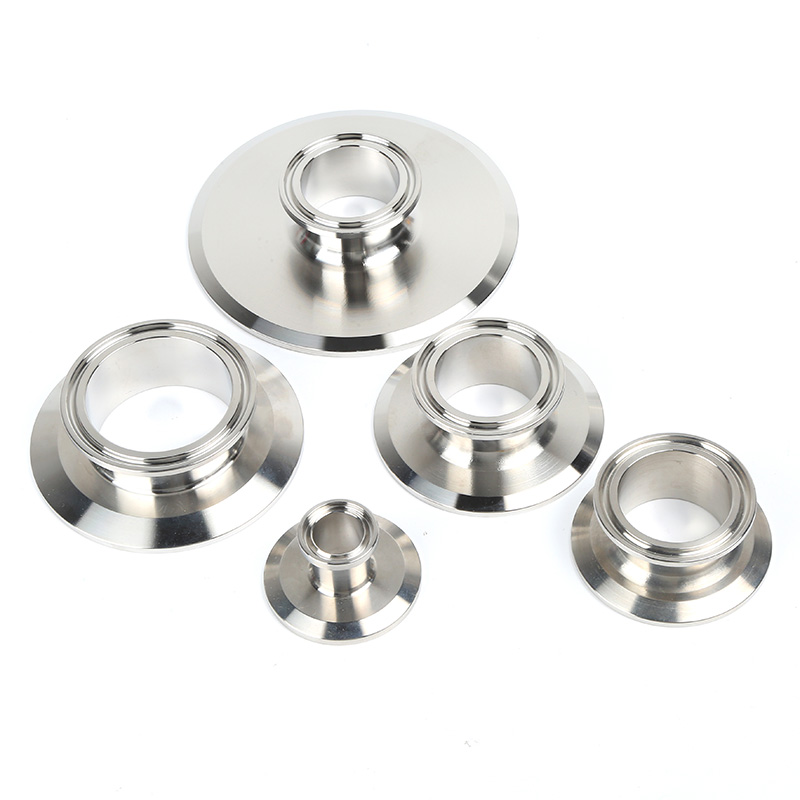

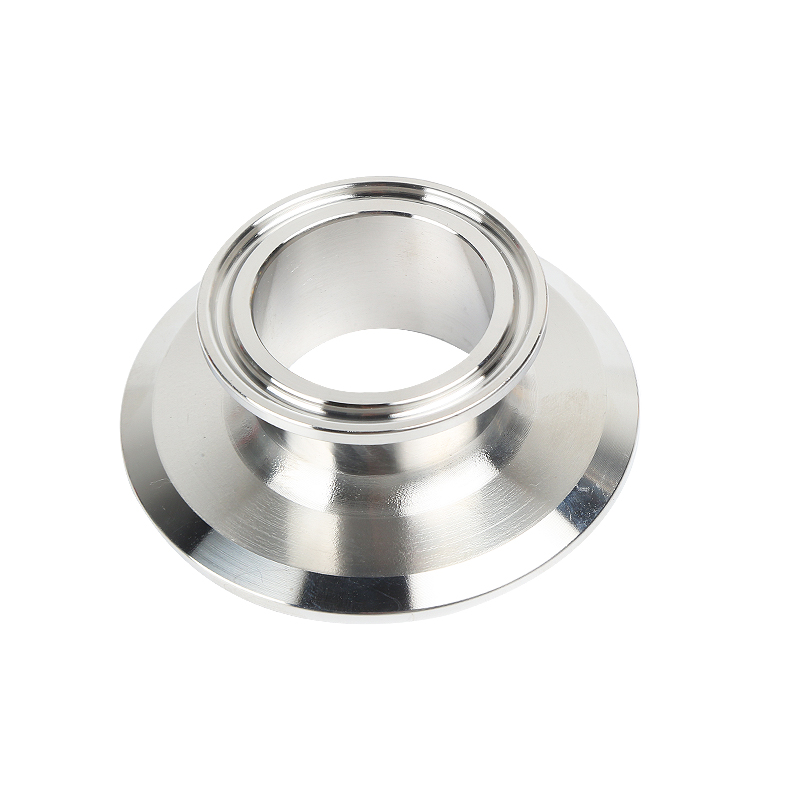

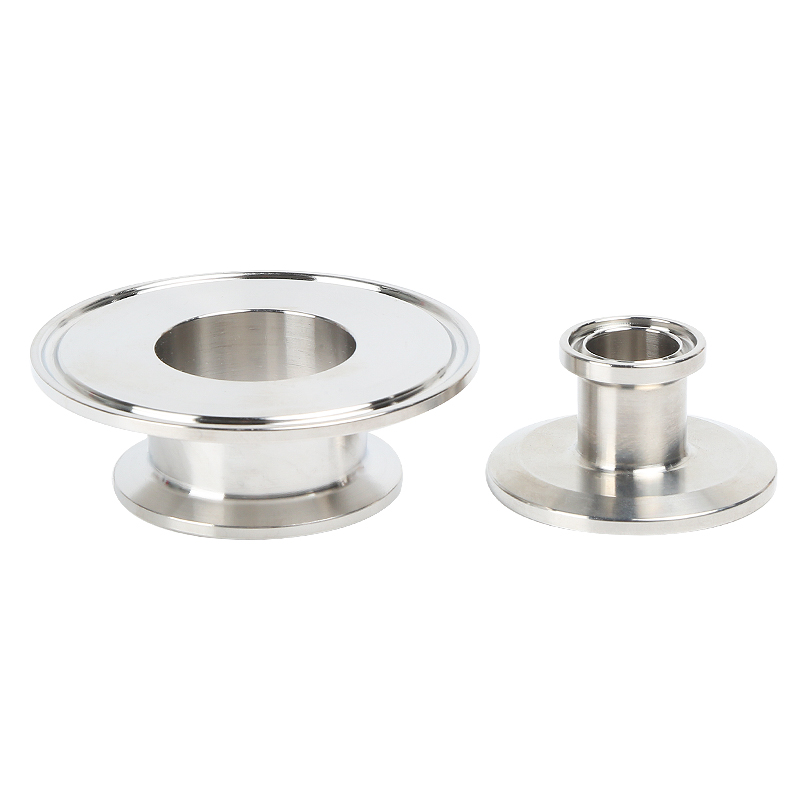

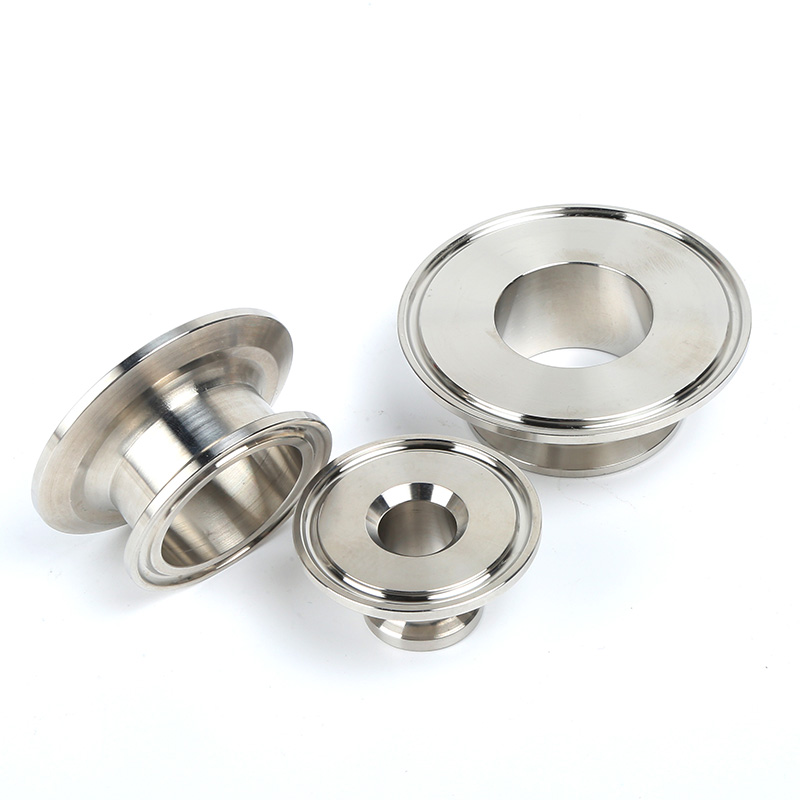

End Cap Reducer

Model for 304	Size	A/mm	B/mm	C/mm	N.W./g
FBR0110750754S1	DN20x3/4"	34	25.2	15.8	40.6
FBR0111500754S1	1.5"x3/4"	50.5	25.2	15.8	81.2
FBR0112001504S1	2"x1.5"	64	50.5	34.8	119.6
FBR0112501504S1	2.5"x1.5"	77.5	50.5	34.8	189
FBR0112502004S1	2.5"x2"	77.5	64	47.5	187.3
FBR0113001504S1	3"x1.5"	91	50.5	34.8	261.4
FBR0113002004S1	3"x2"	91	64	47.5	259.7
FBR0113002504S1	3"x2.5"	91	77.5	57	240.5
FBR0113501504S1	3.5"x1.5"	106	50.5	34.8	392
FBR0113502004S1	3.5"x2"	106	64	47.5	317.5
FBR0113503004S1	3.5"x3"	106	91	57	317.3
FBR0114001504S1	4"x1.5"	119	50.5	34.8	428.4
FBR0114002004S1	4"x2"	119	64	47.5	423.7
FBR0114002504S1	4"x2.5"	119	77.5	57
FBR0114003004S1	4"x3"	119	91	72.9	424.1
FBR0116001504S1	6"x1.5"	167	50.5	34.8
FBR0116002004S1	6"x2"	167	64	47.5
FBR0116002504S1	6"x2.5"	167	77.5	57
FBR0116003004S1	6"x3"	167	91	72.9
FBR0116004004S1	6"x4"	167	119	97.4	1032
FBR0116001504S2	6"x1.5"	183	50.5	34.8	1404
FBR0116002004S2	6"x2"	183	64	47.5
FBR0116002504S2	6"x2.5"	183	77.5	57
FBR0116003004S2	6"x3"	183	91	72.9
FBR0116004004S2	6"x4"	183	119	97.4	1291
FBR0118001504S1	8"x1.5"	217	50.5	34.8
FBR0118002004S1	8"x2"	217	64	47.5
FBR0118002504S1	8"x2.5"	217	77.5	57
FBR0118003004S1	8"x3"	217	91	72.9
FBR0118004004S1	8"x4"	217	119	97.4
