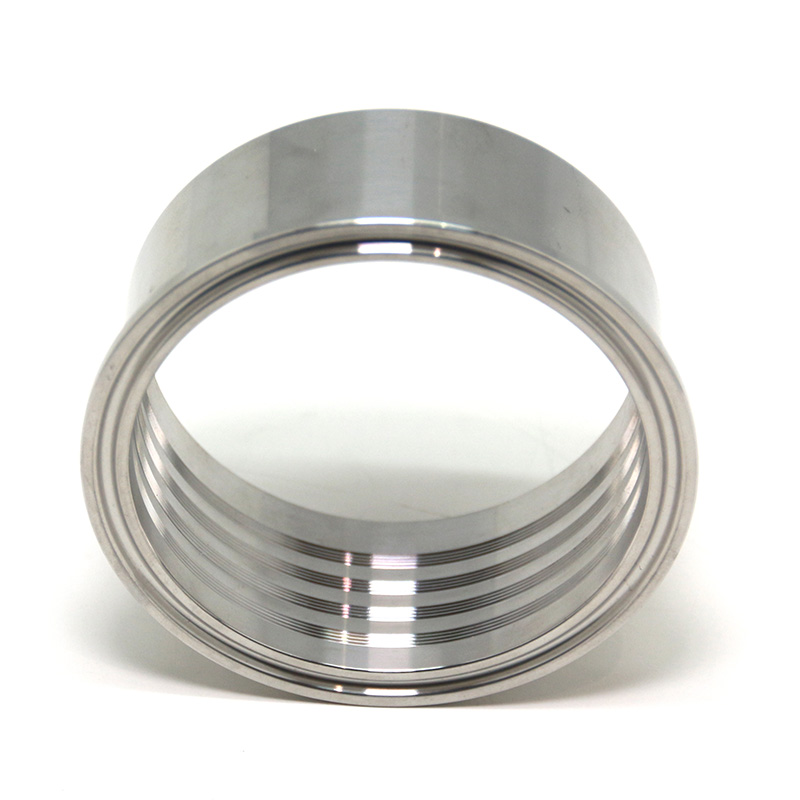

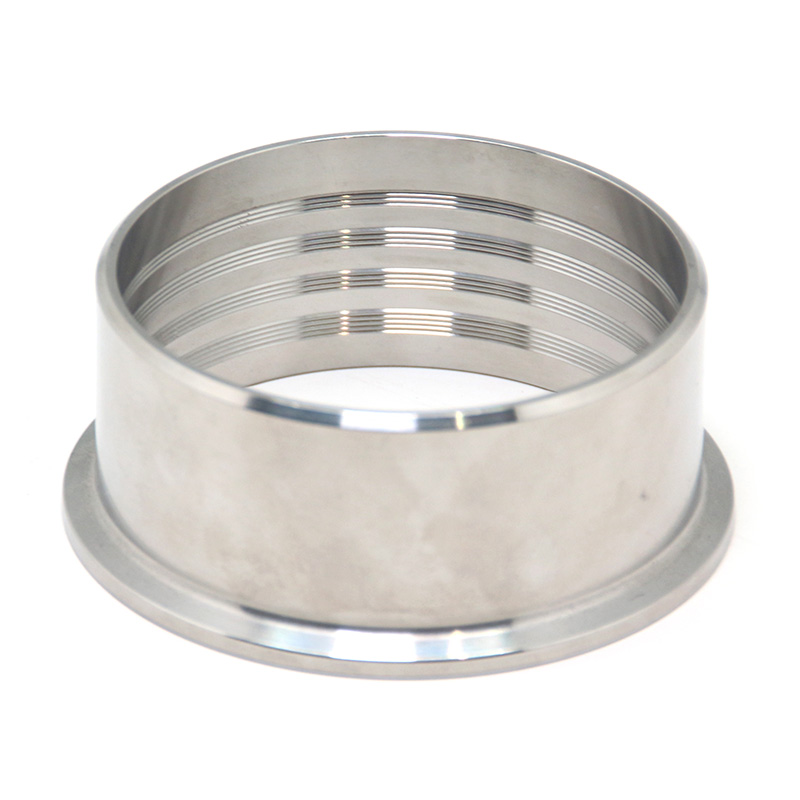

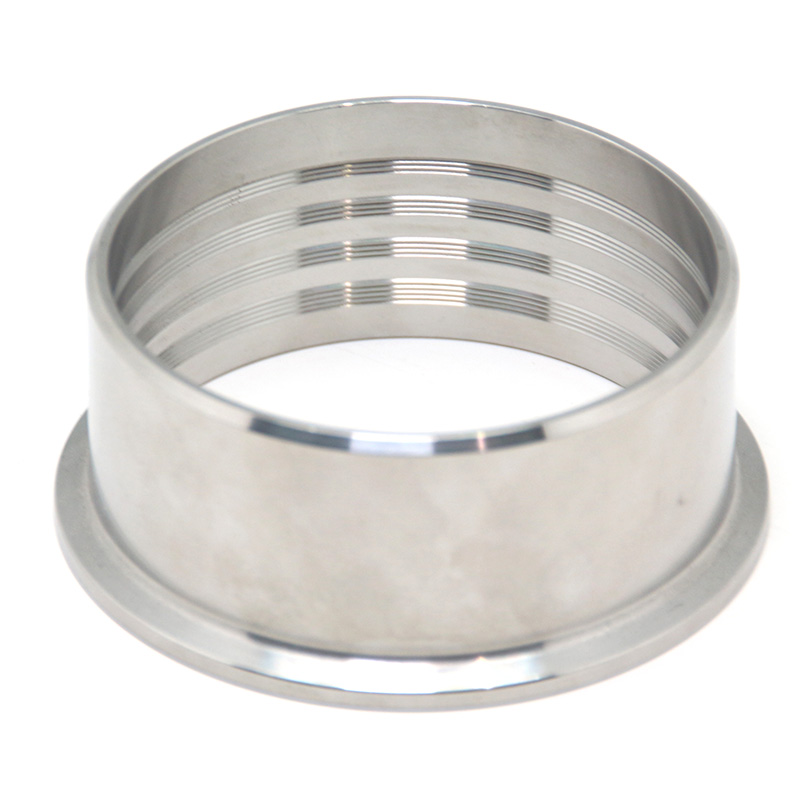

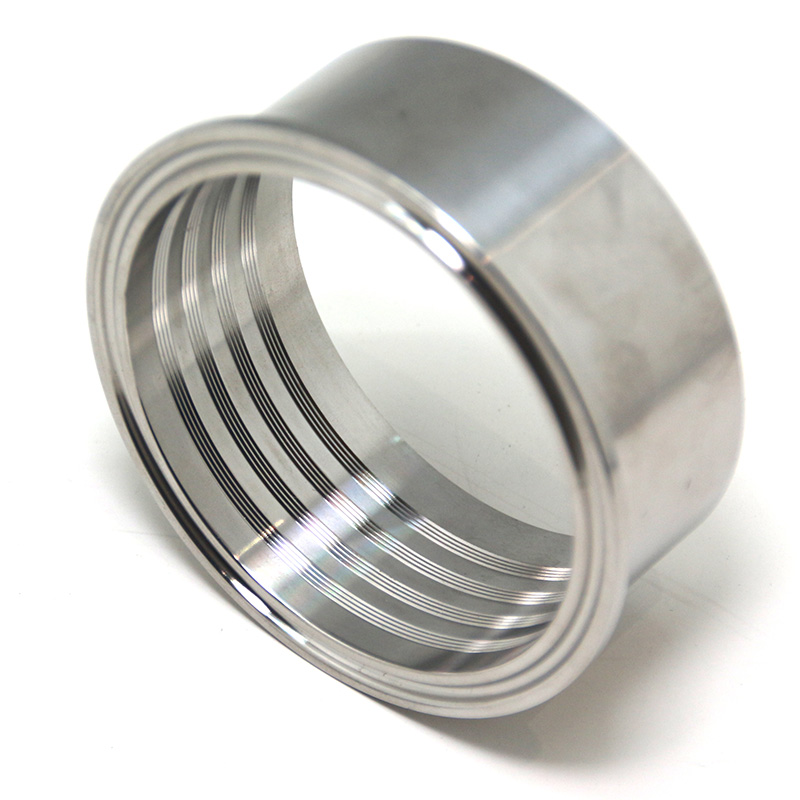

SS304 SS316L Recessless Ferrule(Expanding) EG14R Tri Clamp End Sanitary Recessless Ferrule Style Pipe Fitting

Name: SS304 SS316L Recessless Ferrule(Expanding) EG14R Tri Clamp End Sanitary Recessless Ferrule Style Pipe Fitting
Brand: QIMING
SKU: 01240
Rating: 4.9 (670 reviews)

Model No.:FLE01

SKU:FLE01

Size.:

Material:

Inquire PDF Datasheet

Description

Application

Sanitary clamp fittings are with sanitary clamp ends. They are widely used in pipeline systems for food, dairy, beverage, cosmetic, pharmaceutical, and fine chemical industries.

Materials

Body: AISI-304 and AISI-316L

Standard Design

Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE
End connections: Weld or Tri-clamp
Size available: 1/2"-8" or DN10-DN200

Detailed specifications on the drawing label

Recessless Ferrule(Expanding) EG14R

Model for 304	Size	A/mm	B/mm	C/mm	L/mm	N.W./g
FLE011100	1"	50.5	25.5	29.5	19	81.7
FLE011150	11/2"	50.5	38.2	42.7	28.6	59.0
FLE011200	2"	64	50.9	55.6	33.3	113.4
FLE011250	21/2"	77.5	63.6	68.8	34.9	154.2
FLE011300	3"	91	76.3	81.8	36.5	213.2
FLE011400	4"	119	101.	108.2	38.1	317.5
