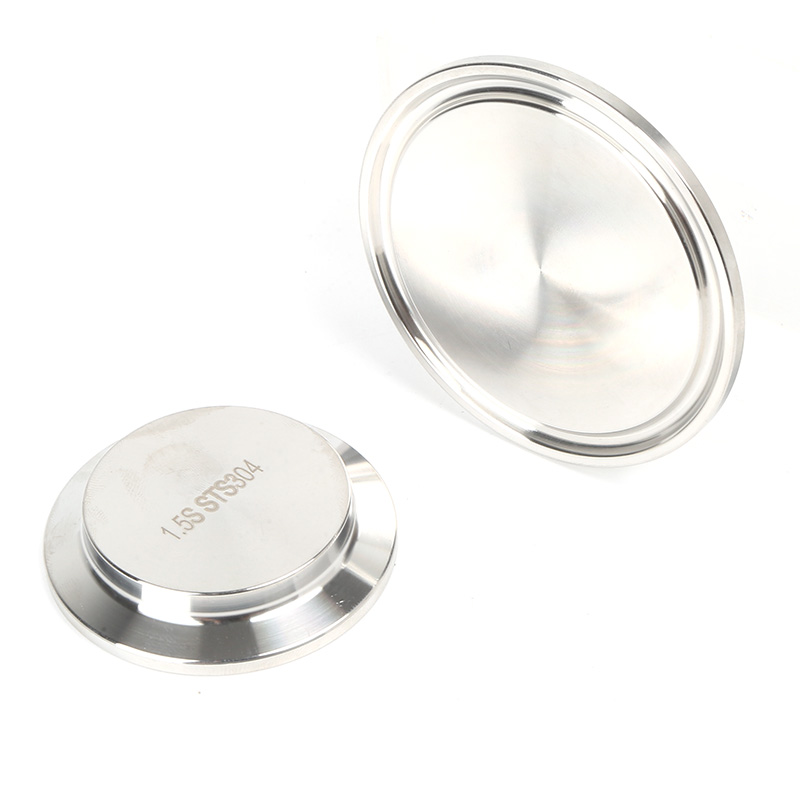

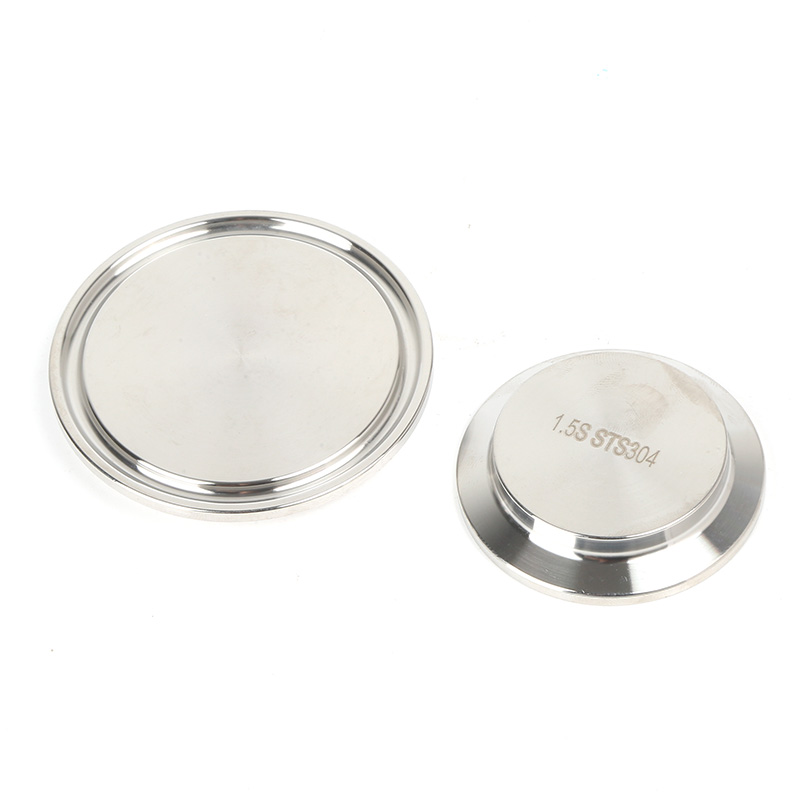

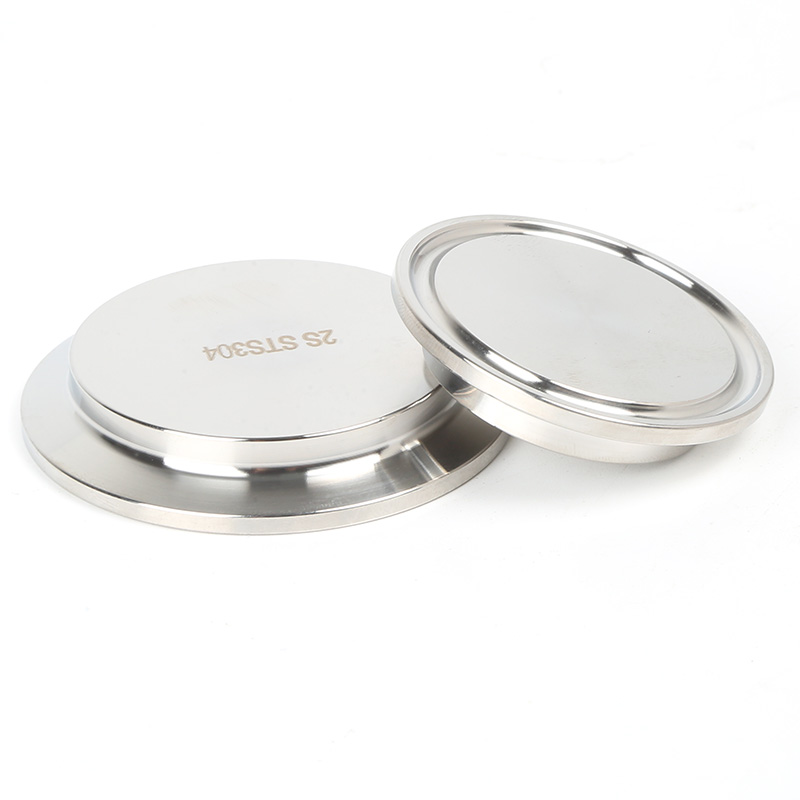

JIS Blank Ferrule SS304 SS316L Korean Style Blank Sanitary Stainless Steel Pipe Fitting

Name: JIS Blank Ferrule SS304 SS316L Korean Style Blank Sanitary Stainless Steel Pipe Fitting
Brand: QIMING
SKU: 01241
Rating: 4.9 (671 reviews)

Model No.:FBB02

SKU:FBB02

Size.:

Material:

Inquire PDF Datasheet

Description

Application

Sanitary clamp fittings are with sanitary clamp ends. They are widely used in pipeline systems for food, dairy, beverage, cosmetic, pharmaceutical, and fine chemical industries.

Materials

Body: AISI-304 and AISI-316L

Standard Design

Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE
End connections: Weld or Tri-clamp
Size available: 1/2"-8" or DN10-DN200

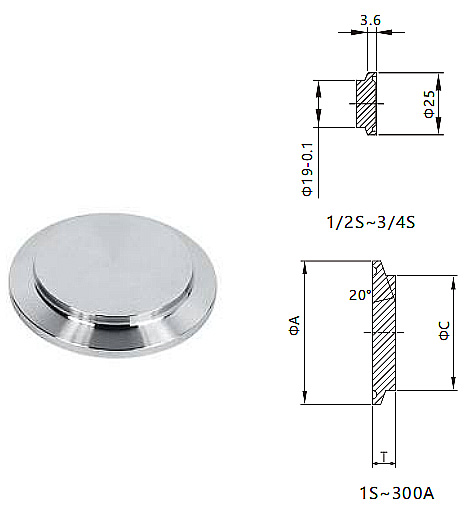

Detailed specifications on the drawing label

JIS Blank Ferrule

Model for 304	Size	A/mm	C/mm	T/mm	N.W./g
FBB025075	1/2S-3/4S	25.2	19	10
FBB025150	1S-1.5S	50.5	42	10
FBB025200	2S	64	55.5	10	200
FBB025250	2.5S	77.5	68.5	10	330
FBB025300	3S	91	81.5	10	460
FBB025400	4S	119	107.5	10	640
FBB02580A	80A	106	94	10	820
FBB025100A	100A	130	118	10	1000
FBB025125A	125A	163.5	145	11
FBB025150A	150A	185	170	11
FBB025200A	200A	240	220	11
FBB025250A	250A	296		11
FBB025300A	300A	350		11

Related products

Solid Hastelloy C276 Sanitary Ferrule End Cap Tri Clamp Fittings Food Grade Strong Corrosion Resistance Blank

Sanitary stainless steel Clamps, the most popular type of fittings used in sanitary processes today. They...

Inquire

End Cap Reducer High Quality SS304/SS316L Stainless Steel Sanitary Tri Clamp Flange End Cap Reducer for Food

Sanitary stainless steel Clamps, the most popular type of fittings used in sanitary processes today. They...

Inquire

SS304 SS316L Recessless Ferrule(Expanding) EG14R Tri Clamp End Sanitary Recessless Ferrule Style Pipe Fitting

Sanitary stainless steel Clamps, the most popular type of fittings used in sanitary processes today. They...

Inquire

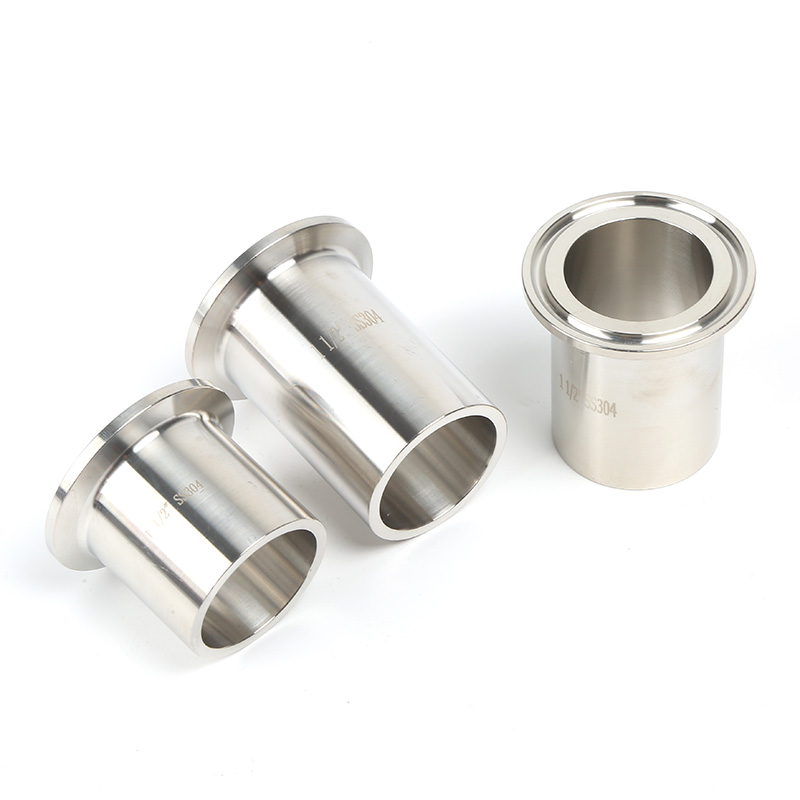

Tank Ferrule (Heavy Duty) 14MPW SS304 SS316L Stainless Steel Sanitary Tri Clamp/Weld Customized CNC Pipe Fitting
