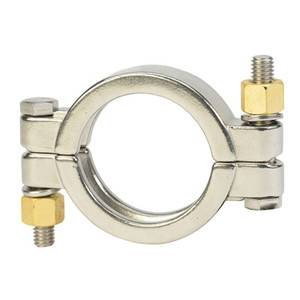

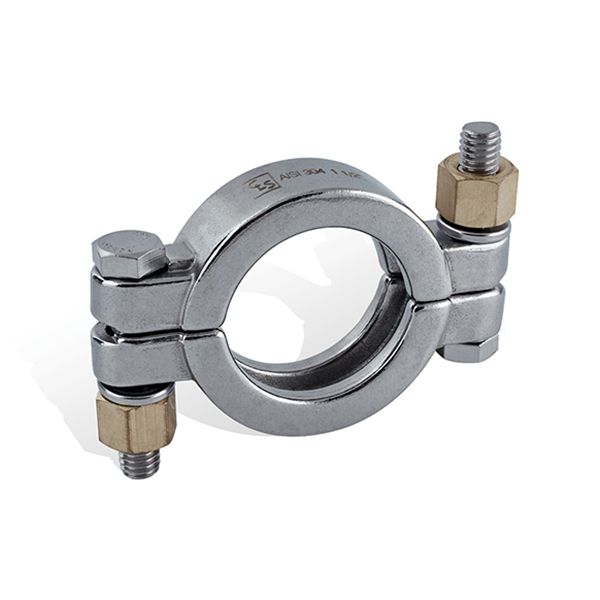

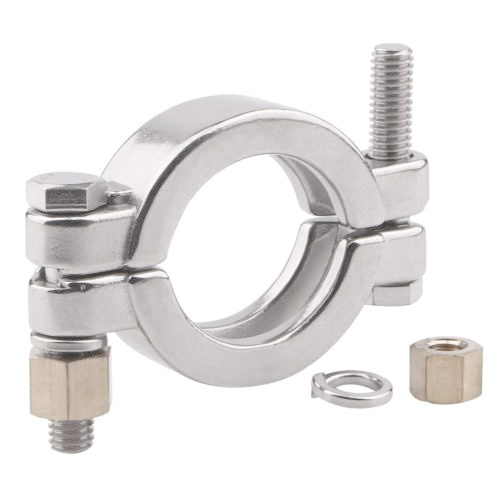

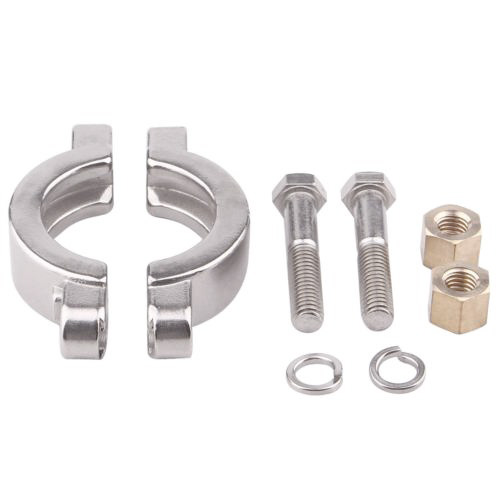

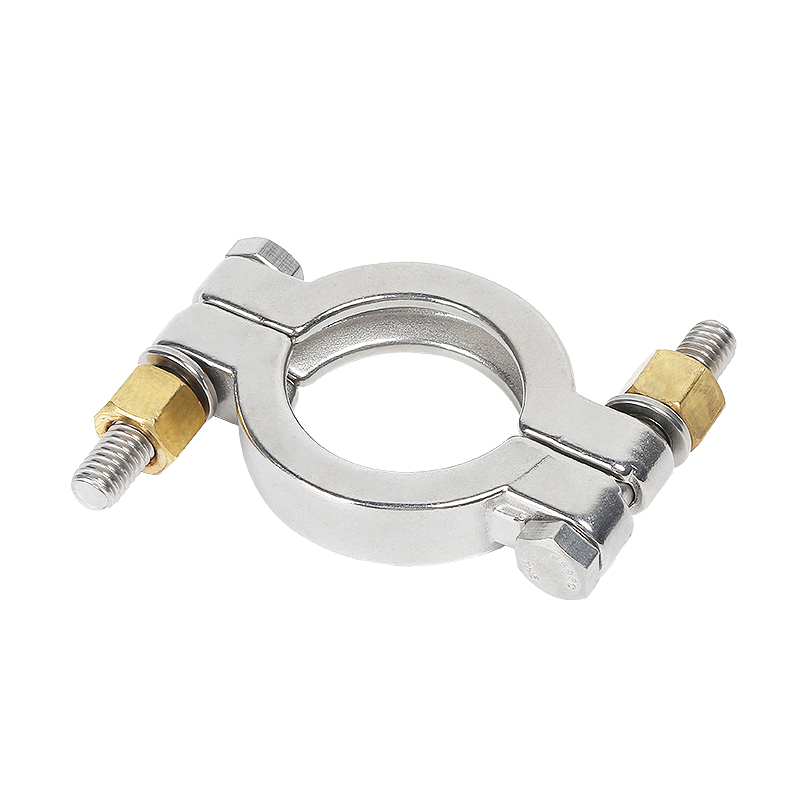

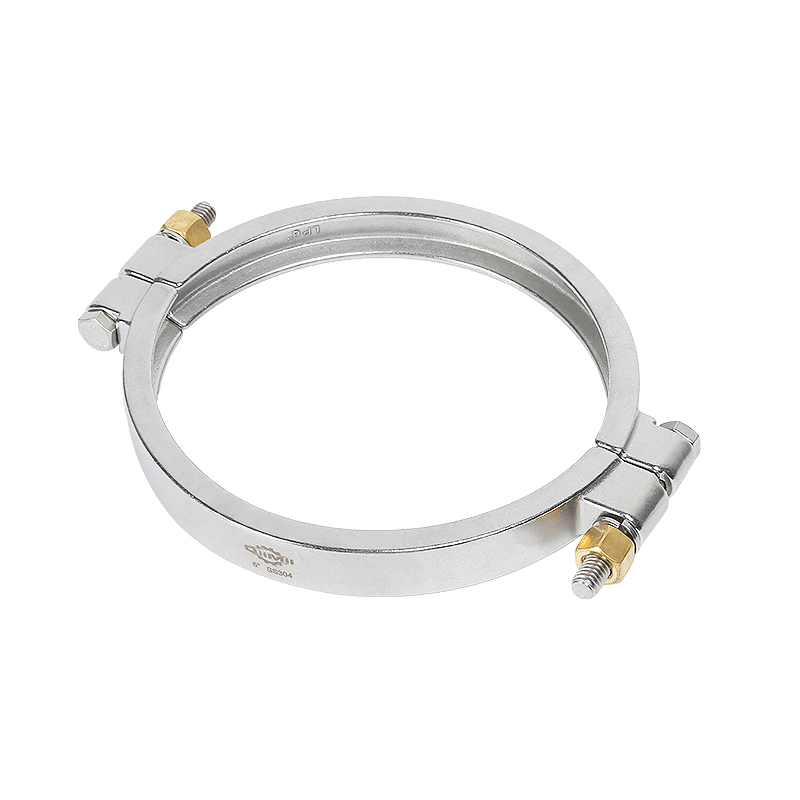

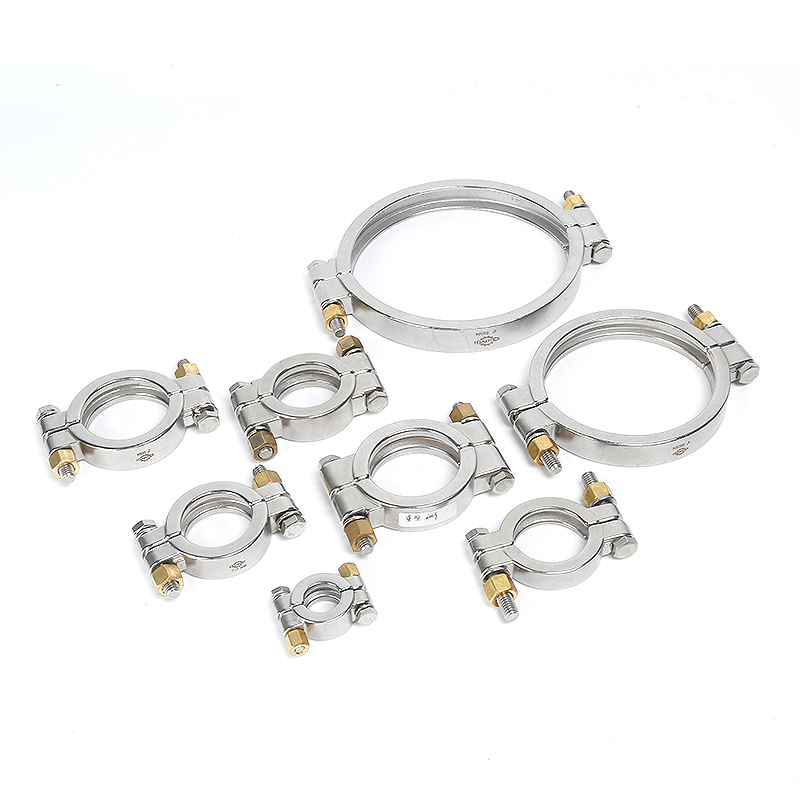

Saintary 13MHP High Pressure Clamp
Saintary 13MHP High Pressure Clamp
Saintary 13MHP High Pressure Clamp
Saintary 13MHP High Pressure Clamp

Saintary 13MHP High Pressure Clamp

Model:FCH01

Inquire Now PDF Datasheet

Application

Sanitary stainless steel Clamps, the most popular type of fittings used in sanitary processes today. They are designed for fit needs at various circumstances and used with a gasket and two clamp compatible fittings to make a connection.

Materials

  • Body: AISI-304, 316L

Standard Design

  • Size available: 1/2"-8" or DN10-DN200

  • Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE

  • End connections: Weld or Tri-clamp

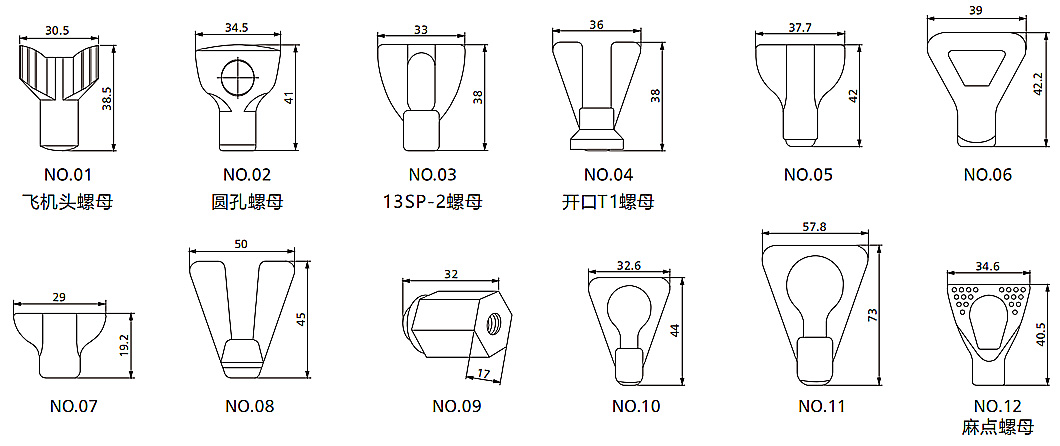

Detailed specifications on the drawing label

13MHP High Pressure Clamp

Model Size A/mm B/mm For Ferrule Flange OD N.W./g
3A DIN32676
FCH011075 1/2"-3/4" 1 20 28 25.2 140
FCH012020 / DN10-DN20 27.5 43 34 315
FCH011150 1"-1.5" DN25-DN40 42.3 52 50.5 390
FCH011200 2" DN50 56.4 65.5 64 450
FCH011250 2.5" / 69.5 79 77.5 510
FCH011300 3" DN65 77.5 92.5 91 600
FCH011350 3.5" DN80 102 108 106 660
FCH011400 4" DN100 108.8 120.5 119 730
FCH011450 4.5" / 124 133 130 667
FCH011550 5" DN125 135.5 148 144.5 681/721
FCH011550      ⌀140          / 149 158 155 762
FCH011600 6" DN150 158 170 167 780
FCH011625 ⌀159 / 177 187 183 840/890
FCH011800 8" DN200 206 220 217.4 1090
FCH011850 ⌀219 / 232 237 233 1210
FCH0111000 10" DN250 258 273 268 1580
FCH0111050 10.5" / 282 289 286 /
FCH0111200 12" DN300 309 327.6 319 1990
