Sanitary 13MHHS Heavy Duty Three Pieces Clamps

Application

Sanitary stainless steel Clamps, the most popular type of fittings used in sanitary processes today. They are designed for fit needs at various circumstances and used with a gasket and two clamp compatible fittings to make a connection.

Materials

• Body: AISI-304, 316L

Standard Design

• Size available: 1/2"-8" or DN10-DN200

• Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE

• End connections: Weld or Tri-clamp

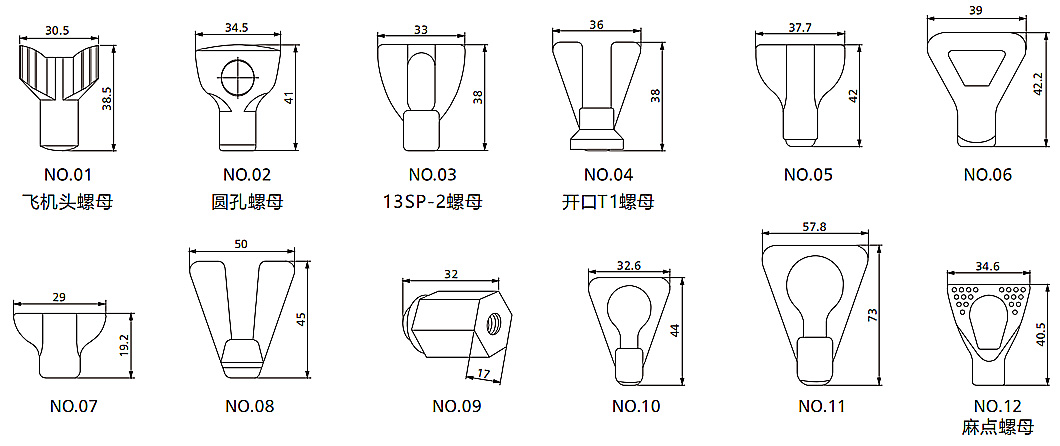

Detailed specifications on the drawing label

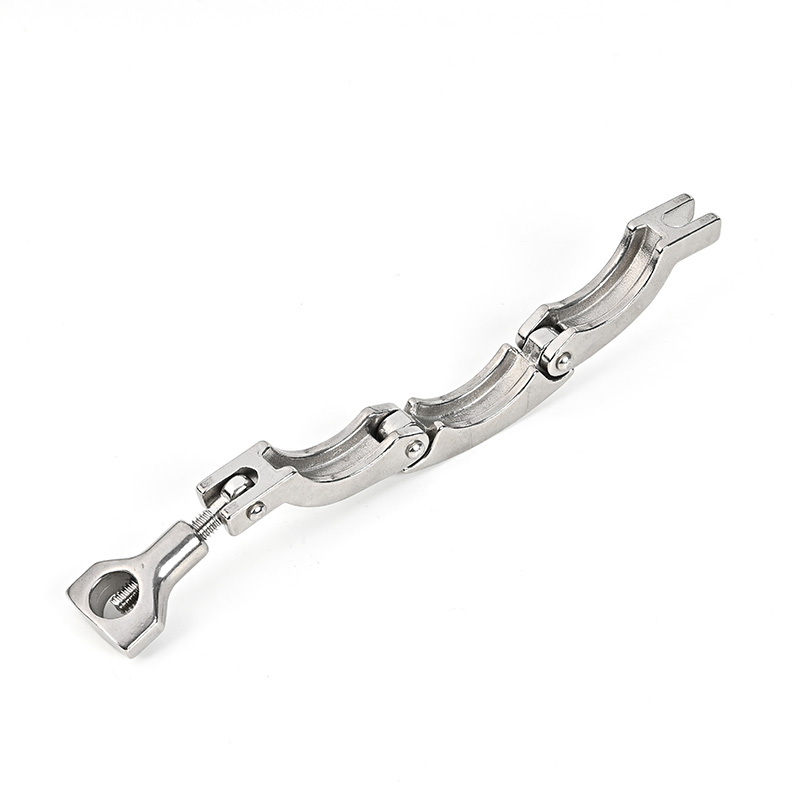

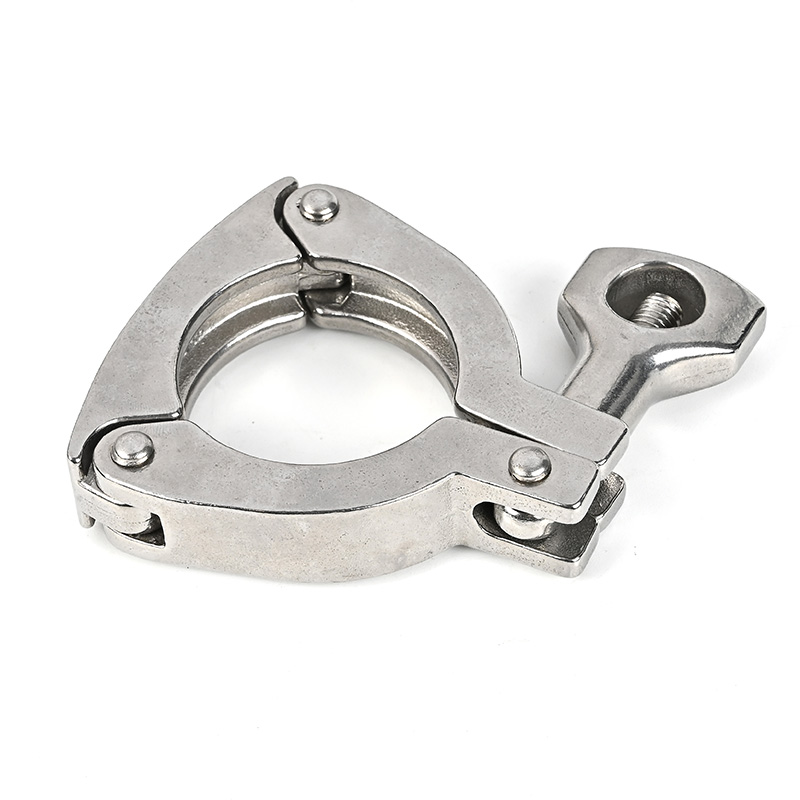

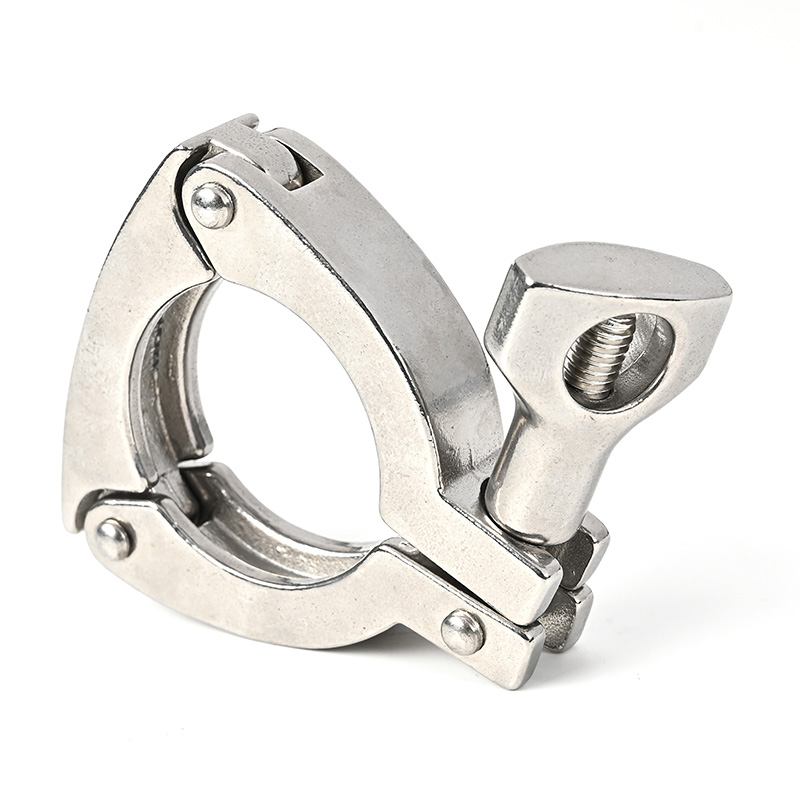

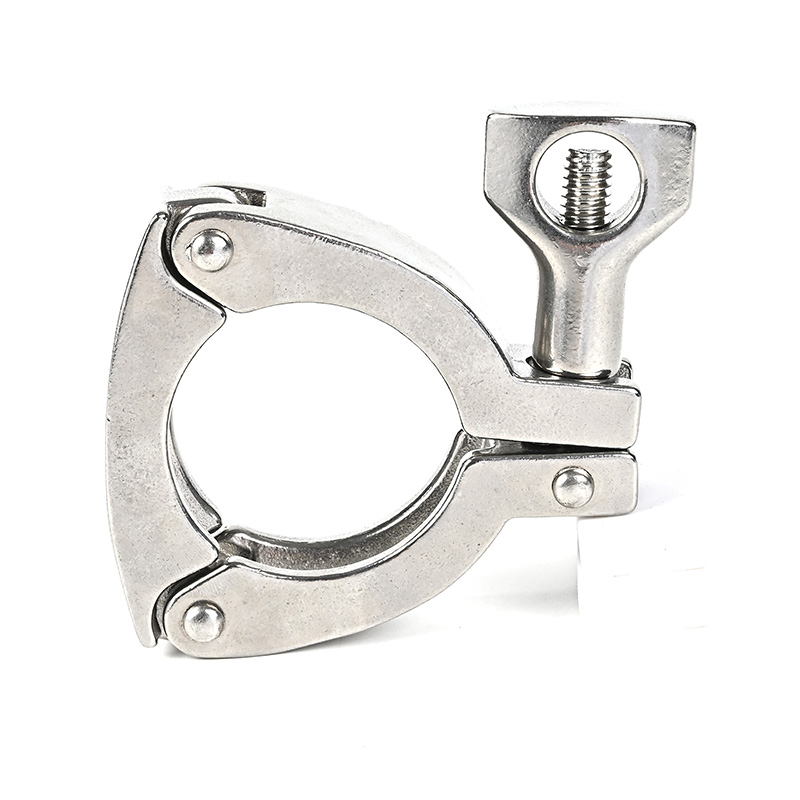

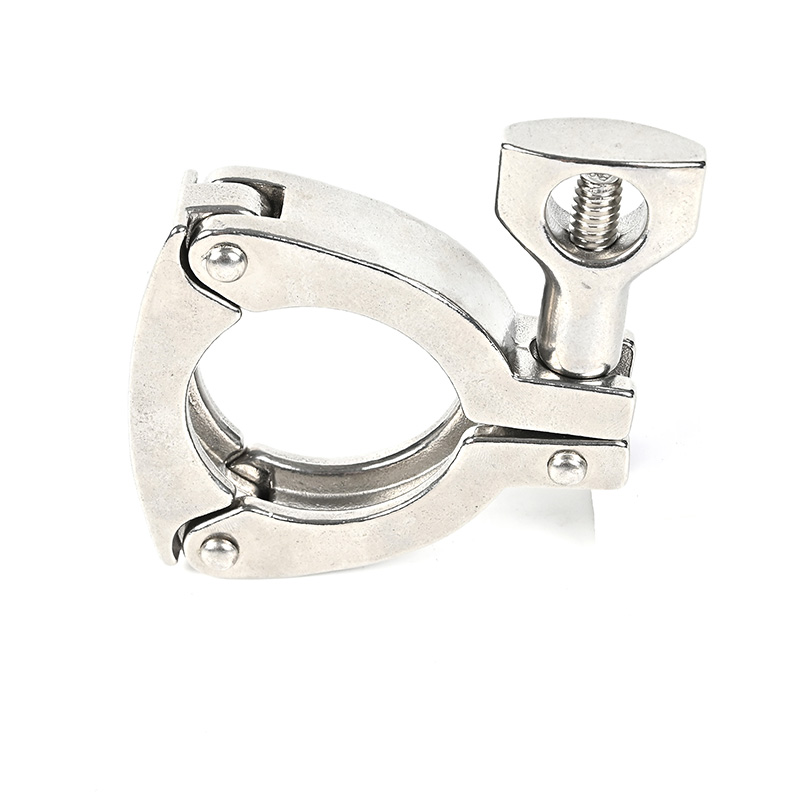

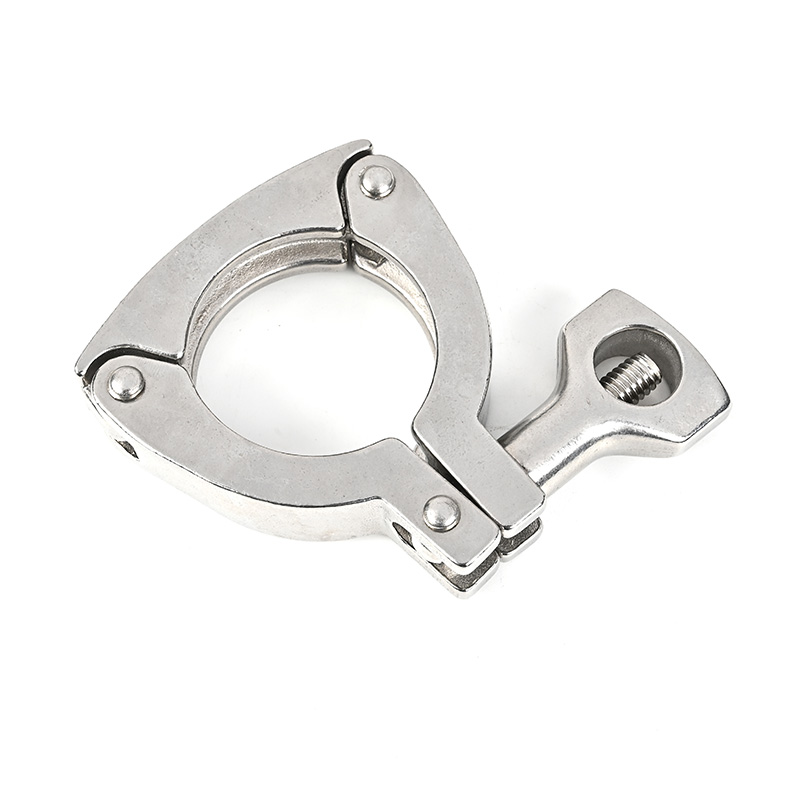

13MHHS Heavy Duty Three Pieces Clamps

	Model	Size		B/mm	For Ferrule Flange OD	N.W./g
		3A	DIN32676
	FCM011075	1/2"-3/4"	/	30	25.2	220
	FCM011150	1"-1.5"	DN25-DN40	56	50.5	330
	FCM011200	2"	DN50	69.5	64	380
	FCM011250	2.5"	/	83	77.5	440
	FCM011300	3"	DN65	96.5	91	500
	FCM011400	4"	DN100	124.5	119	620
	FCM011600	6‘	DN150	170.4	167	1410
	FCM011800	8"	DN200	220	217.4	1700
	FCM0111000	10"	DN250	272	268	2050
	FCM0111200	12'	DN300	323	319	2300
