Sanitary 13IS I-line Clamp with Wing Nut
Sanitary 13IS I-line Clamp with Wing Nut
Sanitary 13IS I-line Clamp with Wing Nut
Sanitary 13IS I-line Clamp with Wing Nut
Sanitary 13IS I-line Clamp with Wing Nut

Sanitary 13IS I-line Clamp with Wing Nut

Model:FCB02

Inquire Now PDF Datasheet

Application

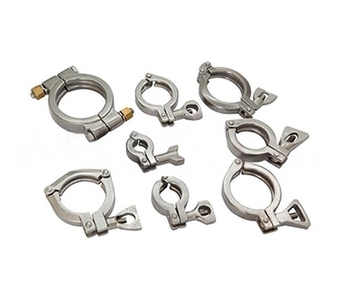

Sanitary stainless steel Clamps, the most popular type of fittings used in sanitary processes today. They are designed for fit needs at various circumstances and used with a gasket and two clamp compatible fittings to make a connection.

Materials

  • Body: AISI-304, 316L

Standard Design

  • Size available: 1/2"-8" or DN10-DN200

  • Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE

  • End connections: Weld or Tri-clamp

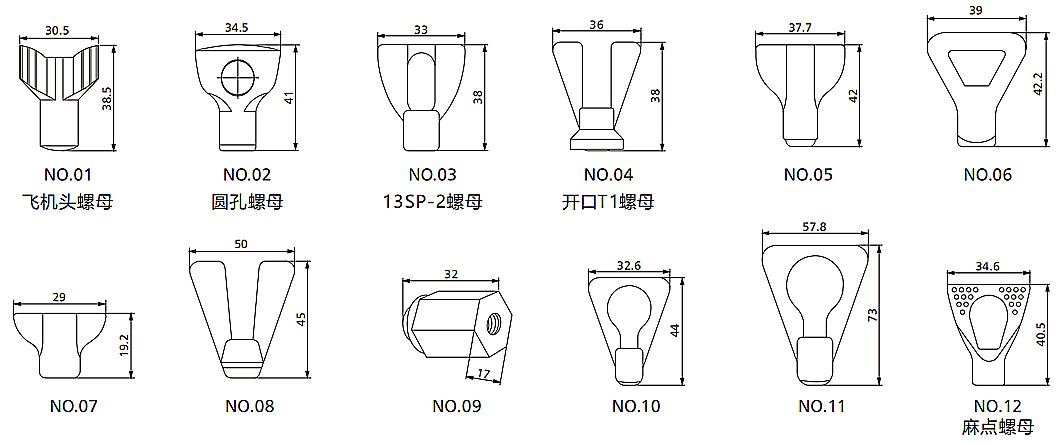

Detailed specifications on the drawing label

13IS I-line Clamp with Wing Nut

Model Size B/mm For Ferrule Flange OD N.W./g
FCB021150 1"-1.5" 54 50.42 258
FCB021200 2" 71.4 67.05 346
FCB021250 2.5" 88.9 84 492
FCB021300 3" 103.2 98.3 548
FCB021400 4" 127 123.7 650
FCB021600 6" 195.3 190.37 1435
FCB021800 8" 246 241.17 1820
