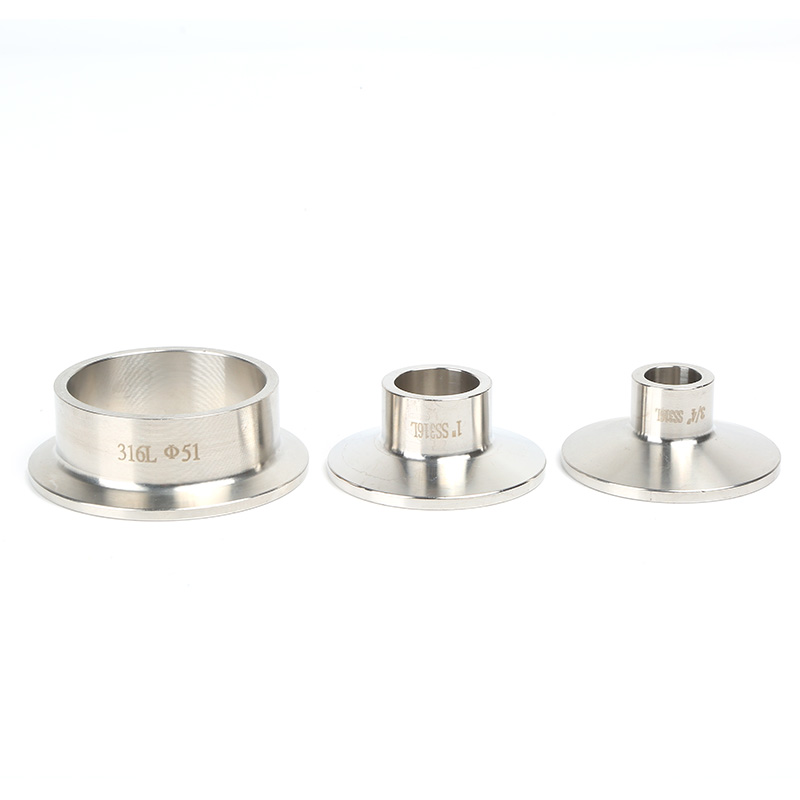

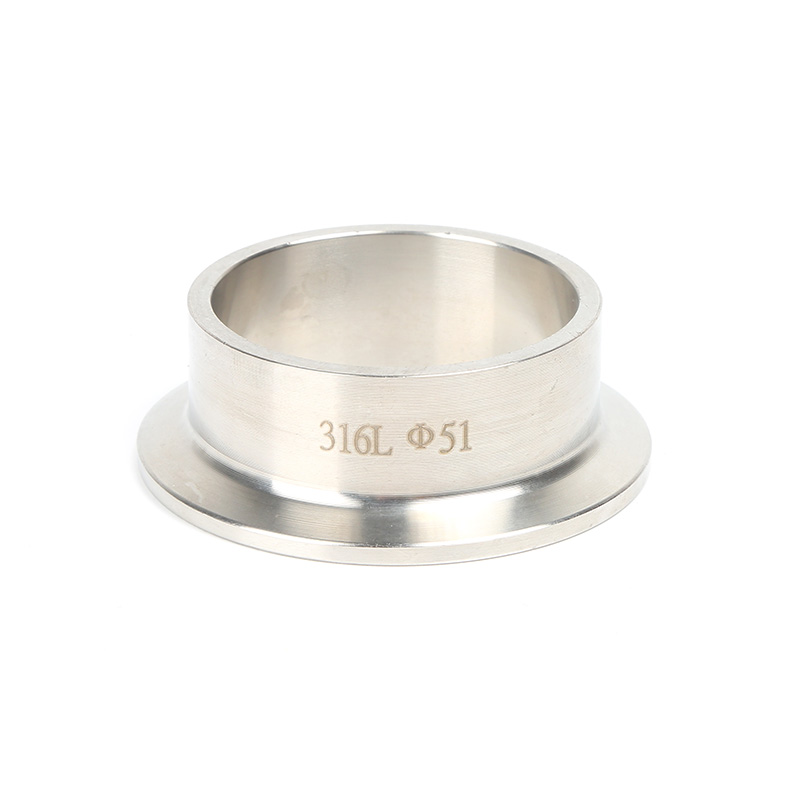

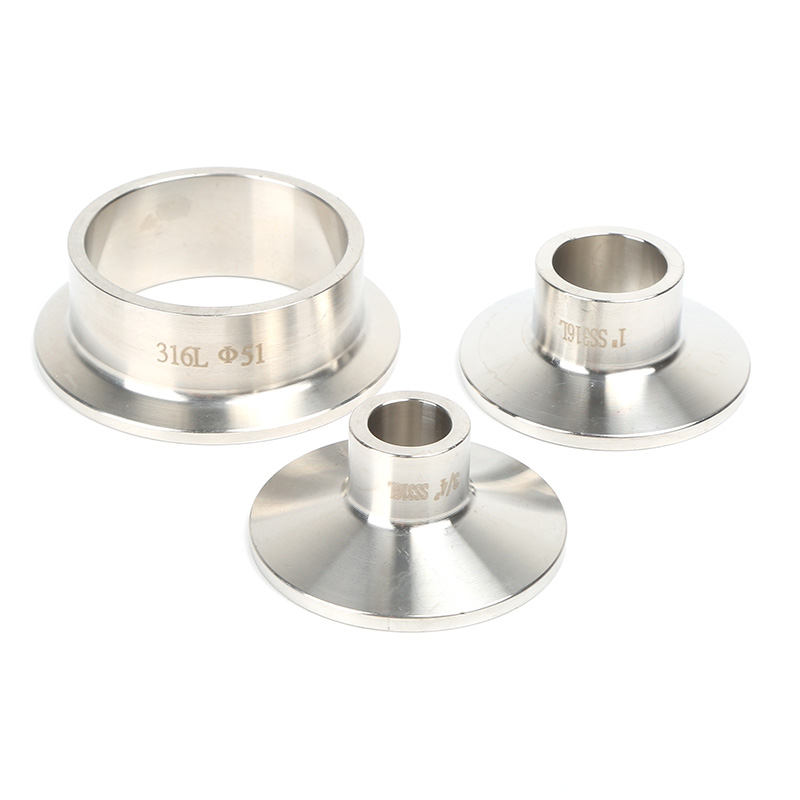

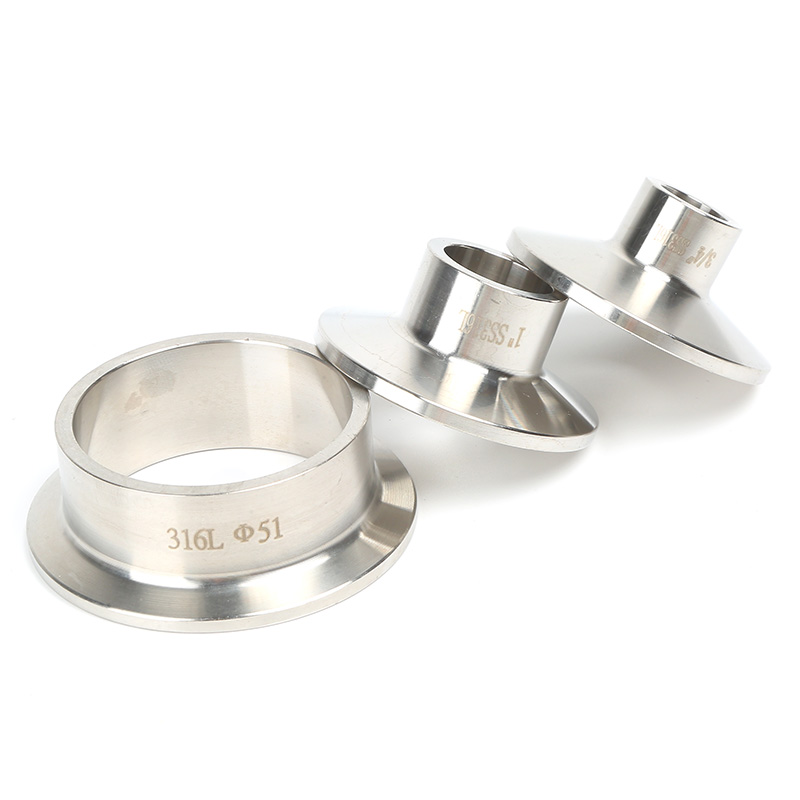

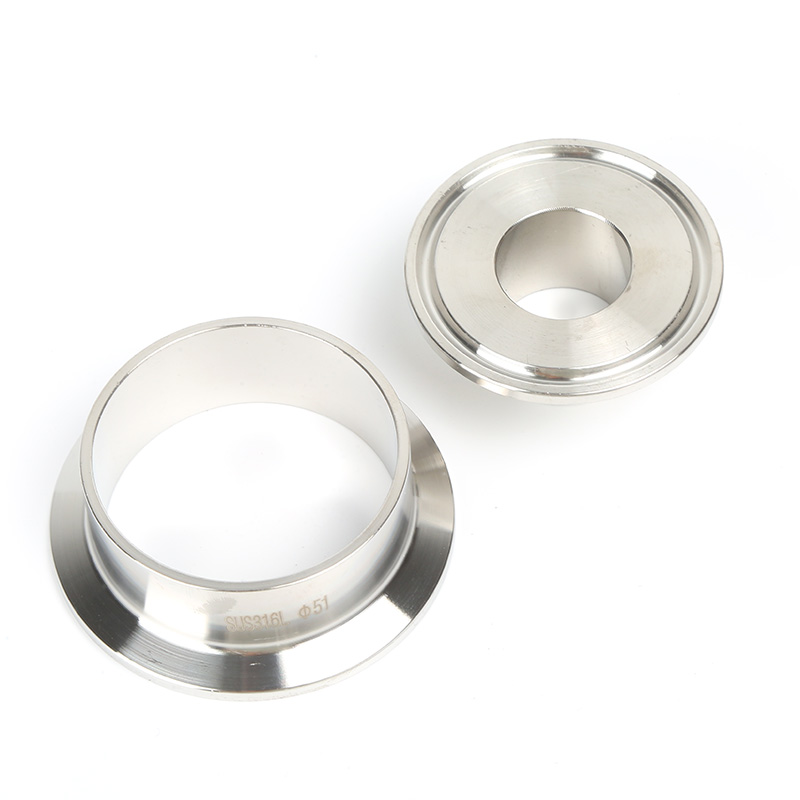

Sanitary Clamp Fittings Welding Ferrules 3A/ISO1127 Quick Connection Clamp Adapter SS304 SS316L Stainless Steel

Model No.:FLW

SKU:FLW

Item No:

Size.:

Material:

Application

Sanitary clamp fittings are with sanitary clamp ends. They are widely used in pipeline systems for food, dairy, beverage, cosmetic, pharmaceutical, and fine chemical industries.

Materials

Body: AISI-304 and AISI-316L

Standard Design

Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE
End connections: Weld or Tri-clamp
Size available: 1/2"-8" or DN10-DN200

Detailed specifications on the drawing label

3A Welding Ferrule


Size	D/mm	B/mm	A/mm	Short 14WMP			Middle 14MMP			Long 14AM7
Size	D/mm	B/mm	A/mm	Model	L/mm	N.W./g	Model	L/mm	N.W./g	Model	L/mm	N.W./g
1/2"	25.2	9.4	12.7	FLW011050	12.7	17.7	FLW021050	21.5	22	FLW031050	28.6	26
3/4"	25.5	15.75	19.05	FLW011075	12.7	13.6	FLW021075	21.5	25	FLW031075	28.6	27
1"	50.5	22.1	25.4	FLW011100	12.7	68	FLW021100	21.5	75	FLW031100	28.6	84
11/4"	50.5	28.5	31.8	FLW011125	12.7	56.7	FLW021125	21.5	66	FLW031125	28.6	72
11/2"	50.5	34.8	38.1	FLW011150	12.7	43.5	FLW021150	21.5	57	FLW031150	28.6	63.5
2"	64	47.5	50.8	FLW011200	12.7	59	FLW021200	21.5	78	FLW031200	28.6	90.7
21/2"	77.5	60.2	63.5	FLW011250	12.7	77.1	FLW021250	21.5	101	FLW031250	28.6	113.4
3"	91	72.9	76.2	FLW011300	12.7	99.8	FLW021300	21.5	124	FLW031300	28.6	136
4"	119	97.4	101.6	FLW011400	15.9	176.9	FLW021400	21.5	210	FLW031400	28.6	263
5"	144.5	121.5	127	FLW011500	15.9	260.8	FLW021500	21.5	290	FLW031500	28.6/38.1	310/380
6"	166.8	146.8	152.4	FLW011600	22.2	421.8	FLW021600	21.5	413	FLW031600	28.6/38.1	490/580.5
8"	217.7	197.6	203.2	FLW011800	22.2	553.4	FLW021800	21.5	520	FLW031800	28.6/38.1	650/798.3
10"	268.5	248.4	254	FLW0111000	22.2	780.2	FLW0211000	21.5	764	FLW0311000	28.6/38.1	920/1150
12"	319	298	304.8	FLW0111200	25.4	943.5	FLW0211200	21.5	923	FLW0311200	28.6/38.1	1080/1360

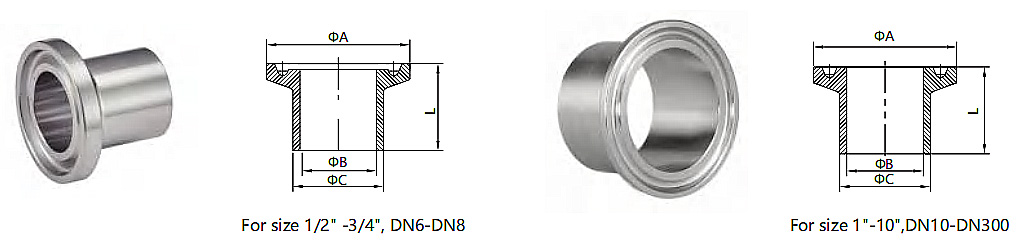

DIN Welding Ferrule Series No.1

Model for 304	Size	A/mm	B/mm	C/mm	L/mm	N.W./g
FLW012010S1	DN10	34	9	12	18
FLW012015S1	DN15	34	15	18	18
FLW012020S1	DN20	34	19	22	18
FLW012025S1	DN25	50.5	25	28	21.5
FLW012032S1	DN32	50.5	31	34	21.5
FLW012040S1	DN40	50.5	37	40	21.5
FLW012050S1	DN50	64	49	52	21.5
FLW012065S1	DN65	91	66	70	28
FLW012080S1	DN80	106	81	85	28
FLW012100S1	DN100	119	100	104	28
FLW012125S1	DN125	144.5	125	129	28
FLW012125S2	DN125	155	125	129	28
FLW012150S1	DN150	167	150	154	28
FLW012150S2	DN150	183	150	154	28
FLW012200S1	DN200	217.4	200	204	28
FLW012200S2	DN200	233	200	204	28
FLW012250S1	DN250	268	250	254	28
FLW012250S2	DN250	286	250	254	28
FLW012300S1	DN300	319	300	304	28

DIN Welding Ferrule Series No.2

Model for 304	Size	A/mm	B/mm	C/mm	L/mm	N.W./g
FLW012010S2	DN10	34	10	13	18
FLW012015S2	DN15	34	16	19	18
FLW012020S2	DN20	34	20	23	18
FLW012025S2	DN25	50.5	26	29	21.5
FLW012032S2	DN32	50.5	32	35	21.5
FLW012040S2	DN40	50.5	38	41	21.5
FLW012050S2	DN50	64	50	53	21.5

DN63-DN300 is same as series No.1

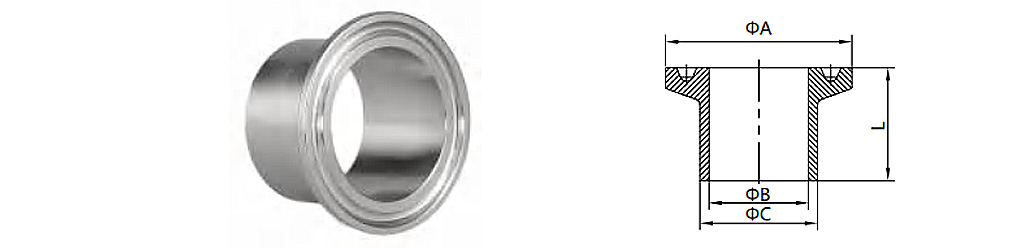

ISO1127 Ferrule (Compatible with the BS4825 standard)


Size	D/mm	B/mm	A/mm	Short 14WMP			Middle 14MMP			Long 14AM7
Size	D/mm	B/mm	A/mm	Model	L/mm	N.W./g	Model	L/mm	N.W./g	Model	L/mm	N.W./g
1/2"	50.5	18.1	21.3	FLW017050	12.7		FLW027050	21.5	80	FLW037050	28
3/4"	50.5	23.7	26.9	FLW017075	12.7		FLW027075	21.5		FLW037075	28
1"	50.5	29.7	33.7	FLW017100	12.7	45.3	FLW027100	21.5		FLW037100	28
11/4"	64	38.4	42.4	FLW017125	12.7		FLW027125	21.5		FLW037125	28
11/2"	64	44.3	48.3	FLW017150	12.7	45.3	FLW027150	21.5	93	FLW037150	28
2"	77.5	56.3	60.3	FLW017200	12.7	90.7	FLW027200	21.5	120.4	FLW037200	28
21/2"	91	72.1	76.1	FLW017250	12.7	136	FLW027250	21.5		FLW037250	28
3"	106	84.9	88.9	FLW017300	12.7	158.8	FLW027300	21.5		FLW037300	28
4"	130	110.3	114.3	FLW017400	15.9	181.5	FLW027400	21.5		FLW037400	28
5"	155	135.7	139.7							FLW037500	28
6"	186	162.8	168.3							FLW0317600	28
8"	233	213.6	219.1							FLW037800	28

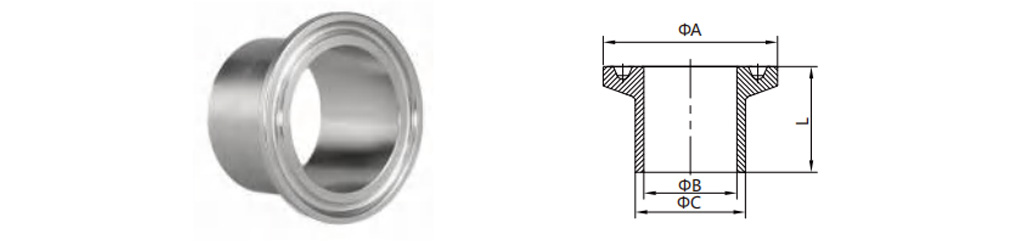

JIS Ferrule


Model	Size	A/mm	B/mm	C/mm	L/mm	N.W./g
FLW015050	1/2S	25.2	10.22	12.7	14
FLW015075	3/4S	25.2	15.7	19.1	14
FLW015100	1S	50.5	23	25.4	20
FLW015150	1.5S	50.5	35.7	38.1	20
FLW015200	2S	64	47.8	50.8	22
FLW015250	2.5S	77.5	60.5	63.5	26
FLW015300	3S	91	72.3	76.3	28
FLW015400	4S	119	97.6	101.6	28
FLW01515A	15A	50.5	17.5	21.7	20
FLW01520A	20A	50.5	23	27.2	20
FLW01525A	25A	50.5	28.4	34	20
FLW01532A	32A	50.5	37.1	42.7	20
FLW01540A	40A	64	43	48.6	22
FLW01550A	50A	77.5	54.9	60.5	26
FLW01565A	65A	91	70.3	76.3	28
FLW01580A	80A	106	83.1	89.1	28
FLW015100A	100A	130	108.3	114.3	30
FLW015125A	125A	163.5	133.8	139.8	30
FLW015150A	150A	185	159.2	165.2	30
FLW015200A	200A	240	210.3	216.3	30
FLW015050A	250A	296	259.4	267.4	40
FLW015300A	300A	350	310.5	318.5	40
