BSPT Stainless Steel SS304 SS316L Tri Clamp Male Adaptor DIN Sanitary Food Clamp Male Thread Fitting

Application

Sanitary clamp fittings are with sanitary clamp ends. They are widely used in pipeline systems for food, dairy, beverage, cosmetic, pharmaceutical, and fine chemical industries.

Materials

• Body: AISI-304 and AISI-316L

Standard Design

• Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE

• End connections: Weld or Tri-clamp

• Size available: 1/2"-8" or DN10-DN200

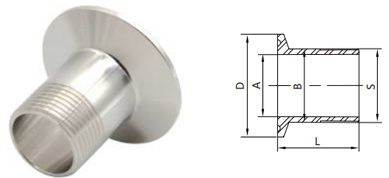

Detailed specifications on the drawing label

Product Description

Here’s a professional English description for stainless steel quick-assembly fittings: Stainless Steel Quick-Assembly Fittings These fittings are designed for rapid, tool-free installation in piping systems, offering high corrosion resistance and durability. Made from **grade 304/316 stainless steel**, they are ideal for applications in plumbing, HVAC, industrial fluid transfer, and food/beverage processing where hygiene and leak-proof performance are critical. Key Features Quick-Connect Mechanism:** Enables secure push-to-connect assembly without threading or soldering. Vibration-Resistant:** Internal grip rings or collets ensure a tight seal under pressure. Temperature Range:** -20°C to +120°C (varies by design). Pressure Rating:** Typically up to 16 bar (230 psi). Sizes Available:** 1/8" to 2" (DN6 to DN50) for tubes/pipes. Standards Compliance:** ASTM A270 (sanitary), ISO 1127, or industry-specific certifications. Common Types Straight Couplings Elbows (90°/45° Tees Union Connectors Flush-Fit Adapters (for clean-in-place systems) Applications Chemical/petrochemical lines Compressed air systems Water treatment plants Pharmaceutical tubing Advantages Reduced installation time vs. traditional methods Reusable designs for maintenance flexibility Electropolished options for ultra-smooth surfaces Optional additions based on context: For sanitary fittings: Add "3-A compliant, crevice-free design for FDA/USDA requirements For high-pressureSpecify Swivel nut designs for dynamic piping (up to 100 bar Let me know if you'd like to emphasize any specific feature (e.g., antimicrobial properties, extreme temperature resistance) for your target industry!

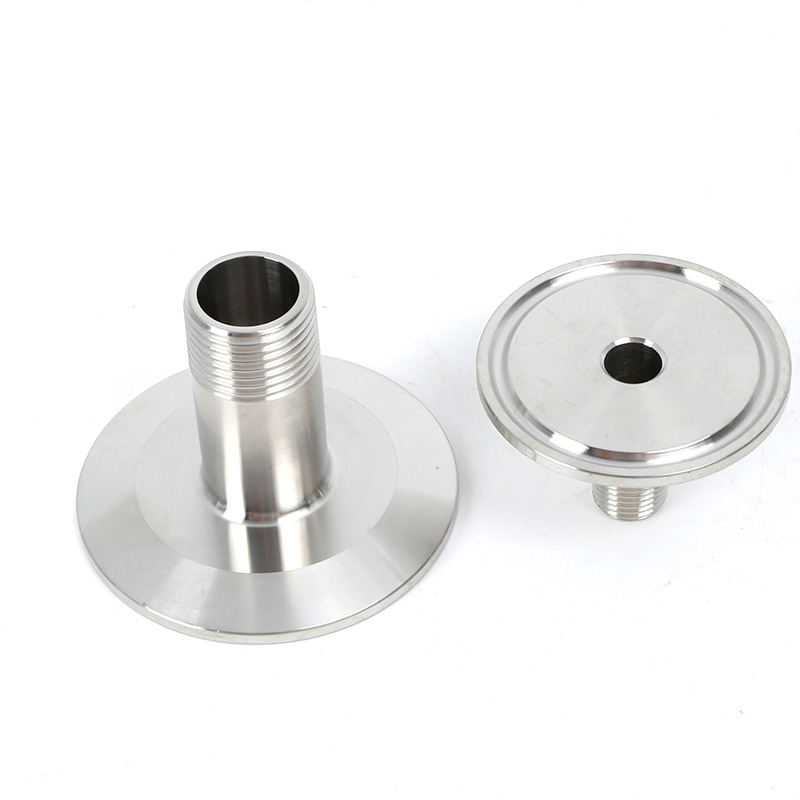

Tri Clamp Male Adaptor BSPT

	Model for 304	Size	D/mm	S/BSPT	A/mm	B/mm	L/mm	N.W./g
	FLM0410254S3	K50.5xDN8	50.5	1/4"	9	13	33	86.8
	FLM0410384S3	K50.5xDN10	50.5	3/8"	11.4	16	30	92.1
	FLM0410504S1	K25.2xDN15	25.2	1/2"	15	20	30	30.6
	FLM0410504S2	K50.5xDN15	50.5	1/2"	15	20	50	107
	FLM0410504S3	K64xDN15	64	1/2"	15	20	50	155.1
	FLM0410754S1	K25.2xDN20	25.2	3/4"	15	25	30	57.8
	FLM0410754S3	K50.5xDN20	50.5	3/4"	20.7	26.5	50	123.1
	FLM0410754S4	K64xDN20	64	3/4"	20.7	26	50	178.2
	FLM0411004S1	K50.5xDN25	50.5	1"	26	32	50	133
	FLM0411004S2	K64xDN25	64	1"	27.4	33	50	173.9
	FLM0411254S1	K50.5xDN32	50.5	11/4"	37	42	50	112.1
	FLM0411254S2	K64xDN32	64	11/4"	37	42	50	173.9
	FLM0411504S1	K50.5xDN40	50.5	11/2"	37	47	50	212.1
	FLM0411504S2	K64xDN40	64	11/2"	41.4	47	50	178
	FLM0412004S1	K64xDN50	64	2"	51	60	50	238.2
	FLM0412004S2	K77.5xDN50	77.5	2"	53	60	50	222.8
	FLM0412504S1	K91xDN65	91	21/2"	68	75	60	347.3
	FLM0413004S1	K106xDN80	106	3"	79	88	55	461.5
	FLM0414004S1	K130xDN100	130	4"	105	113	63	675.8
