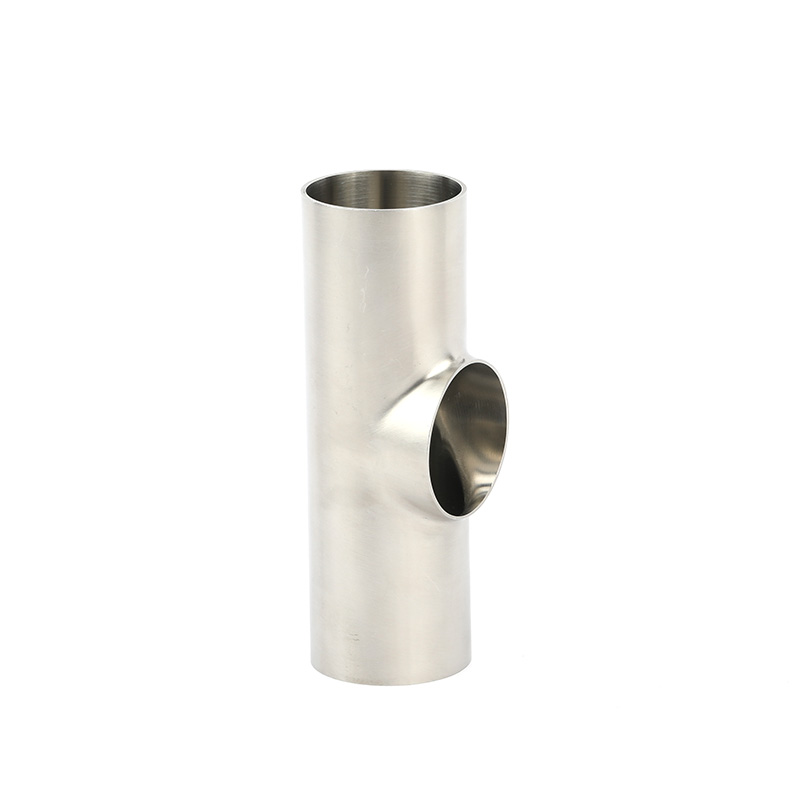

AS Equal Tee Sanitary SS304 SS316L Long Weld Tees Stainless Steel AS Tee Short Outlet for Food

Application

Weld Fittings are used on permanent installations where process piping and equipment can be cleaned in place (CIP) and removal from the system is not required. Weld Fittings are offered in nominal tube sizes 1/2˝ through 8˝ in T304 and T316L materials. Uniform wall thickness for 1/2˝ through 3˝ sizes measure .065 (16 ga). In 4˝ size, wall thickness measures. 083 (14 ga), 6˝ and 8˝ .109 (12 ga).

Materials

• Body: AISI-304 and AISI-316L

Standard Design

• Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE

• End connections: Weld

• Size available: 1/2"-8" or DN10-DN200

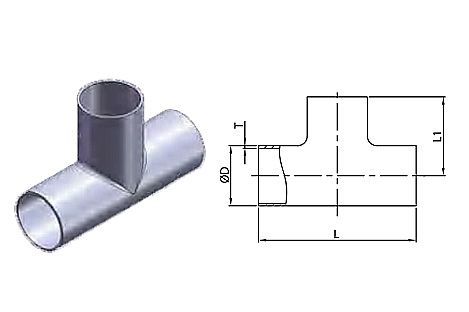

Detailed specifications on the drawing label

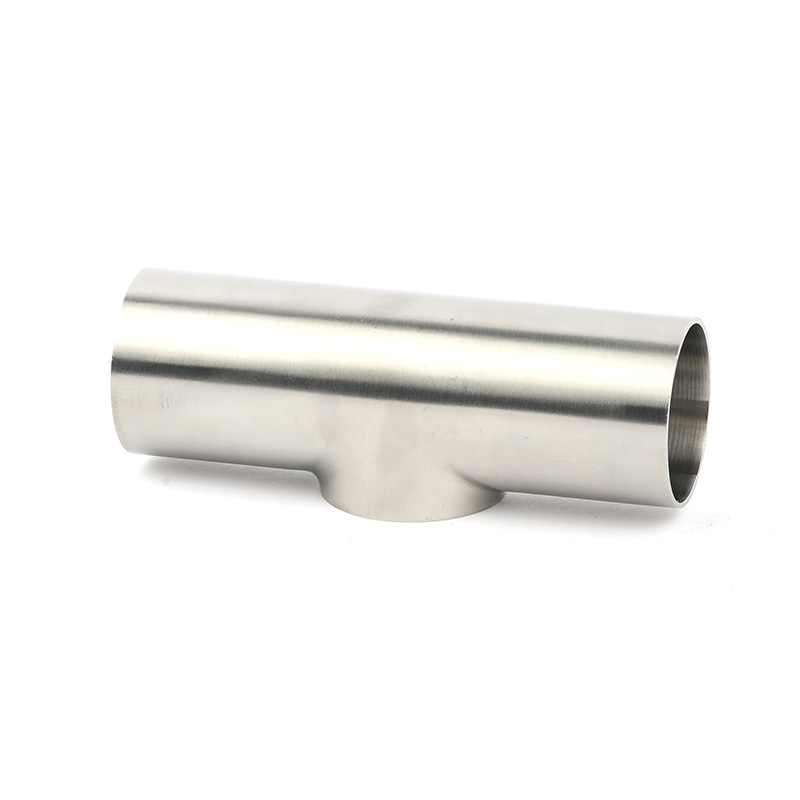

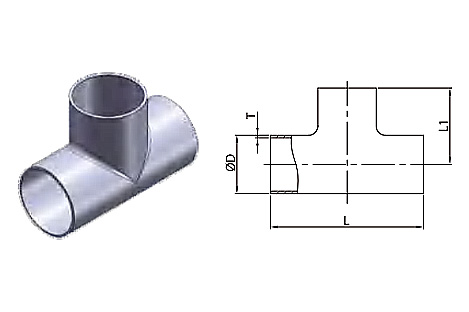

AS Equal Tee Short

	Model No	Size	D/mm	L/mm	L1/mm	T/mm	N.W/g.
	FTW018050	1/2"	12.7	38.2	19.1	1.6
	FTW018075	3/4"	19.05	57.2	28.6	1.6
	FTW018100	1"	25.4	76.2	38.1	1.6
	FTW018125	11/4"	31.8	95.4	47.7	1.6
	FTW018150	1.5"	38.1	114.4	57.2	1.6
	FTW018200	2"	50.8	152.4	76.2	1.6
	FTW018250	2.5"	63.5	190.6	95	1.6
	FTW018300	3"	76.2	228.6	114.3	1.6
	FTW018400	4"	101.6	304.8	152.4	2

AS Equal Tee Long

	Model No	Size	D/mm	L/mm	L1/mm	T/mm	N.W/g.
	FTW028050	1/2"	12.7	98.2	49.1	1.6
	FTW028075	3/4"	19.05	117.2	58.6	1.6
	FTW028100	1"	25.4	136.2	68.1	1.6
	FTW028125	11/4"	31.8	155.4	77.7	1.6
	FTW028150	1.5"	38.1	174	87	1.6
	FTW028200	2"	50.8	212.4	106.2	1.6
	FTW028250	2.5"	63.5	250	125	1.6
	FTW028300	3"	76.2	288.4	144.2	1.6
	FTW028400	4"	101.6	364.8	182.4	2

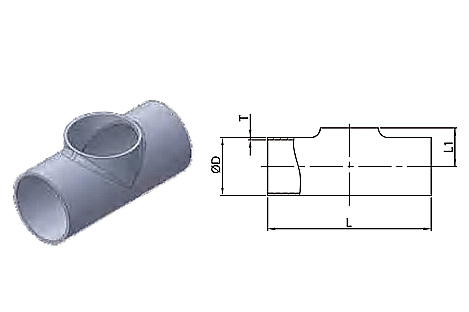

AS Equal Tee Long

	Model No	Size	D/mm	L/mm	L1/mm	T/mm	N.W/g.
	FTW038050	1/2"	12.7	38.2	9.35	1.6
	FTW038075	3/4"	19.05	57.2	12.55	1.6
	FTW038100	1"	25.4	76.2	15.7	1.6
	FTW038125	11/4"	31.8	95.4	18.9	1.6
	FTW038150	1.5"	38.1	114.4	22.05	1.6
	FTW038200	2"	50.8	152.4	28.4	1.6
	FTW038250	2.5"	63.5	190.6	34.75	1.6
	FTW038300	3"	76.2	228.6	41.1	1.6
	FTW038400	4"	101.6	304.8	53.8	2
