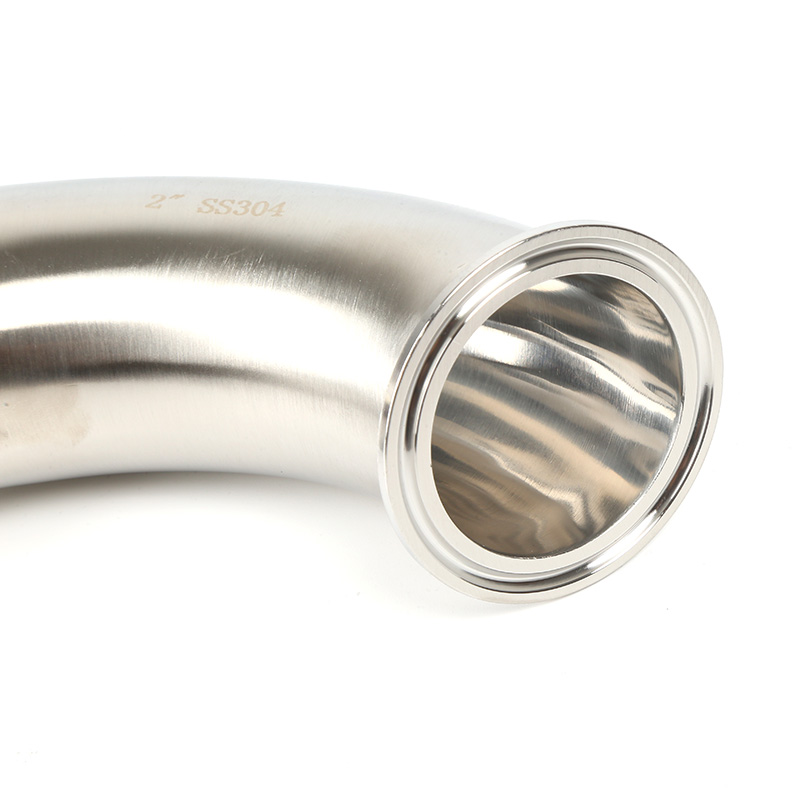

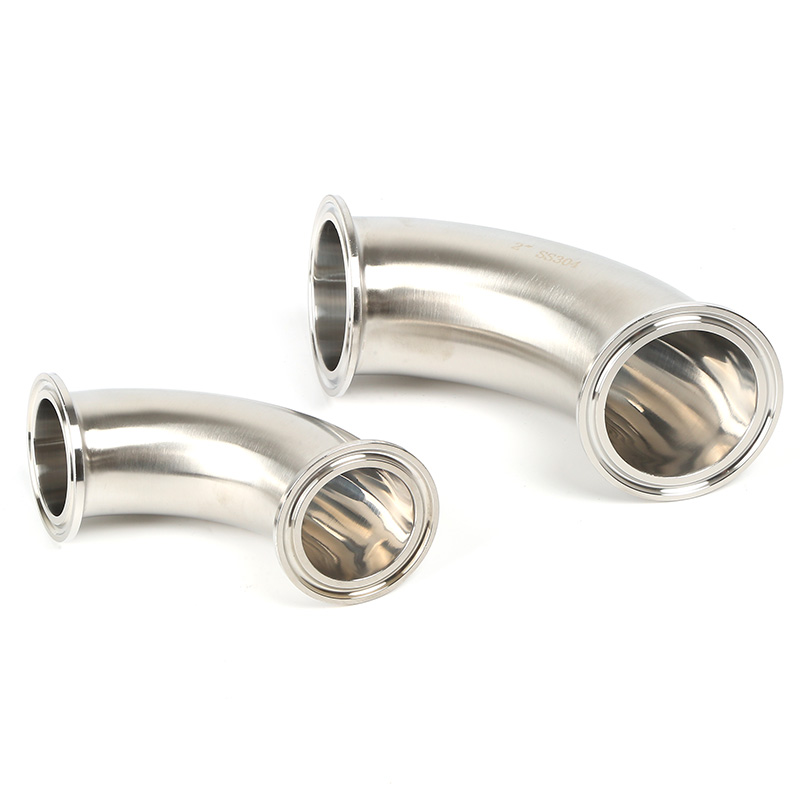

SS304 SS316L 2CMP-90 Degree 3A Clamp Elbow Sanitary Clamp Fittings Stainless Steel 3A Tri Clamp 90° Elbow

Model No.:FE

SKU:FE

End Connections:
Clamp
  • Clamp
  • Weld
Elbow Type:
90° Short
  • 90° Short
  • 90° Long
  • 45° Short
  • 45° Long
  • 180°
Size.:
3A 1/2"
  • 3A 1/2"
  • 3A 3/4"
  • 3A 1"
  • 3A 1 1/4"
  • 3A 1 1/2"
  • 3A 2"
  • 3A 2 1/2"
  • 3A 3"
  • 3A 4"
  • 3A 6"
  • 3A 8"
  • 3A 10"
  • 3A 12"
Materials:
SS304
  • SS304
  • SS316L
Finishing:
Inner Mirror/Outer Matte
  • Inner Mirror/Outer Matte
  • Inner Mirror/Outer Mirror
Inquire

Application

Sanitary Clamp Fittings are the most popular fittings because of the easy assembly. QM Stainless offers clamp fittings in SS304 and SS316L materials in size from 1/2" to 8", with kinds of fittings standards, such as DIN, SMS, ISO/IDF, bS-RJT, DS and others.

Material

  • Body: AISI 304 or AISI 316L

Standard Design

  • Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE

  • Size available: 1/2"-8" or DN10-DN200

Detailed pecification on the drawing label

2CMP 90° Clamp Elbow

Model No Size D/mm K/mm L/mm R/mm N.W/g.
FEW011050 1/2" 12.7 25.2 31.8 19.05 50
FEW011075 3/4" 19.05 25.2 41.3 28.5 65
FEW011100 1" 25.4 50.5 50.8 38.1 190
FEW011125 11/4" 31.8 50.5 60.4 47.7 200
FEW011150 11/2" 38.1 50.5 69.9 57.2 225
FEW011200 2" 50.8 64 88.9 76.2 363
FEW011250 21/2" 63.5 77.5 108 95.3 545
FEW011300 3" 76.2 91 127 114.3 744
FEW011400 4" 101.6 119 168.3 152.4 1588
FEW011600 6" 152.4 167 250.8 228.6 4685
FEW011800 8" 203.2 217 327 304.8 8935

2KMP 45° Elbow

Model No Size D/mm K/mm L/mm R/mm N.W/g.
FEW031050 1/2" 12.7 25.2 20.6 19.05 90
FEW031075 3/4" 19.05 25.2 25.4 28.5 95
FEW031100 1" 25.4 50.5 28.5 38.1 160
FEW031125 11/4" 31.8 50.5 32.5 47.7
FEW031150 11/2" 38.1 50.5 36.5 57.2 136
FEW031200 2" 50.8 64 44.5 76.2 227
FEW031250 21/2" 63.5 77.5 52.4 95.3 336
FEW031300 3" 76.2 91 60.3 114.3 463
FEW031400 4" 101.6 119 79.3 152.4 1020
FEW031600 6" 152.4 167 116.9 228.6 2750
FEW031800 8" 203.2 217 148.45 304.8 4040

2WU 180°  U Elbow

Model No Size D/mm L/mm H/mm T/mm N.W/g.
FEW051100 1" 25.4 76.2 38.1 1.65
FEW051150 11/2" 38.1 114.3 57.2 1.65
FEW051200 2" 50.8 152.4 76.2 1.65
FEW051250 21/2" 63.5 190.5 95.3 1.65
FEW051300 3" 76.2 228.6 114.3 1.65
FEW051400 4" 101.6 304.8 152.4 2.1

2WCL 90° Elbow Short Tangent

Model No Size D/mm L/mm R/mm T/mm N.W/g.
FEW011050 1/2" 12.7 19.05 19.05 1.65 12
FEW011075 3/4" 19.05 28.5 28.5 1.65 32
FEW011100 1" 25.4 38.1 38.1 1.65 60
FEW011125 11/4" 31.8 47.7 47.7 1.65 120
FEW011150 11/2" 38.1 57.2 57.2 1.65 130
FEW011200 2" 50.8 76.2 76.2 1.65 220
FEW011250 21/2" 63.5 95.3 95.3 1.65 340
FEW011300 3" 76.2 114.3 114.3 1.65 530
FEW011400 4" 101.6 152.4 152.4 2.11 1200
FEW011600 6" 152.4 228.6 228.6 2.77 3650
FEW011800 8" 203.2 304.8 304.8 3.05 6450
FEW0111000 10" 254 381 381 3.05
FEW0111200 12" 304.8 457.2 457.2 3.05

2S 90° Elbow

Model No Size D/mm L/mm R/mm T/mm N.W/g.
FEW021050 1/2" 12.7 38.1/76.2 19.05 1.65 /46
FEW021075 3/4" 19.05 38.1/76.2 28.5 1.65 37/
FEW021100 1" 25.4 52.4 38.1 1.65 85
FEW021125 11/4" 31.8 64 47.7 1.65 145
FEW021150 11/2" 38.1 74.6 57.2 1.65 173
FEW021200 2" 50.8 103.2 76.2 1.65 320
FEW021250 21/2" 63.5 131.8 95.3 1.65 575
FEW021300 3" 76.2 160.3 114.3 1.65 840
FEW021400 4" 101.6 211.1 152.4 2.11 1900
FEW021600 6" 152.4 291.2 228.6 2.77
FEW021800 8" 203.2 368.3 304.8 3.05
FEW0211000 10" 254 457.2 381 3.05
FEW0211200 12" 304.8 533.4 457.2 3.05

2WK 45° Elbow Short Tangent

Model No Size D/mm L/mm R/mm T/mm N.W/g.
FEW031050 1/2" 12.7 7.9 19.05 1.65
FEW031075 3/4" 19.05 11.8 28.5 1.65
FEW031100 1" 25.4 15.8 38.1 1.65
FEW031125 11/4" 31.8 19.8 47.7 1.65
FEW031150 11/2" 38.1 23.8 57.2 1.65
FEW031200 2" 50.8 31.8 76.2 1.65
FEW031250 21/2" 63.5 39.7 95.3 1.65
FEW031300 3" 76.2 47.6 114.3 1.65
FEW031400 4" 101.6 63.5 152.4 2.11
FEW031600 6" 152.4 94.7 228.6 2.77
FEW031800 8" 203.2 126.25 304.8 3.05
FEW0311000 10" 254 157.82 381 3.05
FEW0311200 12" 304.8 189.38 457.2 3.05

2WS 45° Elbow

Model No Size D/mm L/mm R/mm T/mm N.W/g.
FEW041050 1/2" 12.7 19.3 19.05 1.65
FEW041075 3/4" 19.05 19.3 28.5 1.65
FEW041100 1" 25.4 30.1 38.1 1.65 45
FEW041125 11/4" 31.8 41.3 47.7 1.65
FEW041150 11/2" 38.1 41.3 57.2 1.65 116
FEW041200 2" 50.8 58.8 76.2 1.65 237
FEW041250 21/2" 63.5 76.2 95.3 1.65 393
FEW041300 3" 76.2 93.7 114.3 1.65 569
FEW041400 4" 101.6 122.2 152.4 2.11 1133
FEW041600 6" 152.4 158.8 228.6 2.77
FEW041800 8" 203.2 189.75 304.8 3.05
FEW0411000 10" 254 234 381 3.05
FEW0411200 12" 304.8 265.5 457.2 3.05

2WU 180° Elbow

Model No Size D/mm L/mm R/mm T/mm N.W/g.
FEW051100 1" 25.4 76.2 38.1 1.65
FEW051150 11/2" 38.1 114.3 57.2 1.65
FEW051200 2" 50.8 152.4 76.2 1.65
FEW051250 21/2" 63.5 190.5 95.3 1.65
FEW051300 3" 76.2 228.6 114.3 1.65
FEW051400 4" 101.6 304.8 152.4 2.1
