BS 90° Elbow SS304 SS316L 90/45 Degree Weld Elbow Sanitary Stainless Steel Short/Long 45° Elbows Fitting

Application

Weld Fittings are used on permanent installations where process piping and equipment can be cleaned in place (CIP) and removal from the system is not required. Weld Fittings are offered in nominal tube sizes 1/2˝ through 8˝ in T304 and T316L materials. Uniform wall thickness for 1/2˝ through 3˝ sizes measure .065 (16 ga). In 4˝ size, wall thickness measures. 083 (14 ga), 6˝ and 8˝ .109 (12 ga).

Materials

• Body: AISI-304 and AISI-316L

Standard Design

• Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE

• End connections: Weld

• Size available: 1/2"-8" or DN10-DN200

Detailed specifications on the drawing label

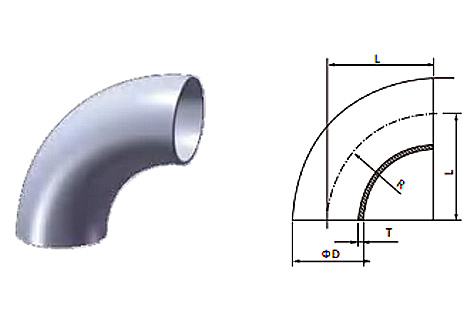

BS 90° Elbow

	Model No	Size	D/mm	L/mm	R/mm	T/mm	N.W/g.
	FEW019100	1"	25.4	43.5	38.1	1.6
	FEW019150	1.5"	38.1	63.5	57.2	1.6
	FEW019200	2"	50.8	88.5	76.2	1.6
	FEW019250	2.5"	63.5	113.5	95	1.6
	FEW019300	3"	76.2	133.5	114.3	1.6
	FEW019400	4"	101.6	173.5	152.4	2

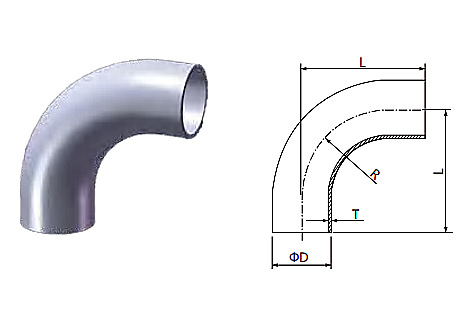

BS 90° Elbow Long

	Model No	Size	D/mm	L/mm	R/mm	T/mm	N.W/g.
	FEW029100	1"	25.4	65	38.1	1.6
	FEW029150	1.5"	38.1	85	57.2	1.6
	FEW029200	2"	50.8	110	76.2	1.6
	FEW029250	2.5"	63.5	135	95	1.6
	FEW029300	3"	76.2	155	114.3	1.6
	FEW029400	4"	101.6	195	152.4	2

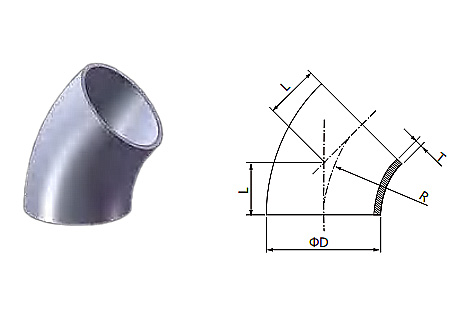

BS 45° Elbow

	Model No	Size	D/mm	L/mm	R/mm	T/mm	N.W/g.
	FEW039100	1"	25.4	15.8	38.1	1.6
	FEW039150	1.5"	38.1	23.7	57.2	1.6
	FEW039200	2"	50.8	31.8	76.2	1.6
	FEW039250	2.5"	63.5	39.6	95	1.6
	FEW039300	3"	76.2	47.5	114.3	1.6
	FEW039400	4"	101.6	63.2	152.4	2

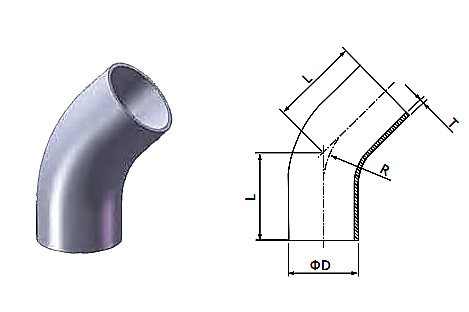

BS 45° Elbow Long

	Model No	Size	D/mm	L/mm	R/mm	T/mm	N.W/g.
	FEW049100	1"	25.4	30.2	38.1	1.6
	FEW049150	1.5"	38.1	41.3	57.2	1.6
	FEW049200	2"	50.8	58.7	76.2	1.6
	FEW049250	2.5"	63.5	76.2	95	1.6
	FEW049300	3"	76.2	93.7	114.3	1.6
	FEW049400	4"	101.6	122.2	152.4	2
