Sanitary SS304 SS316L BS Equal Tee Stainless Steel BS Short/Long Welding Tees Fitting

Model No.:FTW

SKU:FTW

Item No:

Size.:

Materials:

Finishing:

Application

Weld Fittings are used on permanent installations where process piping and equipment can be cleaned in place (CIP) and removal from the system is not required. Weld Fittings are offered in nominal tube sizes 1/2˝ through 8˝ in T304 and T316L materials. Uniform wall thickness for 1/2˝ through 3˝ sizes measure .065 (16 ga). In 4˝ size, wall thickness measures. 083 (14 ga), 6˝ and 8˝ .109 (12 ga).

Materials

Body: AISI-304 and AISI-316L

Standard Design

Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE
End connections: Weld
Size available: 1/2"-8" or DN10-DN200

Detailed specifications on the drawing label

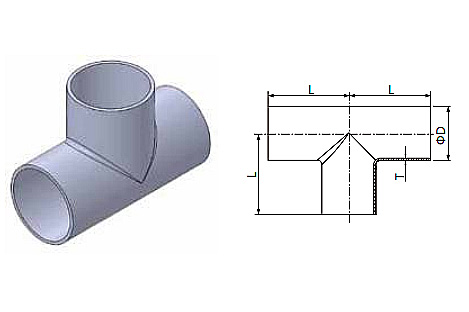

BS Equal Tee Short

Model No	Size	D/mm	L/mm	T/mm	N.W/g.
FTW019100	1"	25.4	43.5	1.6
FTW019150	1.5"	38.1	63.5	1.6
FTW019200	2"	50.8	88.5	1.6
FTW019250	2.5"	63.5	113.5	1.6
FTW019300	3"	76.2	133.5	1.6
FTW019400	4"	101.6	173.5	2

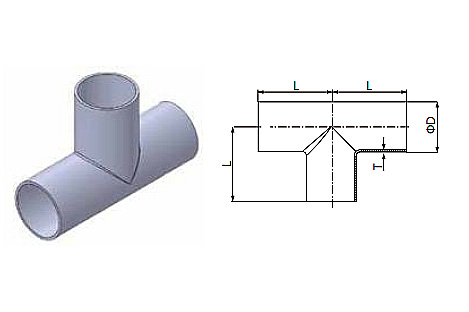

BS Equal Tee Long

Model No	Size	D/mm	L/mm	T/mm	N.W/g.
FTW029100	1"	25.4	64	1.6
FTW029150	1.5"	38.1	85	1.6
FTW029200	2"	50.8	110	1.6
FTW029250	2.5"	63.5	135	1.6
FTW029300	3"	76.2	155	1.6
FTW029400	4"	101.6	195	2
