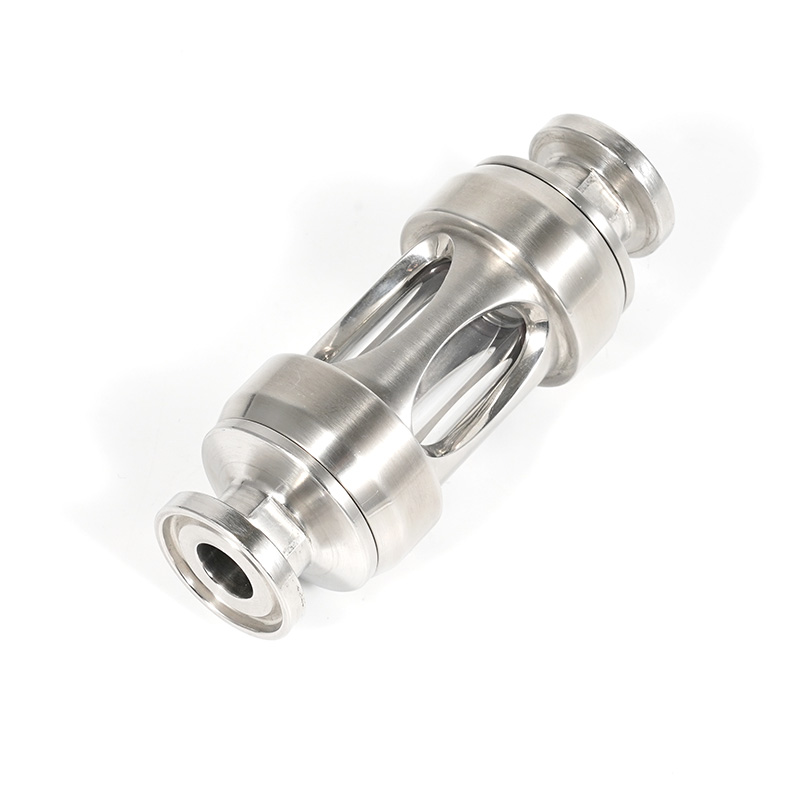

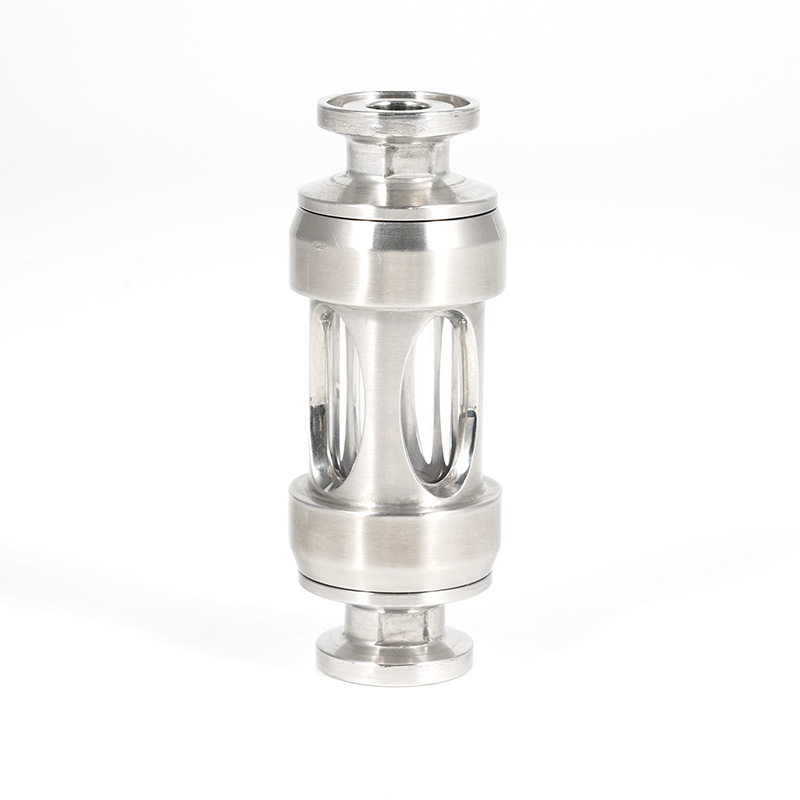

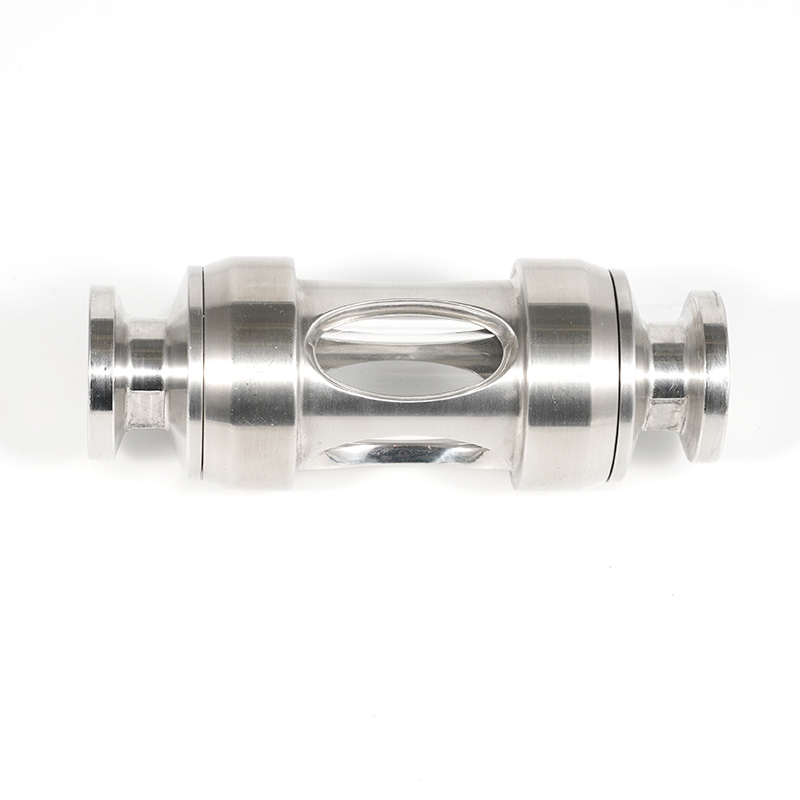

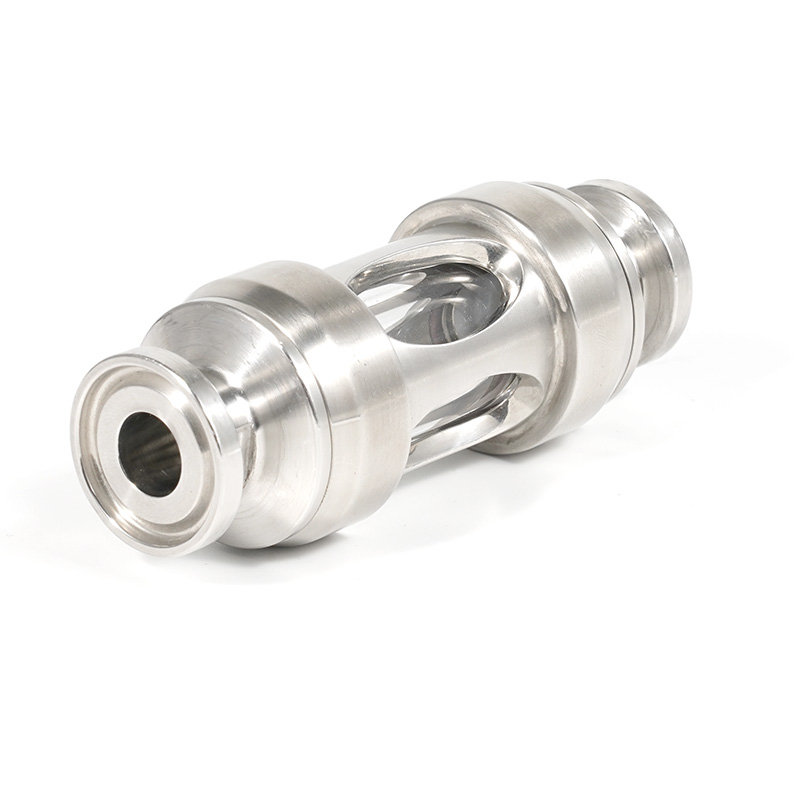

Sanitary Sterile Visual Flow Indicator SS304 SS316L Biotech and Pharmaceutical Sight Glass Stainless Steel Tank Fitting

Application

TSA01 Sterile Visual Flow Indicator offers easy cleaning, validation and sterilisation so it is ideal for biotech and pharmaceutical applications.

The unique o-ring sealing design offers the smoothest internal bore available with minimal bug traps.

It has four observation windows resulting in maximum visibility combined with adequate strength to withstand design pressures and temperatures.

Features

• For high purity applications

• 0-Ring Seal minimises bug traps

• FDA compliant materials

• Suitable for SlP/ClP

• Sanitary Clamp or Orbital Weld Connections

• Armoured housing protects glass from extemal objects& pipe stress

Technical Data

• Material:                        SS316L

• O-ring Seal:                    EPDM per FDA 177.2600

• Glass Material:               Borosilicate

• Temperature Range:      -10°C to 120°C

• Operating Pressure:       Up to 10 Bar

• Surface Finishing:          ≤0.5 μm

Option

O-ring Seal in material Silicon,Viton per FDA 177.2600

Surface electro-polishing

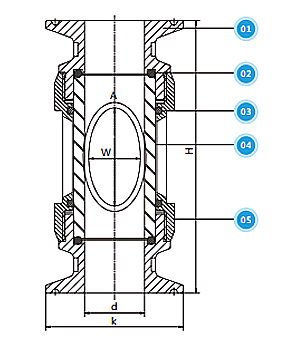

	Item			Description																		Material
	1						End Fittings																		SS316L
	2						O-Ring Seal																		EPDM FDA
	3						O-Ring Cushion
	4						Glass																		Borosilicate
	5						Body																		SS316L
	Clamp Sterile Visual Flow Indicator
	Model No							Size							AXW						d						K						H
	TSA012262B1050							1/2"							20X9						9.5						25.2						76
	TSA012262B1075							3/4"							27X11						15.8						25.2						87
	TSA012262B1100							1"							30X16						22.1						50.5						91
	TSA012262B1150							11/2"							40X24						34.8						50.5						105
	TSA012262B1200							2"							48X34						47.5						64						120
	TSA012262B1250							21/2"							55X40						60.2						77.5						151
	TSA012262B1300							3"							90X50						72.9						91						176
	TSA012262B1400							4"							110X60						97.4						119						200
