Sanitary Stainless Steel SS304 SS316L Tri Clamp Straight Sight Glass with Tube Protection for Dairy and Pharmacy Industries

Application

TSI01 In-Line sight glass consists of a glass tube compressed between two flanges, with a double nut tensioning to prevent over-tightening of the glass. Option to include an stainless-steel grid around the tube as a safety precaution, and the standard sanitary connection of a Tri-Clamp. It is ideal for efficient viewing while supervising your active process.

Design And Deatures

• 360 degree viewing angle

• Full Bore Design

• Tempered glass for safety using

• Design for using in both vertical and horizontal direction

• Option with stainless steel protecting cover

Technical Data

• Max. Working Temperature:  120℃

• Max. thermal shock:               100℃

• ID/OD Polished:                        32Ra

• Available Size:                           1/2" to 6" or DN15-DN150

• Available Connection:              Weld, Tri-Clamp, Thread, Flange

Material

• Seal:                    Silicon Per FDA 177.2600

• Steel Grade:     AISI 304 / 316L

• Glass:                 Tempered Glass

          Options:

• Seal:                   EPDM, FPM per FDA 177.2600

	Item										Name
	1										Glass Cylinder
	2										Hexagonal Nut
	3										Seal Ring
	4										Studbolt
	5										Flange

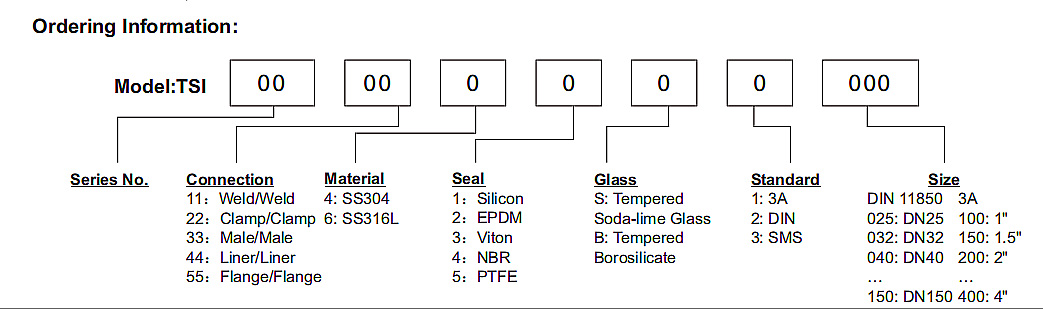

Weld Stralght Sight Glass

	Model No							Size								A								B							H
	TSI02W41S1100							1"								77								25.4							144
	TSI02W41S1125							11/4"								77								31.8							144
	TSI02W41S1150							11/2"								82								38.1							144
	TSI02W41S1200							2"								100								50.8							144
	TSI02W41S1250							21/2"								114								63.5							150
	TSI02W41S1300							3"								128								76.2							152
	TSI02W41S1400							4"								155								101.6							160
	TSI02W41S2025							DN25								78								28							144
	TSI02W41S2032							DN32								78								34							144
	TSI02W41S2040							DN40								90								40							144
	TSI02W41S2050							DN50								106								52							144
	TSI02W41S2065							DN65								124								70							152
	TSI02W41S2080							DN80								139								85							154
	TSI02W41S2100							DN100								159								104							158

Clamp Stralght Sight Glass

	Model No							Size								A								B							H
	TSI02C41S1100							1"								77								50.5							160
	TSI02C41S1125							11/4"								77								50.5							160
	TSI02C41S1150							11/2"								82								50.5							160
	TSI02C41S1200							2"								100								64							166
	TSI02C41S1250							21/2"								114								77.5							170
	TSI02C41S1300							3"								128								91							170
	TSI02C41S1400							4"								155								119							184
	TSI02C41S2025							DN25								78								50.5							160
	TSI02C41S2032							DN32								78								50.5							160
	TSI02C41S2040							DN40								90								50.5							160
	TSI02C41S2050							DN50								106								64							166
	TSI02C41S2065							DN65								124								91							170
	TSI02C41S2080							DN80								139								106							170
	TSI02C41S2100							DN100								159								119							184

Thread Stralght Sight Glass(SMS and DIN)

Model No

Size

A

G

H

TSI02M41S3100

1"

77

RD 40x1/6

160

TSI02M41S3125

11/4"

77

RD 48x1/6

160

TSI02M41S3150

11/2"

82

RD 60x1/6

160

TSI02M41S3200

2"

100

RD 70x1/6

166

TSI02M41S3250

21/2"

114

RD 85x1/6

170

TSI02M41SM00

3"

128

RD 98x1/6

177

TSI02M41S3400

4"

155

RD 125x1/4

195

TSI02M41S2025

DN25

78

RD 52x1/6

160

TSI02M41S2032

DN32

78

RD 58x1/6

160

TSI02M41S2040

DN40

90

RD 65x1/6

160

TSI02M41S2050

DN50

106

RD 78x1/6

166

TSI02M41S2065

DN65

124

RD 95x1/6

170

TSI02M41S2080

DN80

139

RD 110x1/4

177

TSI02M41S2100

DN100

159

RD 130x1/4

195
