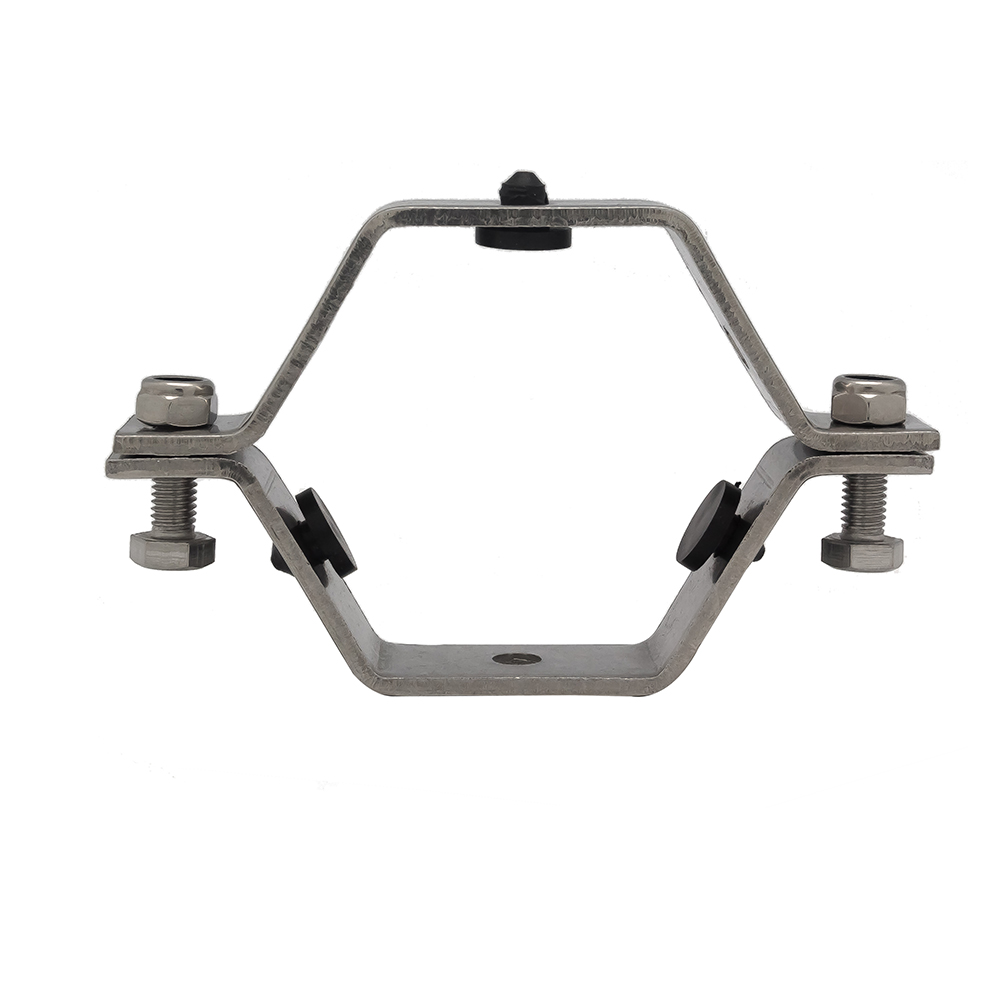

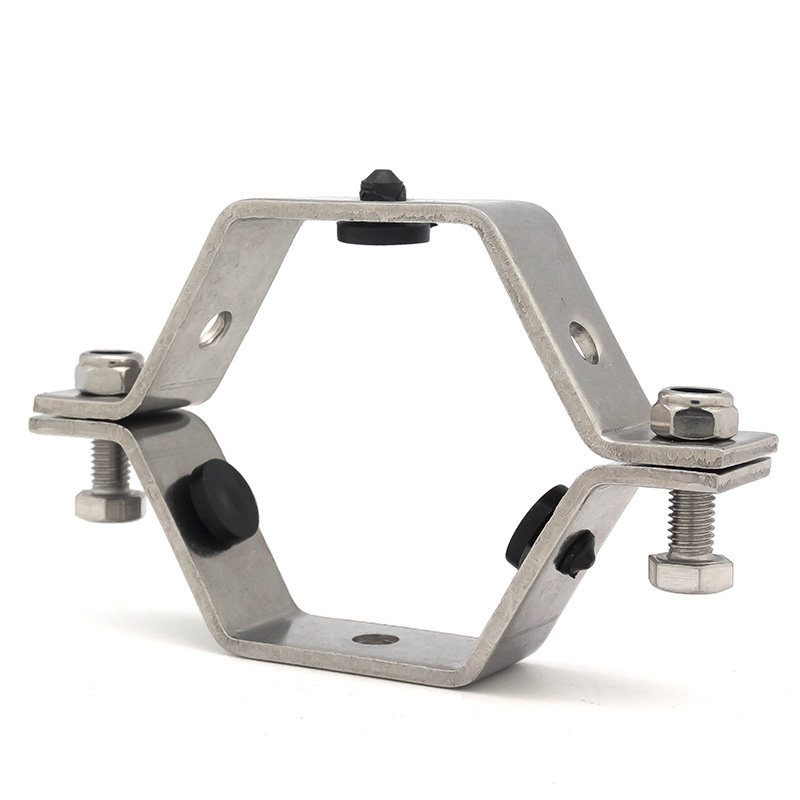

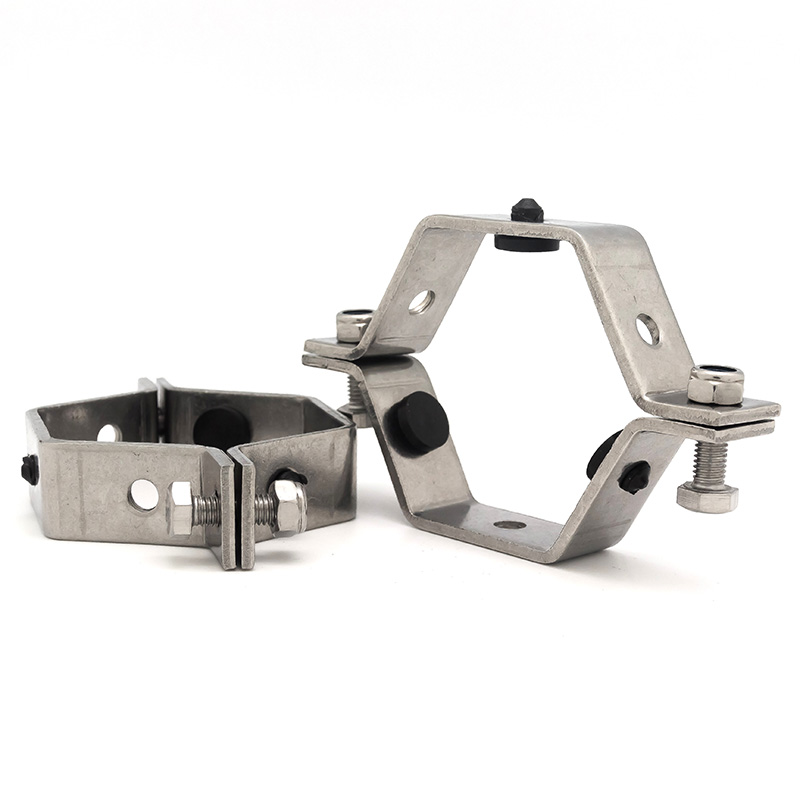

Hex Pipe Hanger with Rubber Grommets
Hex Pipe Hanger with Rubber Grommets
Hex Pipe Hanger with Rubber Grommets
Hex Pipe Hanger with Rubber Grommets

SS304 Pipe Clamp Sanitary Hex Pipe Hanger with Rubber Grommets Casting Stainless Steel High Pressure

Model No.:FH04

SKU:FH04

End Connections:
With Rubber
  • With Rubber
  • With PVC Sleeve
Size:
3A 1/2"
  • 3A 1/2"
  • 3A 3/4"
  • 3A 1"
  • 3A 11/2"
  • 3A 2"
  • 3A 21/2"
  • 3A 3"
  • 3A 4"
  • 3A 6"
Material:
SS304
  • SS304
Inquire PDF Datasheet

Application

FH series tube hangers with different design, widely used on dairy, beverage, foodstuff, pharmaceutical and other industries.

Materials

  • Body: AISI-304

Standard Design

  • Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME

  • End connections: Weld or Female

  • Tube hanger type: Round, Hexagon, with rubber insert

  • Size available: 1/2"-12" or DN10-DN25

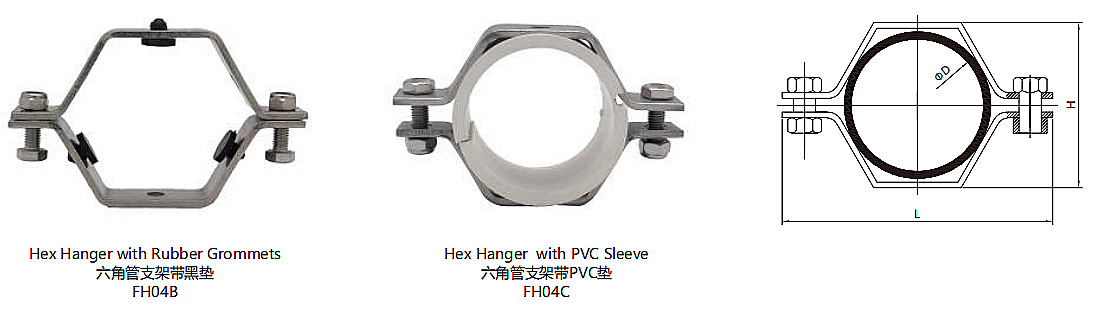

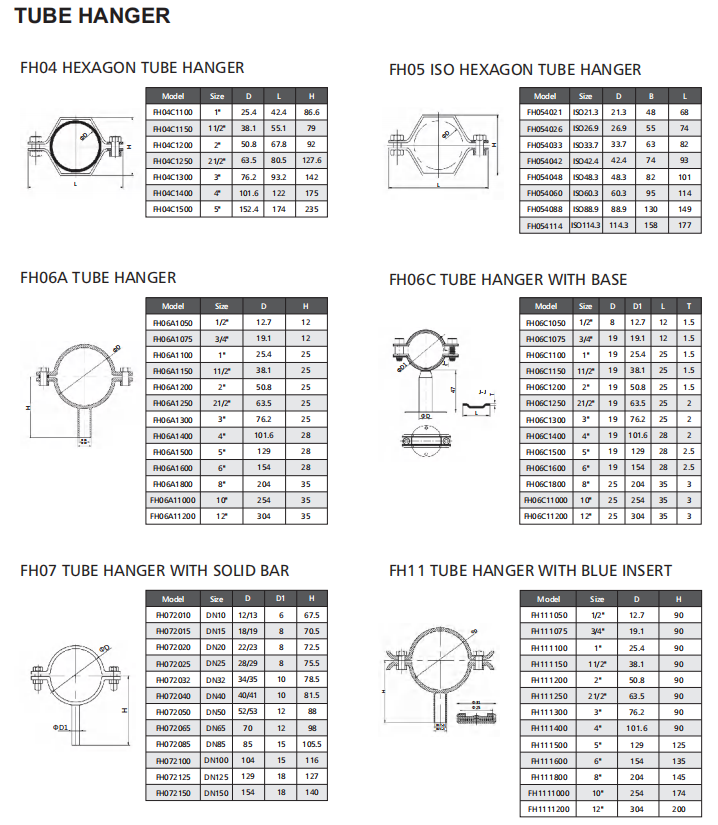

FH04 Hex Pipe Hanger With Rubber/PVC Grommets

Model Size D/mm H/mm L/mm N.W/g
with Rubber with PVC Sleeve with Rubber with PVC Sleeve
FH04B1050 FH04C1050 1/2" 12.7 31 72
FH04B1075 FH04C1075 3/4" 19.05 31 72
FH04B1100 FH04C1100 1" 25.4 42.4 86.6
FH04B1150 FH04C1150 11/2" 38.1 55.1 102
FH04B1200 FH04C1200 2" 50.8 67.8 115
FH04B1250 FH04C1250 21/2" 63.5 80.5 127.6
FH04B1300 FH04C1300 3" 76.2 93.2 142
FH04B1400 FH04C1400 4" 101.6 122 175
FH04B1600 FH04C1600 6" 152.4 174 235
Related products
Pipe Hanger with Blue Insert
SS304 Pipe Clamp Sanitary 3A/DIN Weld Tube With OD19mm Stainless Steel Pipe Hanger with Blue Insert Clamp Fitting

FH series tube hangers with different design, widely used on dairy, beverage, foodstuff, pharmaceutical a...

Inquire

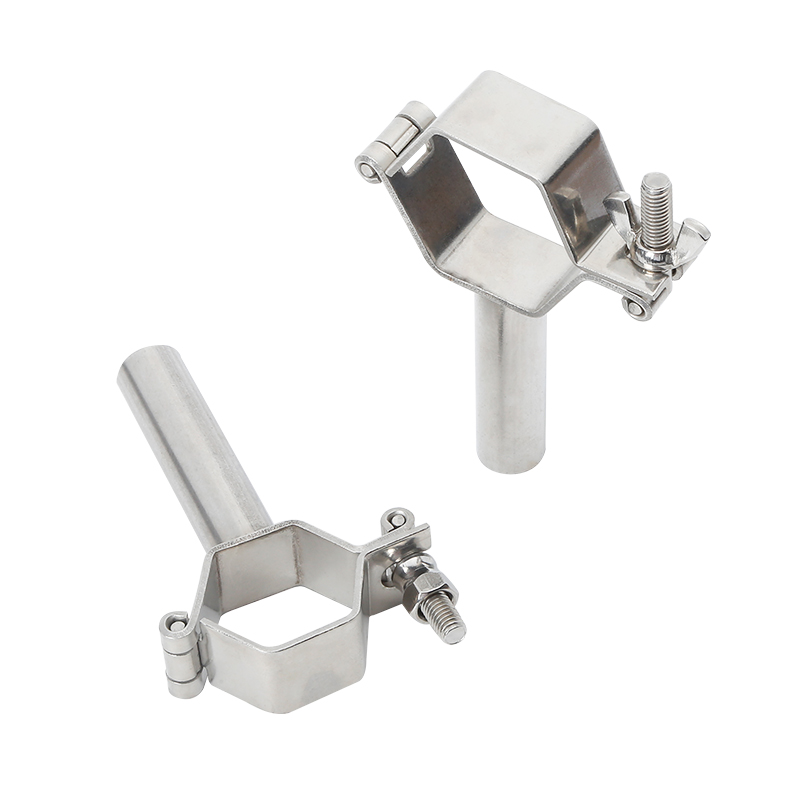

Hexagonal Tube Hanger
SS304 Hexagonal Tube Hanger Stainless Steel Pipe Clamp Sanitary Hex Tube Hanger Weld Tube φ19MM

FH series tube hangers with different design, widely used on dairy, beverage, foodstuff, pharmaceutical a...

Inquire

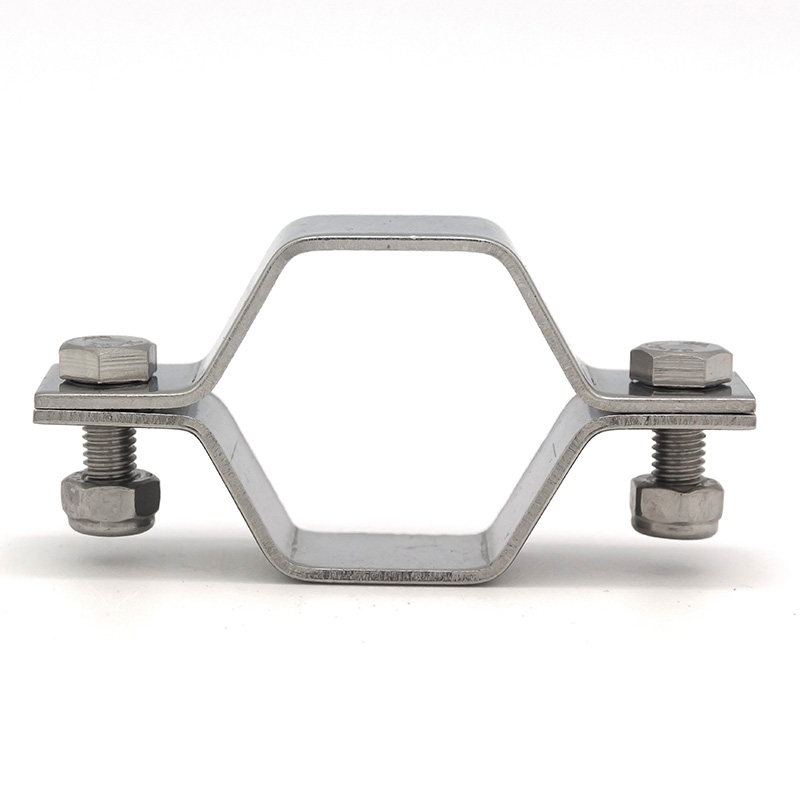

Hex Pipe Hanger
Sanitary SS304 Hexagonal Tube Hanger Mount Clamp Casting Technics Stainless Steel Hex Pipe Hanger

FH series tube hangers with different design, widely used on dairy, beverage, foodstuff, pharmaceutical a...

Inquire

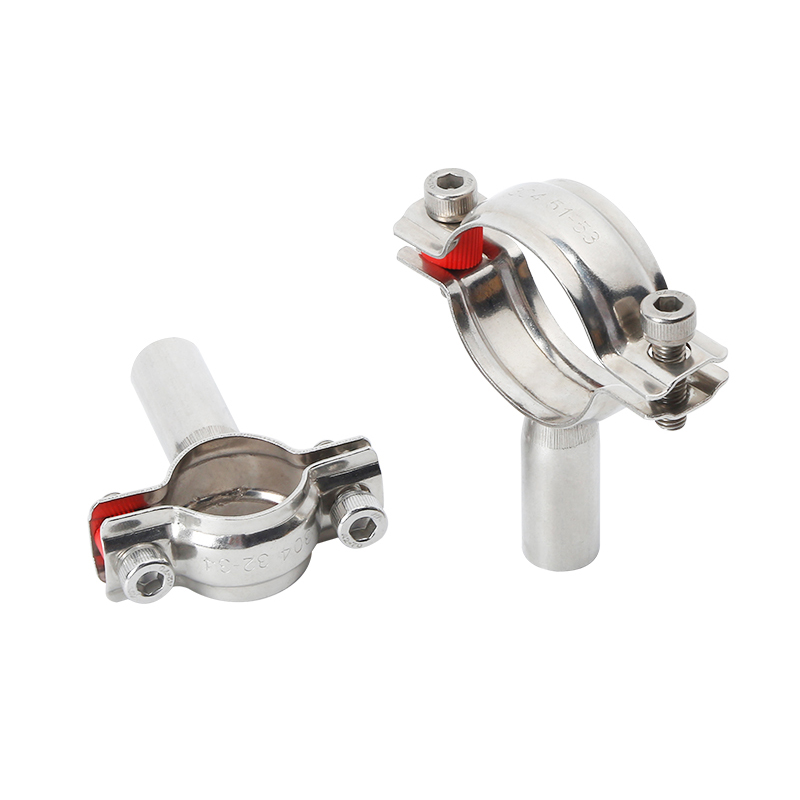

Pipe Hangers
