Hex Pipe Hanger
Hex Pipe Hanger
Hex Pipe Hanger
Hex Pipe Hanger

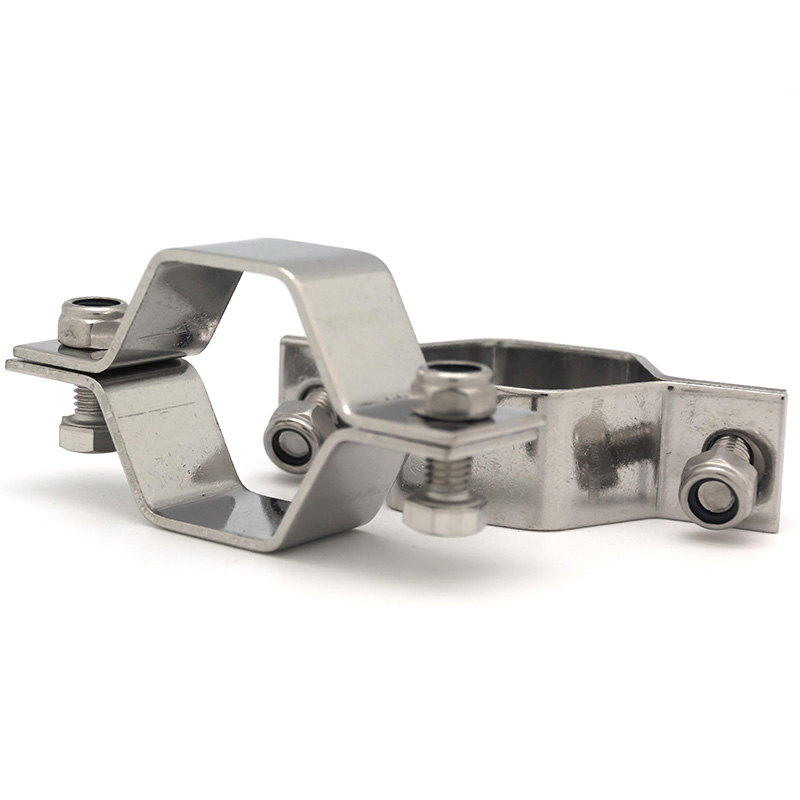

Sanitary SS304 Hexagonal Tube Hanger Mount Clamp Casting Technics Stainless Steel Hex Pipe Hanger

Model No.:FH05

SKU:FH05

End Connections:
None
  • None
Size:
3A 1/2"
  • 3A 1/2"
  • 3A 3/4"
  • 3A 1"
  • 3A 11/2"
  • 3A 2"
  • 3A 21/2"
  • 3A 3"
  • 3A 4"
  • ISO-21.3
  • ISO-26.9
  • ISO-33.7
  • ISO-42.4
  • ISO-48.3
  • ISO-60.3
  • ISO-73
  • ISO-89
  • ISO-114
  • ISO-168
Material:
SS304
  • SS304
Inquire PDF Datasheet

Application

FH series tube hangers with different design, widely used on dairy, beverage, foodstuff, pharmaceutical and other industries.

Materials

  • Body: AISI-304

Standard Design

  • Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME

  • End connections: Weld or Female

  • Tube hanger type: Round, Hexagon, with rubber insert

  • Size available: 1/2"-12" or DN10-DN250

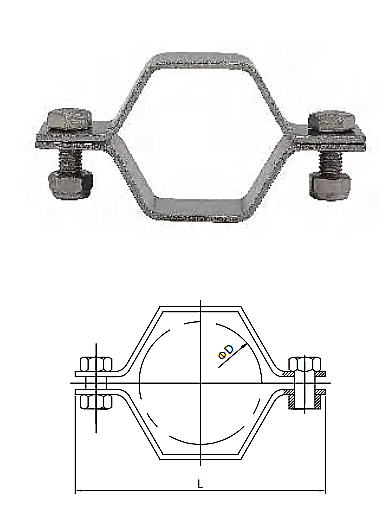

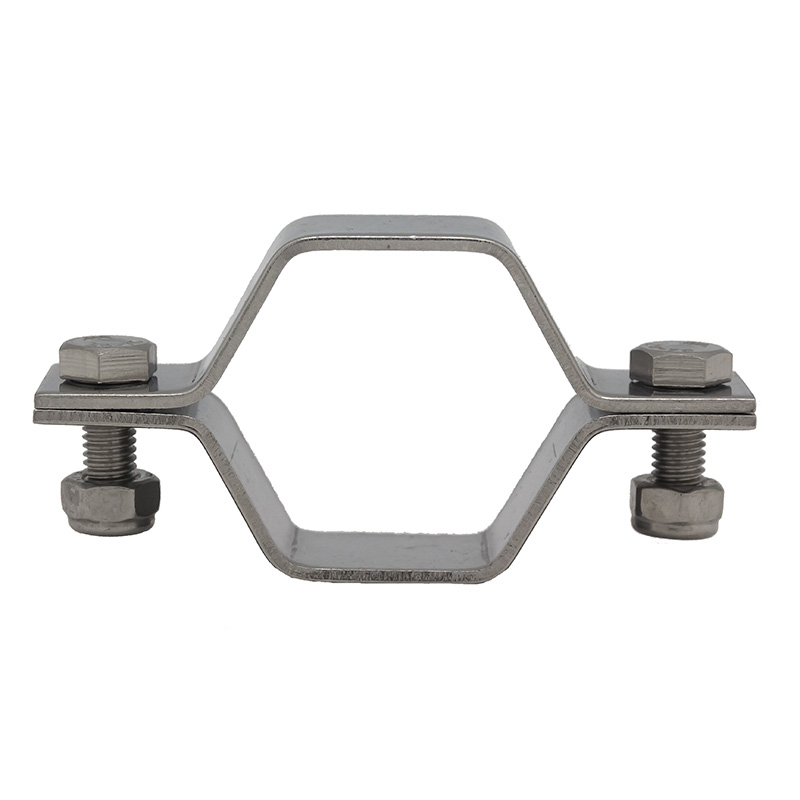

FH05 Hex Pipe Hanger

Model  Size D/mm L/mm N.W/g
FH05N1050 1/2" 13 55
FH05N1100 1" 25.4 74
FH05N1150 11/2" 38.1 88
FH05N1200 2" 50.8 105
FH05N1250 21/2" 63.5 120
FH05N1300 3" 76.2 136
FH05N1400 4" 101.6 168
FH05N7050 1/2"NB 21.3 67
FH05N7075 3/4"NB 26.9 75
FH05N7100 1"NB 33.7 80
FH05N7125 11/4"NB 42.4 93
FH05N7150 11/2"NB 48.3 100
FH05N7200 2"NB 60.3 115
FH05N7250 21/2"NB 73 130
FH05N7300 3"NB 88.9 150
FH05N7400 4"NB 114 177
FH05N7600 6"NB 168 243
