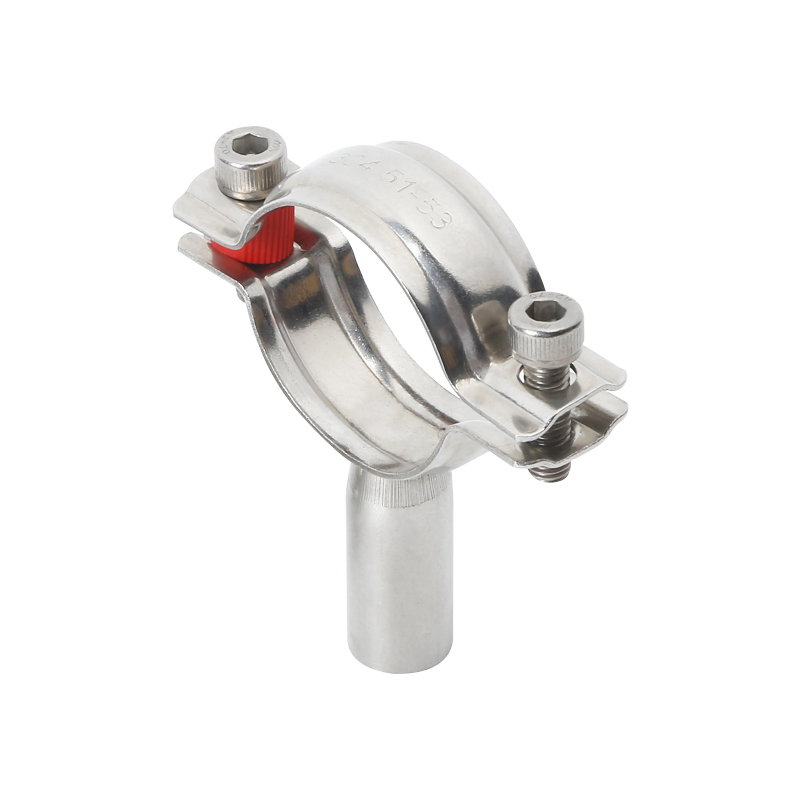

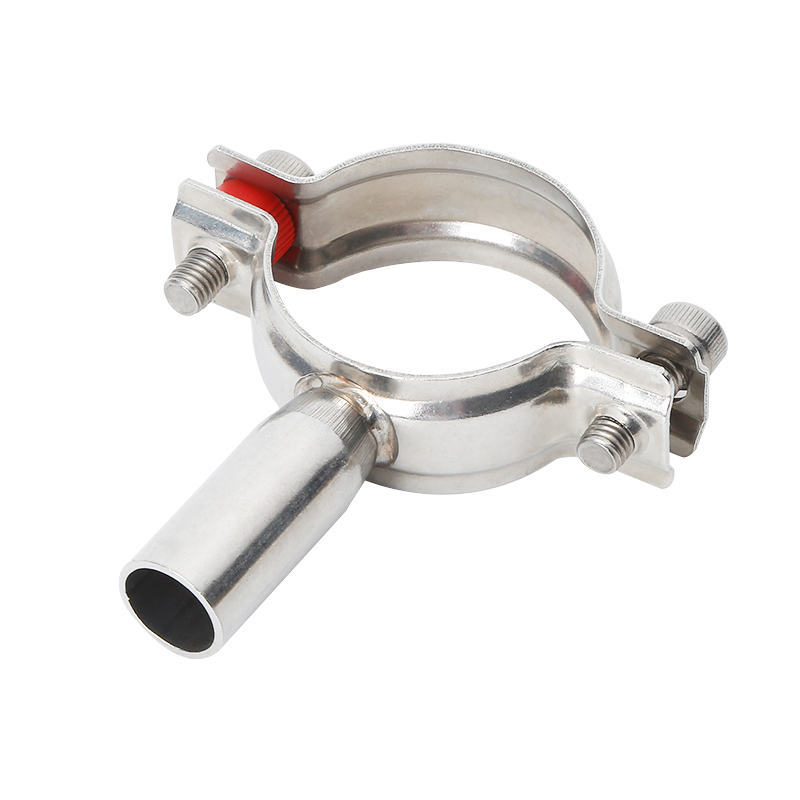

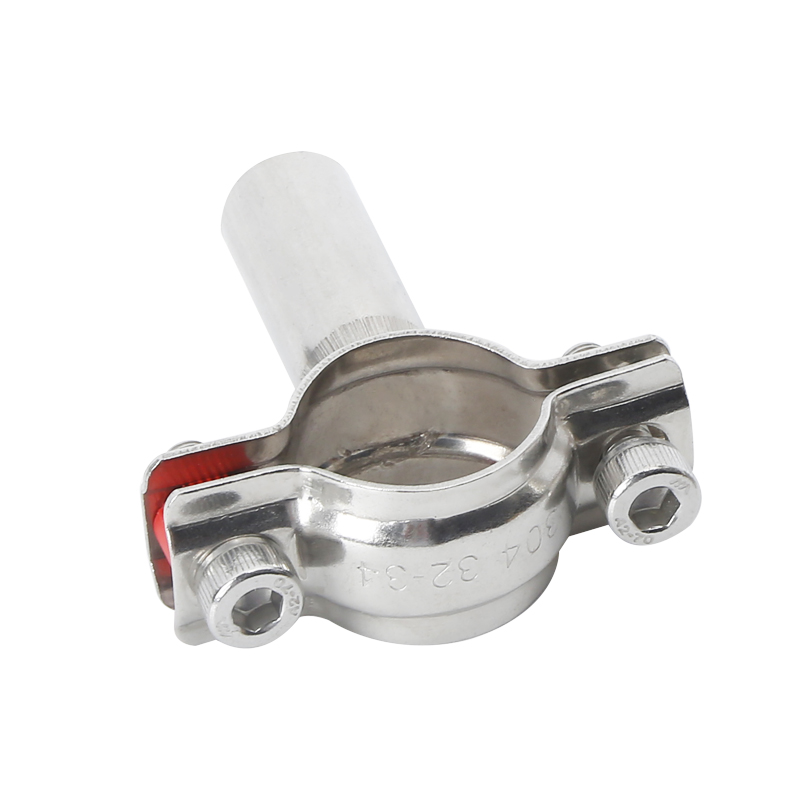

Name: SS304 Pipe Hangers with Tube OD19MM Stainless Steel Pipe Clamp Fitting Sanitary High Quality Pipe Hangers
Brand: QIMING
SKU: 00095
Rating: 4.9 (98 reviews)

SS304 Pipe Hangers with Tube OD19MM Stainless Steel Pipe Clamp Fitting Sanitary High Quality Pipe Hangers

Model No.:FH06

SKU:FH06

End Connections:

Size:

Material:

Application

FH series tube hangers with different design, widely used on dairy, beverage, foodstuff, pharmaceutical and other industries.

Materials

Body: AISI-304

Standard Design

Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME
End connections: Weld or Female
Tube hanger type: Round, Hexagon, with rubber insert
Size available: 1/2"-12" or DN10-DN250

FH06 Pipe Hangers


Model		Size	D1/mm	N.W/g
with Tube	with Base	Size	D1/mm	with Tube	with Base
FH06W1050	FH06B1050	1/2"	φ12-14	81	121.3
FH06W1075	FH06B1075	3/4"	φ19-22	86	116.8
FH06W1100	FH06B1100	1"	φ25-27	89	124
FH06W1125	FH06B1125	11/4"	φ32-34	99	126.5
FH06W1150	FH06B1150	11/2"	φ38-40	100	147
FH06W1175	FH06B1175	45	φ42-45	102	143.3
FH06W1200	FH06B1200	2"	φ51-53	117	149
FH06W1225	FH06B1225	57	φ54-57	120	157.2
FH06W1250	FH06B1250	21/2"	φ63-66	147	191
FH06W2065	FH06B2065	70	φ70-75	152
FH06W1300	FH06B1300	3"	φ76-80	163	195.7
FH06W1350	FH06B1350	3.5"	φ85-89	178	218
FH06W1400	FH06B1400	4"	φ102-108	199	240
FH06W1450	FH06B1450	114	φ114	210
FH06W1525	FH06B1525	133	φ133	298
FH06W1550	FH06B1550	140	φ140	323
FH06W1625	FH06B1625	159	φ152-159	331
FH06W1660	FH06B1660	168	φ168	365
FH06W1800	FH06B1800	8"	φ204	665
FH06W1860	FH06B1860	219	φ219	733
FH06W11000	FH06B11000	10"	φ254	821
FH06W11075	FH06B11075	273	φ273	961
FH06W11200	FH06B11200	12"	φ305	1025
FH06W11275	FH06B11275	325	φ325	1073
