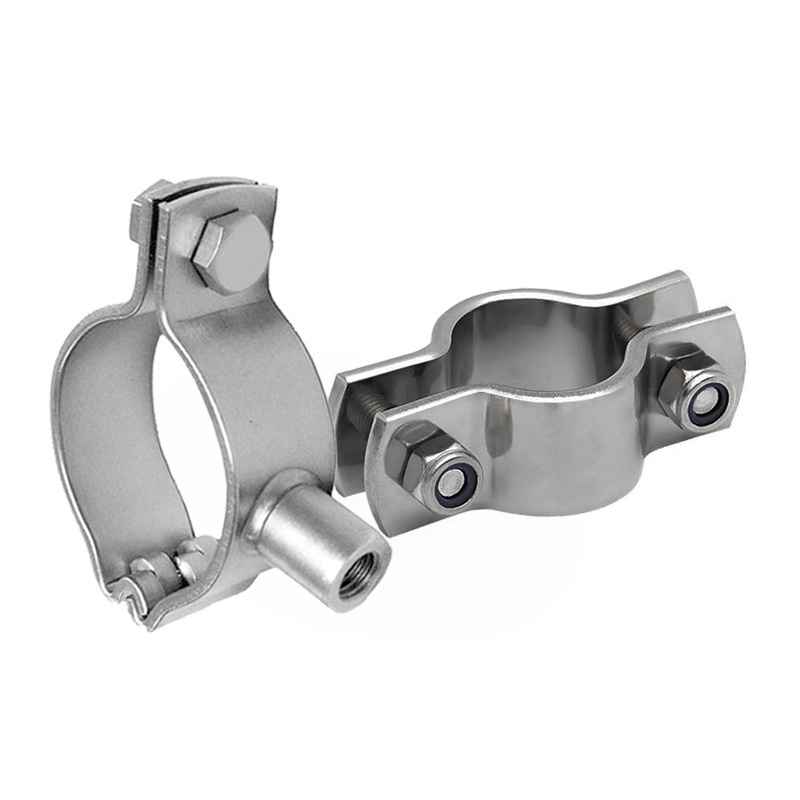

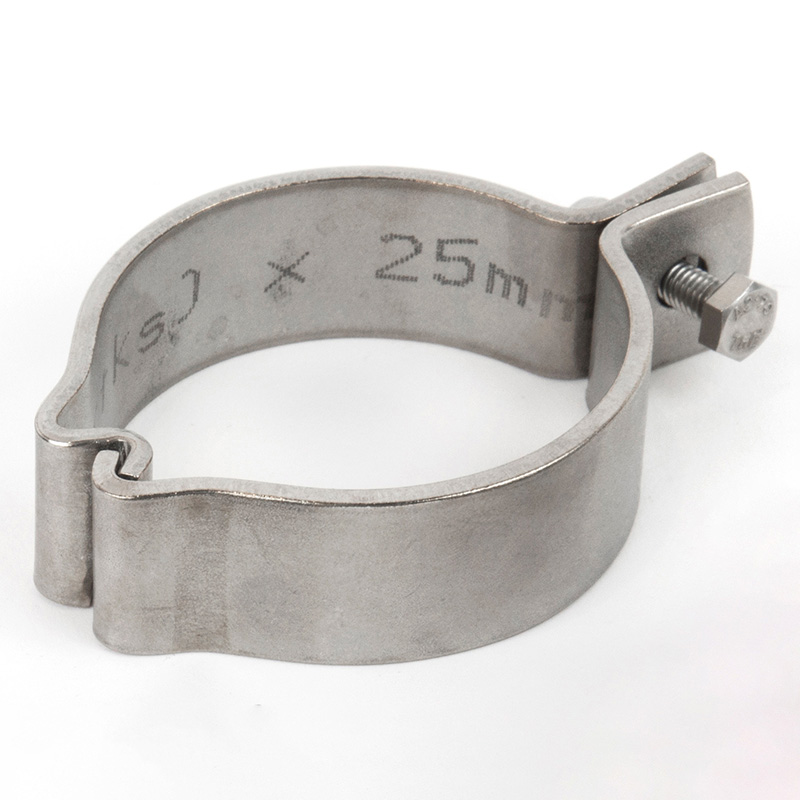

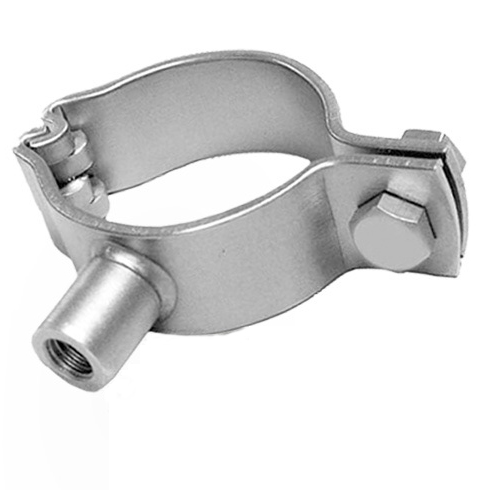

Interlocking Clamp/Bossed Clamp
Interlocking Clamp/Bossed Clamp
Interlocking Clamp/Bossed Clamp

Sanitary Pipe Hanger With Female Rod Interlocking Clamp/Bossed Clamp Stainless Steel Tube Hanger SS304 Pipe Clamp

Model No.:FH02

SKU:FH02

End Connections:
Female
  • Female
  • None
Size:
3A 3/4"
  • 3A 3/4"
  • 3A 1"
  • 3A 11/2"
  • 3A 2"
  • 3A 21/2"
  • 3A 3"
  • 3A 4"
Material:
SS304
  • SS304
Inquire PDF Datasheet

Application

FH series tube hangers with different design, widely used on dairy, beverage, foodstuff, pharmaceutical and other industries.

Materials

  • Body: AISI-304

Standard Design

  • Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME

  • End connections: Weld or Female

  • Tube hanger type: Round, Hexagon, with rubber insert

  • Size available: 1/2"-12" or DN10-DN250

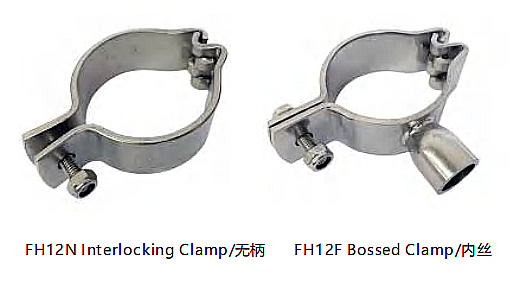

FH12 Interlocking Clamp/Bossed Clamp

Model  Size OD/MM FH12F Connection N.W/g
None Female None Female
FH12N1075 FH12F1075 3/4" 19 φ6mm rod，H=100mm
FH12N1100 FH12F1100 1" 25 G1/2"
FH12N1150 FH12F1150 11/2" 38 G1/2"
FH12N1200 FH12F1200 2" 51 G1/2"
FH12N1250 FH12F1250 21/2" 63 G1/2"
FH12N1300 FH12F1300 3" 76 G1/2"
FH12N1400 FH12F1400 4" 102 G1/2"
Related products

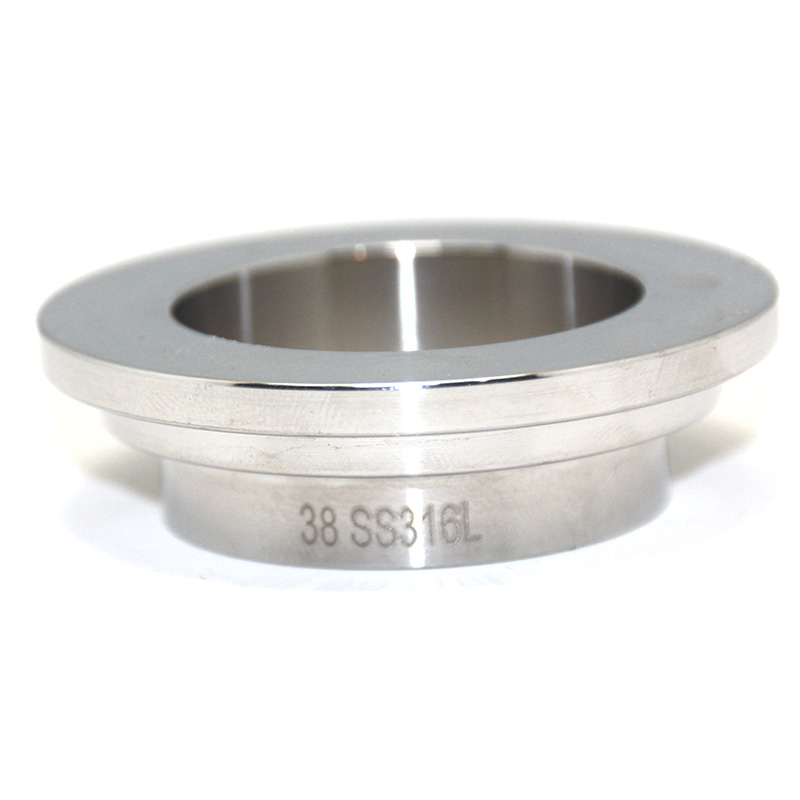

SMS Liner
Stainless Steel SMS Short Liner SS304 SS316L Short Stepped Liner Sanitary Long Liner High Quality SMS Long Stepped Liner Union Fittings

Union Fittings are used on permanent installations where process piping and equipment can be cleaned in p...

Inquire

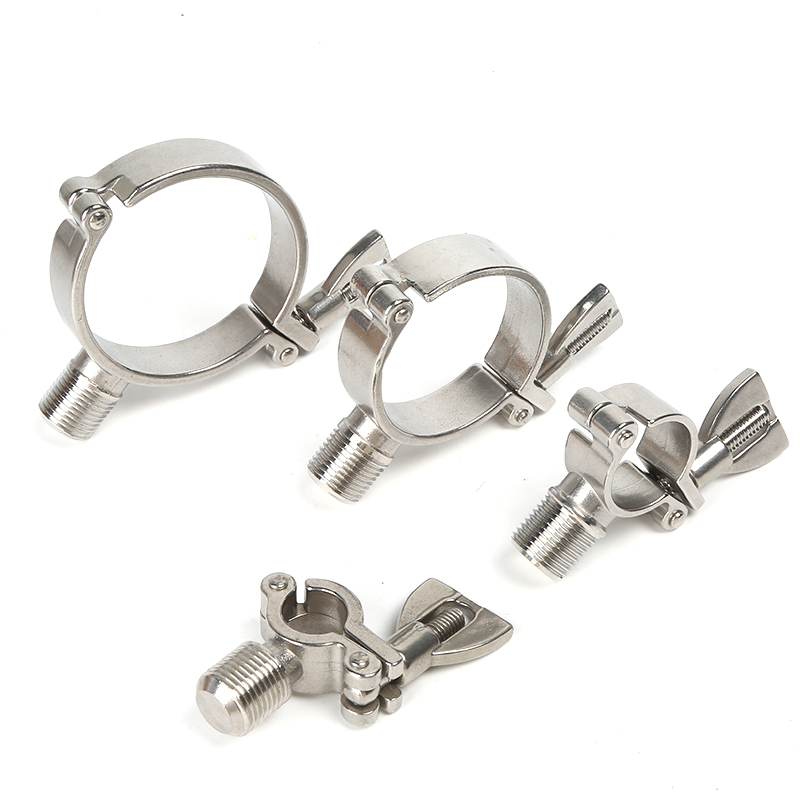

Male 3A Casting Pipe Hanger
SS304 Male 3A Casting Pipe Hanger Stainless Steel Tube Hanger with Male Rod Sanitary Pipe Clamp Fitting

FH series tube hangers with different design, widely used on dairy, beverage, foodstuff, pharmaceutical a...

Inquire
Interlocking Clamp/Bossed Clamp
Sanitary Interlocking Clamp/Bossed Clamp Stainless Steel Tube Hanger SS304 Clamp Pipe Hanger

FH series tube hangers with different design, widely used on dairy, beverage, foodstuff, pharmaceutical a...

Inquire

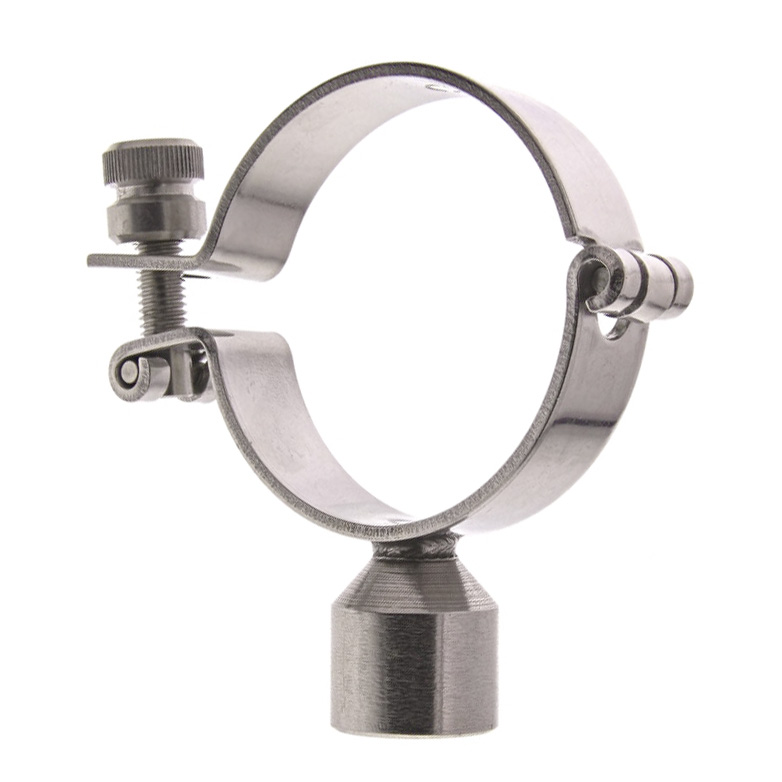

Pipe Hanger
