FH series tube hangers with different design, widely used on dairy, beverage, foodstuff, pharmaceutical and other industries.
Body: AISI-304
Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME
End connections: Weld or Female
Tube hanger type: Round, Hexagon, with rubber insert
Size available: 1/2"-12" or DN10-DN250

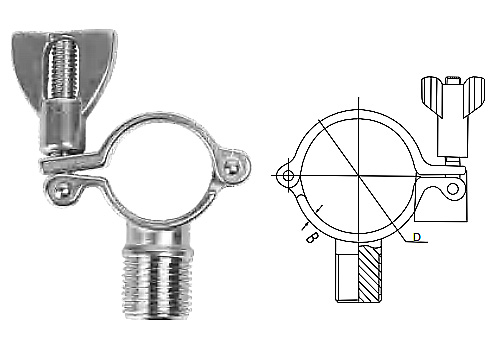

FH16 Male 3A Casting Pipe Hanger
 |
Model | Size | D/mm | B/mm | N.W/g |
| FH16M1050 | 1/2" | 12.7 | 3 | 162 | |
| FH16M1075 | 3/4" | 19.1 | 3 | 177 | |
| FH16M1100 | 1" | 25.4 | 3 | 175 | |
| FH16M1125 | 11/4" | 32 | 3 | 182 | |
| FH16M1150 | 11/2" | 38.1 | 3 | 189 | |
| FH16M1200 | 2" | 50.8 | 4 | 236 | |
| FH16M1250 | 21/2" | 63.5 | 4 | 255 | |
| FH16M1300 | 3" | 76.2 | 5 | 315 | |
| FH16M1400 | 4" | 102 | 5 | 366 | |
| FH16M1500 | 5" | 127 | 5 | 465 | |
| FH16M1600 | 6" | 154 | 5 | 600 | |
| FH16M1800 | 8" | 204 | 6.5 | 796 | |
| FH16M11000 | 10" | 254 | 6.5 | 950 |
