TCC Clip ON/Female Sanitary Rotary Cleaner SS304 SS316L Stainless Steel

Application

Tank Spray Cleaning Head uses cleaning media to provide  coverage and impact. The device represents an effective alternative to traditional static spray balls because it uses low volumes of cleaning fluid at low pressure.

TCN is a fixed cleaning ball used for cleaning storage tanks in  food and beverage industries, which are used for less  demanding cleaning duties.

TCR is a rotating head with double ball bearing, it makes the device suitable for all industrial cleaning applications, including  tanks, reactors, vessels and other containers ranging from 0.05  to 1 m³, depending on dimensions and cleaning task.

Materials

• Body Material: SS304 or SS316L

• Clip parts: SS304

DESIGN AND FEATURES

• Different Spray Pattern

• Different Connection Way

• Different Connection Standard

TECHNICAL DATA

Wetting Radius:                         Max. 2.5m

Impact cleaning radius:              Max. effective 0.6m

Working pressure:                        1-3Bar

Recommended pressure:           2.5Bar

FINISH

Exterior: Satin or Mirror

CONNECTION

Clamp, Weld, Clip on, Female or on request.

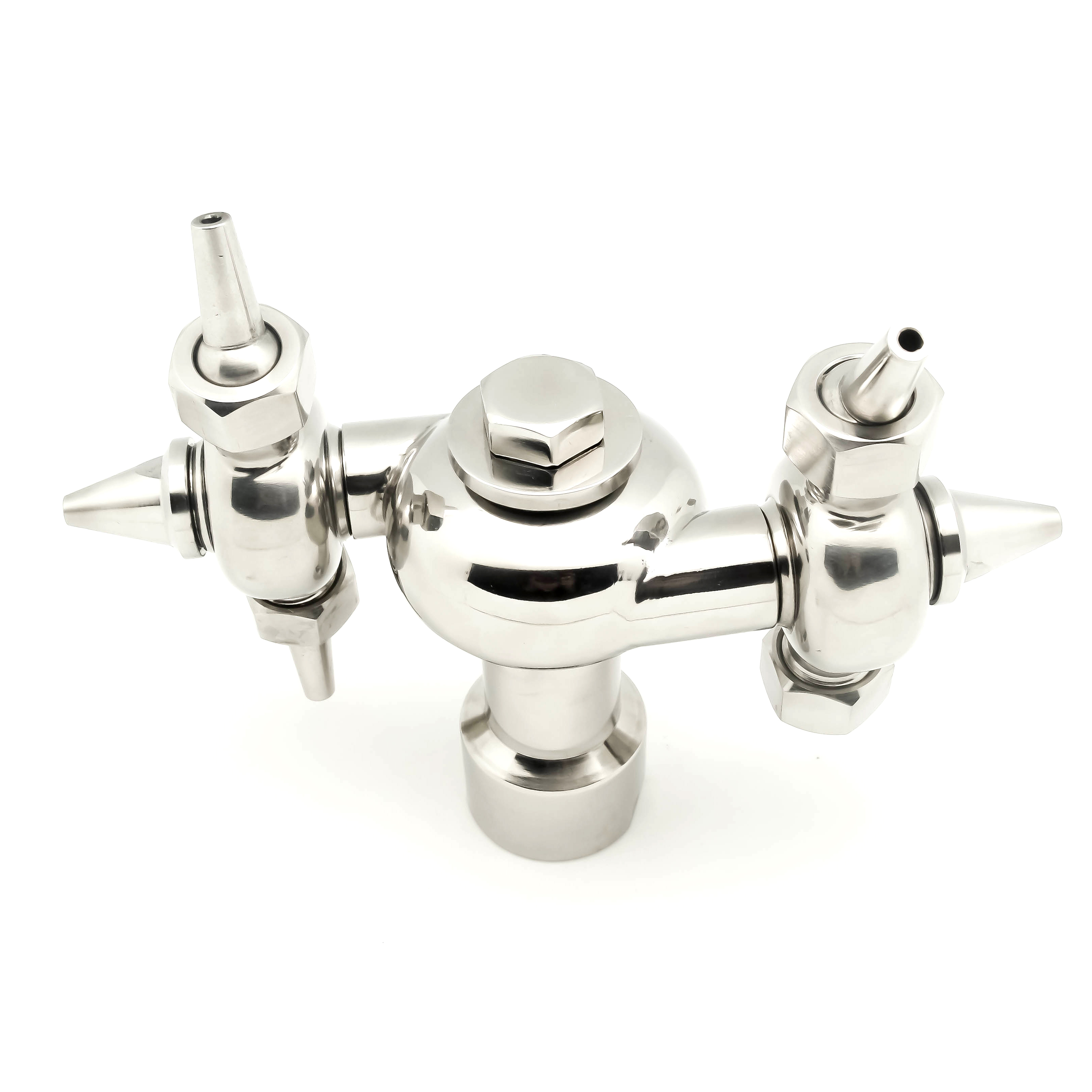

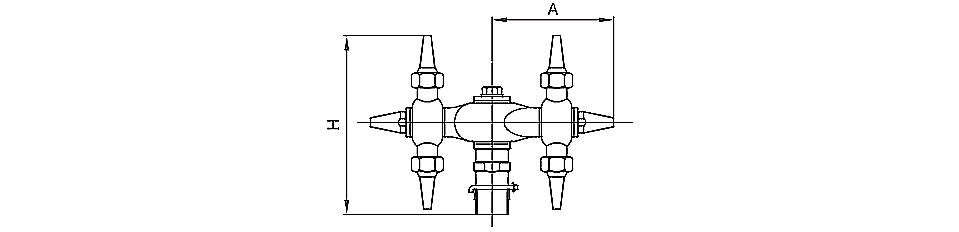

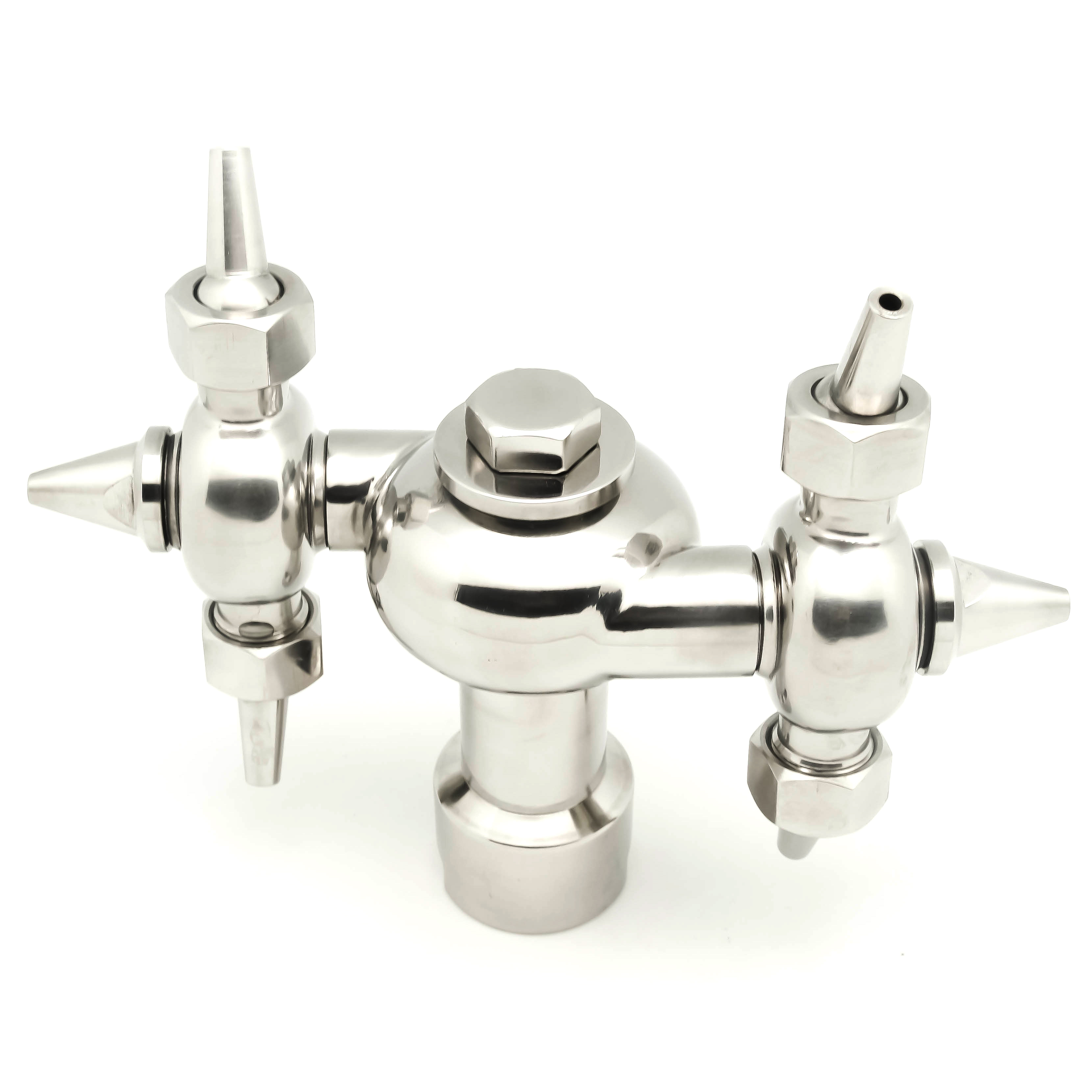

Clip ON Rotary Cleaner

Model No	Size	A	Q	Pressure	Spray Radius	Flow Rate
TCC01B411001	1''	118	175	1.5-2Bar	2-3mm	23
TCC01B411251	11/4''	142	200	1.8-2.5Bar	2.5-3mm	38
TCC01B411501	11/2''	142	200	1.8-2.5Bar	2.5-3mm	38
TCC01B412001	2"	145	205	2.5-3Bar	3.5-4mm	60

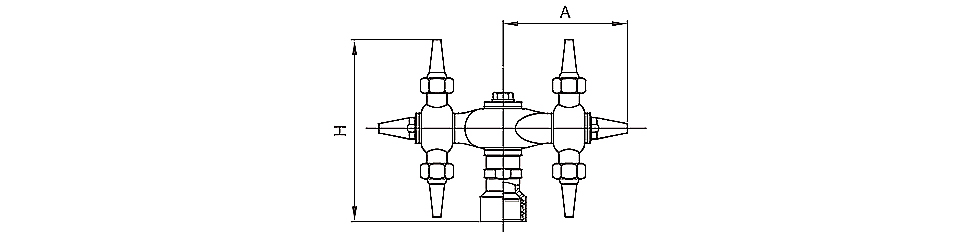

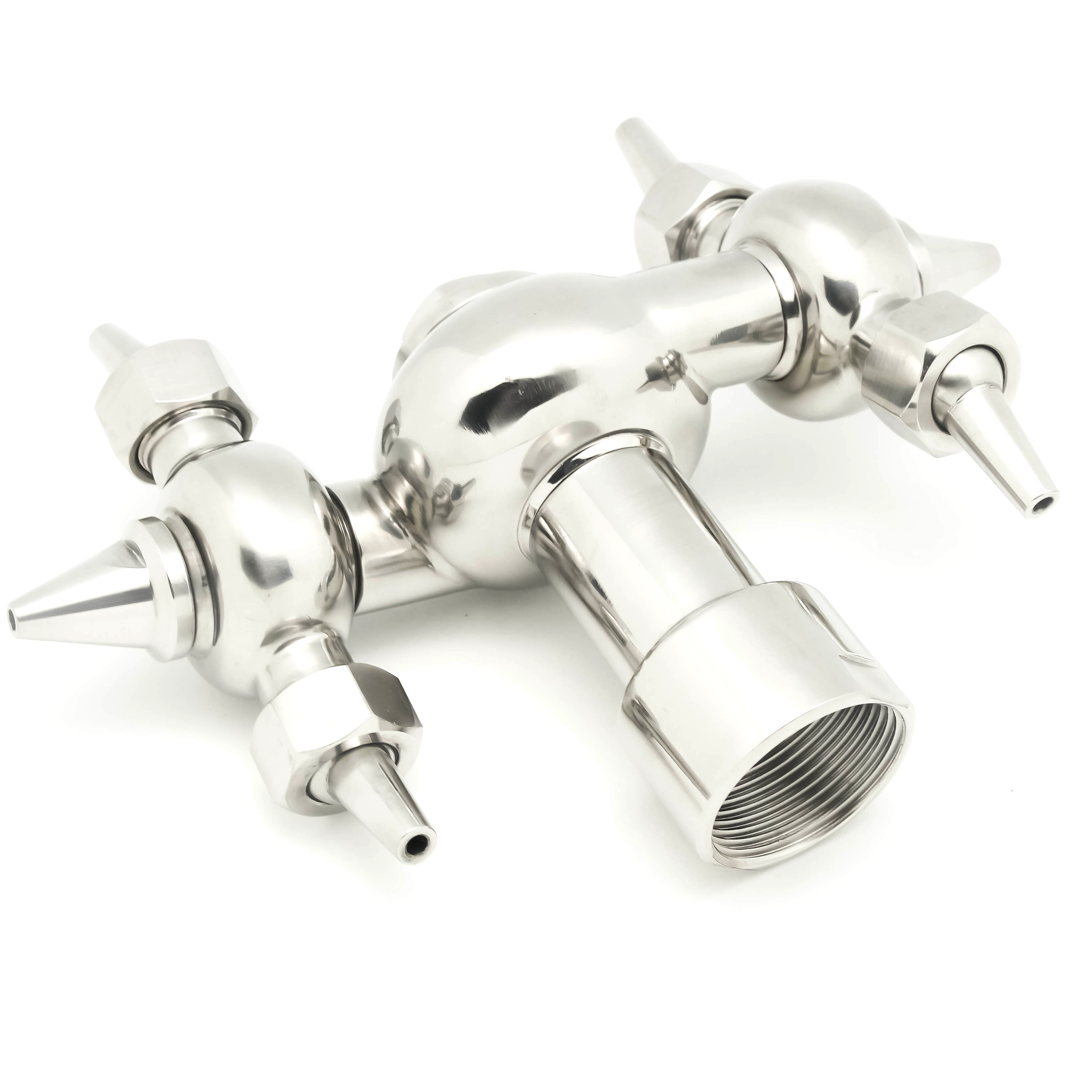

Female Rotary Cleaner

Model No	Size	A	Q	Pressure	Spray Radius	Flow Rate
TCC01B411001	1''	118	165	1.5-2Bar	2-3mm	23
TCC01B411251	11/4''	142	189	1.8-2.5Bar	2.5-3mm	38
TCC01B411501	11/2''	142	189	1.8-2.5Bar	2.5-3mm	38
TCC01B412001	2"	145	191	2.5-3Bar	3.5-4mm	60
