Application

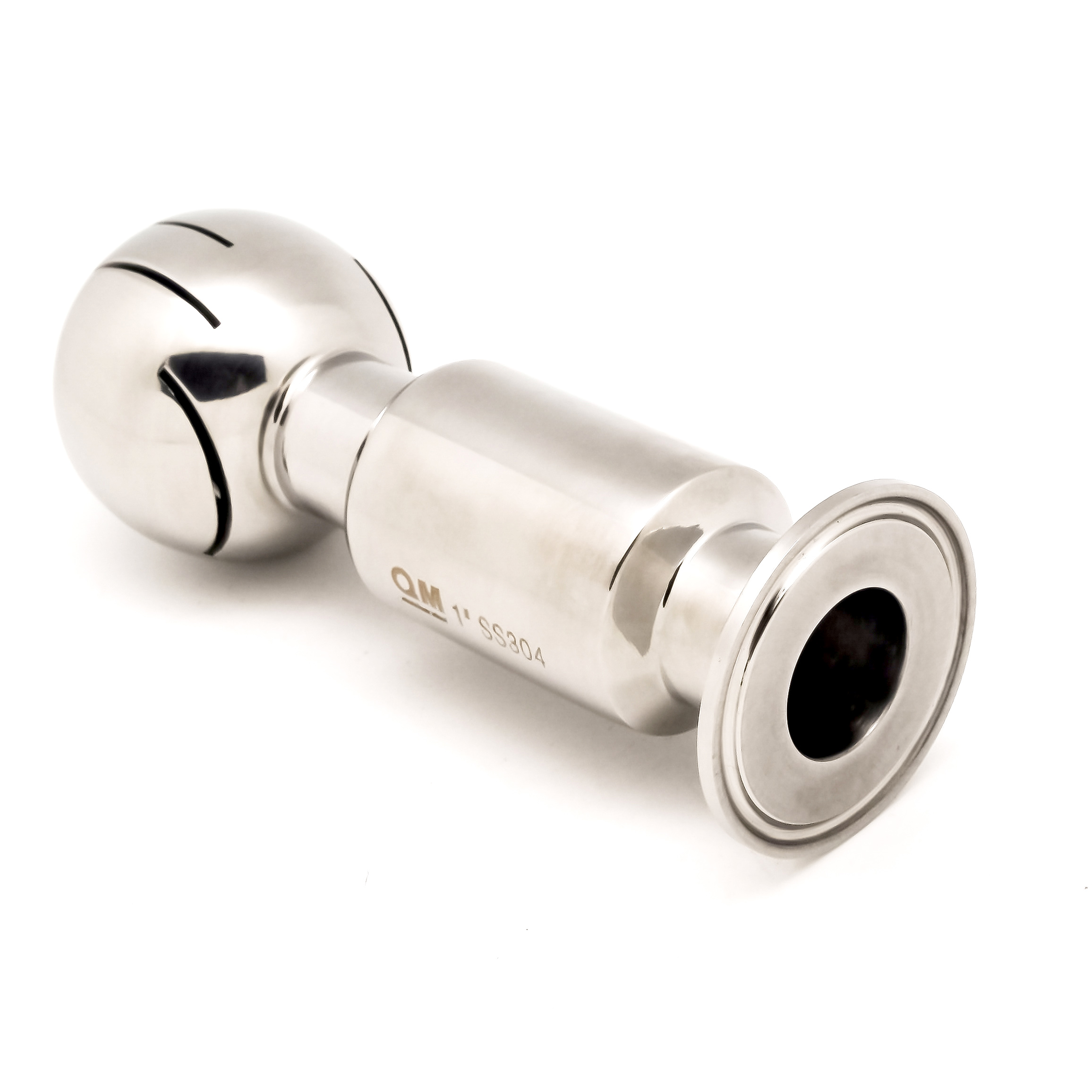

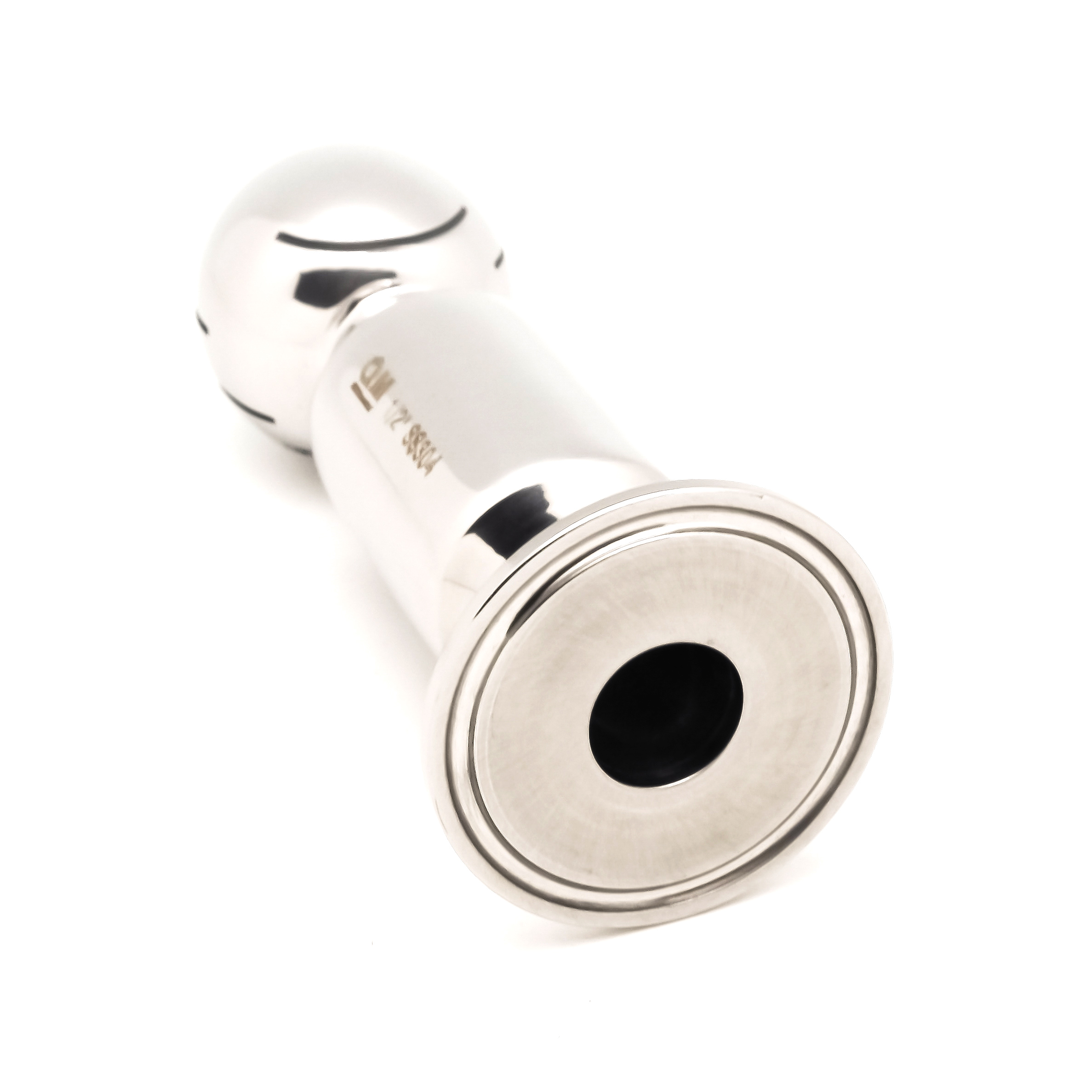

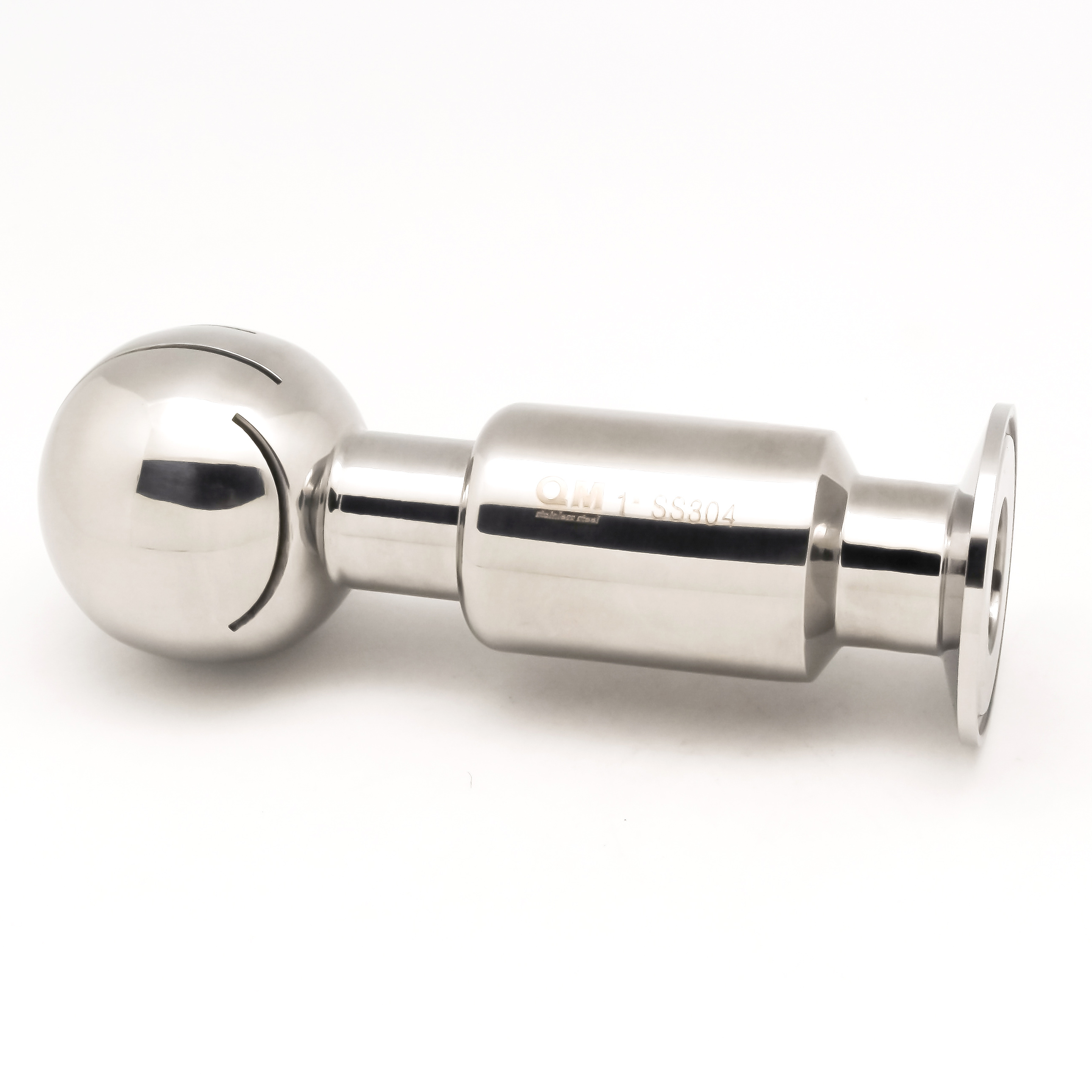

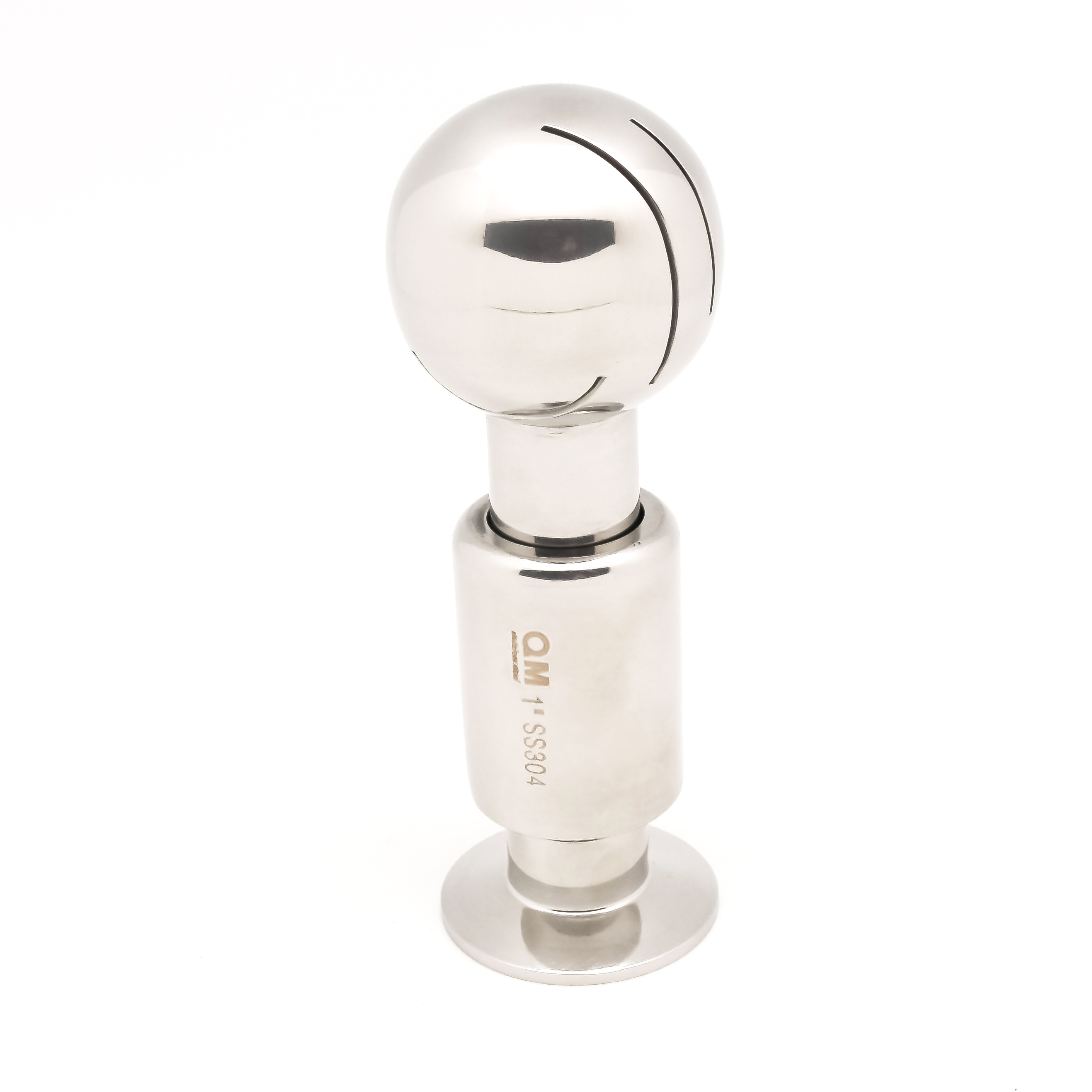

TCR Series Sanitary Rotary Cleaning Ball applies dual ball bearing design, is better for CIP application coverage and time saving.

Materials

Stainless Steel 304 or Stainless Steel 316L

Standard Design

Available in size from 1"-2", DN15-DN65

Standards: DIN, SMS, ISO / IDF

End connections: thread or clip on

Technical Specification

• Max Temperature: 284°F (140°C)

• Working Pressure: 14.5-50Psi (1-3.5Bar)

• Cleaning Radius: 3.2-10ft

• Finished: mirroir or stain
