SS304 SS316L Sanitary Multi-Cartridge Filter Housing Stainless Steel High Quality and Crevice Free Construction Tank Fitting

Model No.:TFM

SKU:TFM

Filter Series No.:

Fliter Length:

Cartridges Configurations:

End Connections:

Body Materials:

Gasket Material:

Size.:

Application

TFM sanitary filter housing is designed for sanitary, pharmaceutical, biological, biotechnological, food and beverage applications, constructed in stainless steel 304 or 316L with a crevice free design. Designed for hot water, chemical and steam sterilisation. Ideal for use with filter cartridges ranging from clarification to sterilising grade membranes. Suitable for applications where CIP and SIP cleaning and sterilization procedures are required.

Materials

Cartridge housing material :SS304/SS316L
Clamp :SS304
Tri clamp Gasket:Silicon per FDA 177.2600
Venting (optional):SS304/SS316L
Draining (optional) :SS304/SS316L

Standard Design

T type Design
High-quality and crevice free construction
Tri-Clamp Closure
Sanitary process, vent & drain connections
Cartridges in 222/Fin or 226/Fin configurations
Single cartridge
Length of filter cartridges: 10", 20", 30", 40"

Technical Specification

Temperature range: -10°C to 120°C(Silicon)
Working Pressure: 8 bar up to 40 °C
Steam Sterilization :121°C/ 30 min

Surface Finishing

Inner surface: Mechanical polished, surface roughness < 0.4 μm
Outer surface: Mechanical polished, surface roughness < 0.8 μm

Operating Conditions

Max.operating temperature: -10℃ to 120°C(Silicon)
Max. operating pressure:8 bar up to 40 °C
Steam Sterilization:121°C/ 30 min

Connection

Body Connection: Tri-Clamp Closure (Single Round)/Swing Bolt Closures( Multi-Round )
Inlet/outlet :Dairy pipe fittings for dairy pipes as per DIN 11851 or weld end clamps Tc for pipes as per ls0 2037 or flanges
Vent :M6 thread/Tc 25.2mm
Drain:Clamp 1/2"(TC 25.2mm)

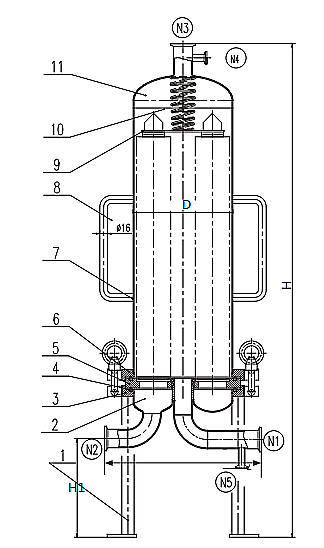

Rarts List			Pipe Connection
Item	Description	Material	Item	Description	Connection	Size
1	Leg	SS304/SS316L	N1	Inlet	Clamp/Weld	1.5"
2	Head Assembly	SS304/SS316L	N2	Outlet	Clamp/Weld	1.5"
3	Lower Flange	SS304/SS316L	N3	Pressure Gauge Connection	Clamp	1.5"
4	Housing Gasket	Silicon	N4	Vent	Clamp	1/2"
5	Plate	SS304/SS316L	N5	DRain	Clamp	1/2"
6	Upper Flange	SS304/SS316L
7	Bowl	SS304/SS316L
8	Handle	SS304
9	Plate	SS304/SS316L
10	Spring	SS304/SS316L
11	Cap	SS304/SS316L
12	Swing Bolt	SS304

Model No	Cartridges			D	H	H1	L	Inlet & Outlet
Model No	QTY	Length	Configurations	D	H	H1	L	Connection	Size
TFM3R10S22411150	3-4	10"	226	204	625	200	320	Clamp	1.5"
TFM3R10S22411150	3-4	20"	226	204	875	200	320	Clamp	1.5"
TFM3R10S22411150	3-4	30"	226	204	1125	200	320	Clamp	1.5"
TFM3R10S22411150	3-4	40"	226	204	1375	200	320	Clamp	1.5"
TFM3R10S22411200	5-6	10"	226	235	780	200	320	Clamp	2"
TFM3R10S22411200	5-6	20"	226	235	1030	200	320	Clamp	2"
TFM3R10S22411200	5-6	30"	226	235	1280	200	320	Clamp	2"
TFM3R10S22411200	5-6	40"	226	235	1530	200	320	Clamp	2"
TFM3R10S22411250	7-8	10"	226	273	805	200	400	Clamp	2.5"
TFM3R10S22411250	7-8	20"	226	273	1055	200	400	Clamp	2.5"
TFM3R10S22411250	7-8	30"	226	273	1305	200	400	Clamp	2.5"
TFM3R10S22411250	7-8	40"	226	273	1555	200	400	Clamp	2.5"
