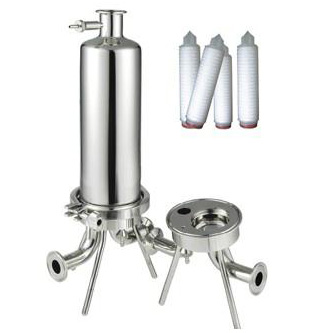

Inline Cartridges Filter Housing High-Quality Crevice Free Construction Stainless Steel Tri-Clamp Closure SS304/SS316L

Application

TFM sanitary filter housing is designed for sanitary, pharmaceutical, biological, biotechnological, food and beverage applications, constructed in stainless steel 304 or 316L with a crevice free design. Designed for hot water, chemical and steam sterilisation. Ideal for use with filter cartridges ranging from clarification to sterilising grade membranes. Suitable for applications where CIP and SIP cleaning and sterilization procedures are required.

Materials

• Cartridge housing material :SS304/SS316L
• Clamp :SS304
• Tri clamp Gasket:Silicon per FDA 177.2600
• Venting (optional):SS304/SS316L
• Draining (optional) :SS304/SS316L

Standard Design

• T type Design
• High-quality and crevice free construction
• Tri-Clamp Closure
• Sanitary process, vent & drain connections
• Cartridges in 222/Fin or 226/Fin configurations
• Single cartridge
• Length of filter cartridges: 10", 20", 30", 40"

Technical Specification

• Temperature range: -10°C to 120°C(Silicon)

• Working Pressure: 8 bar up to 40 °C

• Steam Sterilization :121°C/ 30 min

Surface Finishing

• Inner surface: Mechanical polished, surface roughness < 0.4 μm
• Outer surface: Mechanical polished, surface roughness < 0.8 μm

Operating Conditions

• Max.operating temperature: -10℃ to 120°C(Silicon)
• Max. operating pressure:8 bar up to 40 °C
• Steam Sterilization:121°C/ 30 min

Connection

• Body Connection: Tri-Clamp Closure (Single Round)/Swing Bolt Closures( Multi-Round )
• Inlet/outlet :Dairy pipe fittings for dairy pipes as per DIN 11851 or weld end clamps Tc for pipes as per ls0 2037 or flanges
• Vent :M6 thread/Tc 25.2mm
• Drain:Clamp 1/2"(TC 25.2mm)

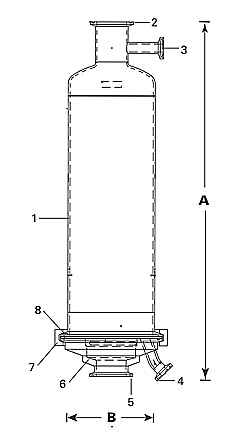

	Item	Description	Material
	1	Bowl	SS304/SS316L
	2	Inlet	SS304/SS316L
	3	Vent	SS304/SS316L
	4	Drain	SS304/SS316L
	5	Outlet	SS304/SS316L
	6	Head assembly	SS304/SS316L
	7	Housing Clamp	SS304
	8	Housing Gasket	Silicon
